Caja Obscura / Javier Corvalán + Laboratorio de Arquitectura

© Pedro Kok

Architects: Javier Corvalán + Laboratorio de Arquitectura
Location: Asunción,
Design Team: Arq. Nicolas Berger, Arq. Carlos Agüero, Lic. Magdalena Oddone
Area: 85 sqm
Year: 2012
Photographs: Pedro Kok

Structural Engineering: Arq. Javier Corvalán
Construction Supervision: Arq. Javier Corvalán
Plant Engineering: Ing. Carlos Amarilla
Landscape Design: Ing. Carlos Amarilla
Client: Paz Encina, Ignacio Telesca
Cost: 20,000 Euros

From the architect. The project of Casa Obscura is a project of material and immaterial technology at the same time, in some way it is an antithesis of many known definitions of architecture, as the idea is made by absence of light.

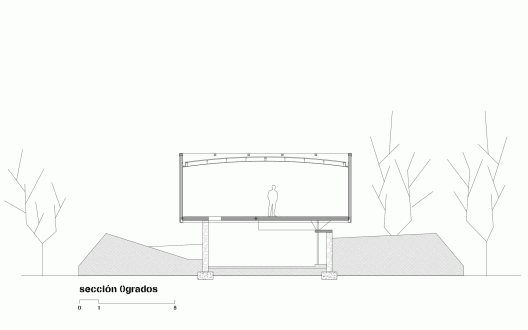

0º Section

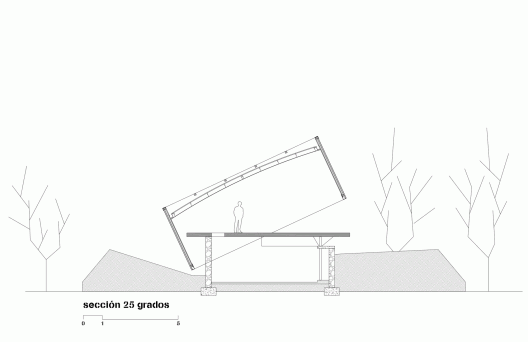

25º Section

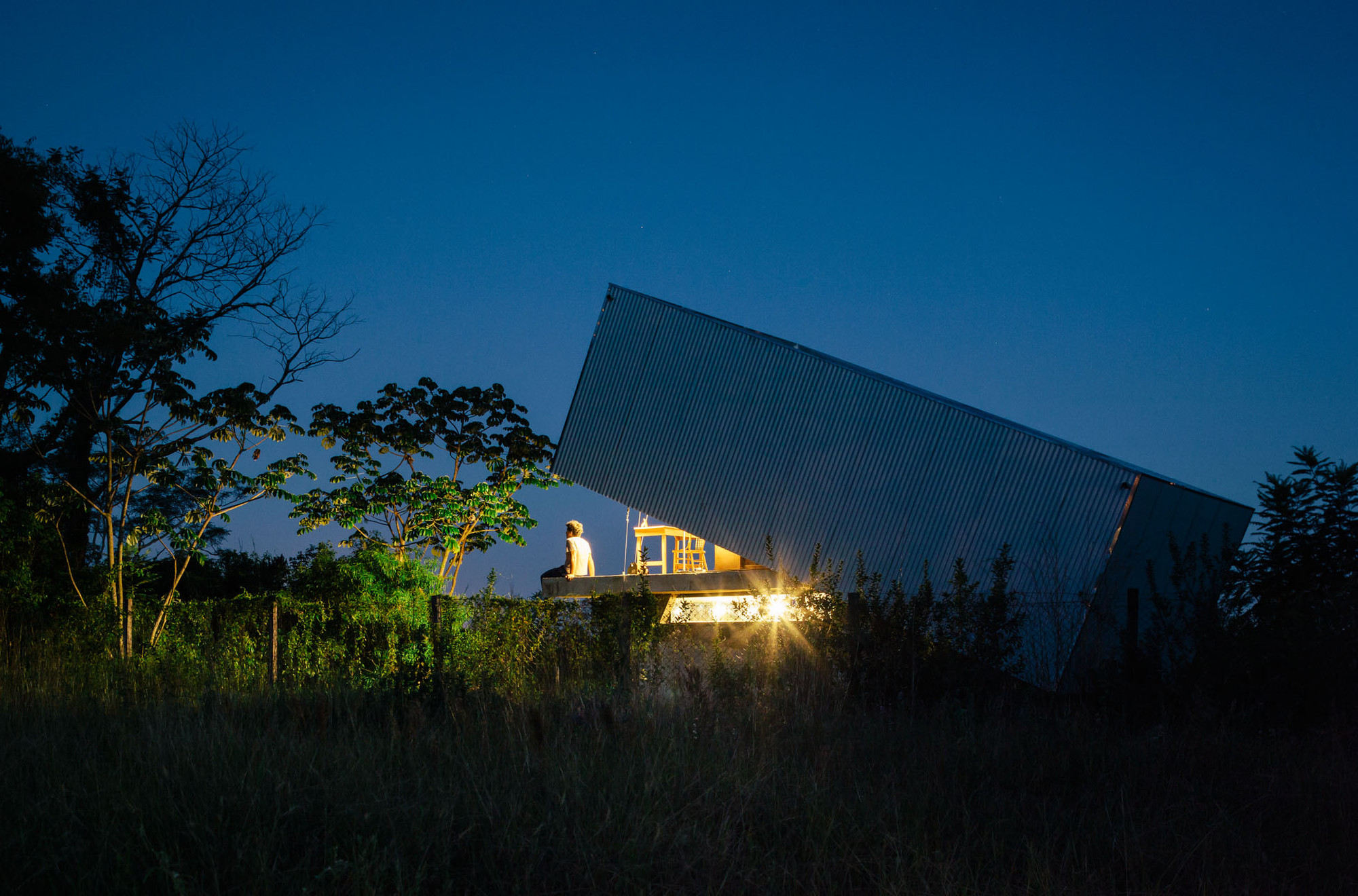

The house is made in two parts, on one side there is an habitable basement made in stone and earth, and on the other side there is a metallic box which is leaning above the basement.

© Pedro Kok

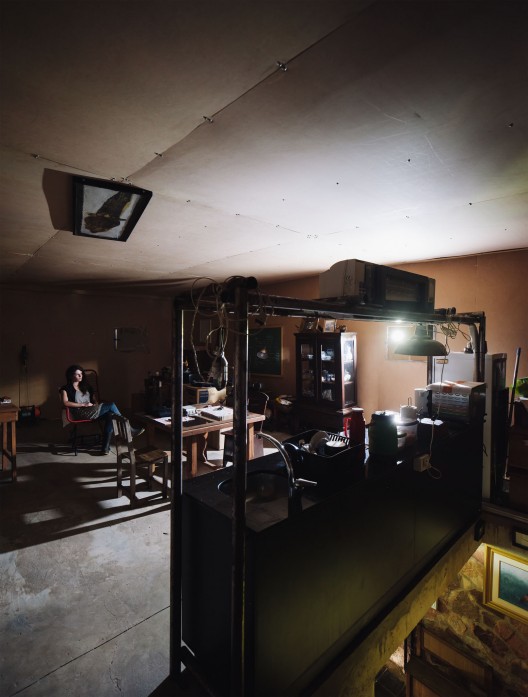

The basement is made by rough stone walls which is coming from a quarry 10 km far away from the site, this system builds also the stairs and it is the base of a big lightweight slab made by concrete beams and ceramic.

© Pedro Kok

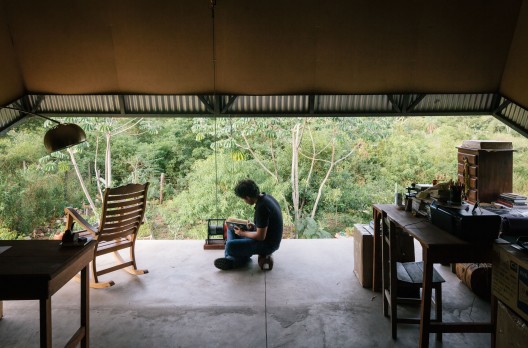

The box is a cage made by iron tubes of 80 mm structured in cross modules, this cage has an external coating and another internal, the external one is made by galvanised corrugated sheet and the internal one is composed by pressed veneers in MDF.

© Pedro Kok

The pivot fittings of the box are custom made pieces.

© Pedro Kok

Everything else is the product of absence of light and material, the obscurity.
