AD Classics: Igualada Cemetery / Enric Miralles + Carme Pinos, photos by David Cabrera

© David Cabrera

Completed in 1994, the Igualada Cemetery was designed by Enric Miralles and Carme Pinos to be a place of reflection and memories. After 10 years of construction, their envision of a new type of cemetery was completed and began to consider those that were laid to rest, as well as the families that still remained.

The Igualada Cemetery is understood by the architects to be a “city of the dead” where the dead and the living are brought closer together in spirit.  As much as the project is a place for those to be laid to rest, it is a place for those to come and reflect in the solitude and serenity of the Catalonian landscape of , Spain. More on the project after the break.

© David Cabrera

Miralles and Pinos conceptualized the poetic ideas of a cemetery for the visitors to begin to understand and accept the cycle of life as a link between the past, present, and future. Embedded in the Catalonian hills, the Igualada Cemetery is an earthwork that blends into the landscape as if it were a natural aspect of the land. The cemetery was designed as a tiered landscape that unfolds into the landscape as one continuous and fluid progression.

© David Cabrera

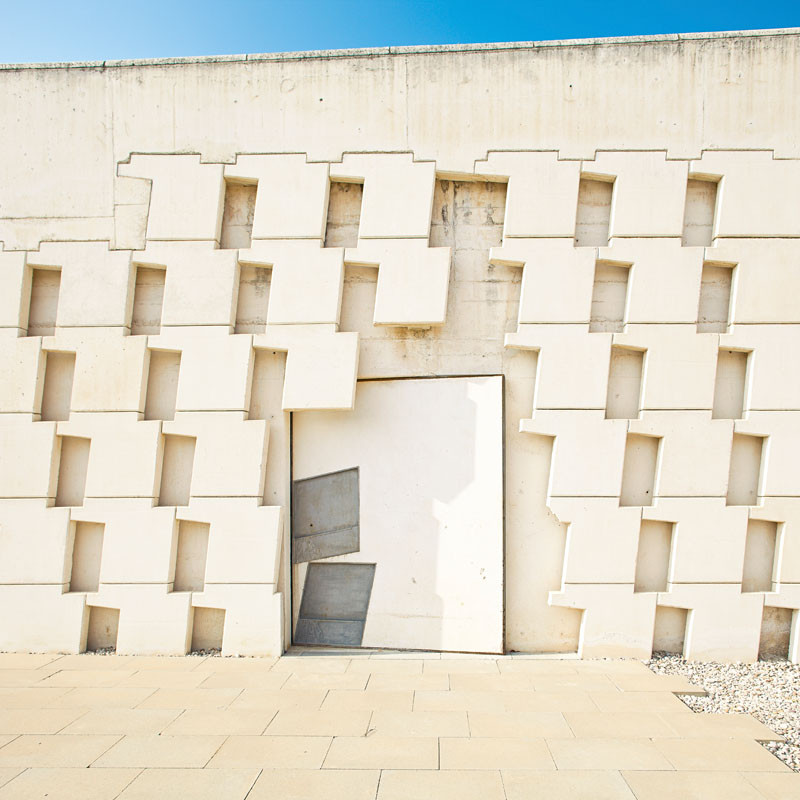

The main burial area is part of a lowered excavated part of the cemetery that is surrounded by gabion walls and the mausoleum-like burial plots, which obstructs the visitor’s vision from the surrounding context secluding them in an area where the sky is the only visible entity outside of the central burial area.  Unlike the first tier, the second tier of the cemetery has more traditional burial plots that are separated and spread out rather than the mausoleum-like burial plots below.

© David Cabrera

Also, on the second level, there is a chapel and monastery that remain unfinished; however, the unfinished aspects are not lacking, by any means, spatially rather they are void of definition and detail.  Yet, the lack of information and detailing compliments the overall sensations of the project where the spaces are open and void to retain the experiences of solitude and serenity.

© David Cabrera

As one enters the site, one confronts a set of cor-ten steel poles that double as gates to the cemetery – the poles are likened to the crosses at Calvary.  From the main entrance, there is a processional winding pathway that descends into the main burial area; the pathway is lined with concrete “loculi” – mausoleum burial plots – that wrap around the depressed space as a transition from tier to tier.  The windy path is conceptualized as the river of life that moves from a wide open expanse in the Catalonian hills to a secluded memorial space excavated below the horizon.  The circulation through the cemetery adheres to a more processional effect that focuses less on the organization of the burial plots, but rather the experience.

© David Cabrera

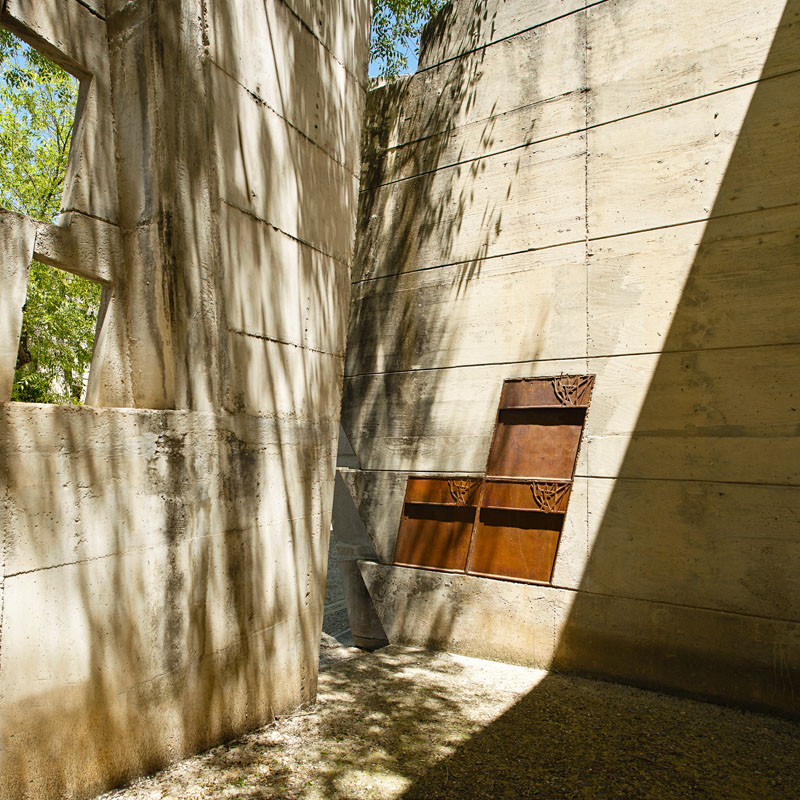

The materials of the Igualada cemetery tie the project seamlessly back into the landscape.  Miralles employed earthy materials of concrete, stone, and wood into the project.  The gabion walls, the worn/aged concrete, and the wooden railroad ties embedded in the stone groundscape evoke the hard and rough landscape of the surrounding hills.  The earthy tones of the materials transform the architecture into a natural aesthetic creating the appearance that cemetery has long been part of the site.

© David Cabrera

The Igualada Cemetery is in a sense an organic architecture that integrates into the natural landscape as an extension of the Catalonian hills.  It is just as much a part of the landscape as the people that visit it. Even Miralles after his sudden death in 2000 is buried at the Igualada Cemetery, which in a sense completes the cycle of Miralles life: past, present, and future all clinging onto the Igualada Cemetery.

Architect: + Carme Pinos
Location: Barcelona, Catalonia, Spain
Project Year: 1984 – 1994
Photographs: David Cabrera
References: archinform.net, and as seen in our last post on the project here.

Cite: Furuto, Alison. "AD Classics: Igualada Cemetery / Enric Miralles + Carme Pinos, photos by David Cabrera" 19 May 2013. ArchDaily. Accessed 23 Apr 2014. <http://www.archdaily.com/?p=375034>
