have the power to increase design potential for architects by defining, maximizing and even dramatizing interior space. For decades, Hunter Douglas has engineered its ceiling systems for design versatility, as well as ease-of-installation, with industry-leading sizes, options, and colors, as well as an exclusive universal carrier system that lets architects mix and match widths and panel depths.

One of the most versatile, consistent ceilings in the industry, 300C metal panels, creates a distinct, smooth look for any interior. These panels offer a subtle, long span design featuring a butt-joint, “bevel edge” that moderates panel-to-panel connections for an orderly, finished design. Hunter Douglas experience in designing and manufacturing ceilings is shown in every detail of their products.

300A-C-Final
Key Features

-Standard size 3′ to 19′ 8″
-Simple, economical installation
-Panels span greater distances than other systems, reducing number of carriers
-Concealed suspension system to emphasize clean, monolithic appearance
-Easy access/point accessibility to plenum – no special tools required
-Compatible with industry-standard fixtures and air diffusers
-Perimeter trim options available
-Panels contain from 70% to 95% recycled content
-Interior and exterior applications available
-Colors, finishes, and perforation/acoustical options available
-GREENGUARD Children and Schools Certified for Indoor Air Quality (IAQ)

Colors

Linear Plank Ceilings line offers a wide choice of colors and finishes. Some colors and finishes carry a premium price over manufacturer’s standard colors. Custom color matching is available upon request. Please consult Hunter Douglas for minimum quantities and lead times on specific orders.

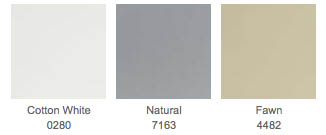

Standard Colors

1251213945-standard-colors-i

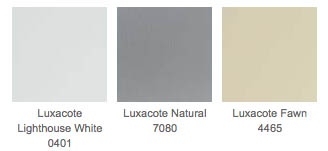

Luxacote Exterior Paint

1251144003-luxacote

Simulated Wood Finishes

1251144186-simulated-wood

Construction Details

1251144734-wp-300c-isometric-basic2
1251144767-wp-300c--section-basic2

Characteristics

Substrate: Aluminum or Steel
Suspension: Concealed
Panel Profile:Beveled
Base Material: Luxalon 300C panels are manufactured 0.028″ (0.7mm) thick backed enameled aluminum and 0.024″ (0.6mm) thick galvanized steel plane.

-Easily & Economically installed
-Wide Panel technology enables panels to span greater distance than traditional ceilings resulting in fewer carriers
-A hidden suspension system for an uncluttered monolithic ceiling appearance
-Ready access into the plenum at any point with no need for special tools
-A rigid grid system to ensure a consistently level ceiling
-Exterior applications can be accommodated

Interior Panel and Carrier Span

Panels Max Panel Span Carrier Span
Alum. Steel
Steel
0.024″ (0.6mm)
7″-10″
(2400mm)
3″-8″
(1130mm)
6″-3″
(1600mm)
Alum.
0.028″ (0.7mm)
7″-10″
(2400mm)
4″-9″
(1450mm)
6″-6″
(2000mm)

Dimensions and weight

Max Width Min Length Max
Length
Weight
Alum Steel
11.81”
(300mm)
3’
(914mm)
19’-8”
(6000mm)
0.50 lb/sq.ft. 1.22 lb/sq.ft


Perforation Patterns / Acoustics

1251151286-300c
Sound Absorption

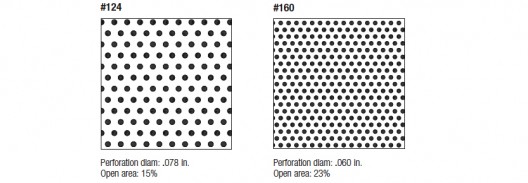

In order to improve interior sound control, the metal ceiling panels can be perforated and also fitted with non-woven acoustic tissue or an acoustical pad. Two different perforations are available: The diameter of the holes in mini perforated panels is .059″ (1.5mm) in a .118″ (3mm) triangular pattern; the apertures represent 23% of the perforated area. The diameter of the holes in standard perforated panels is .078″ (2mm) in a .196″ (5mm) triangular pattern; the apertures represent approx. 15% of the perforated area. Fiberglass encapsulated acoustic pads can be used to achieve acoustic absorption. Also non-woven acoustic textile is available which is adhered to inside the panels automatically during production.

Sound Absorption (NRC) Summary*

Perforation

Pattern

% Open Area Acoustical Infill NRC
#124 15% Non-Woven Acoustic 0.75
#160 23% Non-Woven Acoustic 0.70
#160 23% 1”-1.5 pcf Polywrapped Fiberglass and Non-Woven Acoustic

0.95

*Acoustical Tests performed in accordance with ASTM C423 and ASTM E795, in a type E400 mounting.

Trim Options: EdgeLine Trim Systems

Designed for a wide range of suspended ceiling systems, EdgeLine ceiling trim adds a finished look to both commercial ceilings and architectural ceilings. These aluminum ceiling trims are available in Blade and a wide range of Channel sizes and were created to integrate with all types of ceiling panels, including Luxalon metal ceilings, Techstyle acoustical ceilings, and many other systems. Their smooth finish and stable construction ensure outstanding durability to match their good looks.

Recycled Content

Hunter Douglas aluminum ceilings are manufactured from material with 70% recycled content

-40% is post-consumer
-30% is pre-consumer

LEED credits available, visit www.hunterdouglascontract.com/ceilings and click on the “Green Product Bulletin” for further details.
