12th and Alder / GBD Architects

© Josh Partee

Architects: GBD Architects
Location: , Oregon,
Design Team: Agustin Enriquez, Jesse Emory, Craig Norman, Matt Fitzgerald, Marcus Lima
Client: Lease Crutcher Lewis
Area: 20,000 sq ft
Photographs: Josh Partee

© Josh Partee

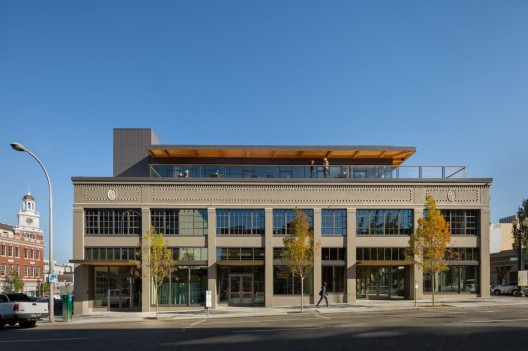

The Culver Building renovation at SW 12th & Alder is located in downtown Portland’s west end. On this quarter-block site GBD designed a 6,000 sq. foot glass- and aluminum-skinned structure on top of the original 20,000 sq. foot, two-story building from 1920. The building retains the existing foundation, cast-in-place concrete perimeter walls, wood roof structure, and a majority of the heavy timber girders, beams and columns.

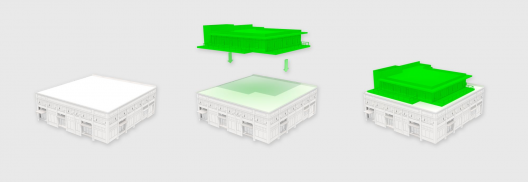

Diagram

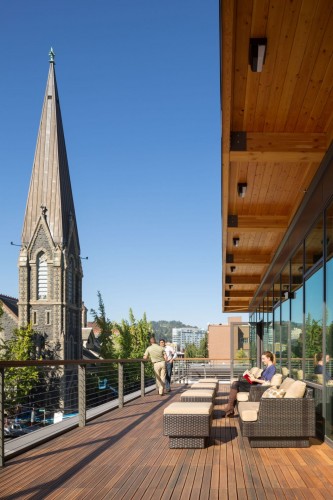

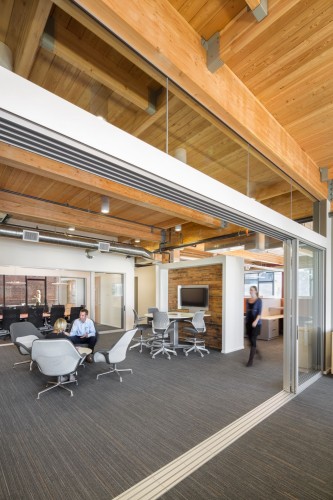

The ground floor now offers 4,000 sq. ft. of retail, 13 parking stalls, a small office lobby, and new windows to replace the existing 1970s-vintage aluminum storefront. The existing 10,000 sq. foot second level was renovated from parking to office space. Two wood decks surround the new third floor.

© Josh Partee

Lease Crutcher Lewis is a regional construction company that served as the client and contractor on this project, which was executed in a design-build manner. They now occupy the third floor of the building.

© Josh Partee

The building was a parking garage before the renovation project. Before that, it was used by a glass company and for other light industrial uses. Seismic upgrades included new moment frame, helical piles and drag connections at new concrete masonry unit (CMU) walls.

© Josh Partee

3,500 lineal feet of wood were salvaged during demolition and reused during the project, and 91 percent of construction waste was diverted from the landfill.

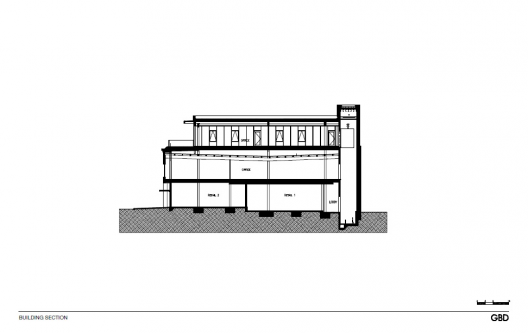

Section
