Hotel Spa NauRoyal / GCP Arquitetos

© Nelson Kon

Architects: GCP Arquitetos
Location: , São Paulo,
Architects In Charge: Sérgio Coelho (author); Daniel Mariano (co-author)
Coordinator: Alessandra Araújo
Project Team: Adriana Oliveira, Sílvio Diar te, Nuno Almeida, Taís Miyake, Tomás Brunoro, Maurício Reverendo, Lucas Verone e Deise Paz
Project Area: 950 sqm
Project Year: 2011
Photographs: Nelson Kon

Interiors: Débora Aguiar
Landscape: Marcelo Belotto
Lighting: Acenda
Contractor: Almatep

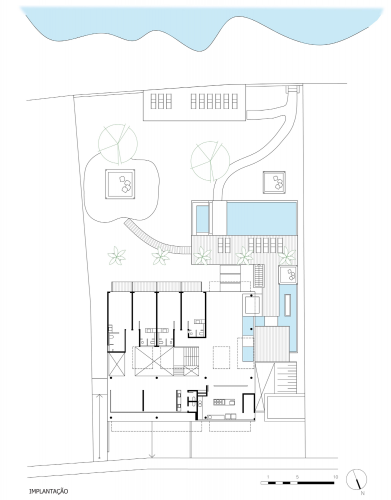

Site Plan

The program for the Nau Royal Boutique Hotel has been divided into two blocks of rectangular plans – the street block and the beach block – separated by an inner garden/lobby, in which there vertical circulation in staircase, connecting the three floors: basement, ground and first floor. In regard to the street block, the basement comprises the SPA, sauna, back of house, garage and utilities room spaces, employee access and garden.

© Nelson Kon

The ground floor includes reception area, lounge, restrooms, kitchen, support and breakfast areas, extending to the beach block.

© Nelson Kon

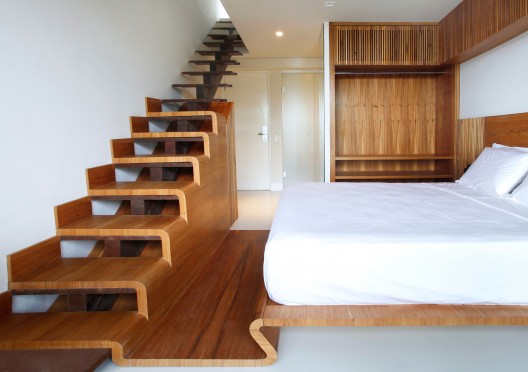

In the upper floor, there are six apartments, which in addition to the brise-terraces have a garden deck on the coverage, providing the mountain view.

© Nelson Kon

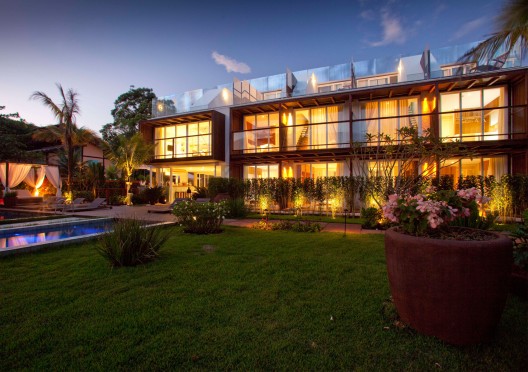

The beach block has in its ground floor, the lobby with connection to the street block, bar and four apartments, one of them adapted to the needs of physically-handicapped guests.

© Nelson Kon

Decks, swimming- pools, outdoor gardens, water mirrors, gazebos and beach areas can be accessed via lobby and bar.

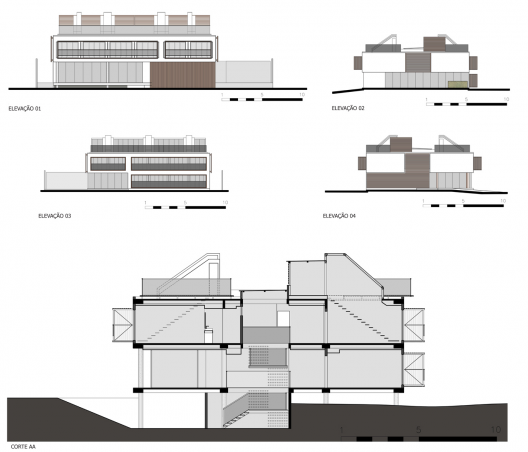

Elevations & Sections

In the upper floor, there are five apartments, which similarly as for the other apartments in the same floor, have brise-terraces, garden deck and living mezzanine.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Hotel Spa NauRoyal / GCP Arquitetos" 31 Dec 2012. ArchDaily. Accessed 01 Aug 2014. <http://www.archdaily.com/?p=312837>
