Mava House / Gubbins Arquitectos

  • 01:00 - 27 December, 2012
  • Translated by Nico Saieh
Mava House / Gubbins Arquitectos
Mava House / Gubbins Arquitectos, © Pablo Montecinos
© Pablo Montecinos

Courtesy of Gubbins Arquitectos © Pedro Gubbins © Pablo Montecinos © Pablo Montecinos © Pablo Montecinos + 52

  • Architects

  • Location

    Zapallar, Chile
  • Design Team

    Pedro Gubbins Foxley, Victor Gubbins Browne
  • Collaborators

    Giacomo Visone, Sofía Valderrama
  • Structural Engineering

    Mauricio Abella
  • Contractor

    Julio Hernández
  • Site Area

    2,304 sqm
  • Project Area

    356 sqm
  • Project Year

  • Photographs

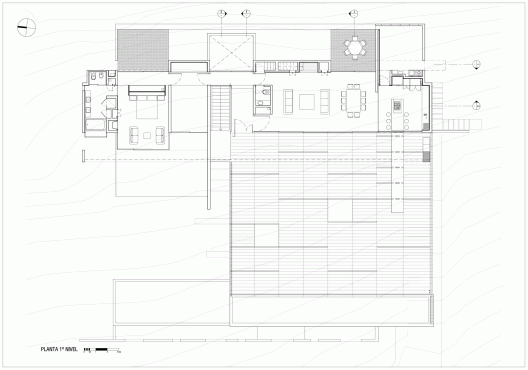

First Floor Plan
First Floor Plan

From the architect. MAVA house is placed in “Beranda” urbanization, located in between Cachagua and Maitencillo, in Chile. The location is in a really strong slope, with a radical sight to Pacific Ocean and exposed to South-West winds. The main strategy was to create a big terrace, creating this “new floor” that would allow the “leisure life” and make even more perceptible the Ocean sight, offering a unique relationship between the inhabitant and the horizon line,  the same way as the cliffs do. The terrace  extends towards the Ocean, removing the view of the existing houses. The program decomposes into “two units”, allowing to get in touch with the ground in the proper way, and provides the architectonical support for the terrace.

Courtesy of Gubbins Arquitectos © Pedro Gubbins
Courtesy of Gubbins Arquitectos © Pedro Gubbins

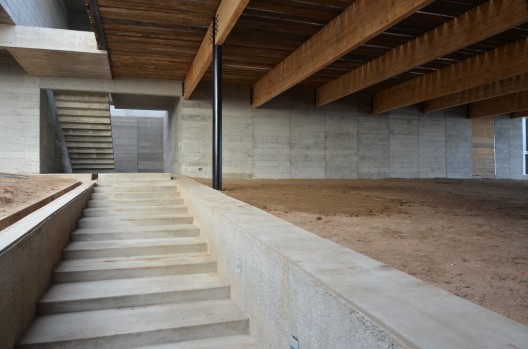

Southward, there is a big metal and Wood “beam-wall” that allows to delimit the view and take over the South-West winds in the place, and the future neighbors. Under it, a new place is created, here is the entrance to the house, the relationship between both houses and a place sheltered from the sun. The architectural promenade is complete when you get into a courtyard which is opened to the sky and from where you access the terrace. Both Houses develops its inner promenades perpendicular to the slope, involving all the interior rooms of the sight. The architecture of the two longitudinal volumes, makes the space decomposes and folds into a series of slabs and beams that allows big distances between supports without soiling the ocean view, furthermore it hels to protect the house from the west sun.

Courtesy of Gubbins Arquitectos © Pedro Gubbins
Courtesy of Gubbins Arquitectos © Pedro Gubbins

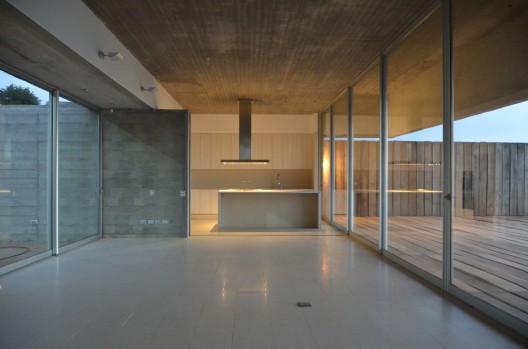

The materiality is composed by reinforced seen concrete walls, aluminum windows, double glazing, and wood beams. The temperatura and atmosphere created by these materials offers a complete integration with the ground and vegetation of the area.
