CINiBA / HS99

  • 23 Oct 2012
  • Featured Museums and Libraries Selected Works
© Jakub Certowicz

Architects: HS99
Location: Bankowa, Katowice,
Design Team: Dariusz Herman, Piotr Smierzewski, Wojciech Subalski
Year: 2011
Area: 2,910 sqm
Structural Design: Jan Filipkowski, Joanna Jacoszek, Jerzy Rawski, Mariusz Staszewski
Collaborators: Rafal Sobieraj, Adam Kulesza, Jacek Moczała, Wojciech Słupczyński
Client: Consortium of the University of Silesia and University of Economics in Katowice
Photographs: Jakub Certowicz, Tomasz Zakrzewski

© Tomasz Zakrzewski

In 2002 a competition was launched by the University of Silesia for the design of a new library that would provide a world-class didactic facility for scientific research. The flexibility the winning proposal offered proved to be its major strength when, after securing a building permit, the program was modified to also include the collections of the University of Economics with no changes to the exterior form. The Scientific Information Centre and Academic Library (Polish acronym: CINiBA) anchors the new campus redevelopment plan to be implemented in the coming years.

© Jakub Certowicz

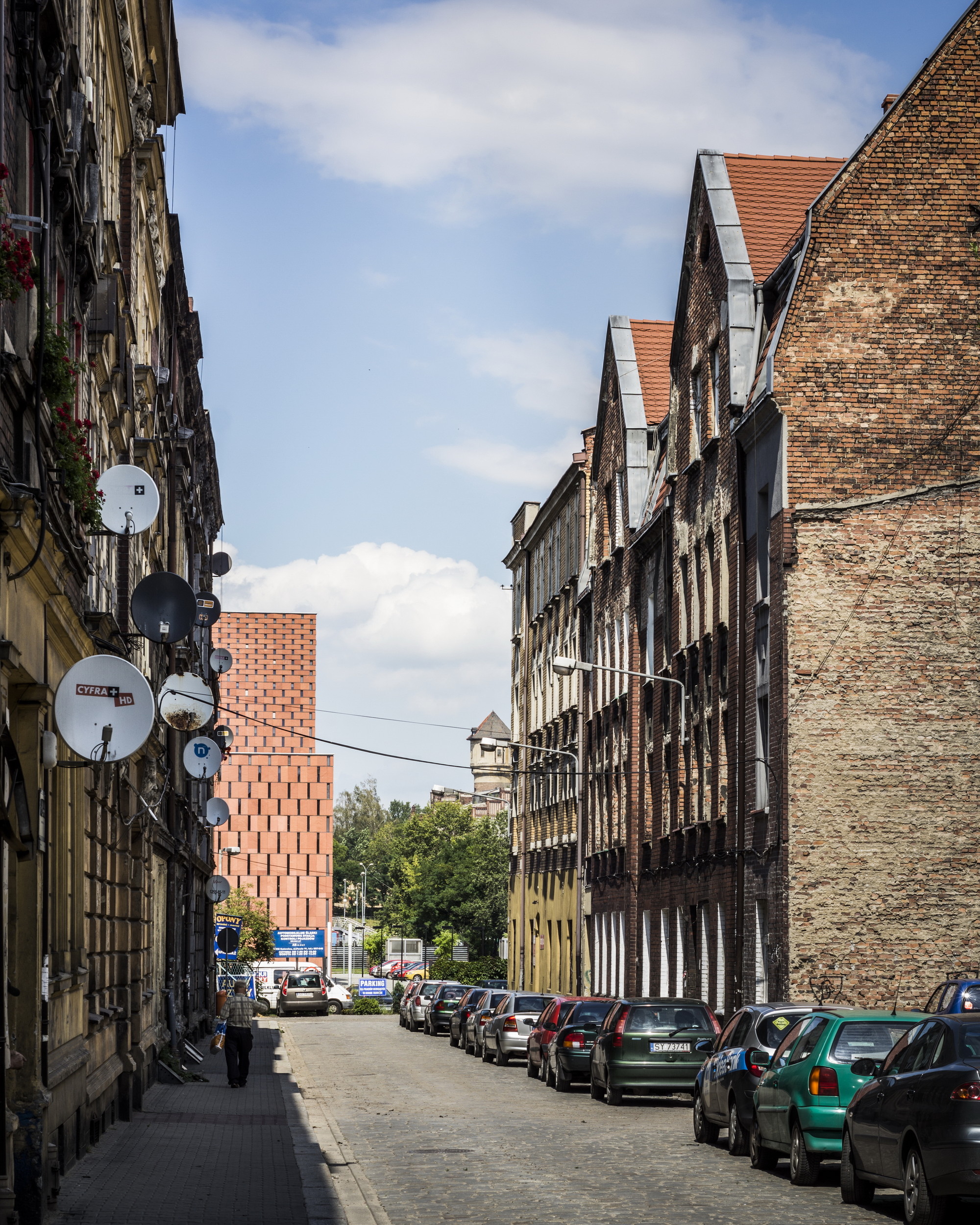

Located at the intersection of the east-west axis that forms the spine of the campus, and the north-south axis which connects the recreational grounds by the river to land set aside for further university expansion, the library reinforces the axial organization which has so far been poorly articulated. A central university square at the foot of the library, the FORUM, generates a civic gathering place that opens onto the library’s grand three storey atrium.

© Tomasz Zakrzewski

The height of the library has been determined by the average height of buildings on the university campus. The north elevation surpassing this height is directed towards the FORUM and houses the library’s closed stacks. This elevation emphasizes the rank and function of the FORUM and is in dialogue with the existing tall buildings which close the east-west axis.

© Jakub Certowicz

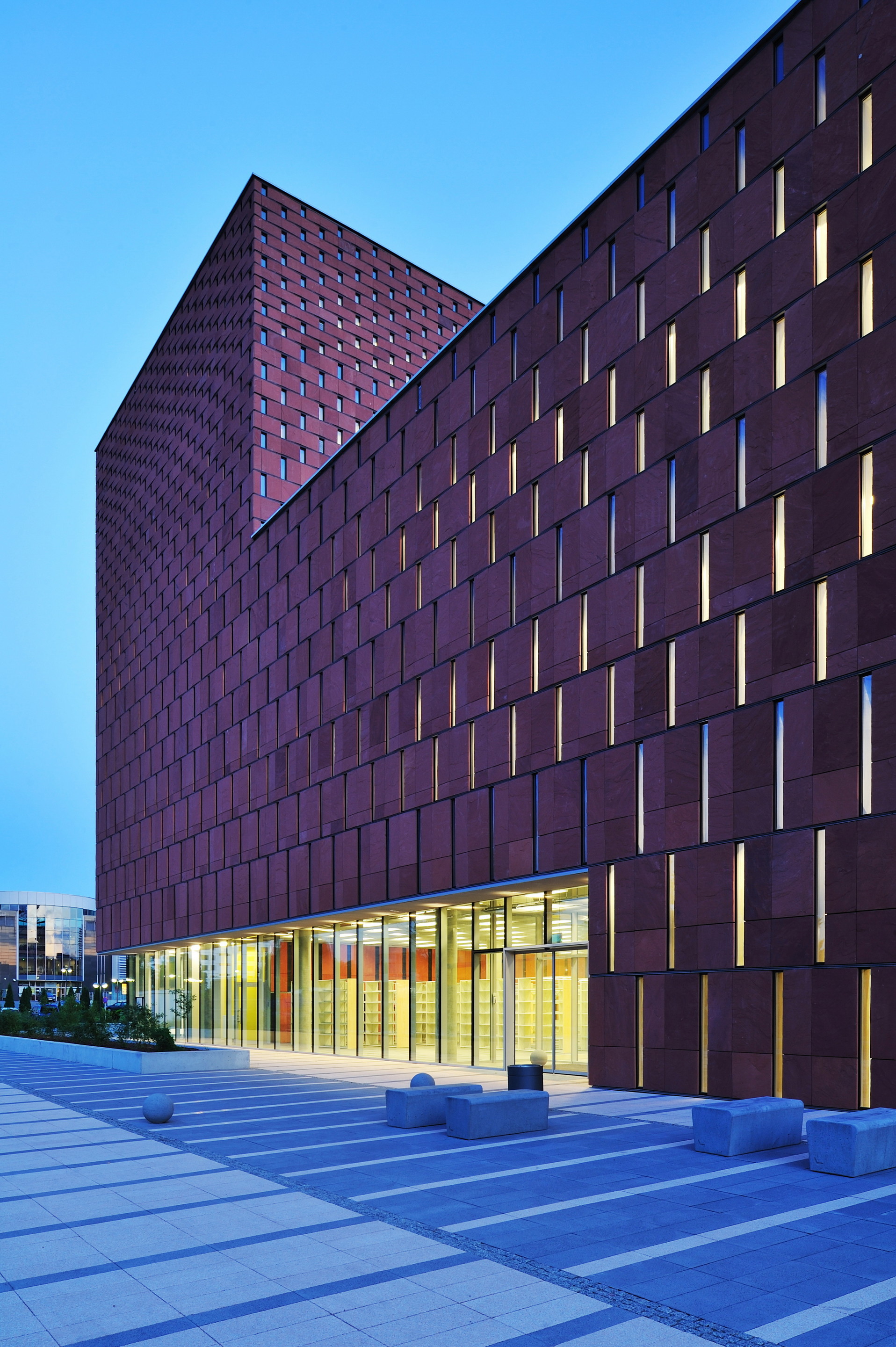

The facades, clad in a repetitious fabric of rich kahan red sandstone, relate to the raw clay bricks on the neighbouring buildings without the connotation of scale inherent to a singular brick element. The exterior treatment abstracts the building’s function of organized book storing while introducing a notion of mystery inseparably connected to books.

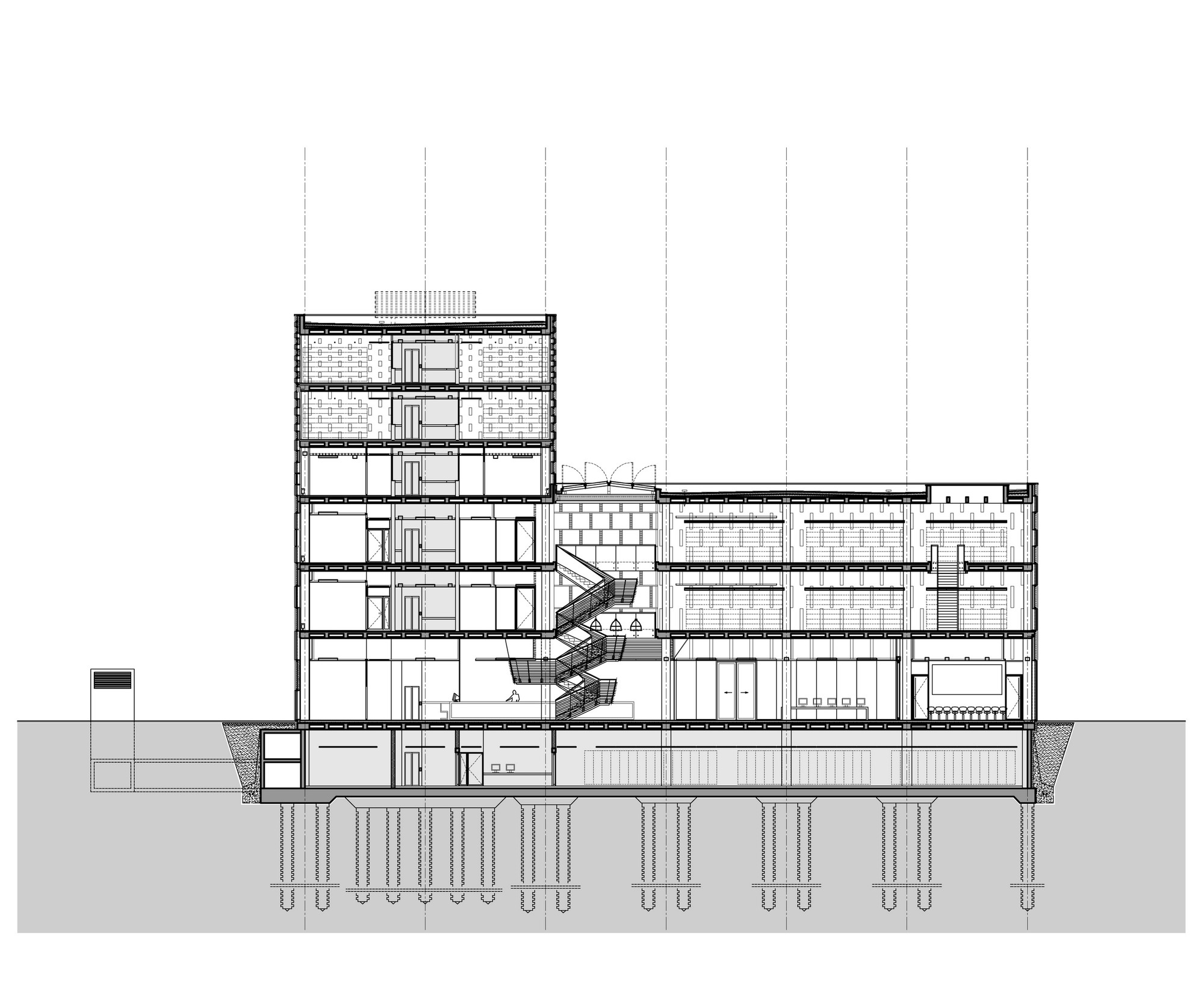

Section

The lack of discernible scale produces a monolith when seen from afar that is gradually familiarized. Details such as the decreasing proportions of the façade tiling, the irregular cut of the sandstone slabs, as well as the windows carefully nested inside become visible.

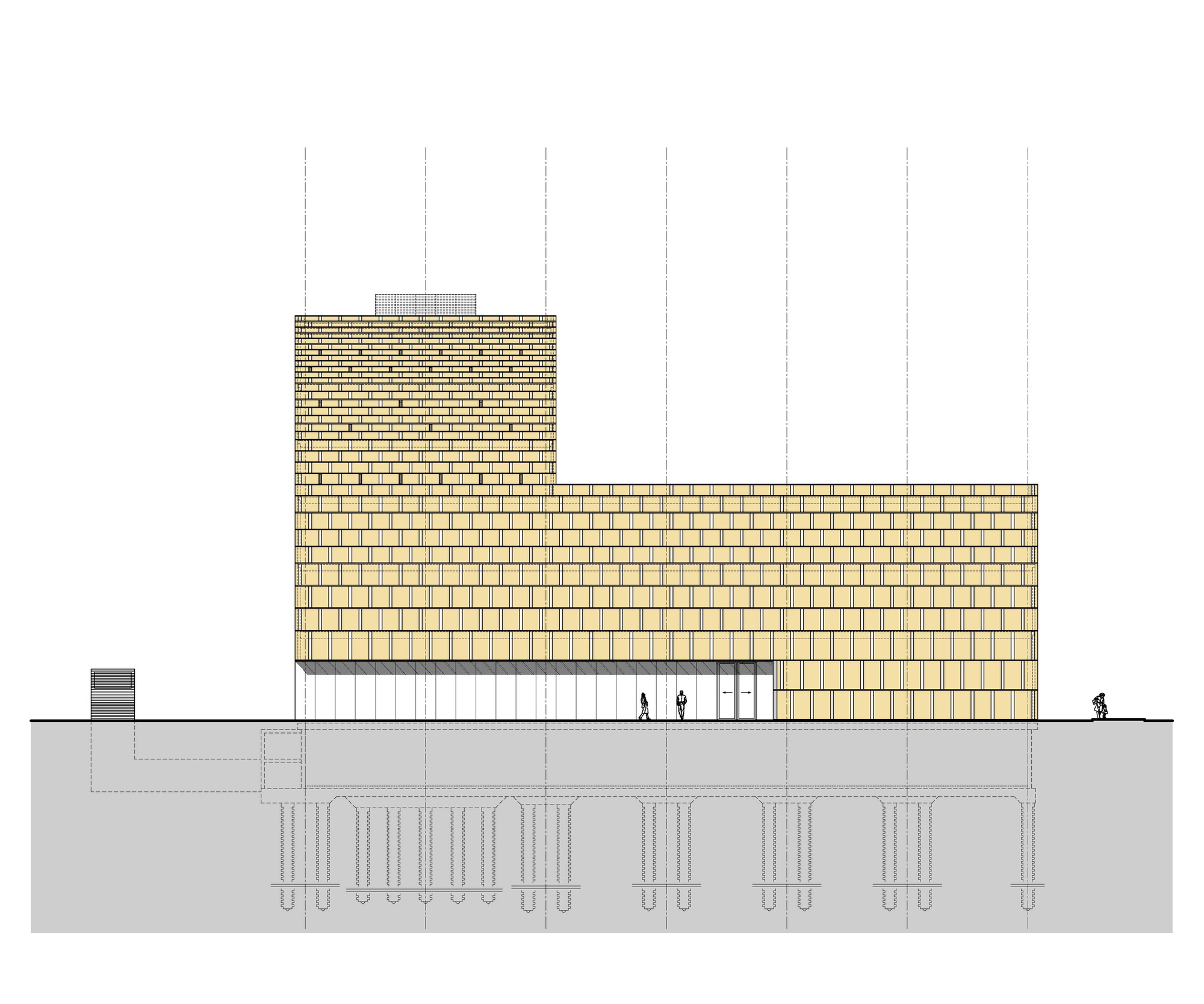

Elevation

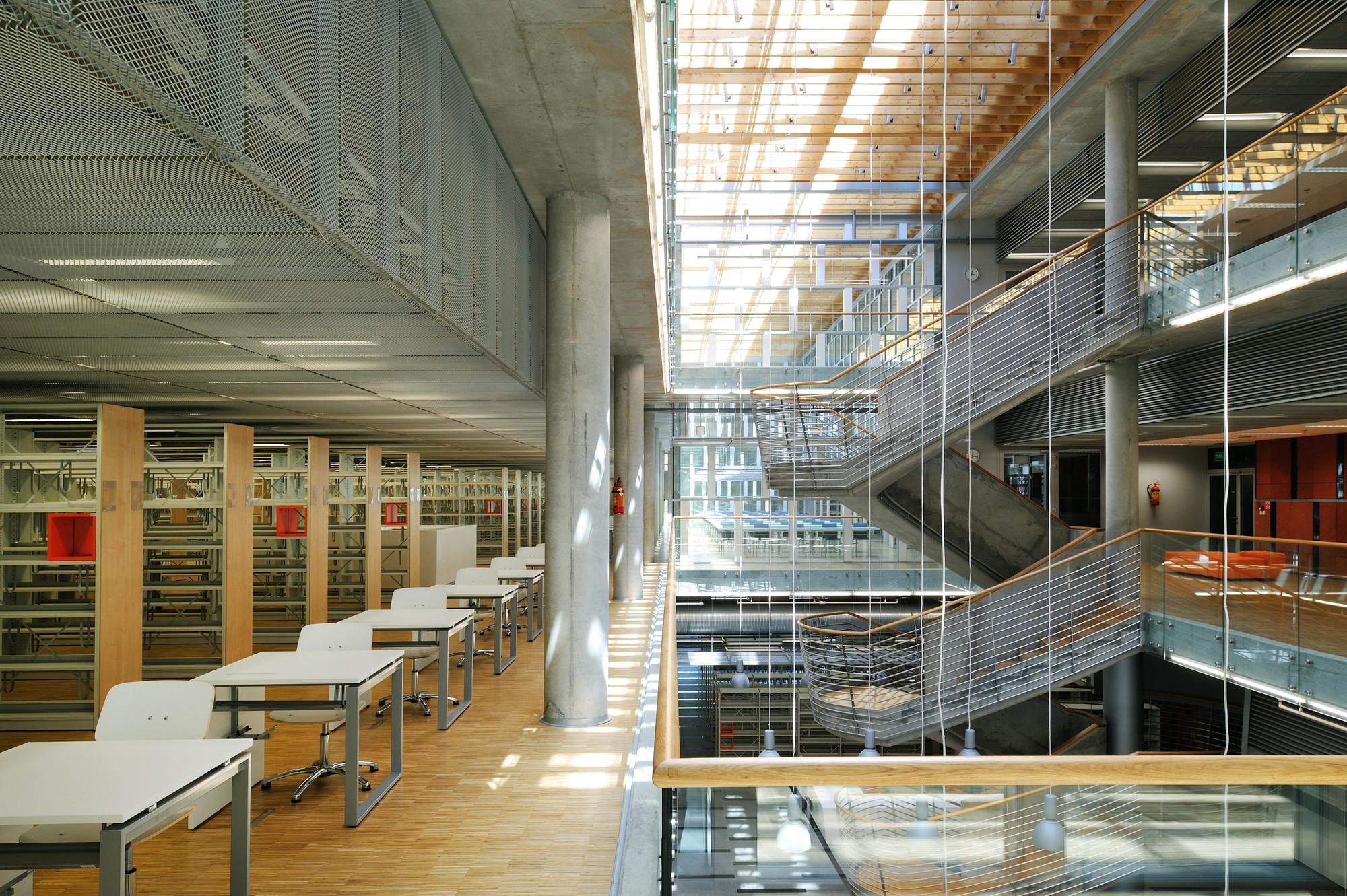

The fenestration projects a stunning patchwork of light onto the FORUM at night, yet in the daytime allows diffused light to permeate into the library’s reading rooms. The resulting strongly introverted interior composition of the library floors focuses one’s attention onto the books while calming the space. Partial isolation from the external world not only influences the atmosphere within but also introduces a flow of time detached from the pulse of the surrounding city.

© Tomasz Zakrzewski

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "CINiBA / HS99" 23 Oct 2012. ArchDaily. Accessed 19 Apr 2014. <http://www.archdaily.com/?p=284180>
