Chen House / C-Laboratory
Architects: C-Laboratory
Location: Sanjhih, Taipei County, Taiwan
Project and Construction team: Marco Casagrande, Frank Chen, Shi-Ding Chen, Nikita Wu, Shu-Gi Bai
Local Knowledge: Missis Lee
Site Area: 3,890 sqm
Building foot print: 138 sqm
Interior space: 62.5 sqm
Materials: mahogany, concrete
Completed: 2008
Photographs: C-Lab
The house is realized on an old Japanese cherry-farm in the Datun -mountains of North-Taiwan. It is designed as a vessel to react on the demanding wind, flooding and heat conditions on the site.
The house is a stick raised above the ground in order to let the flood waters run under it. The different spaces are connected to a flexible movement within the axis of outdoor and indoor functions. The smaller bathroom and kitchen unit acts as a kicker stabilizing the wooden structure during the frequent typhoons and earthquakes.

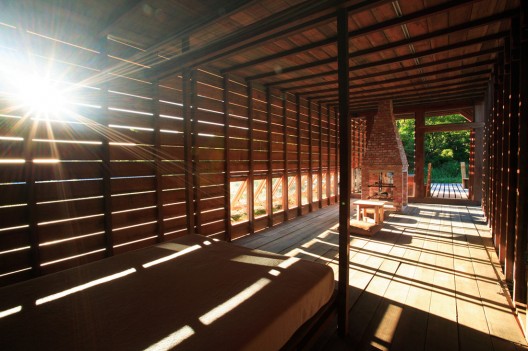

The bio-climatic architecture is designed to catch the cool breeze from the Datun -river during the hot days and to let in the small winds circulating on the site between the fresh water reservoir pond and the farmlands. A fire place is used during the winter for heating and for cooking tea. In connection with the bathroom is a small sauna.
The house is not strong or heavy – it is weak and flexible. It is also not closing the environment out, but designed to give the farmers a needed shelter.
Ruin is when man-made has become part of nature. With this house we were looking forward to design a ruin.
-
- site plan
-
- ground floor plan
-
- roof plan
-
- east elevation
-
- west elevation
-
- south elevation
-
- north elevation
-

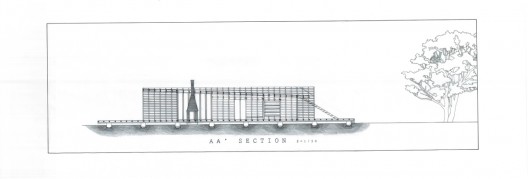

- section 01
-
- section 02
