Siemens Hengelo / NL Architects

  • 01:00 - 24 July, 2012
Siemens Hengelo / NL Architects
Siemens Hengelo / NL Architects, © Marcel van der Burg

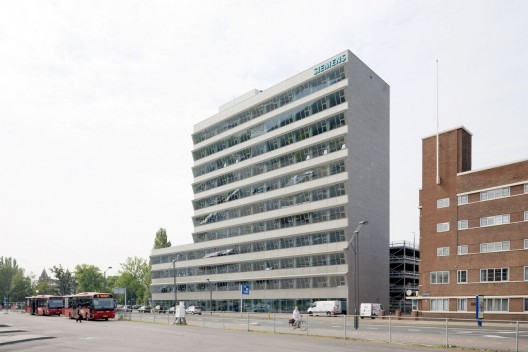

© Marcel van der Burg

© Marcel van der Burg © Marcel van der Burg © Marcel van der Burg © Marcel van der Burg +29

  • Architects

  • Location

    Laan Hart van Zuid, 7553 Hengelo, The Netherlands
  • Architect in Charge

    Pieter Bannenberg, Walter van Dijk, Kamiel Klaasse
  • Design Team

    Bobby de Graaf, Gen Yamamoto, Gerbrand van Oostveen, Yusuke Iwata, Joanna Janota
  • Project Year

    2012
  • Photographs

From the architect. Hart van Zuid is an industrial area in city of Hengelo. The district is located south of the train station, right in the heart of the city. The area is defined by the typical emblem of 20th century production: the saw-tooth shed. Hart van Zuid is currently being redeveloped; it will be converted into a lively quarter where people will live and work comfortably. Hart van Zuid is a statement against monoculture: urban life will be celebrated here in a mixed use environment. Education and leisure will be a part the spectrum. High tech industrial activities remain a crucial component.

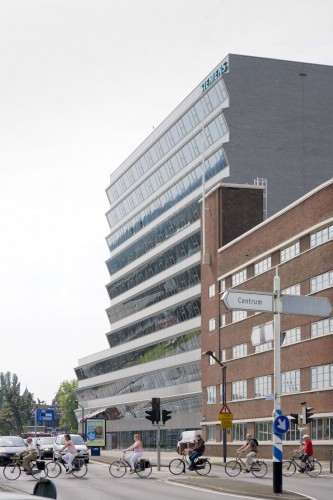

© Marcel van der Burg
© Marcel van der Burg

An important aspect of the future developments is the industrial heritage: how can we respect the existing structures? How can we respond to this context with new buildings? The beeldkwaliteitsplan (the zoning document that defines the esthetic parameters of an area) prescribes that “the shape should be derived from the industrial heritage: unambiguous, sturdy, stern and uncompromising. Trough these properties the building will acquire the character of a sign”.

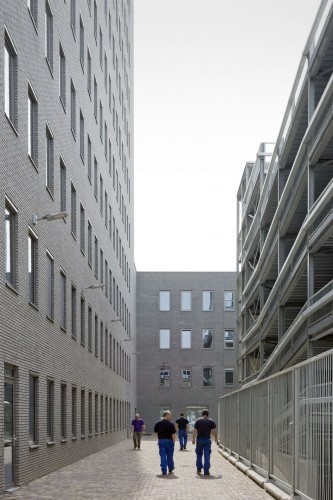

© Marcel van der Burg
© Marcel van der Burg

The new office building for Siemens in Hengelo will be located prominently at the ‘head’ of a strip of industrial buildings. Together with the wonderful station by H.G.J. Schelling, a new cultural building by Benthem Crouwel and the projected WTC, it will envelop a new square designed by Karres en Brands.

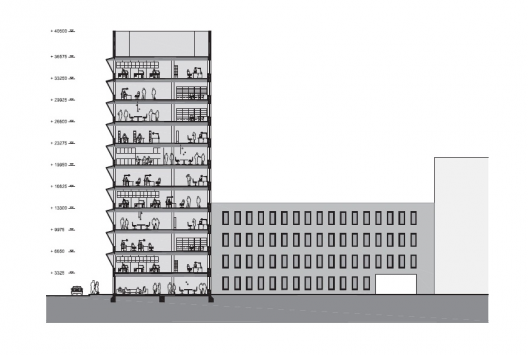

Section
Section

By ‘flipping’ the existing horizontal tissue to an upright position a strangely familiar office building comes into being. The Siemens office basically is a vertical version of the sheds that are at its base. The saw-tooth roof lights turn into glamorous windows. They will boost up the main elevation into a transparent logo for Siemens and for the area as a whole. The facade as such ‘introduces’ the industrial zone that lies behind it. Through the oblique position of the windows, the Industrieplein and its visitors will be reflected in the sculptural facade.

© Marcel van der Burg
© Marcel van der Burg

The protruding elements that frame the tilted windows provide a form of sun protection. From the inside the principle works as a visor. The slanted windows reduces glare. And reflections. Like Traffic Control Towers, these offices will have an optimized view.

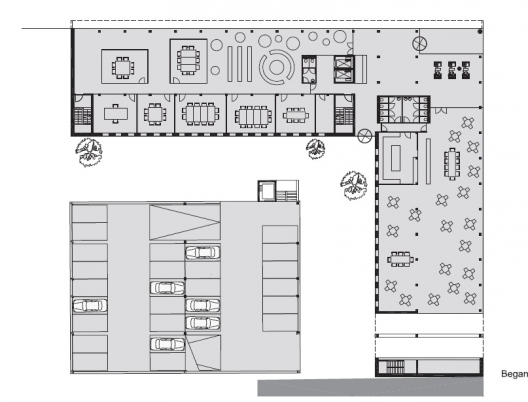

Plan
Plan
Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "Siemens Hengelo / NL Architects" 24 Jul 2012. ArchDaily. Accessed . <http://www.archdaily.com/256702/siemens-hengelo-nl-architects/>
