Fuencarral-El Pardo Police Station / Voluar Arquitectura

  • 01:00 - 19 July, 2012
Fuencarral-El Pardo Police Station / Voluar Arquitectura
Fuencarral-El Pardo Police Station / Voluar Arquitectura, © Ángel Baltanás
© Ángel Baltanás

© Ángel Baltanás © Ángel Baltanás © Ángel Baltanás © Ángel Baltanás +43

From the architect. The general design of the project is in response to its environment. The building is set back from the property line, leaving a free public urban space that allows pedestrian access. This gives continuity to the city and promotes the reconciliation of the citizen to the public building, which is traditionally considered a closed and hermetic place.

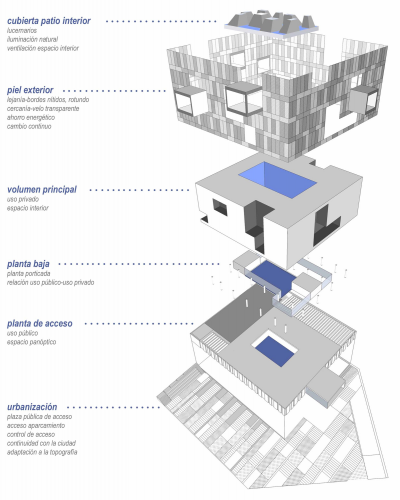

Diagrams
Diagrams

On the other hand, the building is meant to be an architectural landmark for the city, thanks to its modern and rotund image. The project tries to change the relationship between a state-owned building and the community through layers of transparency.

Courtesy of Voluar Arquitectura slp
Courtesy of Voluar Arquitectura slp

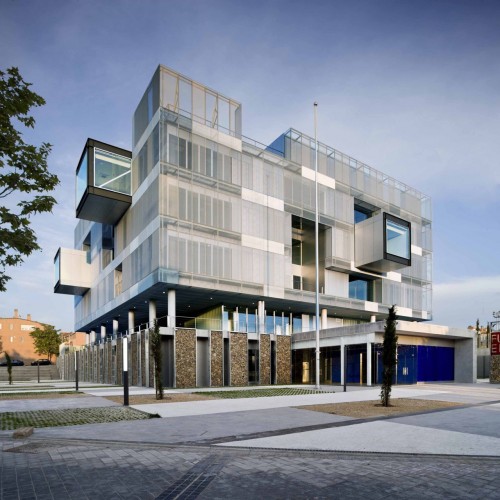

From a distance, the facade gives the building a clear and massive appearance. At proximity, the facade’s skin is only a light film whose transparency allows magnificent views of the city. The anodized aluminum mesh screens are periodically perforated to control depth of field and light penetration. These panels impede visibility towards the interior during the day while allowing undisturbed views to the surrounding city; at night, the building glows with light to expose the inner functions to the outside world.

© Ángel Baltanás
© Ángel Baltanás

Anodized aluminum gives the impression that the building is constantly changing, responding to the light and chromatic variations throughout the day and the seasons. In the same way, the degrees of drilling makes the facade seems different according to the observer’s position.

© Ángel Baltanás
© Ángel Baltanás

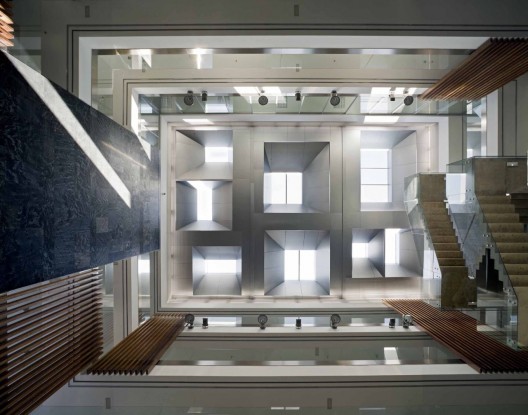

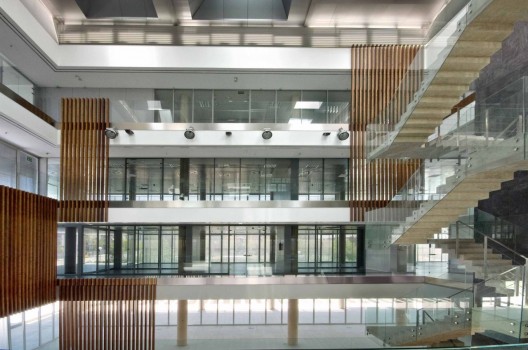

Inside, all the work areas are organized around an empty space, a large full-height interior patio that sets up the dialogue between the private area and public spaces. The unifying element of the project is the light that comes through skylights in the atrium. This space, combined with the use of glass in the work units, gives the interior a panopticon character both horizontally and vertically.

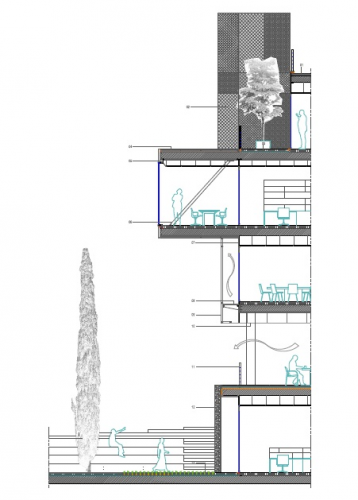

Section
Section

The private spaces by contrast are easily distinguishable as cantilevered solid cubes protruding out of the glass box, and a series of terraces and patios that appear on the facade.

© Ángel Baltanás
© Ángel Baltanás
