The Ring Stadium / OFIS arhitekti & Multiplan arhitekti
Architect: OFIS arhitekti & Multiplan arhitekti
Location: Maribor, Slovenia
Competition Year: 1998
Construction start: 2006
Construction finish: 2008
Programme: Football Stadium wich includes: Covered tribunes, public programs such as Gyms, Fitness club with swimming pool, shops, restaurants
Materials: Concrete, Steel, Glass
Constructed Area: 3.400 sqm
Photographs: Tomaz Gregoric
The project is a result of the winning competition back in 1998. The plot that was used as a multi-functional sport field is located in the centre of the city. In the sixties a small tribune was build along one site of the field that was covered with huge concrete arched roof.
The brief was to convert the field into a football stadium and extend the existing building with covered tribunes (12.500 spectators, VIP and press facilities) and additional public programme such as 4 big gymnasiums, fitness-club with swimming pools, shops and restaurants.
The project proposed a ring of tribunes weaving above enclosed base with public programs.

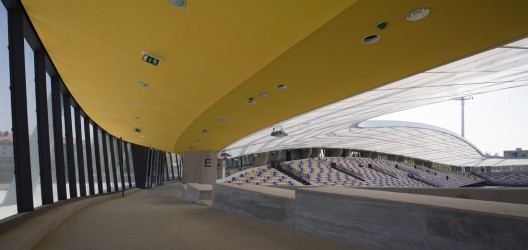

The lowest and the highest point of the tribunes are defined by the quality of the view of the spectator. In the corners of the field, where the views are restricted, the entrances to the tribunes are displaced. The ring is pulled down here to the level of the entry plateau. Then it rises gently and it reaches the highest points in the middle of the field. There the maximum number of the seats is provided, offering the best views to the field. The corridor of the ring has double skin and is providing rooms for VIP, Press and refreshments.
In the base sport halls and shops are displaced. The roof of the base forms an entry plateau to the tribunes and also offers views to the smaller sport field at the side of the stadium.
-
- model 01
-
- model 02
-
- model 03
-
- model 04
-

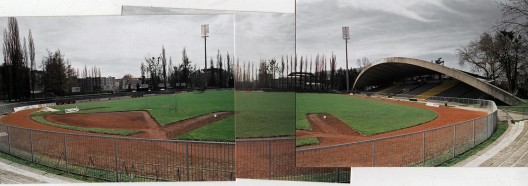

- existing site
-
- overall concept image
-
- overall concept image 02
-
- diagram
-
- model 05
-
- level -1 plan
-
- level 0 plan
-
- level 01 plan
-
- elevation 01
-
- elevation 02
-
- elevation 03
-
- elevation 04
-
- elevation 05
-
- elevation 06
