  • Architects: JBAD: JBAD - Jonathan Barnes Architecture and Design
  • Area Area of this architecture project Area:  66000
  • Year Completion year of this architecture project Year:  2011
  • Photographs
    Photographs:Brad Feinknopf

Text description provided by the architects. Lawhon (environmental)
Cunz Hall, a four story, 60’s era, Brutalist Style structure on the campus of The Ohio State University, has been extensively renovated as the new home of the College of Public Health, with offices, classrooms and bioscience laboratories. This is a LEED-registered project. The renovations retained the concrete structure and much of the signature Brutalist precast concrete panel exteriors while improving upon a number of deficiencies, including:

Cunz Hall / JBAD - Facade
© Brad Feinknopf

- The lack of interior day-lighting
- Confusing interior circulation
- Limited contextual relationship (yes, a hallmark of Brutalism)
- The lack of clarity of the building’s entries that were located on four identical facades
- Aesthetic limitations of this particular example of Brutalist architecture

Cunz Hall / JBAD - Image 7 of 12
© Brad Feinknopf

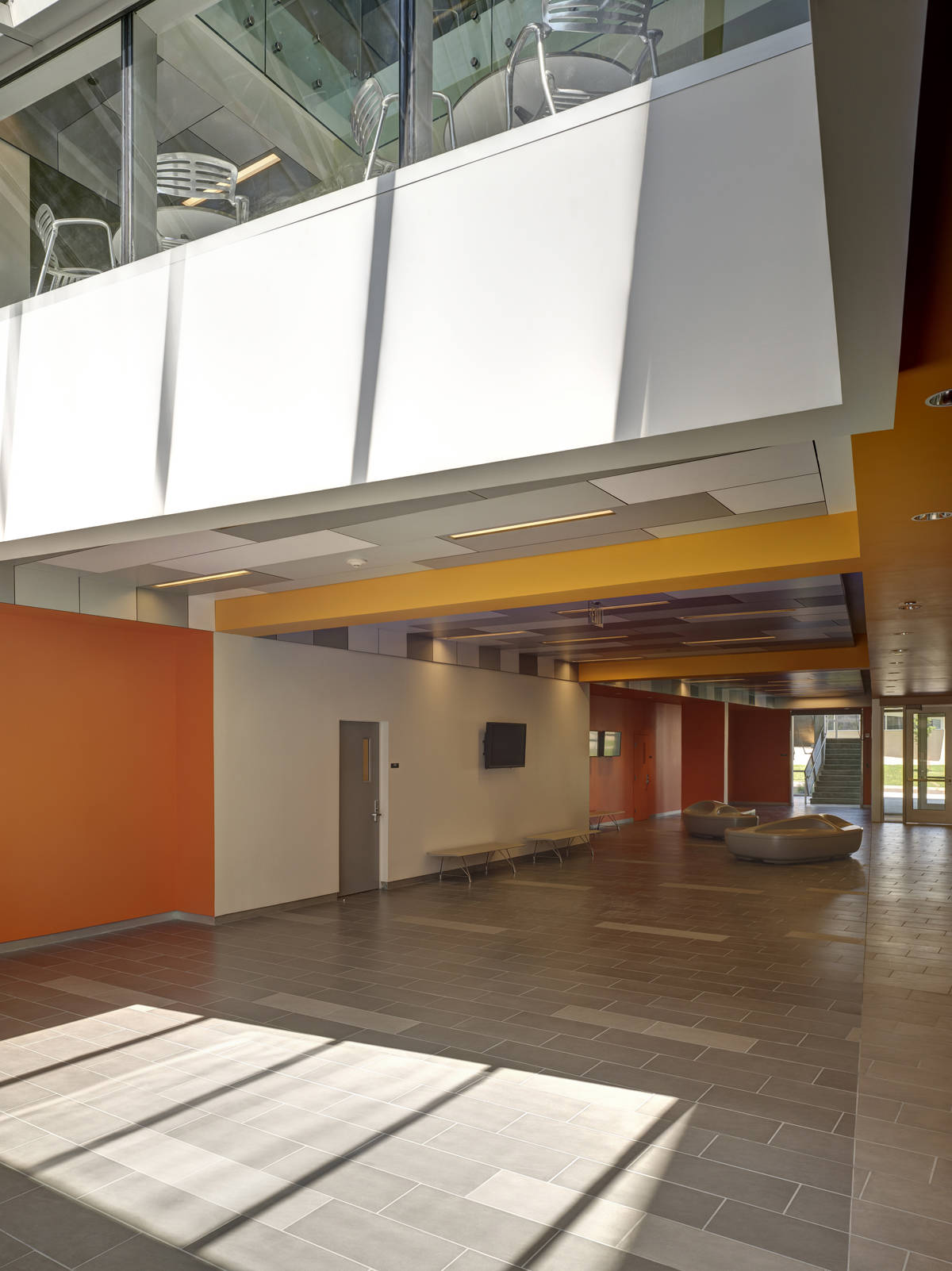

The singular move of creating a new north-south orientation led to the resolution of these deficiencies. Precast panels at the north façade were replaced with a new glass curtain wall and glass canopy above the new north entry. On the south façade, a forty foot deep slot was carved into the building above the second floor, with a skylight above the south entry and an atrium just behind the slot connecting the second and third floors.

Cunz Hall / JBAD - Windows, Chair, Glass, Steel
© Brad Feinknopf

The support of the floor slab edge at the slot was achieved through the use of carbon fiber straps (top face) and rods (bottom face) to avoid steel beams and diminished head height. The new glazing, the slot and atrium all bring a flood of daylight into the building. A new north-south lobby at each floor connects the north and south entries through the building, providing a clear internal orientation and new exterior views to the campus. New full-height glass stair towers at each entry clearly establish the new points of access.

Cunz Hall / JBAD - Handrail, Steel
© Brad Feinknopf

The south serving as the main access for college faculty, staff and students entering from the medical campus and the north serving main campus students accessing the first floor classrooms. The south stair concrete shear wall replaces the interior shear wall removed to accommodate the new elevators. The extensive use of glass in the alterations and additions creates a clear distinction between old and new, reinforcing the integrity of the original Brutalist architecture while creating a new and current image for the building and its occupants.

Cunz Hall / JBAD - Facade
© Brad Feinknopf

The interiors feature perimeter both open offices suites and enclosed offices using demountable partitions with glass panels that bring daylight into the corridors and other interior spaces. New windows in the original precast concrete exterior panels are rear-mounted with their daylight openings extending the full dimensions of the precast openings, admitting maximum daylight.

Cunz Hall / JBAD - Facade
© Brad Feinknopf

Other examples of the project’s sustainable, LEED design and construction are found in the all new advanced HVAC systems and controls, the extensive (95%) recycling of nearly all of the demolition and construction materials, the green roof adjacent to the second floor atrium and the new rain garden located in the south entry court. The anticipated LEED Gold certification will be the first such certification and the first LEED renovation project for the university.

site plan
