Kilden / ALA Architects

  • 01:00 - 12 April, 2012
Kilden / ALA Architects
Kilden / ALA Architects, ©  Iwan Baan
© Iwan Baan

©  Iwan Baan ©  Iwan Baan ©  Iwan Baan ©  Iwan Baan +32

  • Architects

  • Location

    Kristiansand, Norway
  • Competition Team

    ALA Architects ltd, Juho Grönholm, Antti Nousjoki, Janne Teräsvirta, Samuli Woolston
  • Project Team

    ALA Architects ltd / Helsinki, Kristians
  • In Collaboration With

    SMS Arkitekter AS / Kristiansand
  • Client

    Teater- og Konserthus for Sørlandet IKS
  • Project Year

    0
  • Photographs

From the architect. The Performing Arts Centre “KILDEN” will house three organizations: the ‘Agder Theater’, the ‘Kristiansand Philharmonic’ and the ‘Opera South’. The four performance halls are lined up in the mid-zone of the building leaving the production -spaces to the east and audience -spaces to the west side. Further on the west along the waterside, a huge cantilevered roof will cover both the public city-space by the sea and the foyer space which provides access to the shows. Waterfront-facade clad with local oak follows the forms defined by the halls and creates a surface separating real world from the illusional.

©  Iwan Baan
© Iwan Baan

Urban Identity

The urban character of the new theatre- and concert hall building should not only express the functionality of the project. The building will have a major impact on the cultural identity of the city of Kristiansand and the whole region. The architectural expression has to be instantly recognisable and unique. There is a strong demand for a cultural landmark building. Often in theatres the fly tower reflects the buildings function, acting simultaneously as a landmark.

©  Iwan Baan
© Iwan Baan

On this shore the role of the tower has already been taken by the silo. The signature image of the performing arts centre should be built with other means. The main concept of the Teater- og Konserthus design is the series of performance spaces, which has been shaped out to act as a sign in the cityscape. This undulating, unified surface forms a dramatic lobby and foyer between the performance halls and the shoreline. The relationship of the building with the canal and the sea has strong tension and drama.

©  Iwan Baan
© Iwan Baan

Architectural Expression

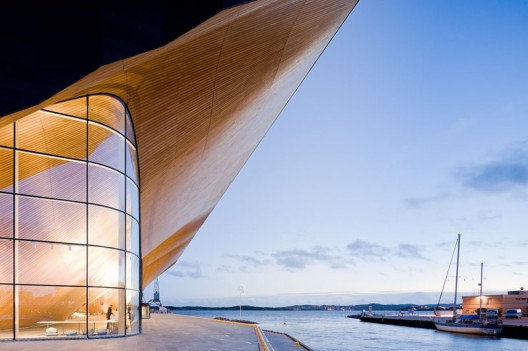

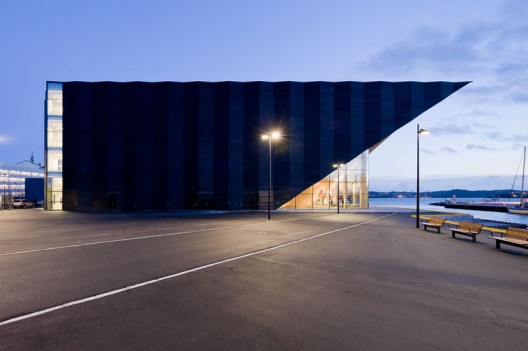

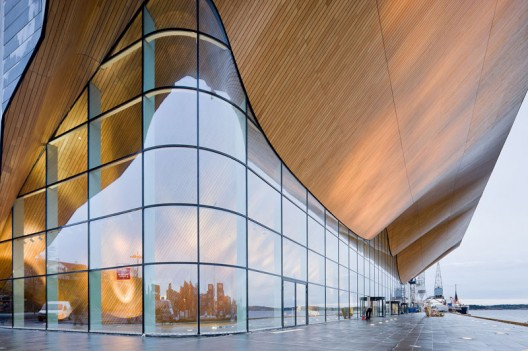

The undulating main façade acts as a surface separating reality from fantasy. This line is crossed as you step into the hall from the foyer. The other façades consist of a vertical folded surface giving the building a subdued elegant form, enhancing the foyer wall as the signifying form of the building. The audience is instinctively drawn towards the public foyer.

©  Iwan Baan
© Iwan Baan

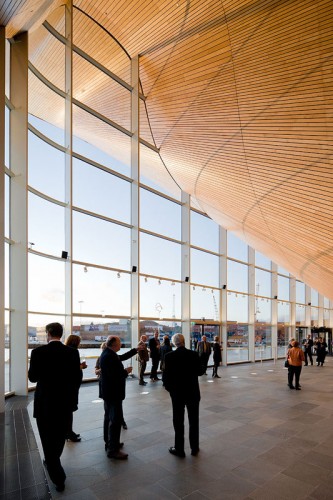

The building has a desire to please the public, to be popular and understandable to everybody. The foyer wall is built of local wood, most likely oak. This further emphasises the warm, inviting character of the foyer space. The vertically folded dark facades are made of sharply detailed, stained metal sheets, most likely of brass or copper.

©  Iwan Baan
© Iwan Baan

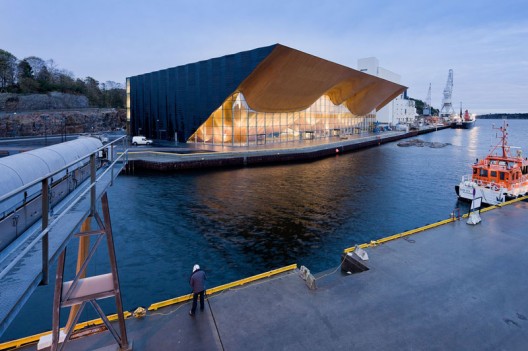

The building is a sharp object with an almost exaggerated clarity of expression. It stands proudly in the rough industrial surroundings. The building creates elegant public and performing spaces and rough, functional production facilities. All this is combined into a shape of an elegant machine –a building as an instrument.

©  Iwan Baan
© Iwan Baan

Functional Concept

The striking exterior appearance of the project is the first thing the visitor experiences. It is, however, a result of a careful analytical design process. The main functional concept is to organise all the production facilities of the building along a straight indoor street wide enough for trucks and deliver sets, instruments and materials. The performance halls are arranged to the other side of the street.

©  Iwan Baan
© Iwan Baan

The order of the auditoriums is determined by the relations to the production facilities, the relations to the exterior logistics, and the relations between the auditoriums themselves. The main stage theatre hall is located so that the stage opens directly to the set-building workshops. This unit is on the southern end of the building to allow for easier loading and unloading of material.

©  Iwan Baan
© Iwan Baan

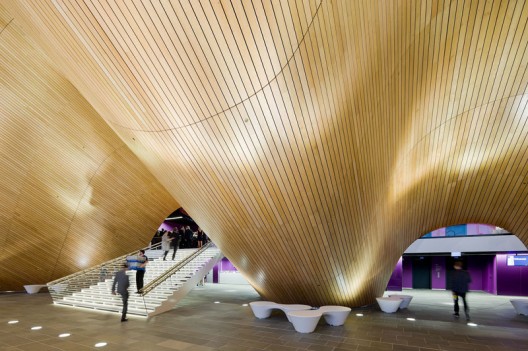

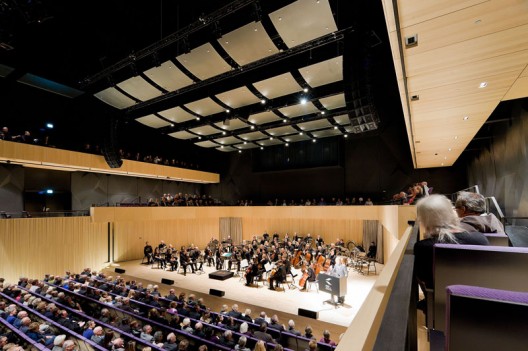

The flerbruksal and the biscene are located on both sides of the main stage for easy co-operation and share of facilities. The concert hall is located at the northern end of the production street. The underbelly of the auditorium creates a memorable beginning for the curving foyer wall. The support facility zone diminishes next to the concert hall, allowing for the chamfered corner of the volume at the tightest corner of the building site.

©  Iwan Baan
© Iwan Baan

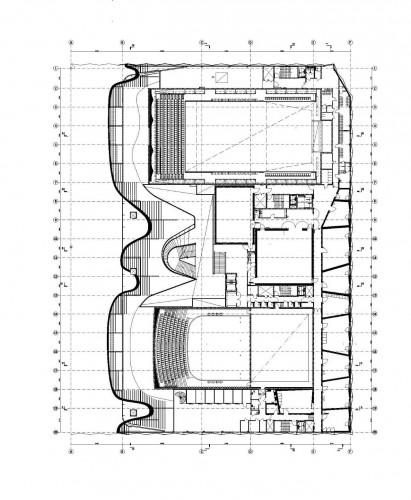

Four Zones

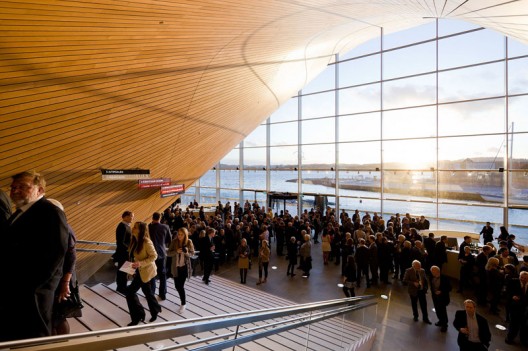

The Theater- og konserthus consists of four parallel zones. The public foyer zone is the expressive, free flowing area of improvisation. The public meets each other. Temporary exhibitions and performances are presented. Parties and congresses are held. The foyer zone is easy to navigate- the public can easily find their way to the different auditoriums and support functions.

©  Iwan Baan
© Iwan Baan

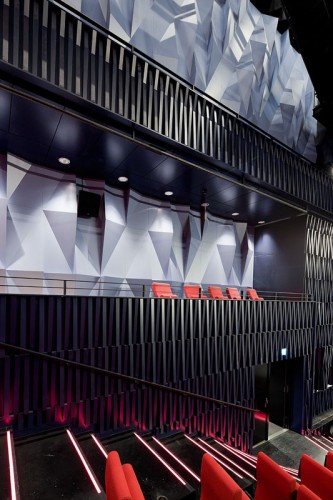

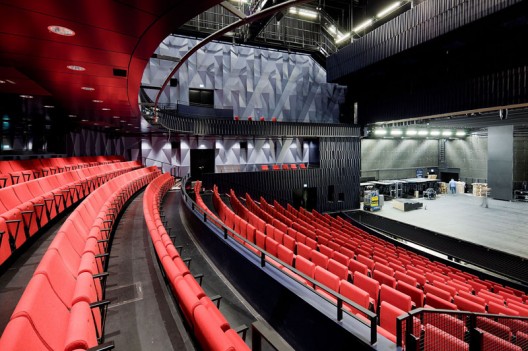

The auditoriums form the second zone between the foyer and the production street. They are conceived as individual, high-performance instruments for music and theatre production and performance. The architectural expression of the halls is formal and precise. They have a touch and feel of units with multiple uses and a very high level of technical functionality.

The production street is the third functional zone. The street is six meters wide and has full-height doors in both ends. The street ensures great flexibility between the auditoriums and the production facilities. The street also acts as an extra production and assembly space, as well as short-term storage.

The fourth functional zone consists of the production workshops, storage units and workplaces for the staff. This zone opens both to the production streets and the corridors directly above it, and to the outside through windows of the long eastern elevation.

Sustainability

Public buildings are an integral part of a socially sustainable environment. The materials are of local sources. Kristiansand was built on the export of oak to Europe in the 16th century: The main undulating façade of Kilden is built of local oak, CNC milled and fully treated in Kristiansand. The other three facades are to be made of aluminium from the factory across the fjord.

The concrete factory supplying the building site is located 200 meters down the pier. Where relevant, local companies are supplying the project with their expertise, workforce and materials. The building is heated and cooled by district systems covering the whole of central Kristiansand. Kilden will become a truly local social hub.

Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "Kilden / ALA Architects" 12 Apr 2012. ArchDaily. Accessed . <http://www.archdaily.com/225522/kilden-ala-architects/>
