Red Bull Music Academy / Langarita-Navarro Arquitectos

  • 01:00 - 6 March, 2012
Red Bull Music Academy / Langarita-Navarro Arquitectos
Red Bull Music Academy / Langarita-Navarro Arquitectos, © Miguel de Guzmán
© Miguel de Guzmán

© Miguel de Guzmán Red Bull Music Academy / Langarita-Navarro Arquitectos Red Bull Music Academy / Langarita-Navarro Arquitectos Red Bull Music Academy / Langarita-Navarro Arquitectos +20

From the architect. In many ways this project shares the logic of a Russian matryoshka doll. Not only in the most literal, physical sense, in which one thing is directly incorporated into another, but also in a temporal sense, in which oneactually originates within the other. The initial circumstancesof this project established a favorable backdrop for this condition:

The Red Bull Music Academy (RBMA) is a nomadic annual music festival. For the last 14 years, this event has been held in a different world city, welcoming the sixty pre-selected international participants and surrounding them with musicians, producers, and DJs, thereby giving them the opportunity to experiment with and exchange knowledge and ideas about the world of music.

Plan
Plan

The 2011 edition of RBMA was going to be held in Tokyo, but given the devastating effects of the earthquake, the location had to be changed. With only five months to plan, the city of Madrid took over. The creative space known as Matadero Madrid, which is located in an early 20th century industrial warehouse complex, was designated as the event’s new location.

A medium-term project, The Nave de Músicain Matadero Madrid

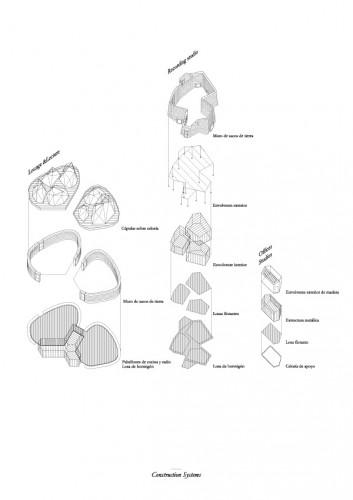

Axonometric
Axonometric

The RBMA launched the programming for the new Nave de Música (music warehouse), a space specifically dedicated to audio creationand research. Using the existing installation as a starting point and given its experimental character, the construction project was approached as a temporary structure based on the criteria of adaptability and reversibility that would make it easy to completely or partially reconfigure over time.

Under these circumstances and in an emergency situation, the work began on an infrastructure capable of meeting the precise technical and acoustic needs of the event, in addition to accelerating, promoting and enriching a series of extremely intense artistic encounters that would take place between the participating musicians, whileat the same time adding anenvironment that would record and archive everything taking place.

© Miguel de Guzmán
© Miguel de Guzmán

The proposal was developed based onfive guidelines:

© Miguel de Guzmán
© Miguel de Guzmán

1. Deadlines and budget. The design had to specifically comply with some very tight deadlines and budgetary concerns. The construction had to be completed in less than two months, implementing solutions that would require only light construction and seeking a balance between standardization and adaptability.

General Axonometric
General Axonometric

2. Regarding the warehouse. Warehouse 15of the Matadero is an open space comprised of a metallic structure with a brick facade. This structure, which measures about 4,700 m2, opens directly to the outside. One of the criteria taken into account for this project was that of not modifying the warehouse itself, but rather leaving it exactly as it was before the intervention.

© Miguel de Guzmán
© Miguel de Guzmán

3. Program requirements. The program’s organization clearly establishes a specific configuration that is grouped into four areas: offices, studios for musicians, recording studios and an area used for conferences, radio and as a lounge. The chosen spatial and constructive systems would allow for the reconfiguration of these spaces for future events.

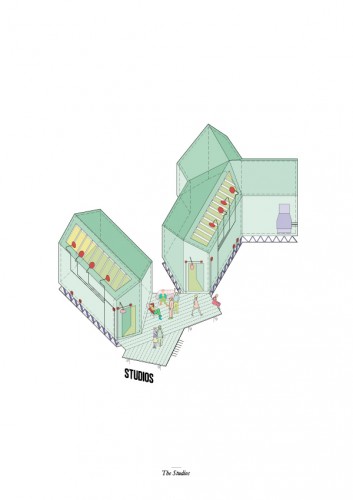

Axonometric
Axonometric

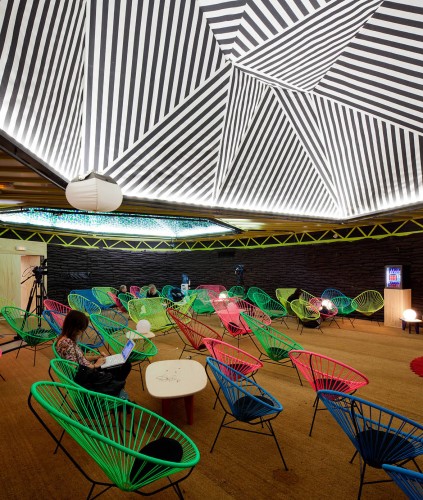

4. Acoustics. The event’s acoustic requirements determined itsgeometry, as well as the choice of materials and constructive solutions. Each of the areas acquireda specificlogic that corresponded with its usage, thereby making it possible to uniquely resolve its acoustic needs. Some heterogeneous solutions included the massive walls in the recording studios, the absorbent surfaces of the cloth domes in the conference room and the structural and geometric independence of the nonparallel pavilions.

Section
Section

5. Temporariness. Given the temporary nature of this project and in order to avoid influencing future interventions in the warehouse, itwas designed to be dismantled in such a way so as to not leave a trace. Even the “heaviest” actions were designed to be reversible and to allow for their easy recycling for future events. Examples of this included the use of sandbags to make up the walls of the recording studios and potted plants that could later be transplanted in other areas of the Matadero or the city.

Detail
Detail

As a result, the project unfolded in the warehouse’s interior in the form of a fragmented urban structure in which the variable relationship between proximity and independence, and preexistence and performance could offer unexpected stages to its community of inhabitants.
