Liverpool Department Store / Rojkind Arquitectos

© , photo by Paúl Rivera

Architects: Rojkind Arquitectos
Location: Huixquilucan,
Project Architects: Michel Rojkind, Gerardo Salinas
Project Team: Joe R. Tarr, Djurdja Milutinovic, Rodrigo Medina, Philipp Schlauch, Birgit Hammer, Jose Carlos Lombana, Abhirabika Agrawal, Rosalba Rojas Chávez, Dolores Robles-Martínez Gómez, Andrea León Cruz
Client: Liverpool
Area: 30,000 sqm
Completion: 2011
Photographs: Paúl Rivera

© Rojkind Arquitectos, photo by Paúl Rivera

Understanding the new role shopping centers play in today’s society, in which they have be- come a magnet for social encounters and even cultural exchanges, Rojkind Arquitectos was commissioned to design a façade for the new 30,000m2 department store as part of a new era in the company’s pursuit for re-branding itself.

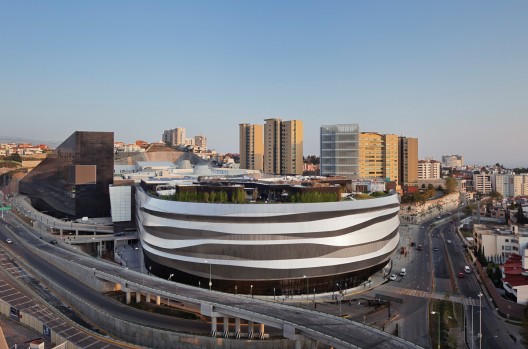

Liverpool department stores, with a 164-year- old history, have for the most part always been one of the main anchor stores for large shop- ping centers in Mexico. Its strategic location plays an important role in the immediate urban context.

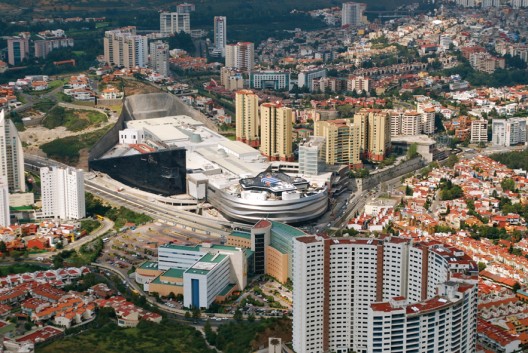

Located in the northern “car dependent” sub- urb of Interlomas on the outskirts of Mexico City, this relatively new suburb is character- ized by a lack of open public space and a myriad of roads on which pedestrians are not welcomed.

© Rojkind Arquitectos, photo by Paúl Rivera

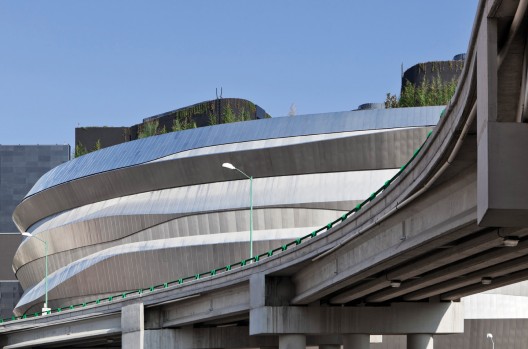

The new facade responds to a fast pace of the everyday life in this isolated suburb, sitting in the middle of a very congested intersection of highways and overpasses, which give it a futuristic “Blade Runner-like” feel.

With an existing circular footprint, the cus- tomization process of fabricating directly from 3D models drove the ideas behind the façade design intent. Speed became a very important factor in the way the project is experienced. Flexibility, fluidity and dynamism drove the design process.

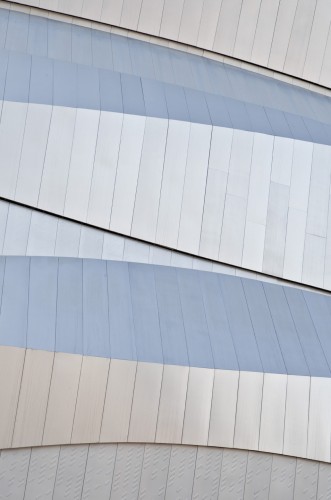

The double-layered façade shelters the store and it’s users from its chaotic environment. It’s sleek stainless steel machine-like exterior, is intended to evolve in a very fluid way as the intense sun bathes it throughout the day. It’s a contradiction to the grit and chaos of its sur- roundings; a juxtaposition that becomes a new reference for this part of the city.

© Rojkind Arquitectos, photo by Paúl Rivera

At night the hollow cavity between the layers of the façade will be engulfed in light that will subtly escape through the fine reliefs formed at the folds in the skin. The façade transforms

at night from its solid monochromatic ap- pearance during the day to a dynamic form accented by light.

As part of this new endeavor by the client, multiple design firms were selected to participate in the various parts of the project: the interiors were done by FRCH, the rooftop garden by Thomas Balsley and the gourmet space by JHP.

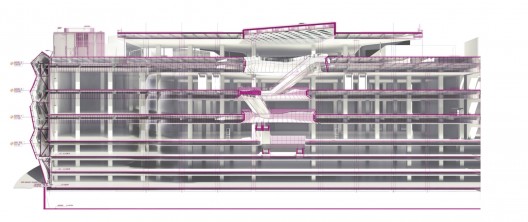

section

In the initial workshops sessions, it became clear that the main central interior space needed to reflect the dynamic nature of the exterior so the client retained Rojkind Arqui- tectos to design this space as well.

As the visitor enters, they are met by a three- story atrium full of movement and filtered daylight that encourages the visitor to move throughout the department store.

The curved backlit balconies are intended to be a reminder of the fluidity of the exterior façade but at a more human scale as opposed to the urban scale of the exterior façade.

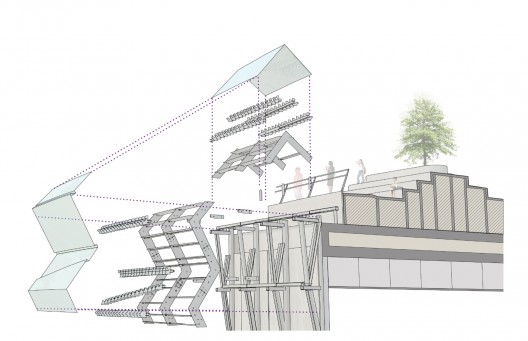

exploded detail

This play between the inside and outside is intended to create a sense of discovery for the user that culminates at the roof garden.

The roof terrace will contain a park-like set- ting that can be enjoyed not only by the store visitors but also by the surrounding local community, thus enhancing the social role that the department store will play.

The complexity of the project combined with a very tight schedule and a difficult urban site condition, required the combination of a highly skilled design team and collaborators in which the interconnectivity and digital de- sign tools have radically transformed the way we design and construct buildings today.
