Pass Plus Cafe / Imagine Native

© Kingkay Architectural Photography

Architect: Imagine Native
Location: Hongqiao Railway Station, ,
Firm Principal: Edmond Tse (HKIA), F. Fung (HKIA), C. Lai
Client: Pass Plus Restaurant Management Co. Ltd.
Area: 140 sqm
Project Year: 2011
Photographs: Kingkay Architectural Photography


Pass Plus Café is located at the recently completed Hongqiao High-speed Railway Station in Shanghai. The distinct site feature is the long and narrow space with the glass wall along the long side of the shop. We took this feature as our major design driven force.

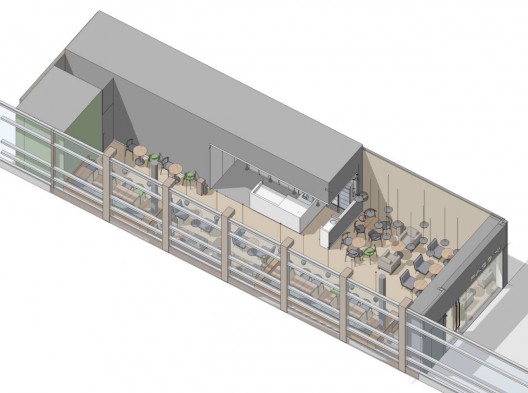

The solution for the long and narrow site involved a careful division of operation area and the seating area. Several seating zones were created with different seating arrangements, and they are mostly placed along the window wall to take the advantage of the natural light. The size of the kitchen was minimized and located at the dark side corner of the site. To create more spacious interior, part of the kitchen is also opened up for drink preparation, food display and cashier counter.

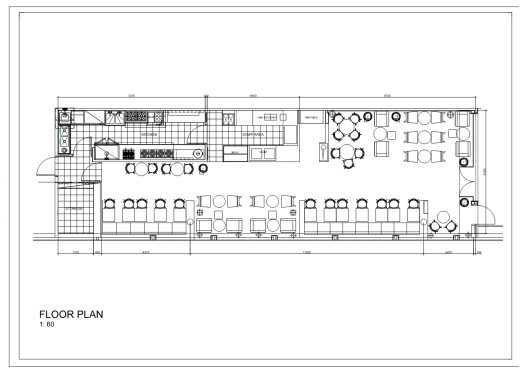

floor plan

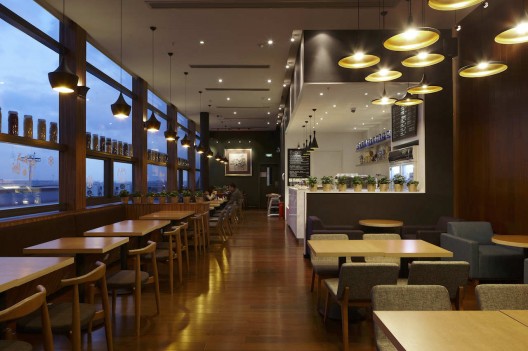

The space is flooded with natural light and window wall which captures the view to the sky and the surrounding area. It is one of the few shops in the whole railway station with such a great view to outdoor. Our concept is to create a simple, warm and natural interior, which is completely in contrast with the general atmosphere of the Hongquiao Railway Station, it is busy, tensioned, congested and cold interior space. Most materials used are in timber in order to create a natural atmosphere with the help of natural light.

We want to create an interior to be an oasis for the passengers to visit before and after their journey in this vast transportation complex.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
