Bajo Martin County / Magén Arquitectos

Feb 2012

Uploaded by Kritiana Ross — Filed under: Featured ,Institutional Architecture ,Selected , Híjar, Magen Arquitectos, Spain

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Magén Arquitectos – Jaime Magén
Location: N-232. Híjar (Teruel), Spain
Developer: Bajo Martin County Seat
Collaborators: Beatriz Olona, María Tejel (architects), José Luis Sánchez (quantity surveyor), Rafael González (engineer), José Sainz (structure)
Construction: Conavinsa SA. Grupo Praínsa
Photographs: Pedro Pegenaute

The Bajo Martin County is formed by nine historic populations in Teruel, located in the basin of the River Martin. Alabaster, which is extracted from quarries in the area, is one of its main resources, dedicated to both the export and cultural promotion, through routes, meeting craft and art activities, organized annually by the Center for Integrated Development of Alabaster.

first floor plan

The site is located on the outskirts of Hijar, capital of the county, along the national highway N-232 and the old abandoned silo. It was a dysfunctional urban environment, including existing industrial buildings, and the front of residential townhouses, just across the road.

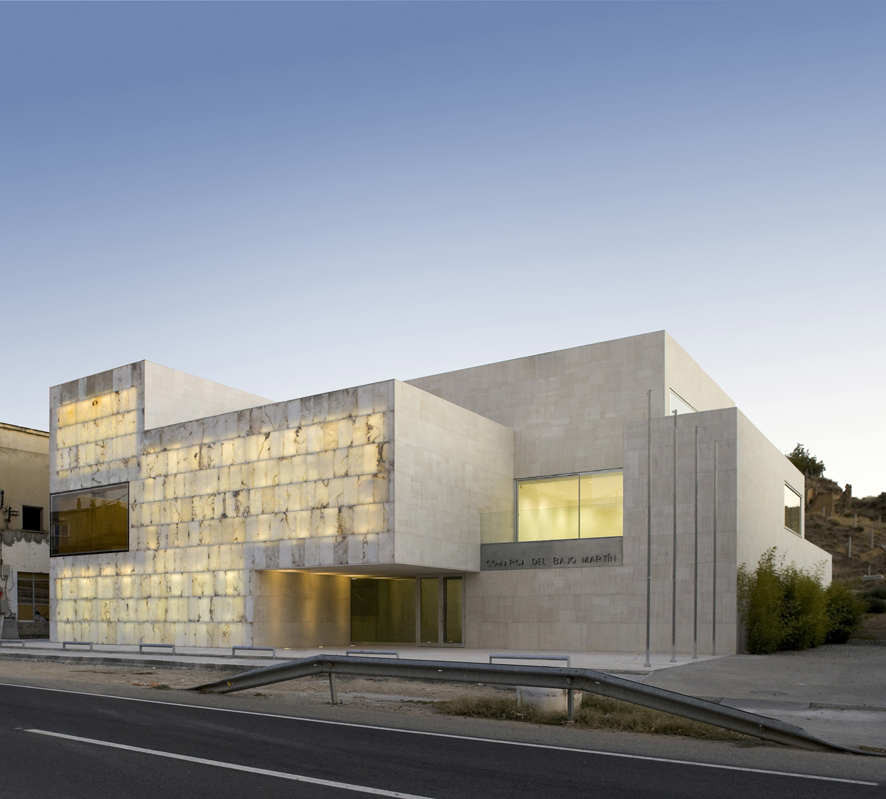

The absence of urban qualities in the environment legitimizes a certain autonomous condition of the building, rising from the land to form a unified solution, clear and compact. Therefore, the necessary link of building and place, reinforced by its institutional character, not articulated from urban relationships with the immediate environment, but from references to geographical landscape, history and culture, present in their external configuration. The group of carved volumes on local materials -stone and alabaster, alludes, in an abstract and geometric way, to stone groups that occur in quarries in the area. The stone surfaces, opaque or translucent, exhibit materials and expressive features of alabaster in relation to the day or night lighting.

The ordered group volumes in the outside, compact, heavy and massive, is poured inside. The space pierces and perforates the solid volume, producing a dynamic system of voids, connected visually and spatially, diagonally, linking the three floors and articulating the circulation spaces, access and meeting. The continuity with the outside material and the presence of natural light into the interior through various gaps, strengthen the condition of the interior space as empty excavated, drawn from the section as a fundamental tool of the project.

second floor plan

The functional organization of the project is divided into three bands constructed parallel to the path. The first is the plenary hall access and, second, the lobby and areas of management and administration, and third, to the auditorium and classrooms. The distribution of plants distinguishes between the more public areas at ground and first floors, and more related to internal management and work in the second. In contrast to the stone walls inside the bamboo wood finish in the most significant spaces such as the plenary hall, underscores its public, institutional and representative.

: © Pedro Pegenaute

: © Pedro Pegenaute

: © Pedro Pegenaute

: © Pedro Pegenaute

: © Pedro Pegenaute

: © Pedro Pegenaute

: first floor plan

: ground floor plan

: second floor plan

* Location to be used only as a reference. It could indicate city/country but not exact address.

Cite:
Ross , Kritiana . "Bajo Martin County / Magén Arquitectos" 11 Feb 2012. ArchDaily. Accessed 25 May 2012. <http://www.archdaily.com/206751>
