Burriana Sports Pavillion / aquidos

Courtesy of

Architects: aquidos - J.Mª Gordi, Jordi Jané, Anna Fumadó, Francesc Puig
Location: Burriana,
Construction Manager: Oriol Marin
Project Manager: Miquel Marco
Cooperators: Joaquín Oliver
Structure: Static ingenería
Installations: Ingsemat S.L.
Client: Ayuntamiento de Burriana
Area surface: 3,297 sqm
Cost: 2,850,0005€
Contractor: UTE GyC + VASECO
Photographs: Courtesy of aquidos

Courtesy of aquidos

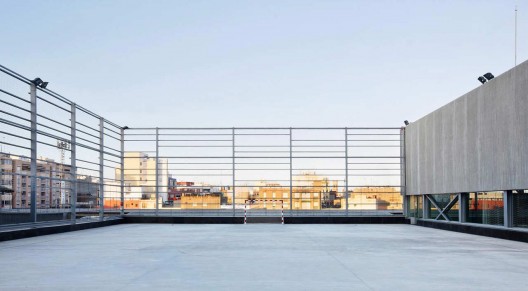

The new sports pavilion is the final piece of the public sports complex of la Bosca. Between the two sports halls there is a new building for dress rooms that serves the entire complex now. A new outdoor sports pitch is also located on the flat roof of this new building.

Courtesy of aquidos

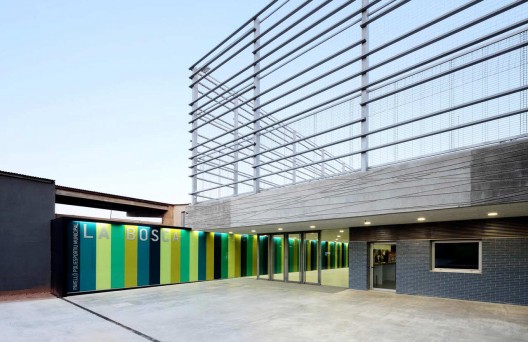

The new pavilion creates new relationship with its neighborhood. The transparent façade of the ground floor brings more communication between the street and the interior of the pavilion. It brings the sport activities to the street. The pavilion brings a new atmosphere to a traditional neighborhood. Its objective is to gather people and boost the sport activities in the community.

Courtesy of aquidos

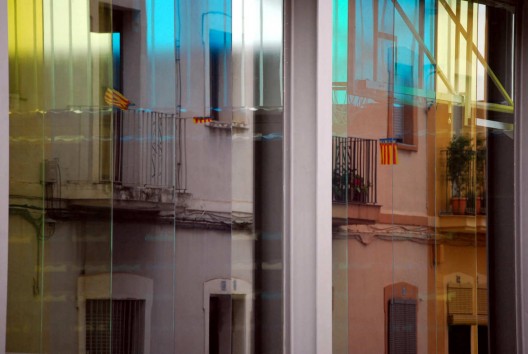

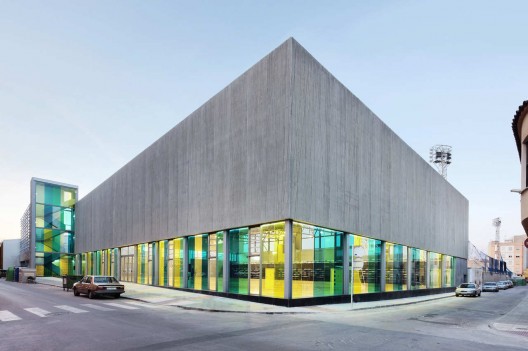

Concrete is used as bulk material, heavy, rough and continuous. The concrete façade defines a floating pavilion. The use of precast panels has allowed the construction on a tight schedule. For the panels craving drawings were use 3 molds with specific design standards with the aim of emphasizing the heterogeneity and imperfection of the material. These lines remind us the concealing joints between pieces and causing a feeling of continuity. The glass expresses lightness, brightness and color diversity.

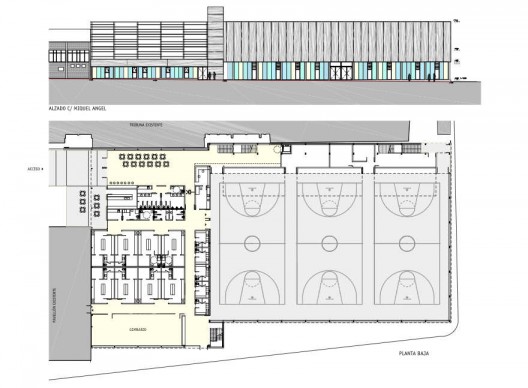

plan 01

The access to the sports complex is from the main Street that connects the center of the village, to an outdoor transition garden zone which is also used as a terrace for the new bar and exterior foyer. The new building is slightly hidden on access. It’s attached to the back of the rostrum of the football field and provides the main facade to the street Miguel Ángel. The new sports facilities are a succession of different elements: the new pavilion in the corner is like a suspended concrete box; the stairs are as a vertical milestone in the street; the low rise gym is like its metal framework.

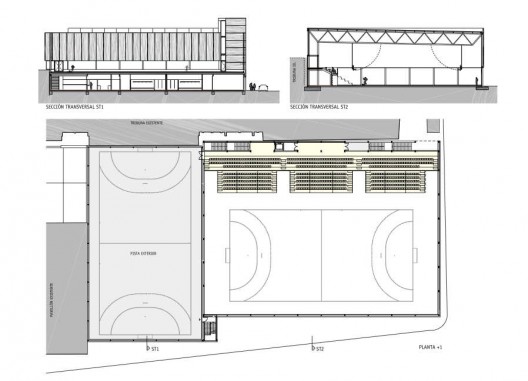

plan 02

The central body concentrates all the facilities of the sports courts: 8 changing rooms for teams, 5 individual dressing rooms, an infirmary, a gym and a track, all managed together from a single point of control.
