Belvedere Residence / Anastasia Arquitetos

  • Architects: Anastasia Arquitetos
  • Location: Belo Horizonte - Minas Gerais, Brazil
  • Architects: Anastasia Arquitetos
  • Area: 370.0 sqm
  • Project Year: 2011
  • Photographs: Courtesy of anastasia arquitetos

Courtesy of  anastasia arquitetos Courtesy of  anastasia arquitetos Courtesy of  anastasia arquitetos Courtesy of  anastasia arquitetos

From the architect. The 370 sqm residence distributed in two levels is situated in a manly residential neighborhood in the city of Belo Horizonte, Brazil, on a 450 sqm flat site. The architectural approach seeks to privilege the maximum integration of external and internal areas, mixing up their boundaries, and, then amplifying the feeling of wideness.

Courtesy of  anastasia arquitetos
Courtesy of anastasia arquitetos

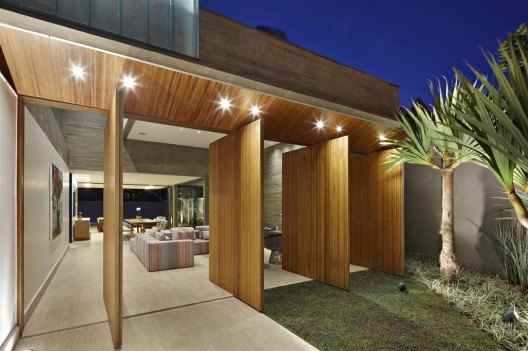

Due to the reduced size of the site, residual and crossing spaces were practically left out (for example, there is no entrance hall, in behalf of a visual permeability with the entrance garden, achieved through large pivotal doors in the facade).

Courtesy of  anastasia arquitetos
Courtesy of anastasia arquitetos

The floor plan is rectangular and compact, stretching till the site’s sidelines.

Plan
Plan

The rooms are illuminated by large doors front and back facades and also by matted glass locking (u-glass that acts as a good thermal insulation due to the existence of an air layer between the glass sheets) between the lagged cover labs. A glass cover over a concrete pergola complements the illumination through an indoor garden. Therefore, the house is flooded by zenithal and indirect natural light that besides avoiding artificial lighting during the day, also avoids excessive heat from direct sunlight. The prevailing wind comes from the street, thus the entering doors work as regulators of wind speed. Totally opened in the summer, praise cross ventilation, or closed in the winter, or even semi opened if little ventilation is desired.

Courtesy of  anastasia arquitetos
Courtesy of anastasia arquitetos

The residence was established in the street level, one meter above natural ground, in order to avoid unevenness and improve accessibility of the social areas. And, it also let the house more protected from the soil moisture. It is important to remind that one of the reasons for the implantation of compact field, reducing its footprint, was to increase the permeability of the ground, something really needed in our cities. Solar collectors (that meet the house and the pool) occupy the most of the cover slab which prevented the use of this area initially contemplated.

Courtesy of  anastasia arquitetos
Courtesy of anastasia arquitetos

Due to the large spans desired, supported by few points of foundation, and also to the large porch swing, the upper walls are concrete beams built by ripped forms of wood left apparent. Its aesthetics comes from a structural option, hence follows that it is not decorative. This structural gymnastics was important, as the support pillars on the porch would be contrary to the intention of integration between interior/exterior desired.

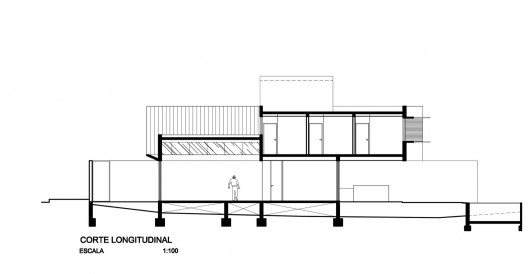

Section
Section

The result was a light weighted residence (despite its aesthetics of exposed concrete), lighted and ventilated, with pleasant and proportional spaces that put into to practice the initial desire to the best possible use of external area.

Courtesy of  anastasia arquitetos
Courtesy of anastasia arquitetos

Text provided by Anastasia Arquitetos
