Small House in Olive Grove / Wendy Evans Joseph Architecture

  • 01:00 - 22 September, 2011
Small House in Olive Grove / Wendy Evans Joseph Architecture
Small House in Olive Grove / Wendy Evans Joseph Architecture, © Elliot Kaufman Photography
© Elliot Kaufman Photography

© Elliot Kaufman Photography © Elliot Kaufman Photography © Elliot Kaufman Photography © Elliot Kaufman Photography +8

  • Architects

  • Location

    Geyserville, CA 95441, United States
  • Architects

    Wendy Evans Joseph Architecture
  • Project Team

    Wendy Evans Joseph, Chris Cooper, Chris Good, Michael Walch, Reed Langworthy, Farzana Gandhi
  • Architect Of Record

    Richardson Architects
  • Civil Engineer

    CSW / Struber-Stroeh Engineering Group, Inc.
  • Structural Engineer

    Tysinger & Associates Structural Engineers
  • Design Process

    Background and Project Description
  • Area

    850.0 ft2
  • Project Year

    2010
  • Photographs

From the architect. This agricultural property in Sonoma is owned by two scientists. The husband often works inside, but also prefers alternative work locations where for his laptop computer. The wife is involved with a number of agricultural projects, keeping olive orchards, harvesting olives and making olive oil; bee keeping; extensive gardening and various other endeavors that take advantage of Sonoma’s beautiful climate, soils and siting. Embracing the “locavore” movement, the wife brings her olives and honey to local markets and restaurants.

© Elliot Kaufman Photography
© Elliot Kaufman Photography

The 25-acre site of the original house had no real infrastructure and met none of the new code requirements for water conservation and fire safety, and did not provide adequate power for farm use. The client requested a new structure that would take advantage of the site’s hillside views, while reflecting their modest lifestyle so deeply engaged with outdoor life. They also requested that the new structure be “off the grid”, with all utilities buried, and that site improvements be implemented to avoid erosion.

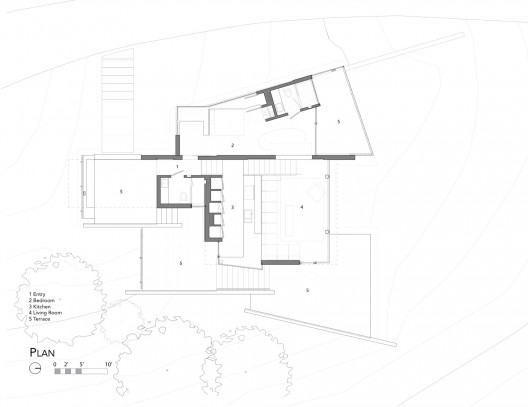

Plan
Plan

Program and Spatial Development

The house, only 850 sqf, is situated towards the top of an olive orchard. The siting takes advantage of the prevailing breezes and shade, while utilizing an existing open area so that no trees were removed. The goal was to create an energy efficient, compact dwelling where the clients could sit in shady areas, entertain, and enjoy views across the local agricultural lands.

© Elliot Kaufman Photography
© Elliot Kaufman Photography

Layout and materials

The house is organized on three levels that descend with the hillside. The entry level contains a full hallway bath as well as a bedroom with a bathroom and balcony. The mezzanine contains the kitchen and an eating counter, with a direct connection to a dining deck at the same level. On the lower level is the living room at grade with an adjacent deck. Floors, steps, and wall tile are a soft grey limestone. The woodwork is oak, stained grey with inserts of clear acrylic resin. The resin catches sunlight as it moves across the cabinetry face. The metal is painted steel and the countertops a grey eco-composite.

© Elliot Kaufman Photography
© Elliot Kaufman Photography

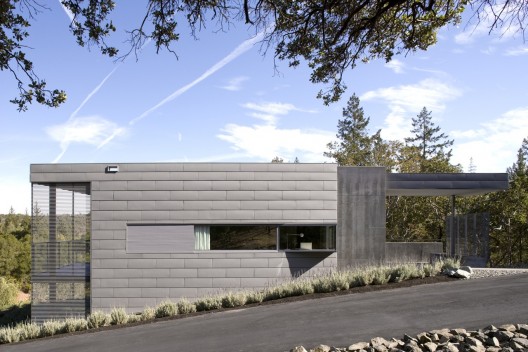

The exterior is predominantly light-grey zinc expressed in horizontal panels with 3/8” joints running horizontally and overlapping joints in the vertical direction. There are some minimal areas of redwood, stained grey as a detail on the south and east facades. The window system is custom, with steel mullions painted grey to match the zinc. Slatted, redwood sunscreens for the bedroom and entry deck provide texture, privacy, and shading. Horizontal skylights over the stair bring daylight to the interior while mitigating heat gain with a ceramic frit.

© Elliot Kaufman Photography
© Elliot Kaufman Photography

Furnishings are mostly custom built-in pieces as the room dimensions are small, and space must be used in a highly efficient manner. A more luxurious, large shower with 10-foot high glass overlooking the hillside, celebrates the view, and brings the outside indoors as a part of the residents’ functional lives.

© Elliot Kaufman Photography
© Elliot Kaufman Photography

The house is at once grand and intimate. We concentrated the limited square footage in a few select areas so that each actually seems quite generous. There are openings between levels so that one is able to converse easily and experience the view from a series of places within the house, from a secret window seat with a sliver window to the north to the large expansive view from the living room. Details like hidden closets and storage recesses are meant to delight the user with the confluence of efficiency and aesthetics.

© Elliot Kaufman Photography
© Elliot Kaufman Photography
Cite: "Small House in Olive Grove / Wendy Evans Joseph Architecture" 22 Sep 2011. ArchDaily. Accessed . <http://www.archdaily.com/170933/small-house-in-olive-grove-wendy-evans-joseph-architecture/>
