Myriad, Syntax and Tunga / Dick van Gameren architecten

  • 01:00 - 17 September, 2011
Myriad, Syntax and Tunga / Dick van Gameren architecten
Myriad, Syntax and Tunga / Dick van Gameren architecten, © Marcel van der Burg – Primabeeld
© Marcel van der Burg – Primabeeld

© Marcel van der Burg – Primabeeld © Marcel van der Burg – Primabeeld © Marcel van der Burg – Primabeeld © Marcel van der Burg – Primabeeld +16

  • Architects

  • Location

    Amsterdam, The Netherlands
  • Project Team

    Dick van Gameren; Jarno van Essen; Mark Sloof; Sebastiaan Kaal; Maarten Peters
  • Structural Engineer

    Berkhout Tros Bouwadviseurs, Alkmaar
  • Technical Engineers

    BNI Installaties, Alkmaar; Pol Soest, Soest
  • Contractor

    Heijmans Woningbouw, Almere
  • Client

    Heijmans Vastgoed, Almere
  • Project Year

    2009
  • Photographs

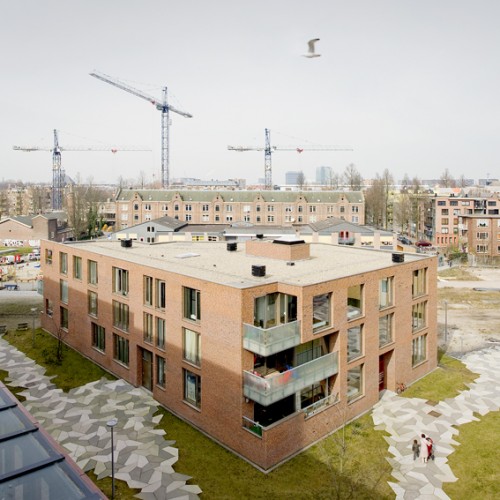

From the architect. Myriad stands out from the other urban villas in the inner area of the Funenpark grounds due to its varied programme. The six-storey building contains twelve four- and five-room dwellings and ten smaller two- and three-room apartments. The block with twenty-two apartments is made of up of thirteen different types of dwellings.

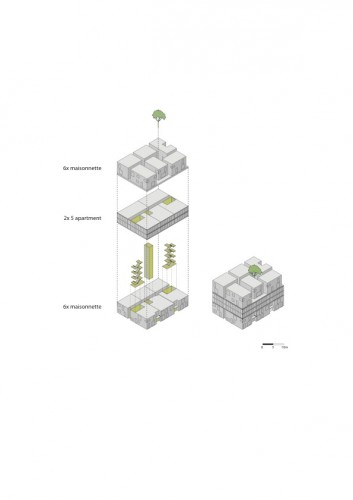

Myriad scheme
Myriad scheme

The larger apartments were constructed as single-family residences. The six maisonettes at ground level each have an outer area bordering the green car-free space between the residential blocks. The other six family residences are detached houses located on the roof of the fourth storey. A small square on the roof, containing trees and a few paths, connect these houses with the centrally located area where stairways and lift can be accessed.

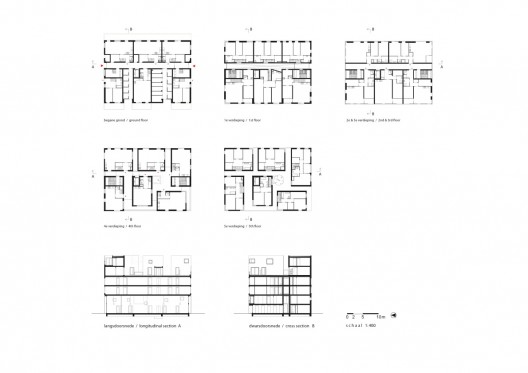

plans and sections
plans and sections

Each of the two storeys situated in between contains five apartments located on opposite sides of an inner passageway that stretches from façade to façade. The way the building block was constructed is evident on the outside: the twelve family dwellings stand out due to the variety of colours used in the brick façades and masonry bond patterns, thus emphasizing their individual characters.

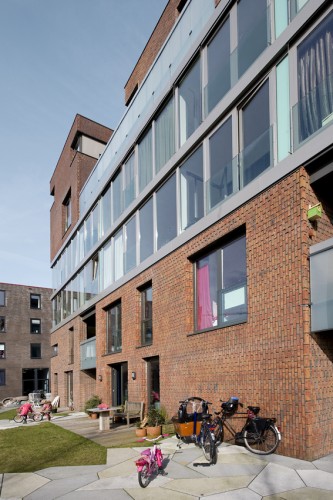

The two intermediate storeys, on the other hand, suggest the communal character of an apartment complex: continuous glass fronts between strips of preformed steel create a neutral filter between the city and the apartment.

© Marcel van der Burg – Primabeeld
© Marcel van der Burg – Primabeeld

Syntax en Tunga are two identical apartment buildings with three storeys resting on a semi-underground storage level on the edge of Funenpark. Ten apartments and a maisonette are located around a central area that gives stairway and lift access. The apartments’ outdoor areas face the park as much as possible.

Text provided by Dick van Gameren architecten.

© Marcel van der Burg – Primabeeld
© Marcel van der Burg – Primabeeld
Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "Myriad, Syntax and Tunga / Dick van Gameren architecten" 17 Sep 2011. ArchDaily. Accessed . <http://www.archdaily.com/167460/myriad-syntax-and-tunga-dick-van-gameren-architecten/>
