Restoring a Classic: Richard Meier’s Douglas House

Courtesy of Dwell

Referred to as one of Meier’s best works, the Douglas House hovers over the shores of Lake placed upon a steep slope over the water almost as if it is floating amongst the trees.   The Douglas House was designed for clients Jim and Jean Douglas and was completed in 1973 after a three year construction period (1971-1973).   Meier furnished the home with furniture designed by Le Corbusier, Mies van der Rohe, and himself, and it needed no ornamentation other than the nature it was designed around.

As is typical of Meier buildings, the house is completely white made with reinforced concrete and glass except for two steel pipes that extend from the chimney up to the roof, framing views at the entry level. Taking the natural surroundings into consideration during the construction, the house was positioned to remove as few trees as possible.

Featured in Dwell’s latest edition (out this week!), the full article can be found following the break.

Courtesy of Dwell

On the Waterfront

After purchasing a revered archetypal lake house designed by American architect , a retired couple launches into the home’s second renovation in 35 years.

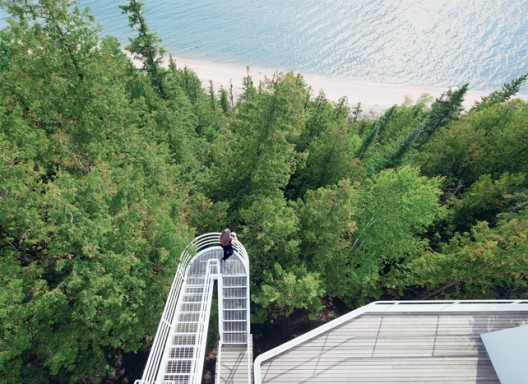

Located on the shore of Lake Michigan, the 1973 Douglas House was one of architect Richard Meier’s first residential commissions. Defined by its verticality, the house features an exterior stepped walkway that extends over the trees, connecting the levels.

It took nine months before Michael McCarthy and Marcia Myers fully realized what they’d actually purchased in Harbor Springs, Michigan. “We saw this white house listed on the Internet with a lot of glass looking out at the lake,” says Myers, who, along with her husband, had searched for years for a waterfront property. They scouted lake houses and talked about beachfront property in New Jersey and Delaware. “But we kept going back to the Harbor Springs house,” she recalls. “The price kept going down when prices everywhere else were going up.” So they traveled to Lake Michigan to see it in person.

Courtesy of Dwell

They knew about the basics of architecture and modernism, but they were only vaguely aware of Richard Meier. All they really knew was how deeply they wanted the house. At 3,200 square feet, it was set among the trees on the steep side of a cliff, commanding views over a turquoise lake and 970 feet of private beach. The 1973 home had issues, but McCarthy, an engineer by training, cataloged them all and used the information to negotiate a lower price. The house had been renovated once before, in 1988, but it was structurally sound. Looking for yet more information before they bought the house, McCarthy decided to contact the three previous owners. That was when he began to discern the home’s pedigree.

Friends started to rave about their purchase. Architects and professors began knocking on their door, requesting tours. “That’s when we realized that what we’d gotten was an American masterpiece,” Myers says. The structure, known as the Douglas House, was conceived in the late 1960s when Jim and Jean Douglas of Grand Rapids reached out to Meier after seeing his 1967 Smith House on a magazine cover. “I wanted a Bauhaus sort of a house, very open,” Jim Douglas recalls. “We didn’t put any parameters on him because architects do their best work when they do it the way they want.”

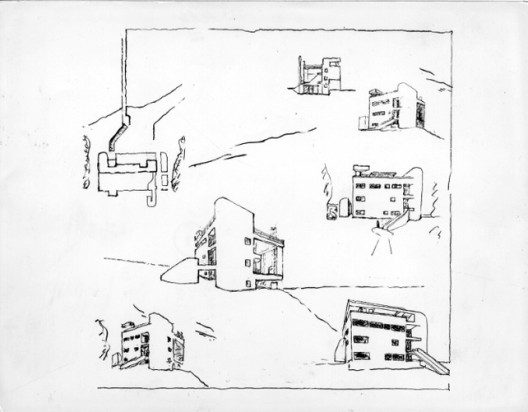

exterior sketches

The house was originally planned for a different site located in a development. But when they discussed exterior paint with a homeowners’ association, white was rejected as a color. That didn’t sit well with Meier, or with the Douglases. “[The homeowners’ association] wanted it to be beige,” Douglas recalls. “I got angry.” Client and architect decided against the site. Then the Douglases found a waterfront lot with three sides facing Lake Michigan. “It was very private and completely covered in trees—from the road you could see the lake. No one else could figure out how to build there,” Richard Meier recalls. “It took me quite a while to do it.”

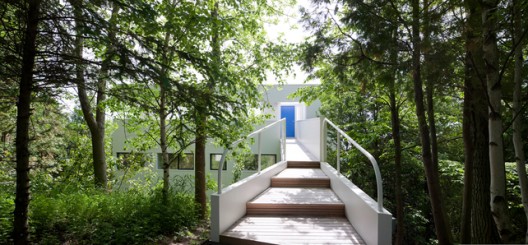

He began by calling for a series of 16-inch round pilings, telephone poles really, to be pounded deep into sand and shale and fly in succession up the cliff to support the house. Where the entry to the Smith House had been at ground level, here it was via a bridge from road to rooftop. The Smith House is experienced as an ascent; Douglas is about a cascade down. It’s largely experienced inside, where the glass facade meets water views. “The parti is to close down the entry side and open up the water side,” Meier explains. “The whole experience is about opacity to transparency.”

Courtesy of Dwell

It’s a notion explored earlier by the modern masters. “In my generation, everyone was influenced by Aalto and Wright and Corbusier,” Meier says. “[The Douglas House] has a separation of skin and structure, and uses the rooftop as an entranceway, and those things are all Corbusier. I think our work on the Douglas House relates back to modernism—it’s not isolated, but it is part of the continuum. Our work is not created in a vacuum.”

“In the 1960s and 1970s, to almost everyone at Princeton and Cornell [Meier’s alma mater], Le Corbusier was almost the Apostle Paul,” says North Carolina–based architect Frank Harmon, who worked in Meier’s office at the time the Douglas House was constructed. Tod Williams, who was Meier’s project architect for Douglas, agrees: “Richard saw himself as interpreting Le Corbusier. He was making his own mark by looking back at Le Corbusier’s work.”

“It’s about the way you walk in and what you see in a cinematic way,” says architect Henry Smith-Miller, a former Meier employee. “At one moment, it puts you out into the lake, cantilevered out via this great leap of faith. I think because of this that Douglas is probably Richard Meier’s best house.”

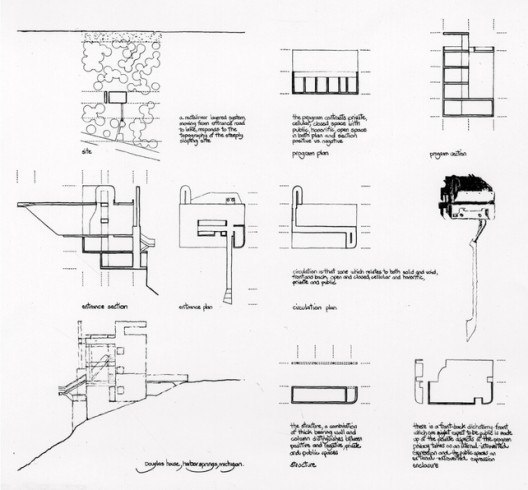

sketches

But when its newest owners visited it in 2007, they hardly shared Smith-Miller’s impression. “It was obvious that the property had been on the market for years,” McCarthy says. “There were dead bugs, a musty smell, a collapsing ceiling in the kitchen, fogged glass, and a sagging bridge. The steel windows were rusted; the floors had water damage and some buckling.” But the couple was undeterred.

Once they’d bought it, they called Meier’s office in New York. The architect suggested that if they intended to modify the building they might consider hiring his firm. “But he said if we were going to restore it, we’d be better off using local engineers,” says McCarthy, who did a bit of both by assembling a team to move forward while at the same time striking up an informal relationship with then Meier employee and Michigan native Michael Trudeau.

If the couple had questions, they’d call Trudeau, who’d get answers from Meier. “They’re impeccably cognizant of keeping the original design,” Trudeau says. This went on for four years. The team removed the original steel awning windows, sandblasted and powder-coated each one, then reinstalled them with thermal glass and hardware from the original supplier. They replaced and painted the redwood siding its original “Meier White,” then added a steel backbone to the bridge. HVAC systems were replaced with energy-efficient equipment. They even reupholstered a Meier-designed sofa for the living room.

Courtesy of Dwell

With the renovation now mostly complete, the couple has reached out to state and national preservation organizations about the home’s future. “We had no idea what we were getting into—but this is a keeper,” McCarthy says. “Our role is to restore it and maintain it for America.”

Forty years after its creation, the Douglas House has returned to its original intent—an architectural experience that moves the visitor through an exploration of inside and outside spaces. “The same is true in the Farnsworth House and Fallingwater,” says Meier. “The idea was there from the beginning—it’s about the making of space and how to articulate it.”

Courtesy of Dwell

By: J. Michael Welton
Photos by: Dean Kaufman
Project Name: The Douglas House
Architects: Richard Meier
Location: Harbor Springs, Michigan
Published on: 08/22/2011

Additional images of the Douglas House can be found at Dwell.
