North Mountain Visitor Center / John Douglas Architects

© John Douglas Architects

Architect: John Douglas Architects
Location: Phoenix,
Project Year: 2008
Structural Engineer: KPFF
Civil Engineer: KPFF
Mechanical Engineer: Energy Systems Design
Lighting Design: R.C. Lurie Company
Landscape Architect: Design Worksop
Exhibit Design: Thinking Caps
Photography: John Douglas Architects

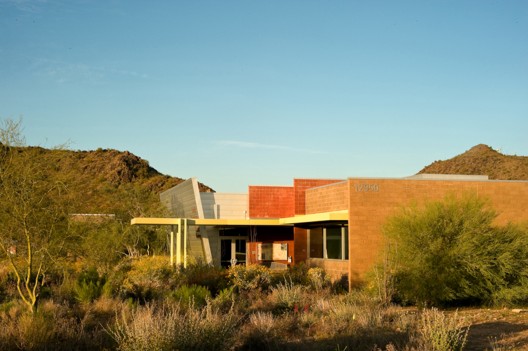

What was once merely a trail head parking lot, now serves as a gateway to the vast and rugged North Mountain Park. The North Mountain visitor center by John Douglas Architects educates locals, tourists and youth, on the significance of the mountain preserve and its Sonoran desert ecology. 20,000 visitors have toured the center over the past year and have taken with them a new sense of understanding on the importance of open-space preservation in our bustling metropolis. Prior to beginning design studies, specific research was conducted to ensure that the design of the facility would be responsive to its desert environment. One of the key contributors to the design team’s understanding of the site was a team of geologists from Arizona State University. Their explanation of the hidden forces that shape the terrain, led directly to the form and materials of the Center.

© John Douglas Architects

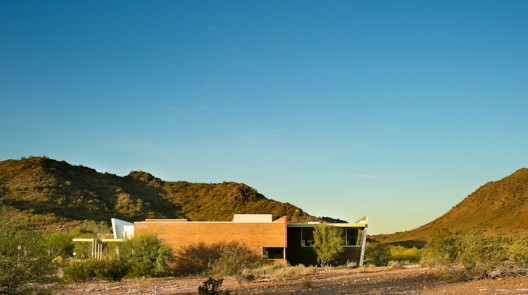

This particular site lies at the juncture of new and very old geologic events. The angle of uplift visible in the hillside that backdrops the Center is about 10-12 degrees from vertical. The walls of the center that parallel this feature are canted outward at that angle to express the hidden dynamic of the landforms.

© John Douglas Architects

The geologist also pointed out that zinc was a naturally occurring mineral in this hillside, so zinc cladding was selected for the canted walls to further reference the site conditions. Given the variety of rocks and minerals on site, the architect made a collection which later served as a guide for selecting colors that would complement the natural surroundings. Ultimately, the exterior concrete block walls of the Center were dyed to match the three most dominant colors in the landscape. This allowed the completed structure to have a strong visual tie with its surroundings.

© John Douglas Architects

Some of the major environmental accomplishments of the facility are as follows:

  • The facility was built with minimum impact to the site: all new facilities were located on previously disturbed land.

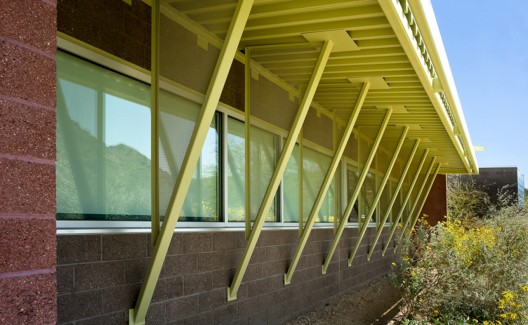

  • The building was built to be very energy efficient: effective shading devices were employed to block sunlight from the large gallery windows. The shade overhang is 24 feet deep. Exterior walls are Integra insulated concrete block.
  • Integral colored block was used, which doesn’t require painting, to minimize maintenance of the facility
  • Beautiful views of the Park were maximized by design and layout of the project
  • Exterior restrooms were added for trail users when the facility is closed
  • A stabilized granite parking area was added for equestrians
  • All of the trees on site were salvaged and replanted throughout the area
  • The Exhibit Hall was designed to accommodate interactive interpretive displays on Sonoran desert ecology and to allow room for traveling exhibits
