Parc Zodiaco Building / GPA&A

© Jomar Bragança

Architects: GPA&A
Location: Minas Gerais,
Project Year: 2010
Project Area: 13,800 sqm
Photographs: Jomar Bragança

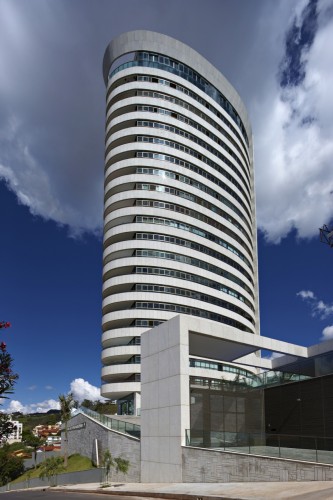

The residential building was developed to harmonize with its surroundings, so we used curves, balconies, and gardens as a way to insert it into the landscape, softening its contours. Located on the northwest slope between Rua Zodíaco and Avenida Terra, in the Santa Lucia district, the site and its surroundings are strictly residential.

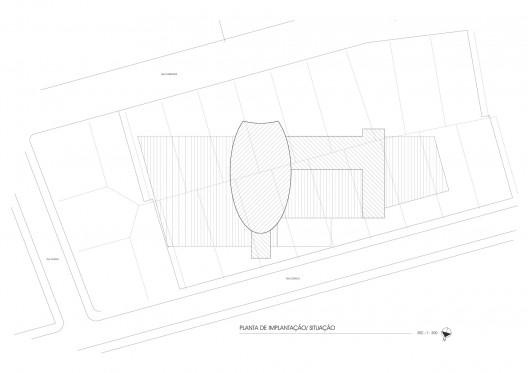

The building has an 11.8% occupancy rate and a permeable area of 38.7% with 2752.5 square meters endowed with gardens and open areas. note that the Land use and Occupation Law requires only 20%. All boundaries are free from any type of construction. The building only touches them below ground. Lateral clearances are approximately 20m on the left side and 26m on the right side.[minimum clearance required is 15m.] The top of the building is below the Praça do sol, which guarantees that the view of the Serra do Curral is preserved.

© Jomar Bragança

From a geological point of view, this project is geo-supported because, unlike the dominant practices of our current civilization, all features of the geological environment are explored to benefit it, i.e., all negative side effects are internally compensated wherever possible, and all positive side effects are identified and enhanced.


View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
