The Cube / Orange Architects

Courtesy of Orange Architects

Orange Architects, a partnership between Dutch architecture firms JSA, CIMKA and HofmanDujardin, shared with us their design of a luxury apartment block on Plot 941 in Sin el Fil, an eastern district of . The design was commissioned by the Lebanese development corporation Masharii.  The 50-metre-tall block will contain 19 apartments ranging in size from 90 to 180 m2.

Follow us after the break for more on this project.

Courtesy of Orange Architects

The concept for the tower is simple but extraordinarily effective: ‘maximizing’, making optimal use of the site’s potential, the local building code and the fantastic views of Beirut and the Mediterranean. Within this conceptual framework, the team of architects sought to develop an extensive program that reflected the potential of the building. Primarily, the floor plans are 100-percent flexible, reaching the maximum allowable height of the building and optimizing the view from each apartment.

Courtesy of Orange Architects

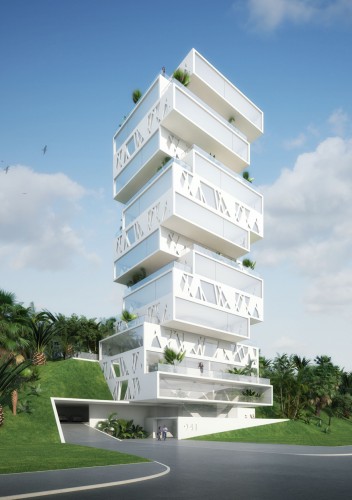

Fixed core of lifts and staircases at the heart of the building pose few constraints for the layout of the apartments on each floor. The floors run straight from the core to the exterior walls, which are composed of two transparent façades and two supporting walls on each floor, rotated 90 degrees per level. The walls, which are perforated, largely determine the appearance of both the exterior and the interior. The core also serves to stabilize the tower, which is in a seismologically active area.

Courtesy of Orange Architects

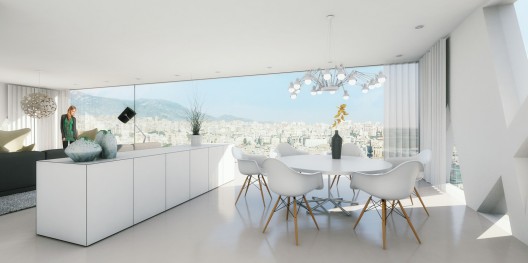

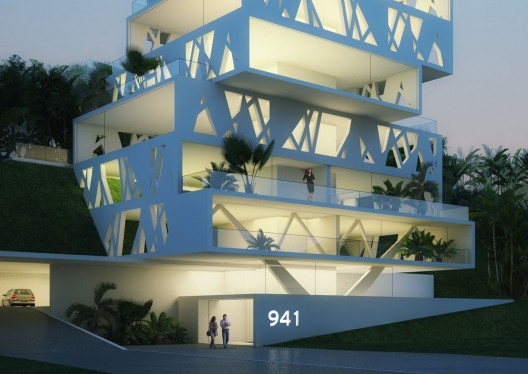

From the second floor upwards, each apartment covers an entire floor. The rotation of the volumes on each level offer residents magnificent outdoor areas on the roof of the apartment below, as well as panoramic windows with views of Beirut. The ground level of the building holds the lobby, a parking garage for 25 cars (partly set into the adjacent hill), and the standard facilities areas. The roof of the entrance area serves as an outdoor playground for children.  This project is in its final design phase. Construction of the tower block is expected to begin in 2012.

Architects: Orange Architects
Location: Beirut,
Client:   Masharii, Beirut
Structural Engineer: Senmar Engineering & Consultants, Beirut
Project Area: 19 apartments, 3600 m2 (surface), 50m (height)
Project Year: 2011-2013

Cite: Vinnitskaya, Irina. "The Cube / Orange Architects" 14 Jul 2011. ArchDaily. Accessed 01 Aug 2014. <http://www.archdaily.com/?p=148437>
