Location: Carvalhal, Portugal
Architect: Leonardo Paiella
Project team: Monica Ravazzolo, Leonardo Paiella
Project area: 115 sqm
Project year: 2009 – 2011
Photographs: Leonardo Finotti
One volume, located parallel with the lake, is divided into three parts for three different functions – living, storage and parking.
The volume, entirely made from wood, grew out of even simpler element which was multiplied to create light and simple construction that would respect the natural environment in the most sensitive, aesthetic and creative way.

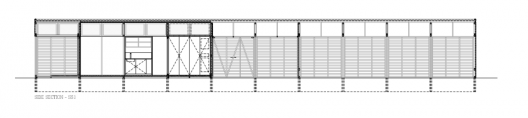

Deriving from the single module, with the dimensions of 250 x 450 cm, the whole architecture was made by multiplication of it, to create the three types of program.
The wooden structure that forms the each of ten modules contain a subtile variations depending on the demand of certain type of program.
The first four modules are open from the one side and are serving as the parking space within the object. The following two modules are partly open with the purpose of storaging agricultural and other material.

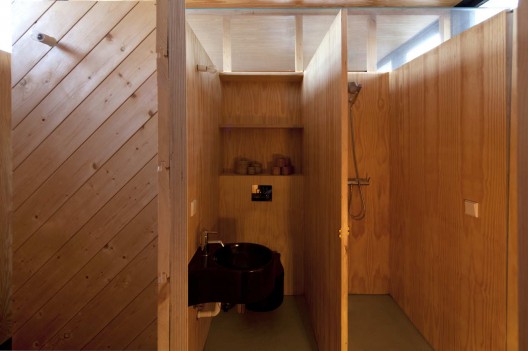

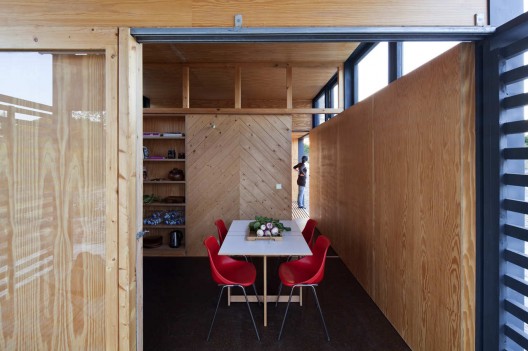

The next three modules are forming the living area and are more closed in order to create the feeling of privacy and protection against climatic influence, predominately the sun and wind. Each of these three closet modules are helping to organise internal organisation of different situations of living. The first module contains the main enterance and the sleeping room. In the following module there is all infrastructure of the living area which is positioned in the center of the space and are containing the toilet, shower and the kitchen. That central area is consenquently forming the circular communication of the the sleeping area and sanitation and kitchen with the last module which is used as a living room.

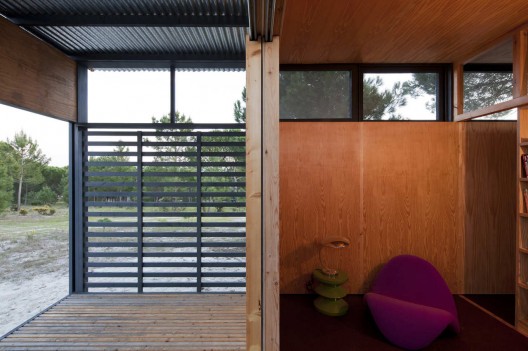

The last, 10th module is also part of the living area and serves as the external prolongation of the living area into the half open terrace. This basic module out of which the whole object arose, makes the architectural link with the typical Portuguese entrance point of the houses and buildings in the terms of proportions and divisions.
To enhance the vivid colours of the nature that are “marking” the whole site, object is made transparent, semi-transparent and opaque, with the ability to transform itself, depending on the needs and the current weather conditions.

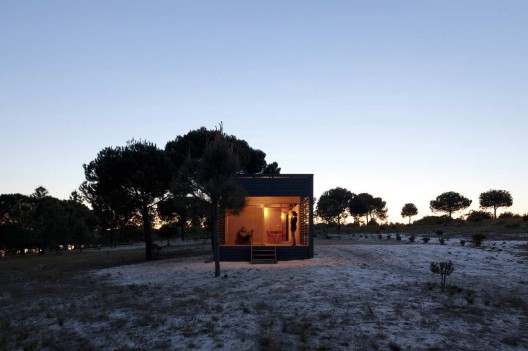

Dark shadows on the white sand creates the intensive contrast which expresses the dialog between the object and the surroundings.
Besides clever self-ventilating walls, that are temicaly isolating the house, importance of the nature and the environmental sustainibility is represented through the used materials. Along with the wood, other organic materials like Eco-paint and cork are used to create this highly adaptable, sustainable and recyclable architecture.
