Martin-Lancaster House / MacKay-Lyons Sweetapple Architects

Apr 2011

Uploaded by Kelly Minner — Filed under: Houses ,Selected , Canada, MacKay-Lyons Sweetapple Architects, Nova Scotia, Prospect

▼

Add this to My Bookmarks:

share by email

share by email

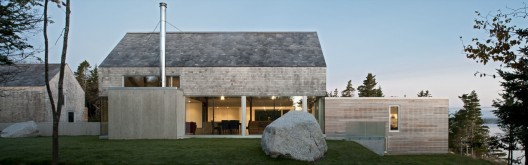

The Martin-Lancaster house is a 3000 square foot courtyard house, situated on the rugged Atlantic coast of Nova Scotia. It consists of four primary components: (1) a gabled garage/guest house, (2) a gabled social pavilion, (3) a north-facing service bar, and (4) an arrival court between.

Architects: MacKay-Lyons Sweetapple Architects
Location: Prospect, Nova Scotia, Canada
Project Area: 3,000 sqf
Photographs: Greg Richardson

The arrival sequence is a procession toward the sea; past the protective garage, down into the protected courtyard, along a bench, into the foyer, then into the double-height living pavilion, and onto a terrace above the sea. The south-facing social pavilion is anchored by a totemic concrete hearth.

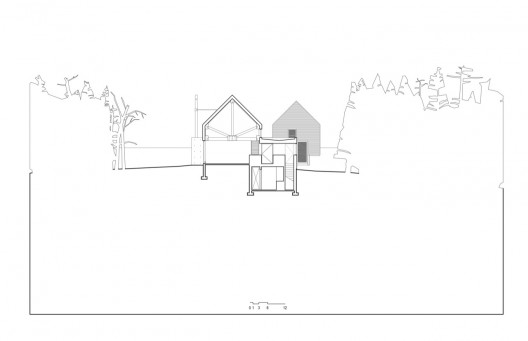

section

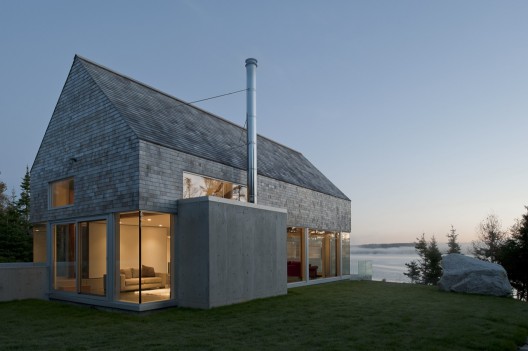

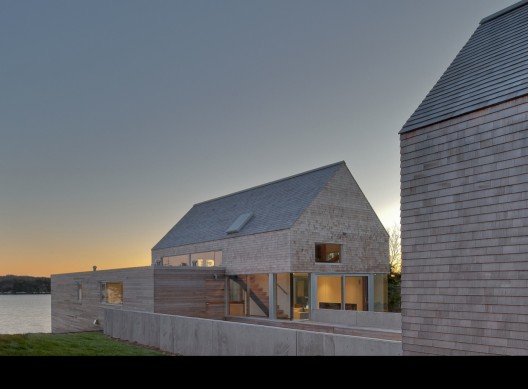

This is an abstract, highly restrained project which is an essay on the local material culture traditions of the place. The monolithic zero-detailed, local, cedar-shingled walls and roofs respond well to the frequent wet/dry, freeze/thaw cycles of the labile marine climate. Clean curtain wall glazing allows the landscape to flow through the house. A heavy timber structure in the living pavilion signifies its social function.

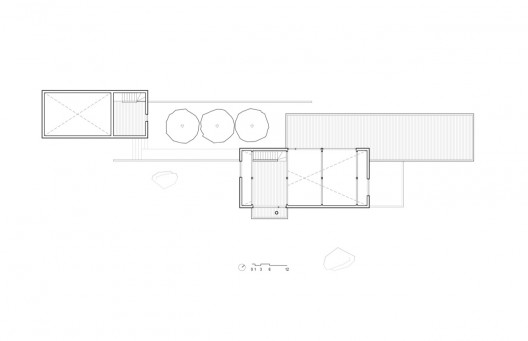

plan

The passive solar building strategy is extended to the interior through the use of an in-floor, hydronic radiation system.

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: © Greg Richardson

: plan

: plan

: plan

: axon

: section
