Aki Tower / Centerbrook Architects and Planners

© Warren Jagger Photography Inc.

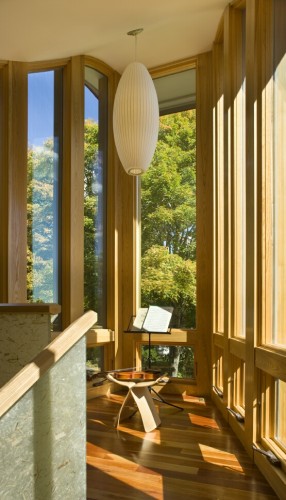

This tower studio is the latest addition to a musician’s residence that includes her home and a detached music studio. A master violinist and music teacher who performs around the world, the client wanted to expand her house by adding a tower studio that would regale her with treetop views as she practiced, alone, with students, or fellow musicians.

Architect: Centerbrook Architects and Planners, LLP
Location: , , USA
Project Team: James C. Childress (FAIA), Alex Daivs Booth, Kyle Kirkwood (Associate AIA)
Structural Engineer: Michael Horton & Associates
Contractor: Triangle Builders
Photographs: Warren Jagger Photography Inc.

© Warren Jagger Photography Inc.

Centerbrook Architects and Planners were inspired by their client’s Japanese heritage, New England roots, interest in nature, as well as her talent, energy and knowledge. Their goal was to reflect in the design the same kind of exuberance that she evinces in her performances.

The primary challenge was to make the narrow 35-foot-tall tower rise gracefully from what had been one bay of an existing attached garage, while also creating a pleasing and suitable interior access to the intimate 10-foot by 10-foot studio. The tower was fitted cater-corner between the house and garage, and using a variety of wood, additional contrasts are created both inside and out. Just as a violin is crafted from varying woods to establish a unique sound, the tower addition uses the same approach to create a distinct visual symphony.

© Warren Jagger Photography Inc.

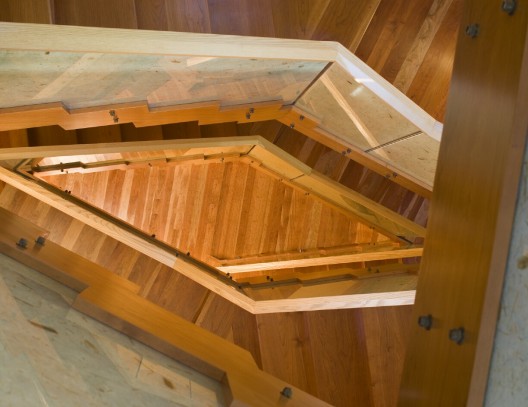

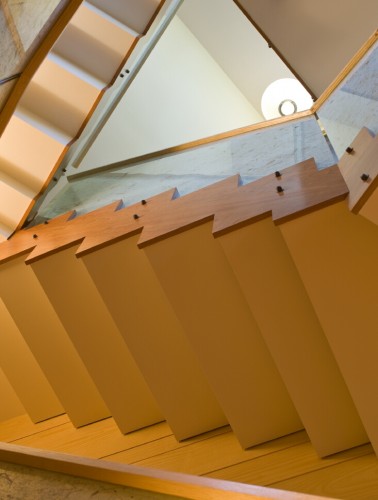

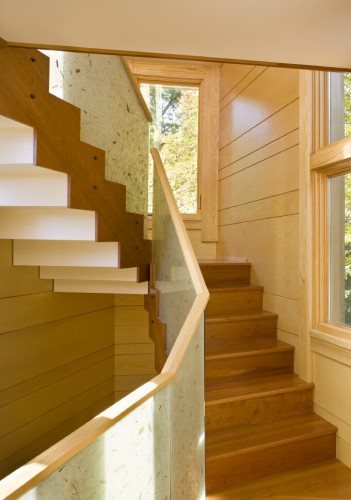

Inside, the cherry wood staircase that climbs the tower to the treetop studio is cantilevered from the walls to keep the smallish space free of columns. Random bands of ash paneling on the walls become narrower toward the top of the tower, and daylight pours in from a band of windows below the studio. The intention is to make the space more open, to appear as large as possible. The railings, fashioned from two layers of glass with rice paper in between, are sandwiched between the rough stringer and the cherry finish stringer.

© Warren Jagger Photography Inc.

Outside a carport trellis of red cedar contrasts with the lighter cedar walls of the tower that, in turn, contrasts with the darker, older cedar of the existing house. A solar hot water system atop the garage offers a modern, gleaming oasis amid the traditional wood.

A waving and playful overhanging roof is evocative of musical notations and the curves of violins, and by breaking the roof curve, the top feels smaller and more vertical than if the curve was continuous. The break also helps the tower appear to emerge from the existing house more gently.

© Warren Jagger Photography Inc.
Cite: "Aki Tower / Centerbrook Architects and Planners" 19 Mar 2011. ArchDaily. Accessed 23 Oct 2014. <http://www.archdaily.com/?p=120455>
