In Progress: The Cultural Center of European Space Technologies / Bevk Perovic arhitekti, Dekleva Gregoric arhitekti, OFIS arhitekti, Sadar Vuga arhitekti

@ Courtesy of the Architects

Architects: Bevk Perovic arhitekti, Dekleva Gregoric arhitekti, OFIS arhitekti, Sadar Vuga arhitekti
Location: Vitanje,
Noordung Space Technologies Center concept & producer: Dragan Zivadinov, Miha Tursic
Graphic design: Atelje Balant
Client / project coordinator: Vitanje Community (for /Srecko Fijavz)
Project Year: 2008-2011
Images & Photographs: Courtesy of OFIS architekti

@ Courtesy of the Architects

With its program, The Cultural Center of European Space Technologies (KSEVT) will supplement the local cultural and social activities of the Arts Center in Vitanje. With its size and typology the existing object already indicates a publicly significant role, but its capacity and technological design no longer suffice for newer collective requirements.

The architectural design for the building of The Cultural Center of European Space Technologies in Vitanje originates from the schematics for the first geostationary space station, or to be more precise its habitation wheel, described in his 1929 book by Herman Potocnik Noordung.

KSEVT will have emphasized public significance and will generate social, cultural and scientific activities.

@ Courtesy of the Architects

In the KSEVT building that replaces the existing object of the multifunctional arts center there will be an abundance of social activities, with fixed and temporary exhibitions, conferences and club/study activities. The building will therefore be intended for the local population, as well as guests of exhibitions and participants of international symposia and conferences. In the club area at the top of the building researchers of the history of space technology will be able to focus on their work, removed from the activities in the lower part of the building. The building is a monolithic structure, freely positioned on the allotment between the main road on one side and the stream with a green hinterland on the other. The exterior and interior of the building are determined by two low cylinders. The bottom one is larger and rises from the North to the South, while the upper one is smaller and it joins with the larger one on the southern side and rises towards the North. The bottom cylinder is supported by the transparent surface of the entrance glazing. The spatial relationship between the two cylinders creates a dynamic effect, which is even more accentuated by full glass rings around the building.

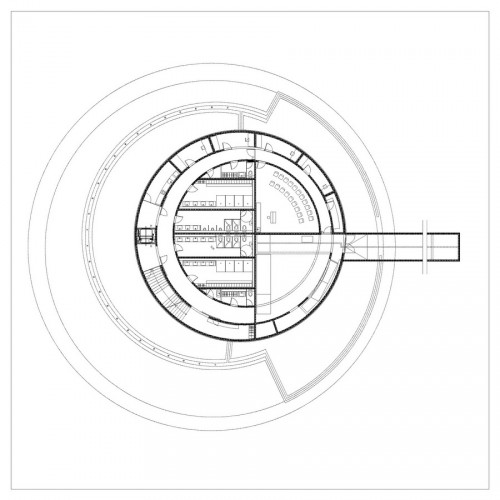

plan 01

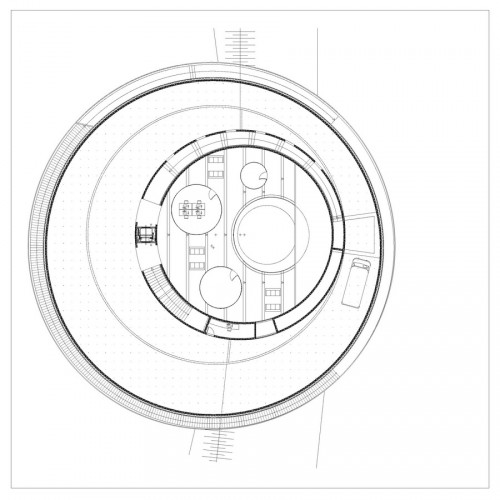

plan 02

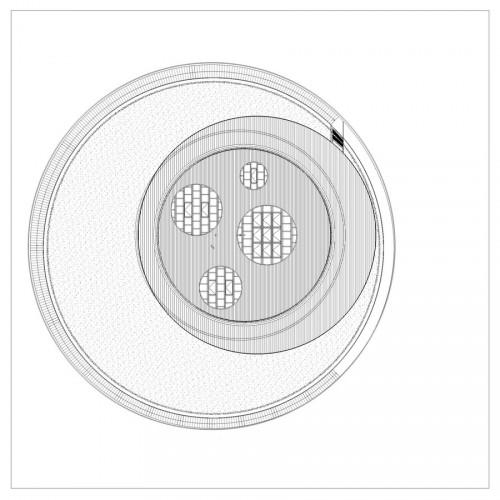

roof plan

The effect of floatation and rotation of the building on its southern and western side towards the road and the entrenchment into the surface on the other side towards the stream and hill creates an impression of memorable importance of the building in this area, as well as its connection to its immediate surroundings. The spatial effects give the building its most distinguishing feature – the effect of artificial gravity due to floatation and rotation. The building has two entrances – the main one to the central space from the square in front of the building on the southeastern side and the northern entrance from the gravelly surface above the stream. The main entrance covers the overhanging part of the larger cylinder. Through this “tight” space, past the circular vestibule with a reception, we enter the interior of the hall. The vestibule can be separated from the activities in the hall by a curtain. The entrance glazing can be completely opened and can connect the activities in the hall with the square. The circular hall for 300 people is surrounded on both sides by a semicircular ramp. This marks the beginning of the exhibition area, which continues from here to the interior of the overhanging part of the larger cylinder. On the west side, along the ramp, there are smaller office areas. Ascending on this ramp also represents a transition from the bright space of the hall to the dark exhibition area. The separated vertical connection with a staircase and a large elevator connects the exhibition area directly to the vestibule of the hall. The exhibition space continues through the landing between the elevator and the staircase to the smaller cylinder, the multi-purpose hall, an auditorium which is raised like a terrace above the hall. From here there is a vertical view of what is happening below. The smaller cylinder is concluded at the highest, northernmost part with the club area – the library, the most intimate part of the entire building.

Materials and Work

@ Courtesy of the Architects

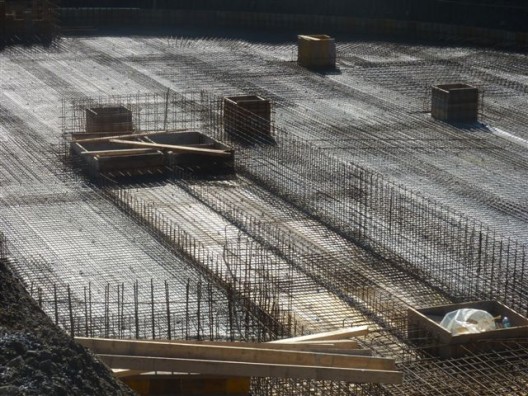

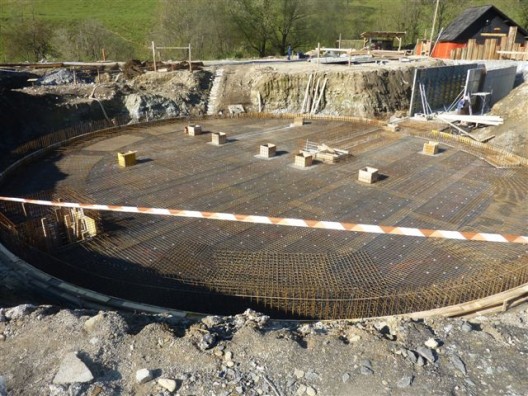

The design of the objects creates a feeling of volume, which has a unique, memorable and characteristic expression. For this purpose, the materials are simple and clean. The basic construction of the object consists of reinforced concrete. In unison with the rest of the building, the exhibition area is without daylight, with an opaque surface.

There are windows in the library and the lower part of the hall. The hall is fitted with zenithal lighting. The front in the opaque part is made of various types of aluminum. The interior of the object is made with a combination of self-compacting concrete, paint and wainscot. All of this will be defined in greater detail in the next phases of the project documentation.
