Aluminium Umbrellas - Type S7 | MDT-tex

Share
  • Use

    Outdoor equipment, garden umbrellas
  • Applications

    Residences, restaurants, hotels, public and private events
  • Characteristics

    Full aluminium umbrella, materials resistant to water corrosion, single hub-mounted aluminium handle, all struts in the open state are replaceable and all parts are recyclable
  • Colors

    White, yellow, beige, red, bordeaux, green, dark green, dark blue, silver, anthracite, black
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

MDT-Tex introduces a premium range of technical parasols, specifically tuned to customers that require an aesthetic touch to their wind-stable umbrellas. The new Home collection offers several advantages to MDT-Tex classic line including strong and lightweight extruded hubs, fabric protecting corner caps, a simpler and lighter tensioning system and sleek frame-base covers for mobile units. The new range of umbrellas set a new standard in terms of aesthetics and functionality without compromising any of the strength and quality standards that exist in our industrial ranges. The tension mechanism of Type S7 umbrellas is operated by an aluminium handle with zinc coated spring steel strap that controls an internal telescope system.

Benefits

  • Open and closes with a single hub-mounted aluminium handle
  • All materials are resistant to the effects of water corrosion
  • Telescopic pole allows the umbrella to open and close above table height
  • Full aluminium umbrella
  • Electric cables are hidden from sight within four chamber column inside the centre mast
  • All struts in the open state replaceable
  • All umbrella parts recyclable
  • Designed to withstand wind speeds up to 60 km/h (with the proper ground anchorage)

Specifications

Cover
The textile cover is attached to the spoke ends by aluminium end caps and stainless steel bolts. The cover is replaceable and is fade, light and water resistant. It is designed to withstand all weather conditions.

Anchor

  • Frame base to be loaded with concrete blocks
  • Ground tube (type 060)

Printing

  • Digital print
  • Screen print
  • Dispersion dye print

Mast
MDT-Tex umbrella spokes are made of rectangular aluminium sections of 30 x 20 x 2 mm. The mast is made of a round aluminium section of 60 mm. The aluminium telescope has section dimensions of 30 x 30 x 3 mm. Strut connecting hubs are made of extruded aluminium high strength profile. All parts are screwed together and the frame, the end caps, acorn, hub and the handle (anthracite) is powder coated (Polyester powder ca. 80 μ).

Fabrics

  • MDT-Tex 260
    Polyester, coating- polyurethane, Weight - 260 g/gsm, water column - >700 mm, spray test - 5/5, uv colour resistance - 6/8, breathability - 50 l/(dm2xmin); tear resitance warp - 2000 N, flame retardant up to B1 - DIN 4102-1, M1, NFPA 701 - Flat and Folded.
  • Optional MDT-Tex 300
    Polyacrylate, Weight - 300 g/gsm, water column - > 350 mm, spray test - 5/5, uv colour resistance - 7-8/8; tear resitance warp - 1450 N.

Colors

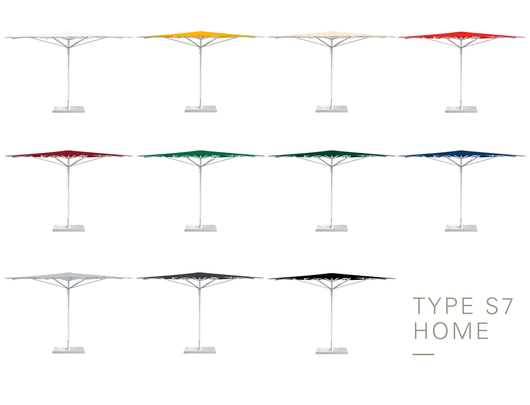

Type S7 Aluminium Umbrellas - Colors
