Rainscreen Cladding System CUPACLAD® 101 LOGIC | Cupa Pizarras

Share in Whatsapp
  • Use

    Rainscreen cladding
  • Applications

    Facades
  • Characteristics

    Natural slate panels, invisible fixing systems, stainless steel self-drilling screws, ventilated and insulation system combined
  • Sizes

    40 x 20 cm (16” x 8”)
  • Certification

    ISO 9001 Quality and ISO 14001 Environmental certifications

More about this product

Featuring simple, balanced design, our CUPACLAD® 101 LOGIC rainscreen cladding system puts the texture and sheen of CUPA PIZARRAS natural slates right to the fore.

Characteristics

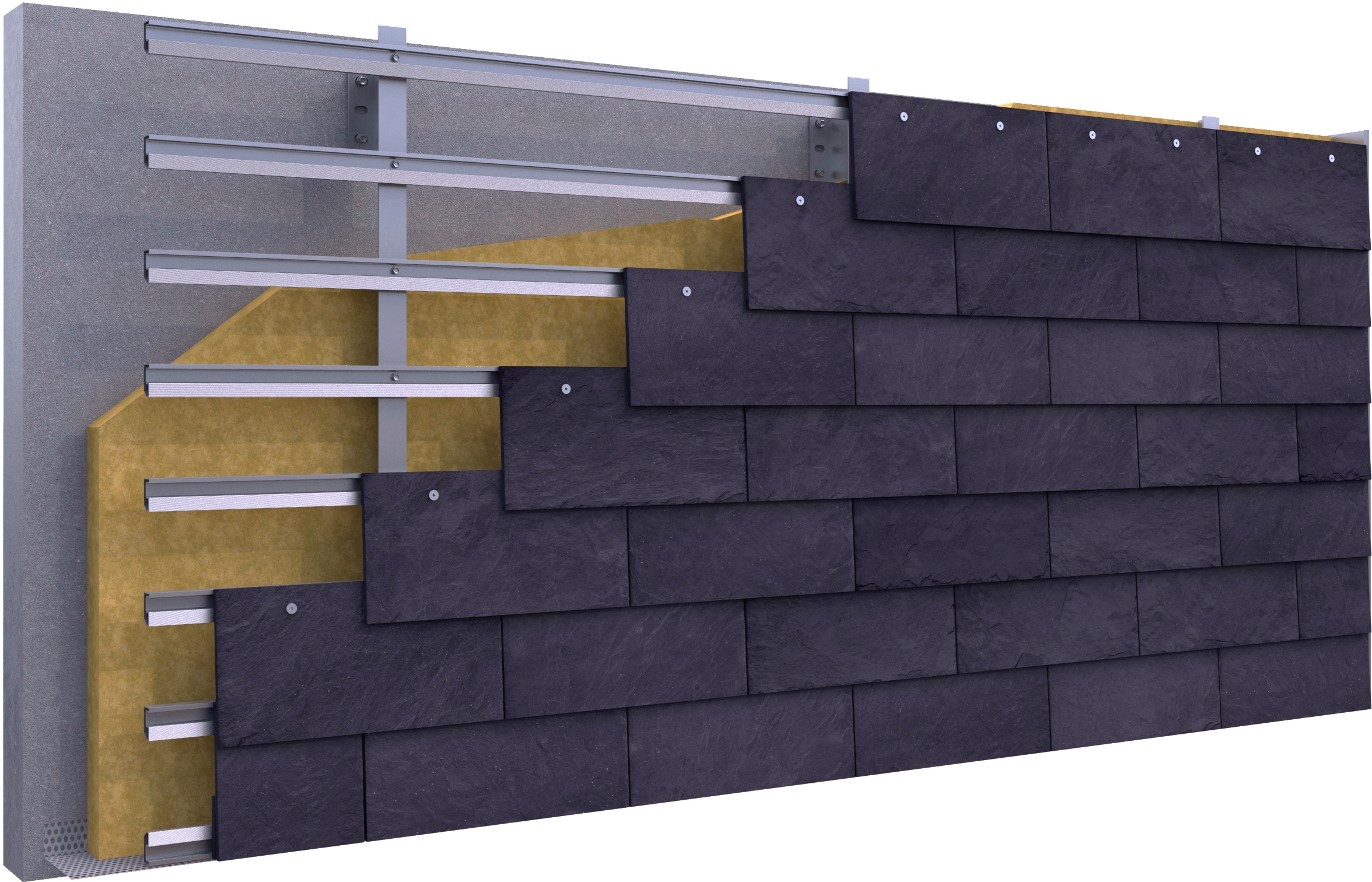

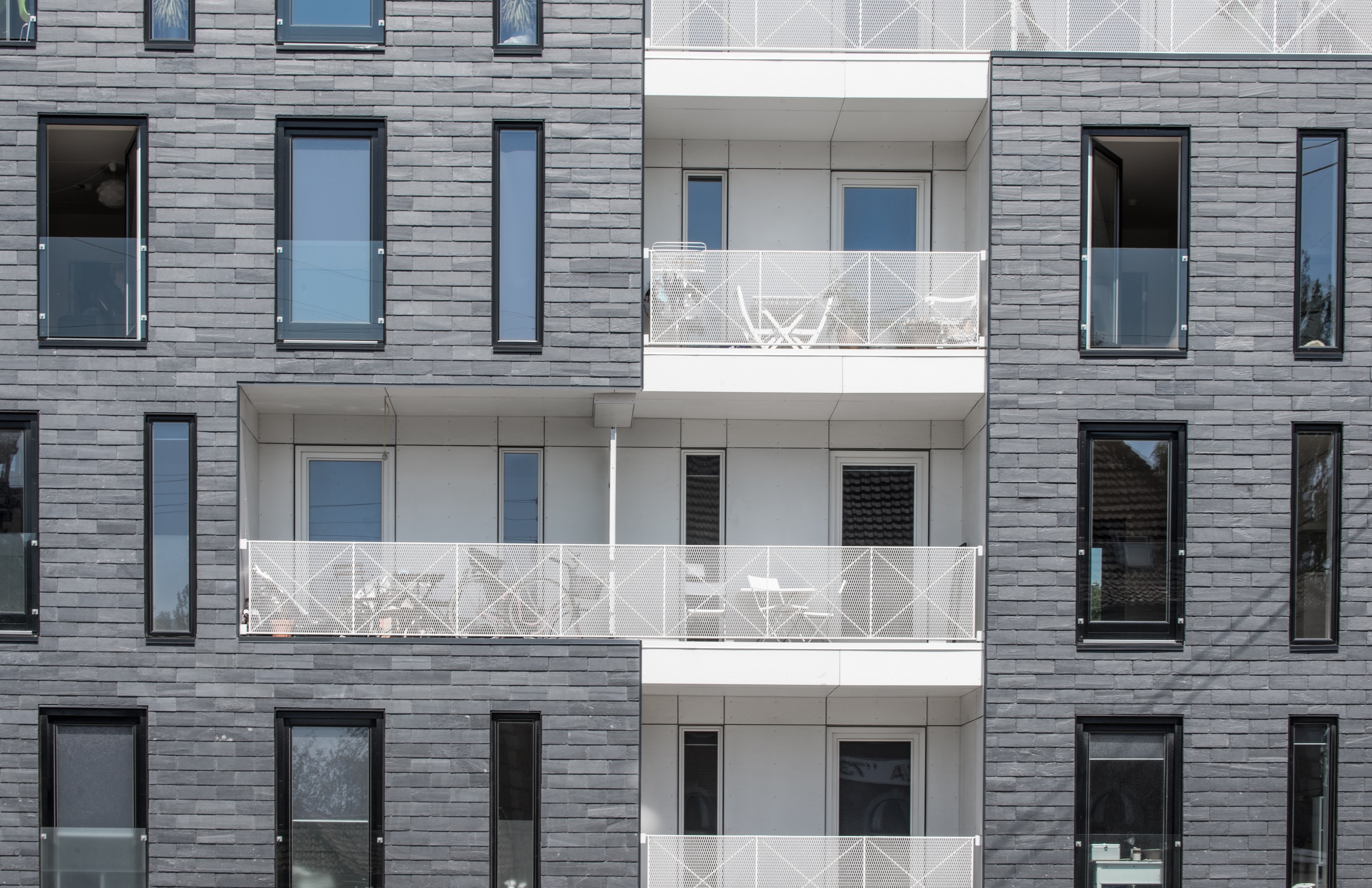

The CUPACLAD® 101 LOGIC system is made up of 40x20 cm slates installed horizontally using invisible fixing systems. The CUPACLAD® 101 series systems share a single fixing system with self-drilling screws specially designed by CUPA PIZARRAS engineers to ensure optimum slate rainscreen cladding installation, but remaining totally invisible to avoid impacting the design. The screws are made from stainless steel and feature a large diameter flat head to ensure and facilitate proper fixing of the slate.

Slate size 40X20 cm (16” x 8”)
Nominal Thickness 7,65 mm - 1/4” - 3/8”
Number of slates/m2 16,7
Weight/m2 (slates) ≤30 kg/m² - ≤ 6,14 lb/ft2


Main Advantages

  • Elimination of Humidity
  • Structural movement reduction
  • Energy savings
  • Durability

Sustainability
CUPACLAD® systems enable the construction of efficient, sustainable rainscreen cladding. A life cycle analysis, which allows you to analyse the overall environmental impact of a product, confirms CUPACLAD® as the ecological option for facade cladding, thanks to the use of natural slate instead of prefabricated products.

Installation
CUPACLAD® reinvents the traditional technique for placing natural slate, offering greater simplicity and significant savings in installation times. The fixing systems used in CUPACLAD® systems are the result of a meticulous design process performed by our engineers and these were especially designed to ensure quick, secure installation.



Efficiency
Now considered the most efficient system for construction envelope purposes. The combination of a ventilated system together with an insulation system gives numerous advantages in terms of thermal and acoustic properties. It avoids thermal bridges and condensation issues.

Quality
The quality of CUPA PIZARRAS product lies in their total control of the entire production process (from extraction to shipment) and by putting in place the highest quality and environmental policy requirements demanded by ISO 9001 Quality and ISO 14001 Environmental certifications.


For more information about CUPA PIZARRAS Rainscreen Claddings Systems contact through our form, visit CUPA PIZARRAS page in Materials, or visit: www.cupapizarras.com.
