Mitrex is a specialist in high-performance building-integrated photovoltaic (BIPV) systems that combine solar generation and façade aesthetics.
Mitrex presents eFacade PRO, a high-performance solar façade solution that seamlessly integrates energy generation into building envelopes.
This ventilated rainscreen system features customizable panels available in 48 colors and sizes up to 39 × 80 inches, delivering up to 18 W/ft² of clean solar power while enhancing building aesthetics and performance.
Features:
- High Solar Output: eFacade PRO generates up to 18 W/ft² of solar energy, aiding in reducing operational carbon emissions and supporting net-zero energy goals.

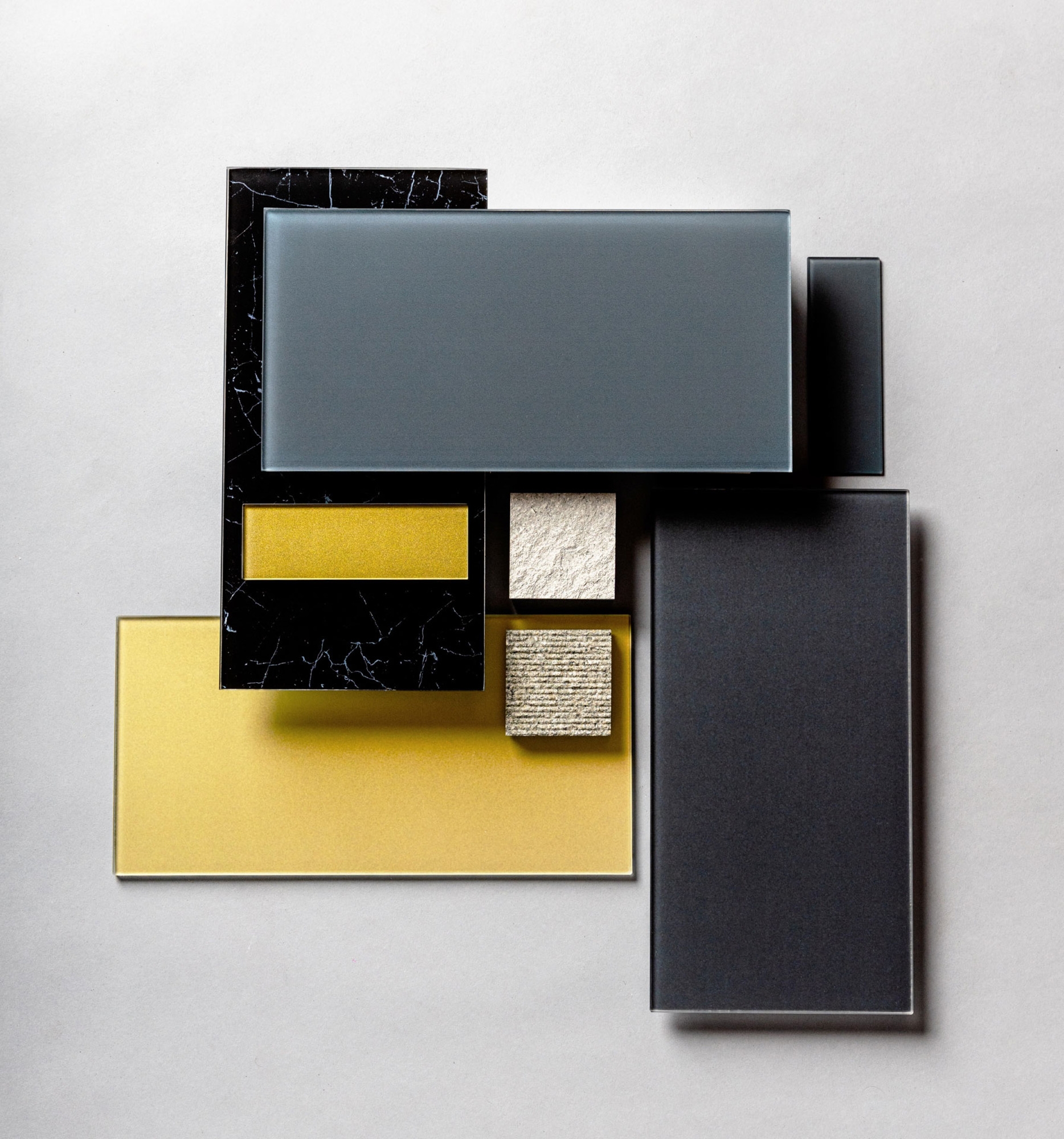

- Aesthetic Flexibility: With a curated palette of 48 standard colors and custom sizes up to 39 × 80 inches, eFacade PRO allows designers to achieve striking visual results while delivering clean solar energy.
- Ventilated Rainscreen System: Engineered as a ventilated rainscreen façade, eFacade PRO creates a continuous air cavity between the cladding and insulation, optimizing thermal performance and reducing moisture accumulation.
- Sustainability: Combines energy generation with recyclable components, low embodied carbon, and efficient material use, contributing to a reduced carbon footprint.
- Certifications: Meets stringent global standards, including NFPA 285, EN 13501 A2-s1,d0 for fire safety, ASTM E1996 for impact resistance, and ASTM E330 for wind load performance.
Specifications:
| Size | Custom sizes up to 2034mm x 994mm |
| Weight | 15.6 kg/sqm |
| Glass thickness | 6mm |
| Panel thickness | 34mm |
| Power range | Up to 196W/m2 (refer to Colors for individual powers) |
| System | Ventilated rainscreen |
| Glass finish | Satin |
Applications:
Ideal for projects seeking to combine high-performance energy generation with architectural design, eFacade PRO is suitable for various applications, including:
- Commercial Buildings: Enhance building envelopes with energy-generating façades that contribute to sustainability goals.
- Institutional Projects: Integrate solar energy solutions into educational and governmental buildings, supporting environmental initiatives.
- Mixed-Use Developments: Incorporate eFacade PRO to meet energy efficiency standards while maintaining aesthetic appeal in urban settings.
Try Mitrex's Product Simulator to create an ideal building and calculate the potential energy yield.
