Mitrex is a specialist in high-performance building-integrated photovoltaic (BIPV) systems that combine solar generation and façade aesthetics.
Mitrex presents eFacade LITE, a streamlined solar façade system designed for fast deployment, cost-efficiency, and dependable energy performance.
This ventilated rainscreen solution comes in two standard panel sizes, five neutral satin-glass colours, includes a factory-made PowerBar for plug-and-play wiring, delivers up to 18 W/ft² of integrated generation, and carries international certifications including NFPA 285 & EN 13501 fire safety.
Features:

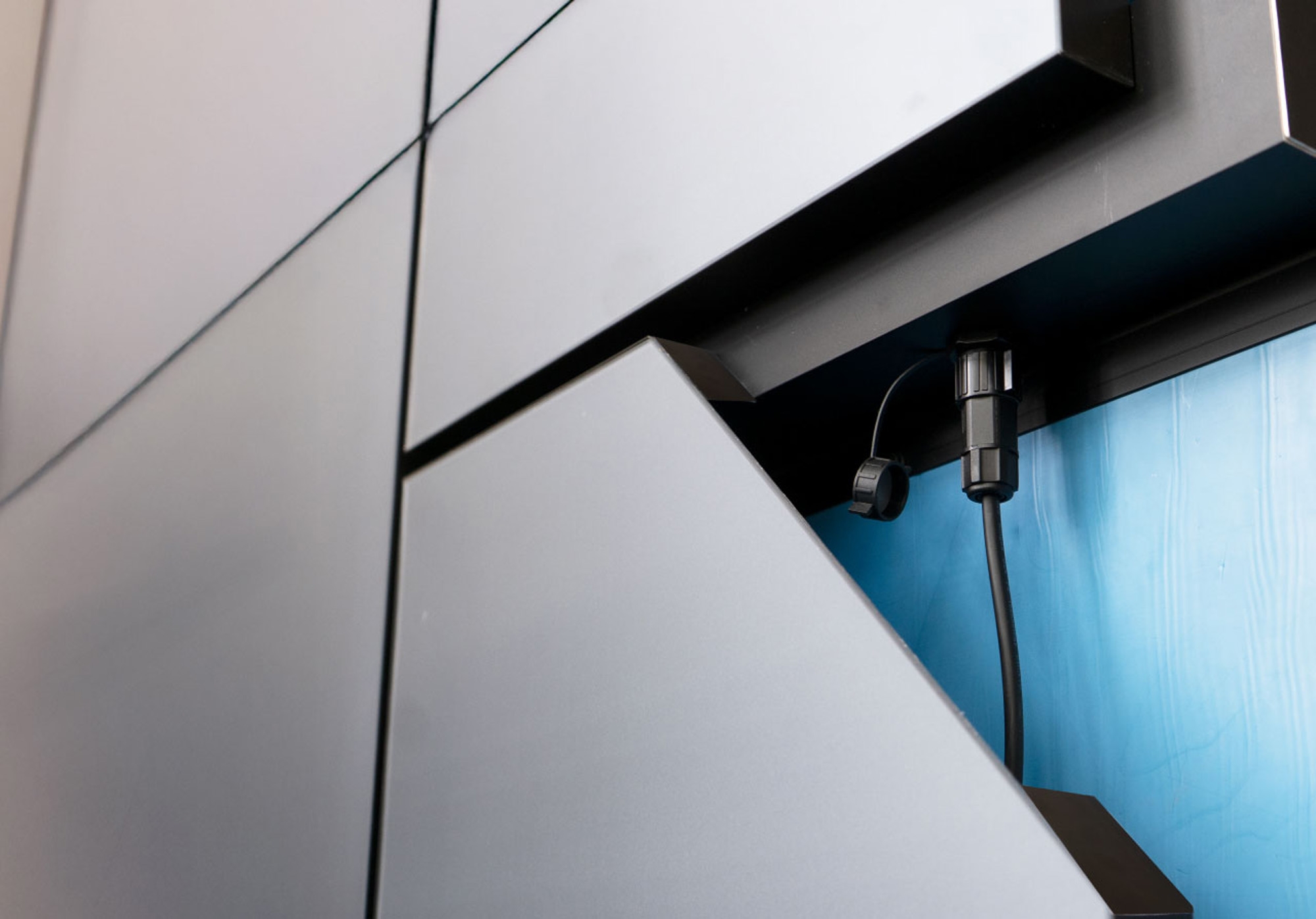

- Plug-and-Power Design: Built-in PowerBar simplifies on-site wiring, minimizing engineering time and installation complexity.
- Aesthetic Versatility: Offered in two panel sizes and five satin-glass finishes, allowing architects to achieve sleek, modern façades without visual compromise.
- High Performance: Generates up to 18 W/ft² of solar power while acting as a ventilated rainscreen for improved building efficiency.
- Durability and Sustainability: Low-maintenance, UV-resistant, and recyclable materials with a 25-year power performance warranty.
Specifications:
| Size | SunTile 1: 1,854mm x 922mm; SunTile 2: 1,854mm x 456mm |
| Weight | SunTile 1: 35kg; SunTile 2: 20kg |
| Glass thickness | 6mm |
| Panel thickness | 34mm |
| Power range | Up to 196W/m2 (refer to Colors for individual powers) |
| System | Ventilated rainscreen |
| Glass finish | Satin |

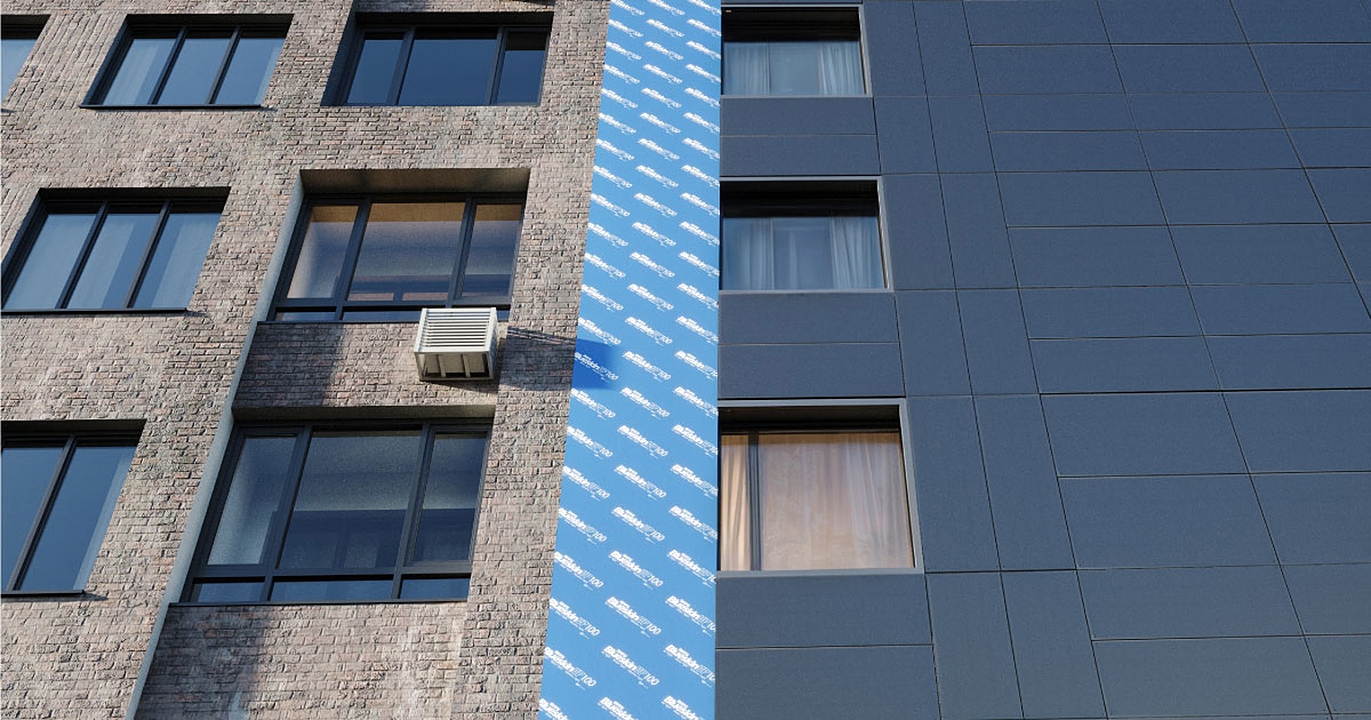

eFacade LITE is ideal for retrofit projects, mid-rise buildings, and developments prioritizing cost-effective sustainability. Its minimalist aesthetic, quick installation, and integrated solar performance make it a smart choice for architects and builders seeking an elegant, energy-generating façade solution.
Try Mitrex's Product Simulator to create an ideal building and calculate the potential energy yield.
