Interlocking Boards for Cladding | KNOTWOOD

  • Available in

  • Use

    Interlocking boards for cladding.
  • Applications

    Exterior facade cladding, construction finishes.
  • Characteristics

    Quick and easy installation.
  • Certification

    Meets performance requirements in testing design, structural design, fire and performance standards.
The product has been saved to the folder: My Downloaded Products
KNOTWOOD Logo

Contact manufacturer

KNOTWOOD

KNOTWOOD Logo

Contact manufacturer

KNOTWOOD

More from KNOTWOOD

Website Phone

More about this product

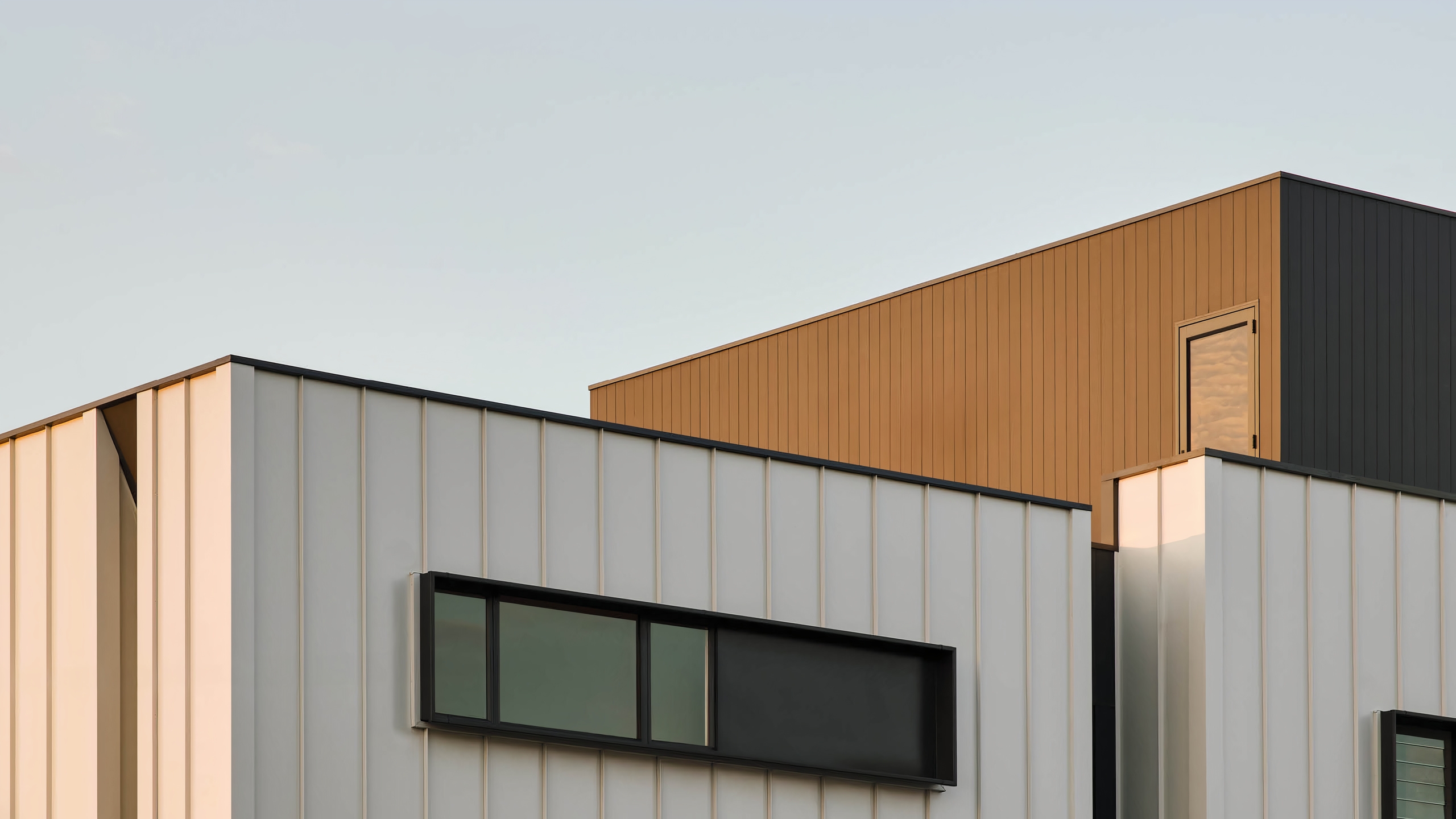

Knotwood specialises in crafting premium aluminium products with the natural look of timber, delivering greener, safer, and stronger solutions for the architecture, construction, and design industries. Their range of products combines the warmth of wood with the durability of aluminium, including Interlocking Boards for contemporary cladding applications.

With horizontal, vertical or diagonal install, Knotwoods interlocking boards are a versatile, high-performance solution designed for both residential and commercial applications. Tested to meet NCC compliance and proven to withstand cyclonic winds, the non-combustible boards deliver a secure gap-free profile. Its sealed finish makes it withstand wet, frost, and fire-prone environments, while the option to butt boards together or create a subtle shadowline effect adds aesthetic appeal. With the added benefit of top-down installation, damaged lower boards can be easily replaced without disturbing the rest of the wall, ensuring both practicality and longevity.


Further customisation may be achieved by the boards' ability to vary spacing and sequencing, producing different visual effects and distinct patterns. Knotwood's interlocking boards are also available in a variety of timber colors and allow for installation around curves and arches, enabling a wider range of design applications.

Profiles:
Accessories
  • Cladding - Clip - 45mm
Shadow Line
  • Shadow Line Board - 100mm, 150mm, and 200mm
V Line
  • V Line Board 100mm and 150mm
Dimensional
  • Dimensional Starter
  • Dimensional Board - 200mm
  • Dimensional Batten - 38mm
  • Dimensional Batten Radius - 38mm
  • Dimensional Fin - 50mm
  • Dimensional Peak - 50mm
  • Dimensional U Fill
Trims
  • Variety of top, joiner and reveal trims available in different sizes
Additional Specifications
Material 6063 T6 Temper extruded aluminium alloy.
Finish Traditional solid powder-coated colors or a sublimated timber grain surface.
Length 6500mm.
Warranty Life 25-year structural & up to 25-year color warranty life.

Sustainability: 100% Recyclable Aluminium, Non-Chromate Pre-Treatment, VOC-free Powder Coat
