Vode is a California-based manufacturer known for designing elegantly minimal and modular architectural lighting systems.

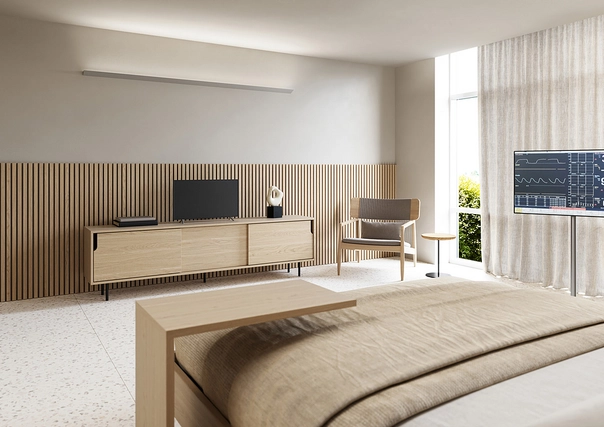

Vode presents the Wedge Peak 707, a surface-mounted linear luminaire featuring a distinct triangular profile and diffuse optics. Designed for ceiling and open-plan applications, it offers high visual comfort and architectural clarity across a range of interior settings.

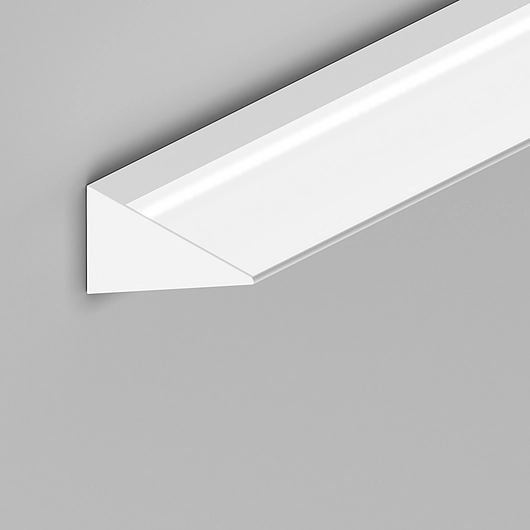

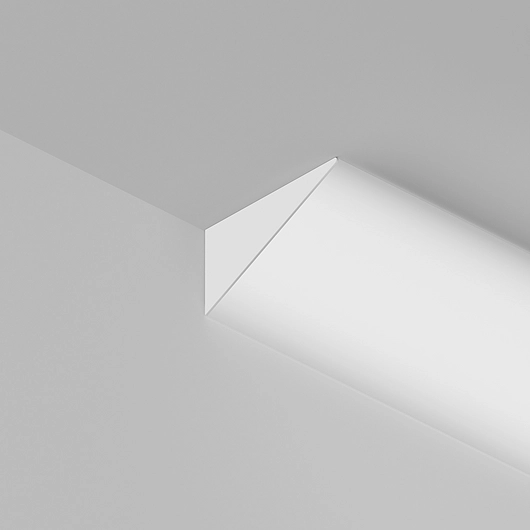

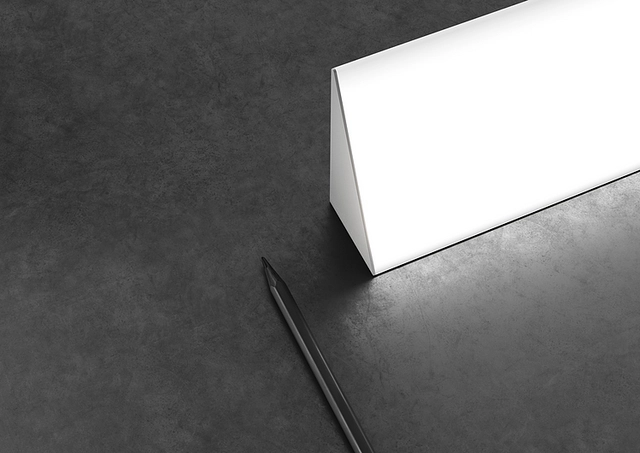

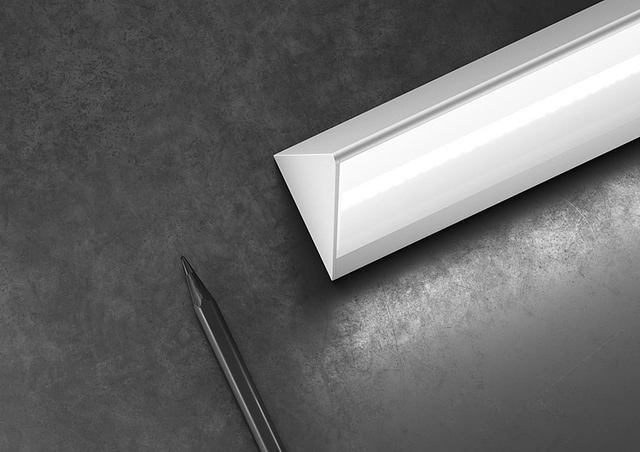

The Wedge Peak 707 is part of Vode’s Wedge collection, a series that reimagines architectural lighting through geometric form and optical precision. With a compact triangular body measuring 1.54" x 3", this fixture offers clean, sculptural lines and easy installation for both T-bar ceilings and drywall surfaces.
Product Features
- Triangular form factor for visually striking yet minimal illumination
- Diffuse lens ideal for corridor and ceiling-mounted lighting
- Multiple mounting options including clips, magnets, and T-bar attachments
- Available in white finish; other finishes available upon request
- Tunable white light from 2200K to 5000K with 90+ CRI
- High efficacy up to 173 lm/W and light output up to 2005 lm/ft
Technical Characteristics
| Lumen Output (HO) | Up to 2005 lm/ft (Diffuse) |
| Efficacy | Up to 173 lm/W (HO), 138 lm/W (SO) |
| CRI | 90+ (average 96) |
| LED Lifetime | L80 > 60,000 hours |
| Rail Lengths | 24” to 144” (610 mm – 3658 mm); custom lengths available |
| Dimming Options | 0–10V (1% / 0.1%), DALI, DMX, Lutron Hi-lume 1% |
| Input Voltage | 120V or 120–277V |
| Power Supply | Remote driver (up to 100 ft distance) |
| Material | Extruded aluminium; PMMA lens |
| Environment | Damp rated, 0–95% humidity, 32°F to 104°F (0°C to 40°C) |
| Weight | 0.38 lbs/ft (0.17 kg per 305 mm) |
