Architectural Wire Mesh Models - GAUDI | Codina

Codina Architectural's GAUDI range of architectural wire mesh wire offers a unique series that is designed without rods across the spirals, which increases its flexibility. This allows the mesh to create unique and complicated geometries. It is highly suitable for banisters and staircases among other applications. All models can be installed with TF-20, TF-30, TF-35, TF-50, TF-55, and TF-60(TF-55 is usable only for GAUDI R and GAUDI R50). The mesh models come with a maximum width of 7 meters, with larger widths available upon request.

GAUDI F	GAUDI Q
Design using flat wire, this series is a unique collection crafted without rods traversing the spirals.	Designed using square wire made of aluminum, that can be anodized or powder-coated in a variety of colors.
Weight: Stainless Steel 2,7 kg/m2 | Aluminium 0,92 kg/m2 | Copper 3,02 kg/m2 Open area: 81%	Weight: Aluminium 1,9 kg/m2 Open area: 74%

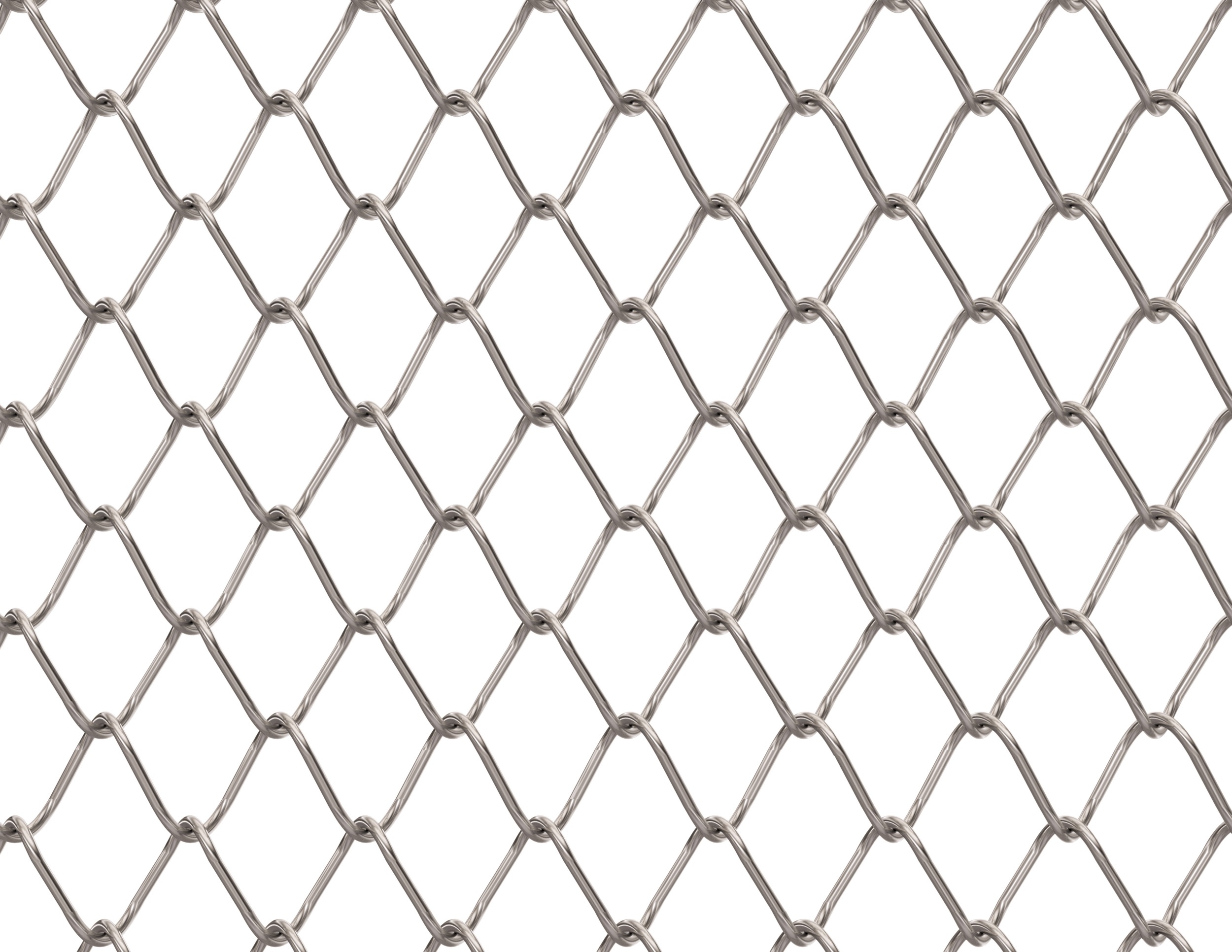

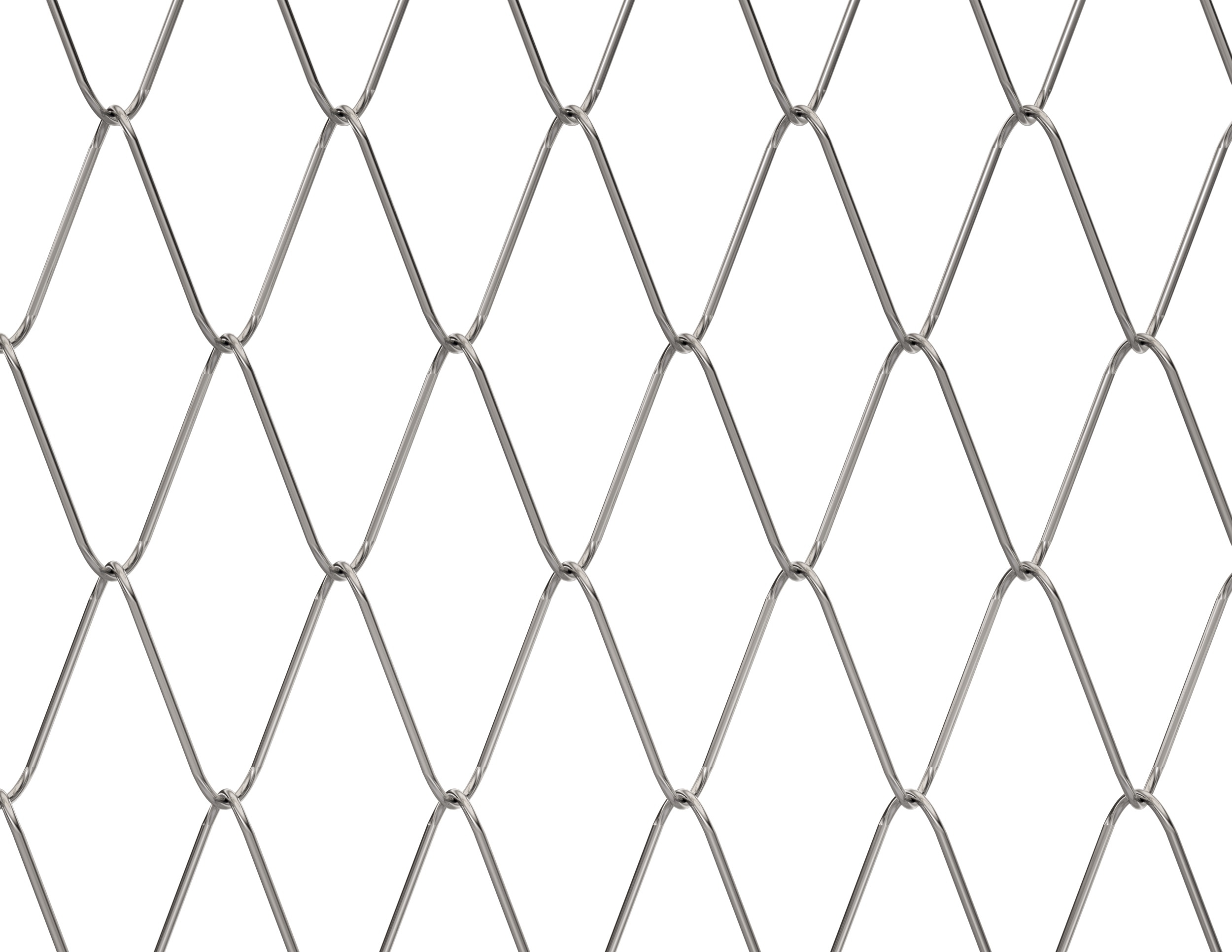

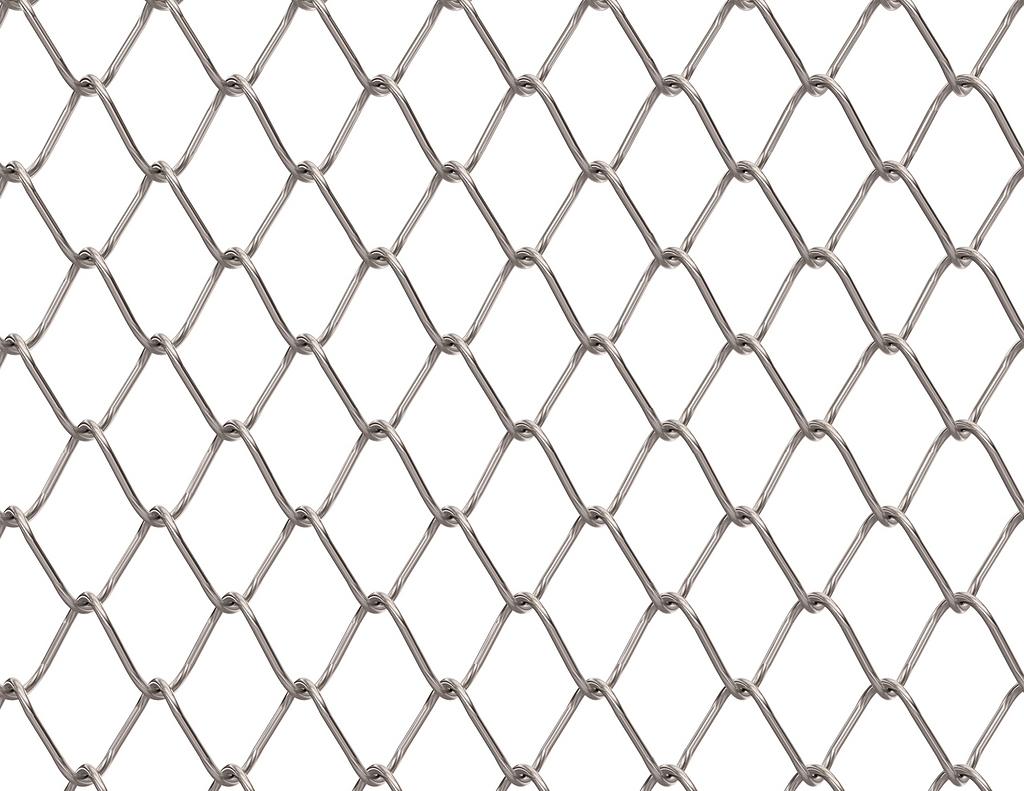

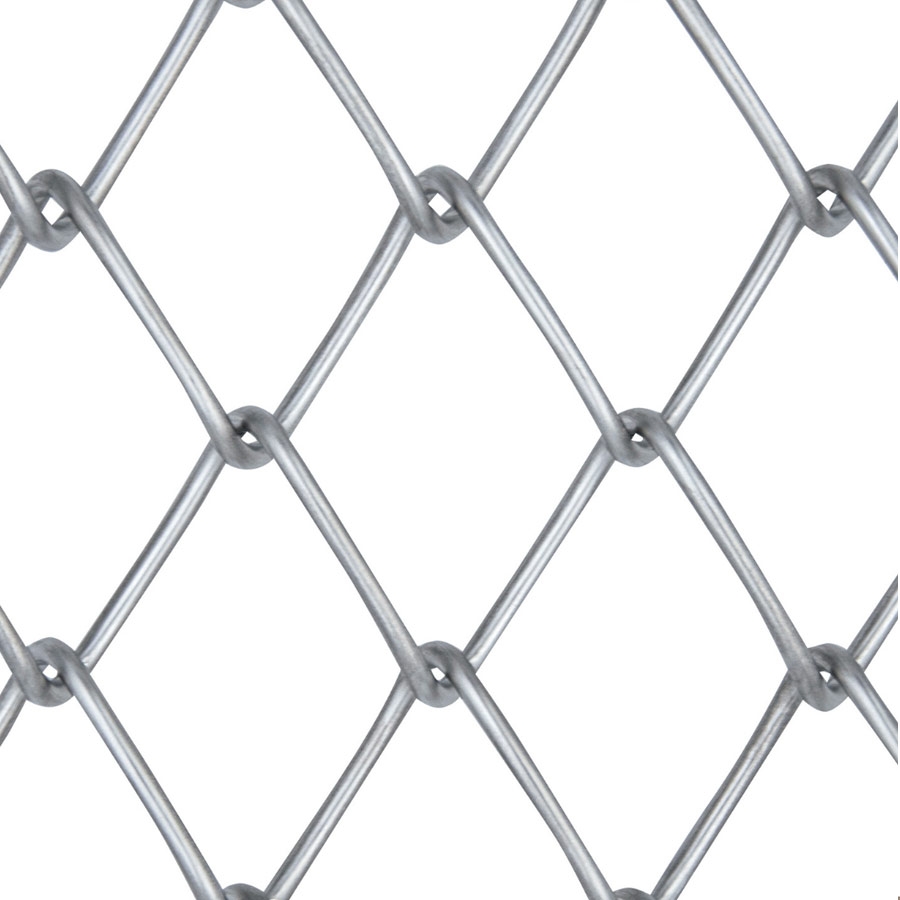

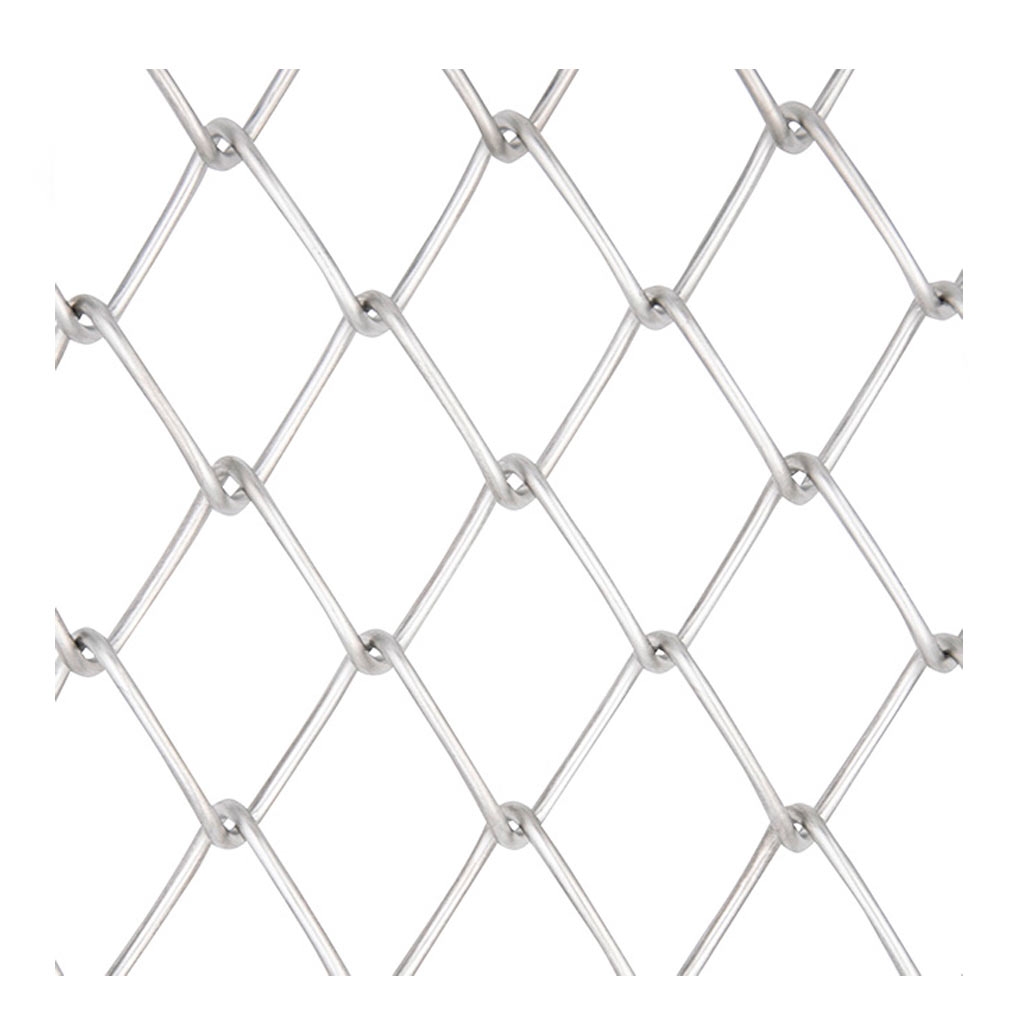

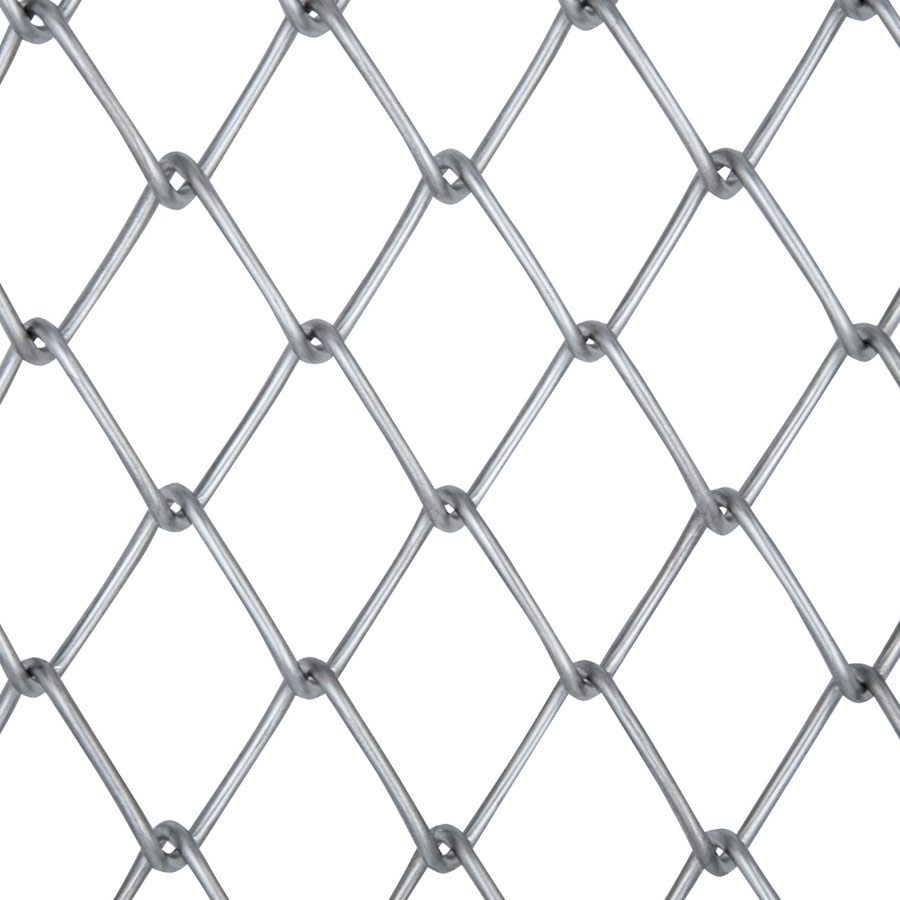

GAUDI R	GAUDI R50
Designed using a round wire section.	Designed using a round wire section.
Weight: Stainless Steel 4,3 kg/m2 | Aluminium 2,13 kg/m2 | Copper 7,03 kg/m2 Open area: 82%	Weight: Stainless Steel 1,3 kg/m2 | Aluminium 0,44 kg/m2 | Copper 1,46 kg/m2 Open area: 86%

Codina Architectural offers a wide variety of architectural metal meshes in copper, brass, aluminum, and stainless steel. Choose from spiral, rhombus, or woven mesh designs, each with its own unique aesthetic and flexibility. Codina also offers custom solutions.
