Indoor General Lighting and Downlights | iGuzzini

  • Available in

  • Use

    Lighting, downlight
  • Applications

    Residential, hospitality, commercial, corporate
  • Characteristics

    Recessed installation, high visual comfort, easy installation
  • Guarantee

    5-year warranty
The product has been saved to the folder: My Downloaded Products
iGuzzini Logo

Contact manufacturer

iGuzzini

iGuzzini Logo

Contact manufacturer

iGuzzini

More from iGuzzini

Website Phone

More about this product

Downlights from iGuzzini offers a range of recessed lights for a variety of applications. The lights provide high-quality lighting with minimal glare. The different series are available in a variety of sizes with different interior elements.

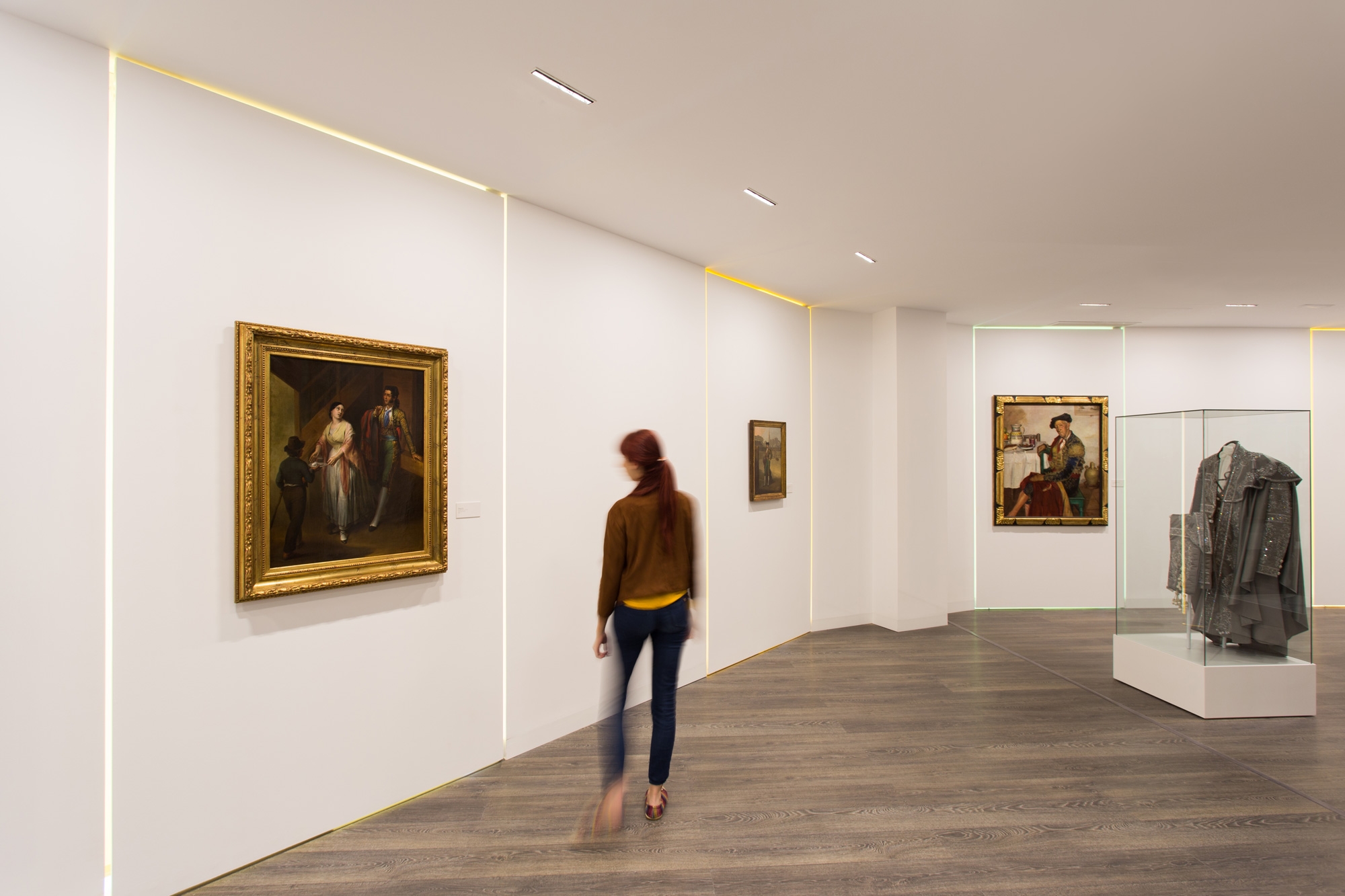

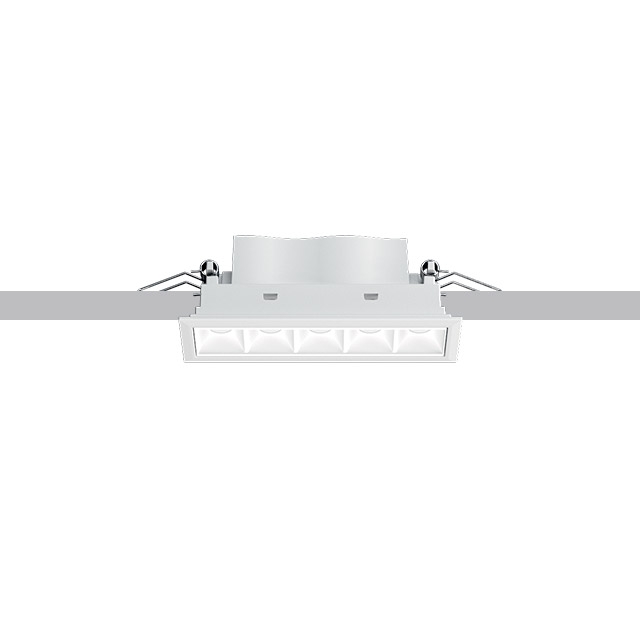

Laser Blade

The Laser Blade is a flush-mount recessed light with high-definition metallic finish thermoplastic optics. This is combined with a special diffuser filter to optimise light emission by significantly reducing direct glare. It is available in three sizes.

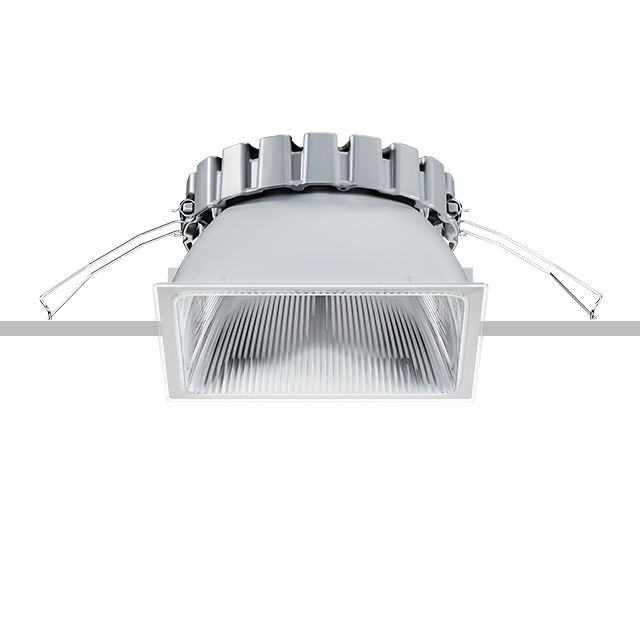

Easy Space Square

The Easy Space Square is a luminaire with fixed optics. It features the Opti Diamond optical innovation which ensures a luminous effect, similar to that of a diamond. It is available in three sizes.

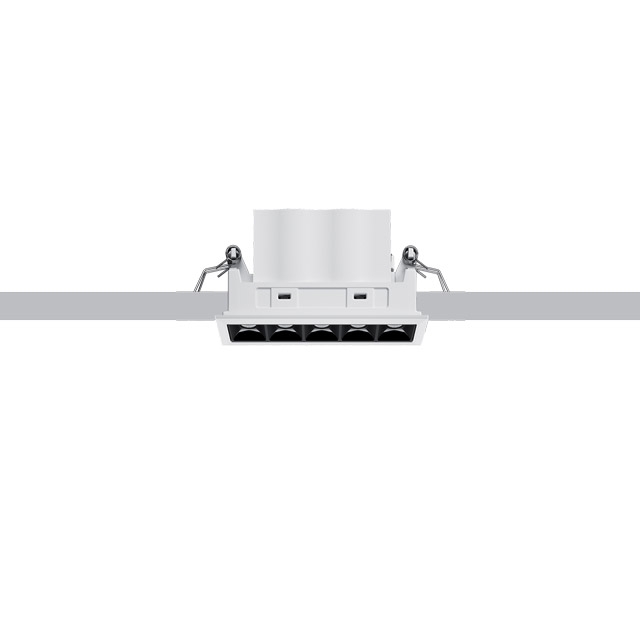

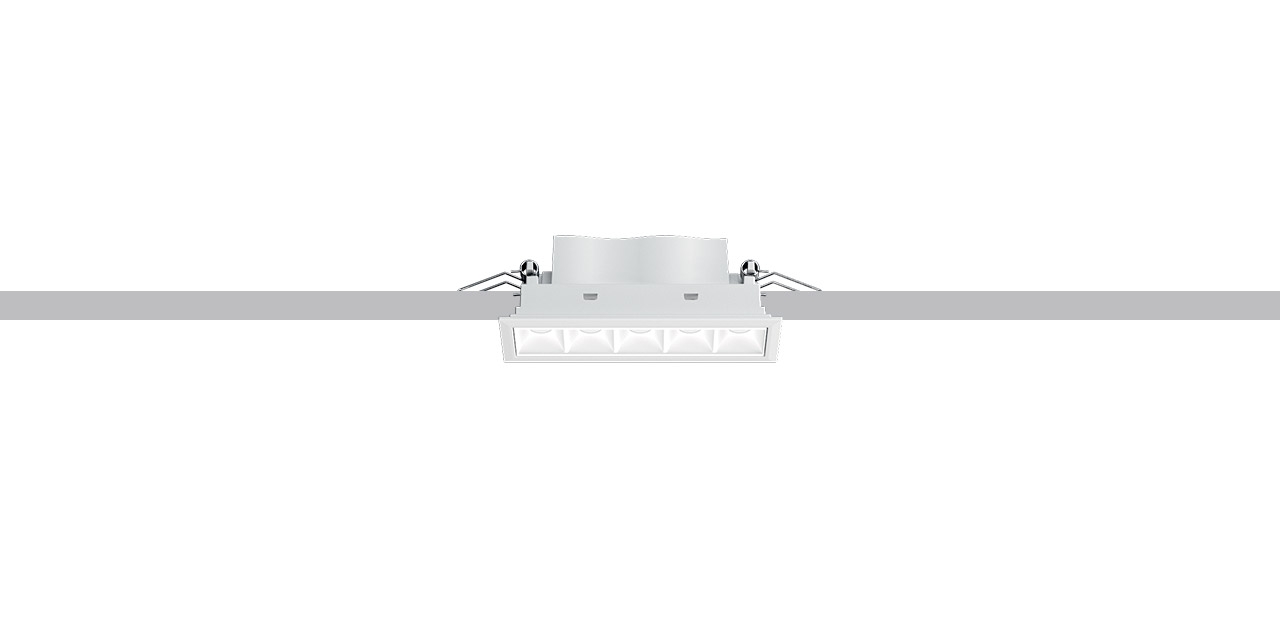

Laser Blade XS

The Laser Blade XS from iGuzzini is a flush-mount recessed light with high-definition metallic-finish thermoplastic optics combined with a special diffuser filter to optimise light emission by significantly reducing direct glare. It is the smallest version of the Laser Blade and is ideal for applications where space is limited.

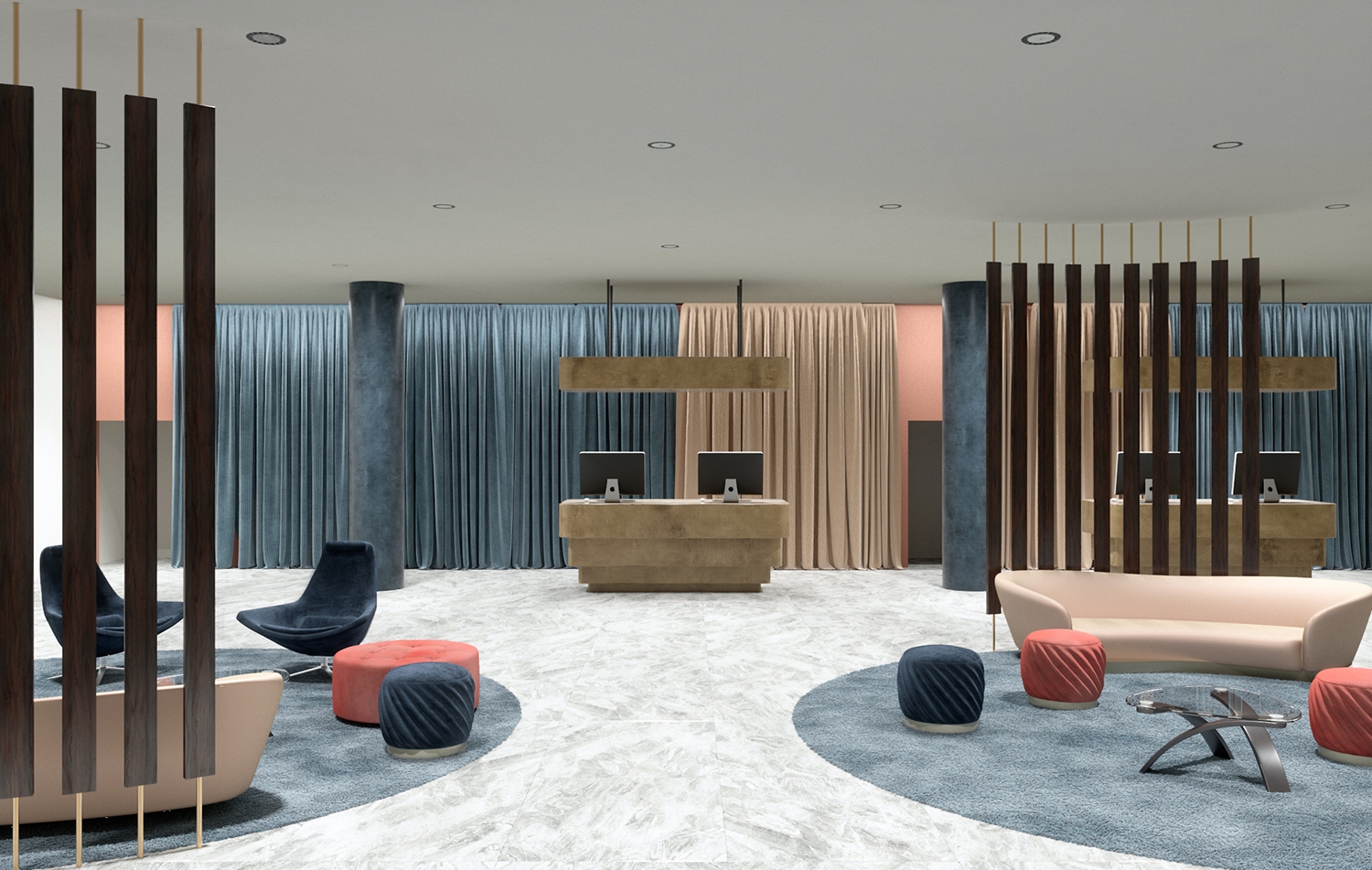

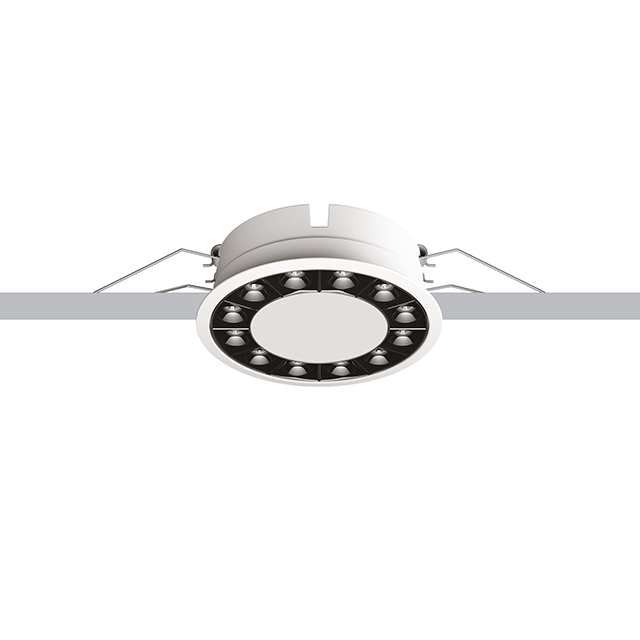

Blade R

The Blade R is a flush-mount recessed light that integrates safety, entertainment, comfort, and sustainability services. It features high-definition optics made of metallised thermoplastic material, integrated into the innovative black antiglare screen that defines emission with luminance control UGR<10.

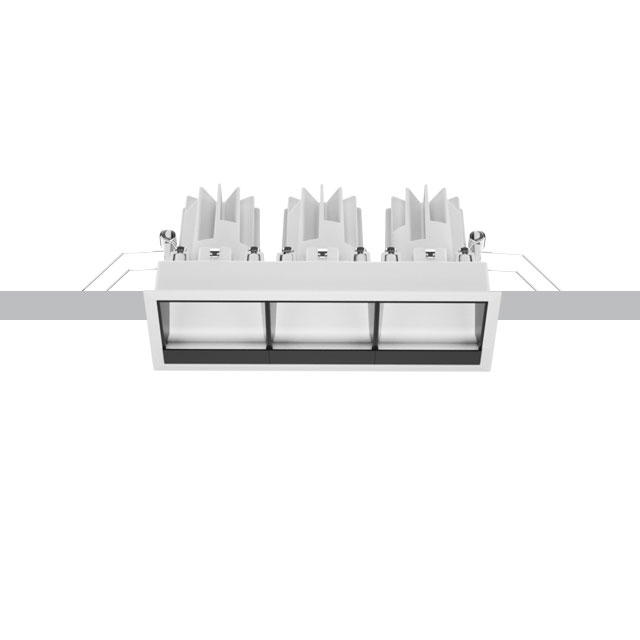

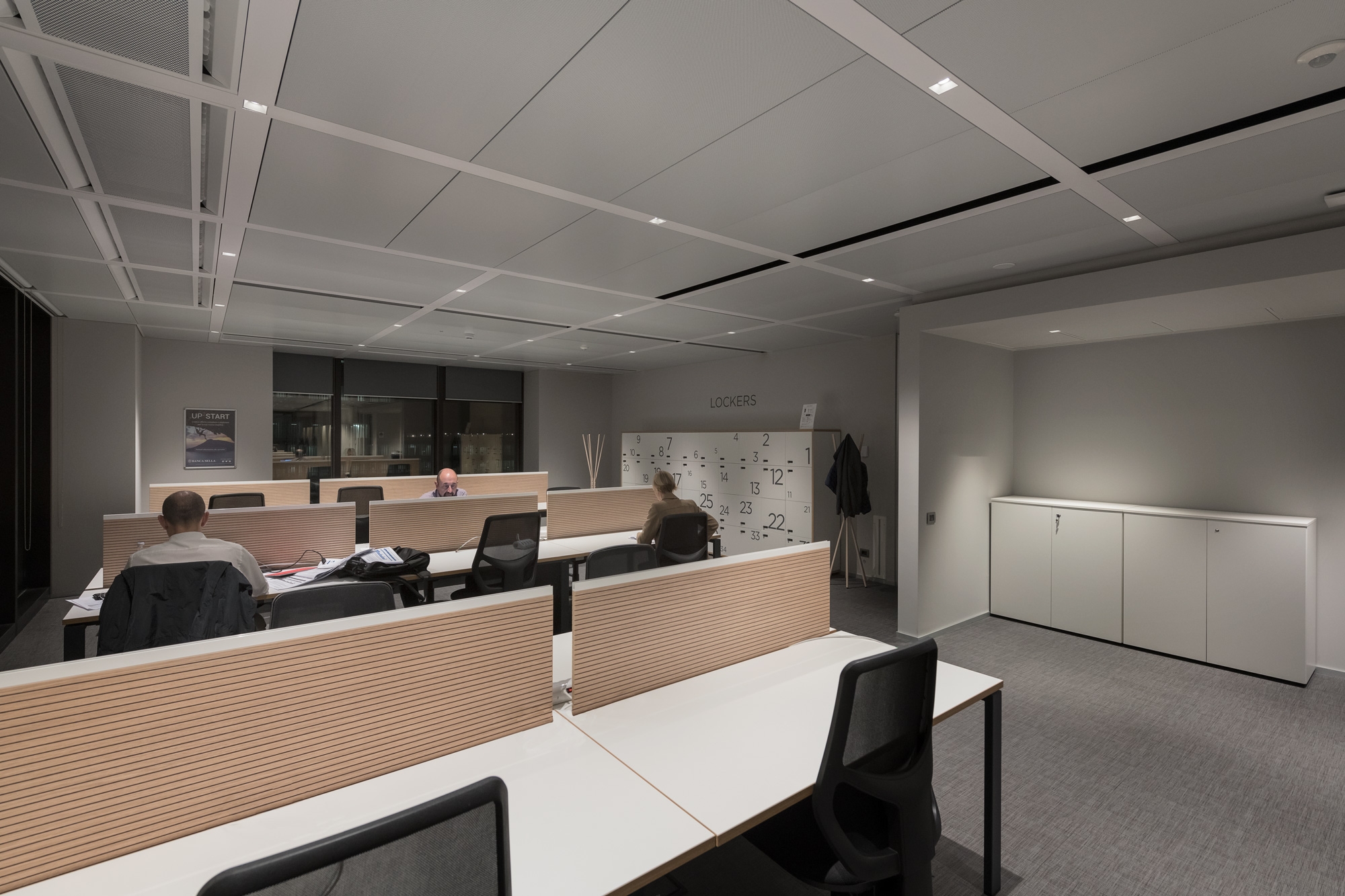

Laser Blade L

The Laser Blade L is a recessed installation recessed light with high-definition optics made of metallised thermoplastic material, integrated into the innovative black anti-glare screen which creates light emission with controlled luminance UGR<10.

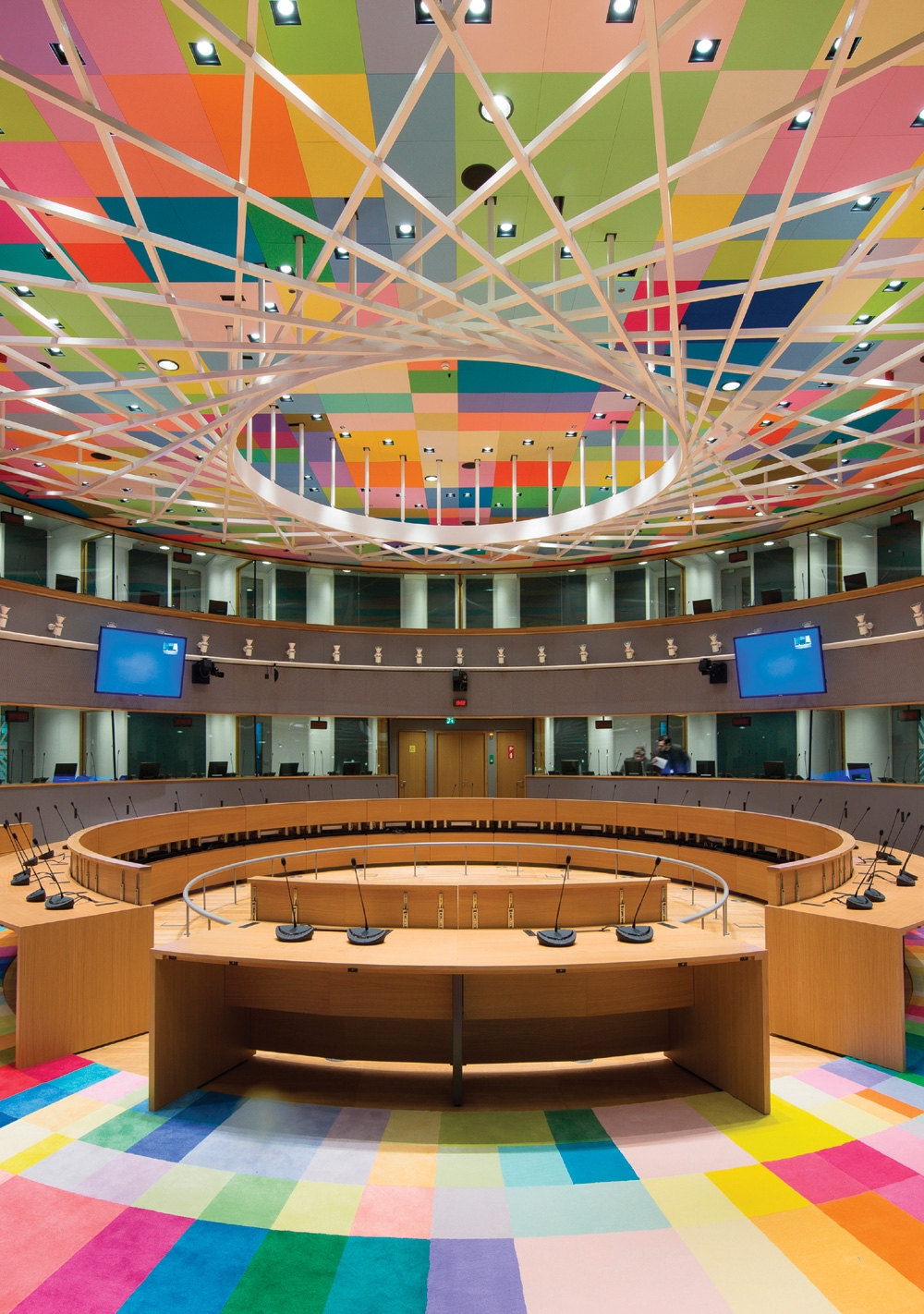

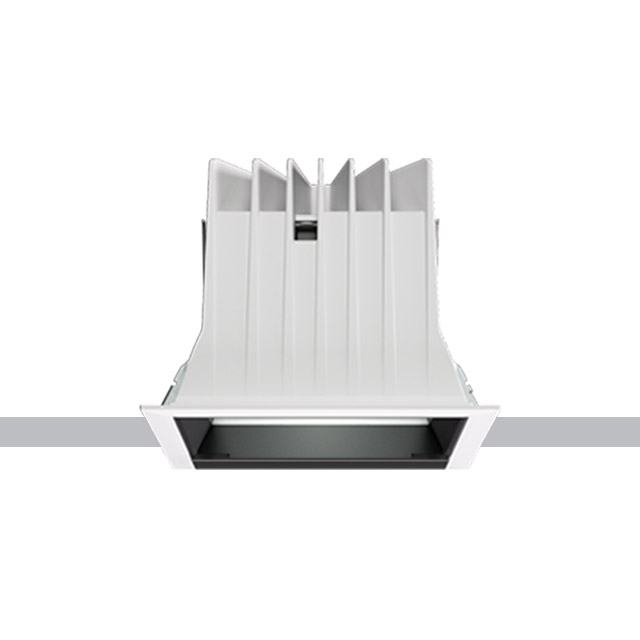

Laser Blade XL

The Laser Blade XL is a minimal, frame installation light with a UGR<16 and CRI 80 and CRI 90. It is available in a variety of color temperatures and finishes.

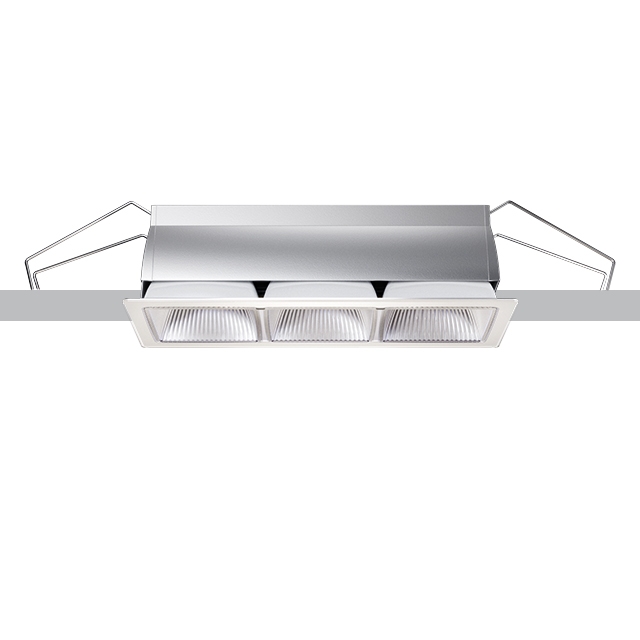

Crystal

The Crystal is a recessed luminaire consisting of a lamp device and an emission raster. It features the Opti Beam Diamond optic, which is a patented catadioptric system that generates a high-performance light emission combined with a high energy yield.

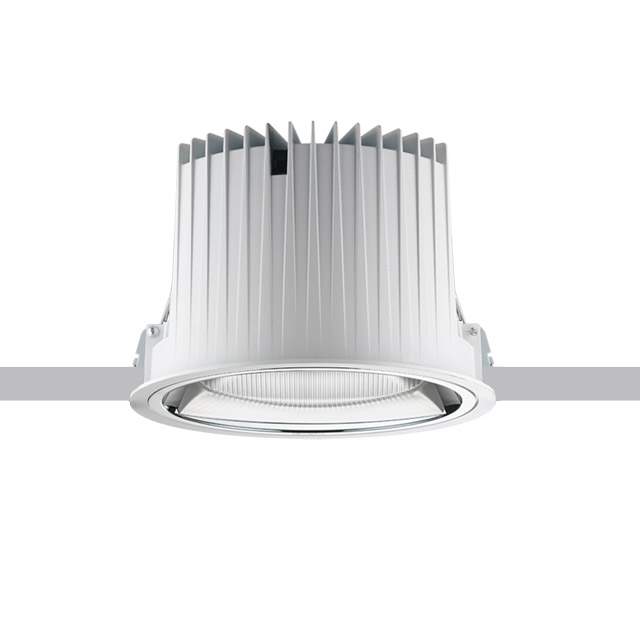

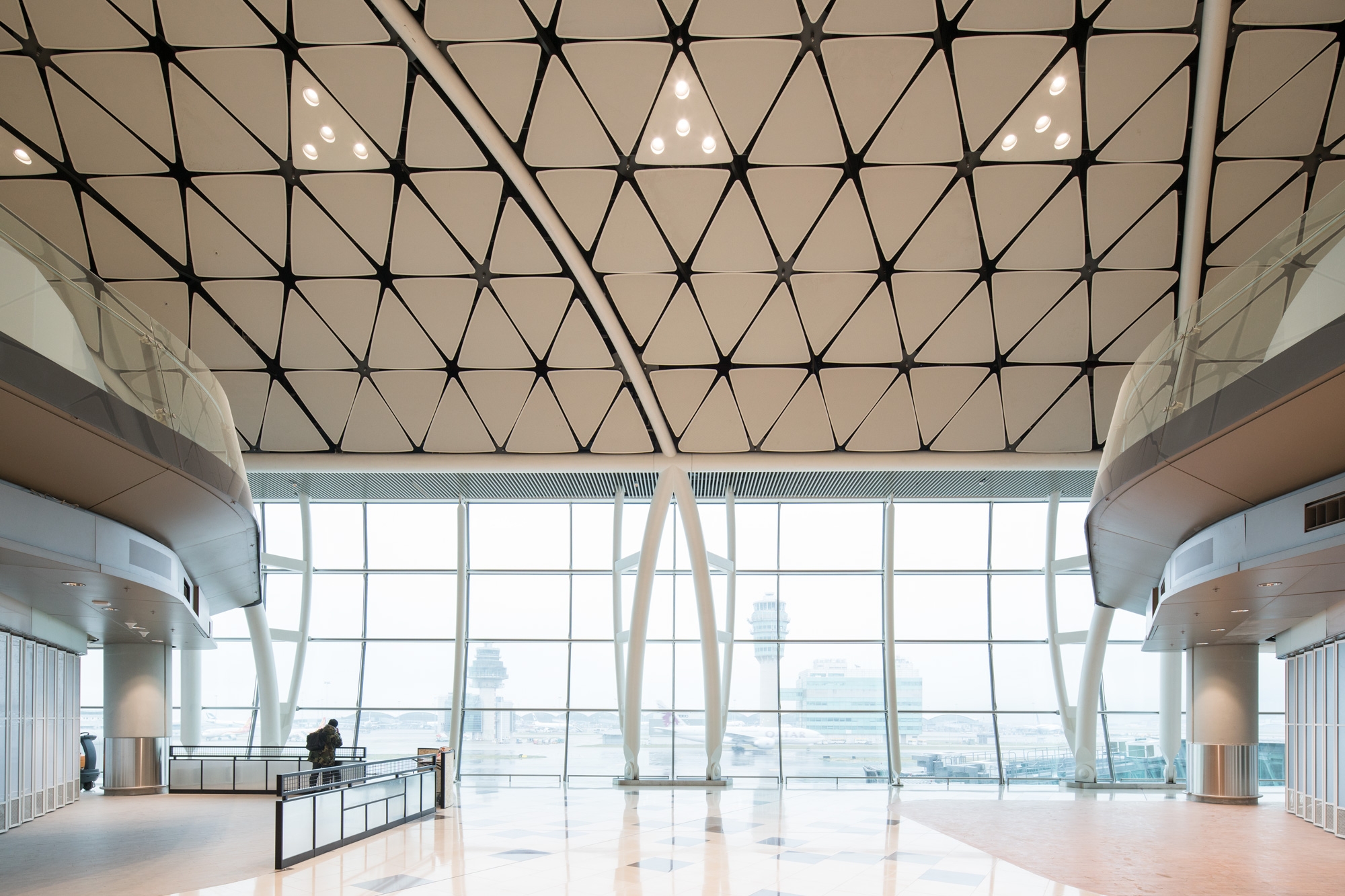

Reflex

The Reflex recessed light from iGuzzini can be installed in false ceilings with a thickness of 12.5 mm for the Minimal version (without perimeter rim) or 1 to 25 mm for the Frame version (with rim). It has a die-cast aluminum body and heat sink, and a metallized thermoplastic reflector with anti-scratch protection treatment. It is available with electronic and DALI control gear and has an IP20 and IP43 rating.

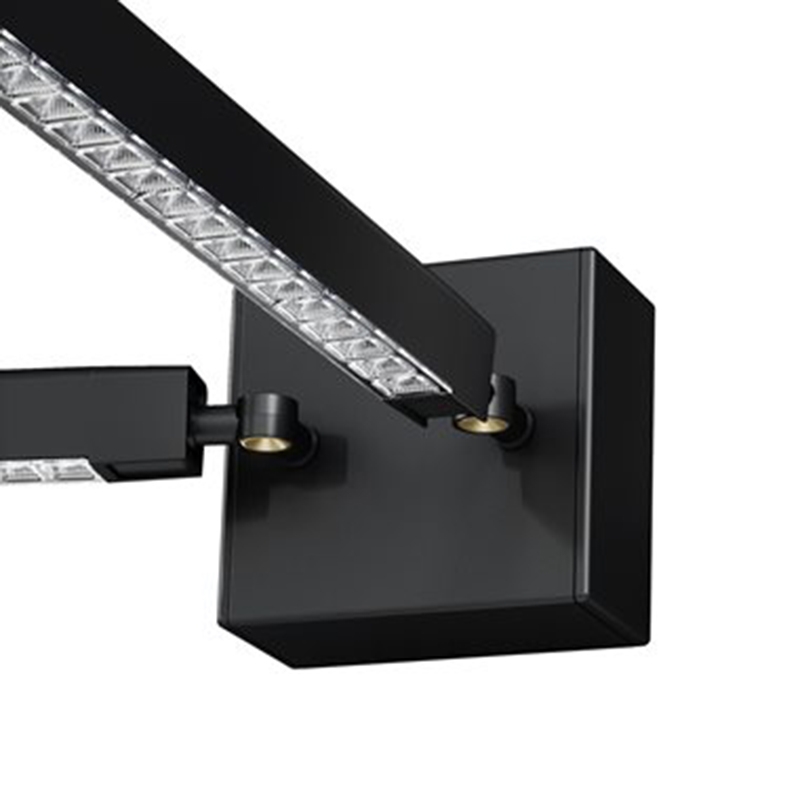

Libera System

The Libera system provides design freedom for custom creations, from intricate systems to standalone lights. It combines compact optics with smart tech, refined aesthetics, and selective materials. Libera can craft dynamic graphics that interact with space. Its joint offers full 360° rotation in three planes, ensuring adaptability to any setting. Achieving an efficiency of up to 125 lm/watts.

Features

  • Opti Diamond integration offers high-performing miniaturized optical technology, that is only 15 mm
  • Optic optionally available with an optic diffuser, including up/down in two colors to perform functional tasks when on, and create an aesthetic when off
  • Extruded aluminum body with flush die-cast Zamak end caps
  • 272 lumens
  • Versions are available in different lengths

Models

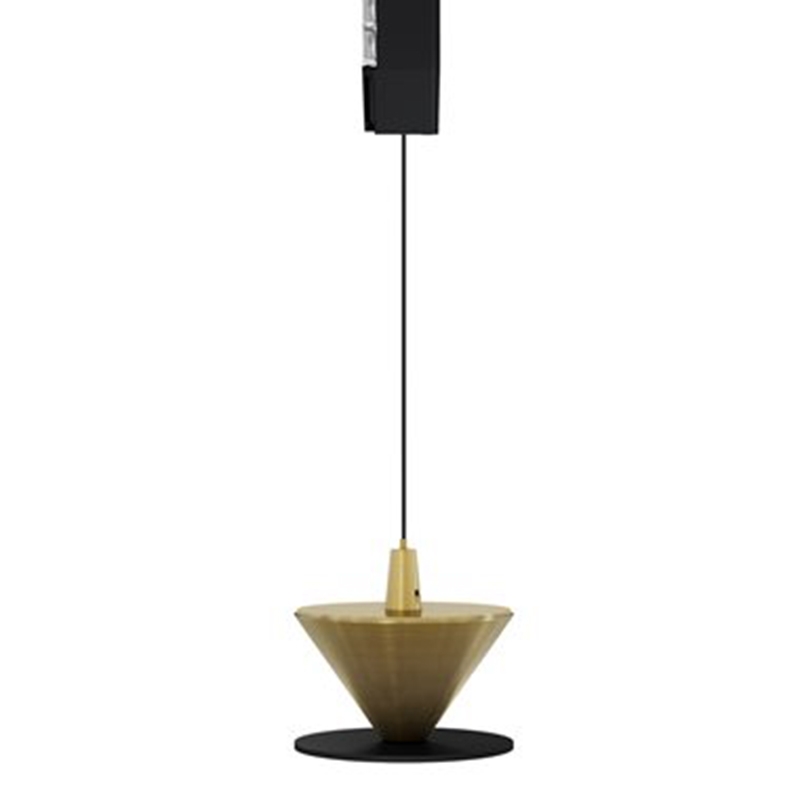

Libera System - Ceiling to Floor Libera System - Wall Libera System - Pendant

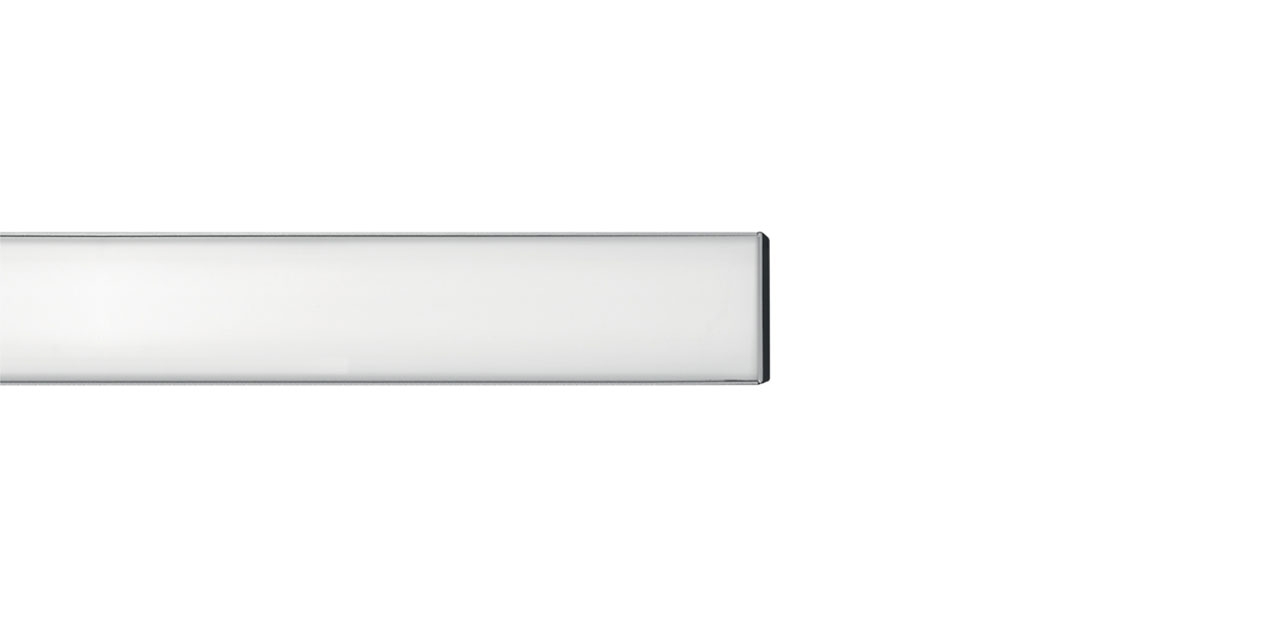

iN60

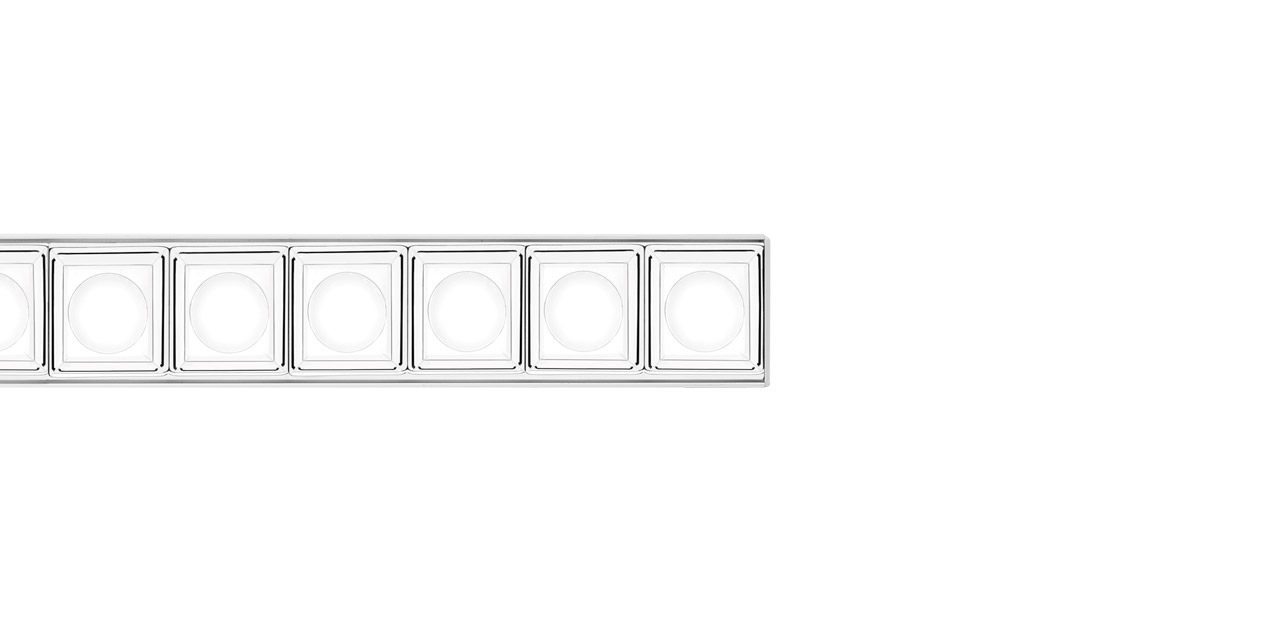

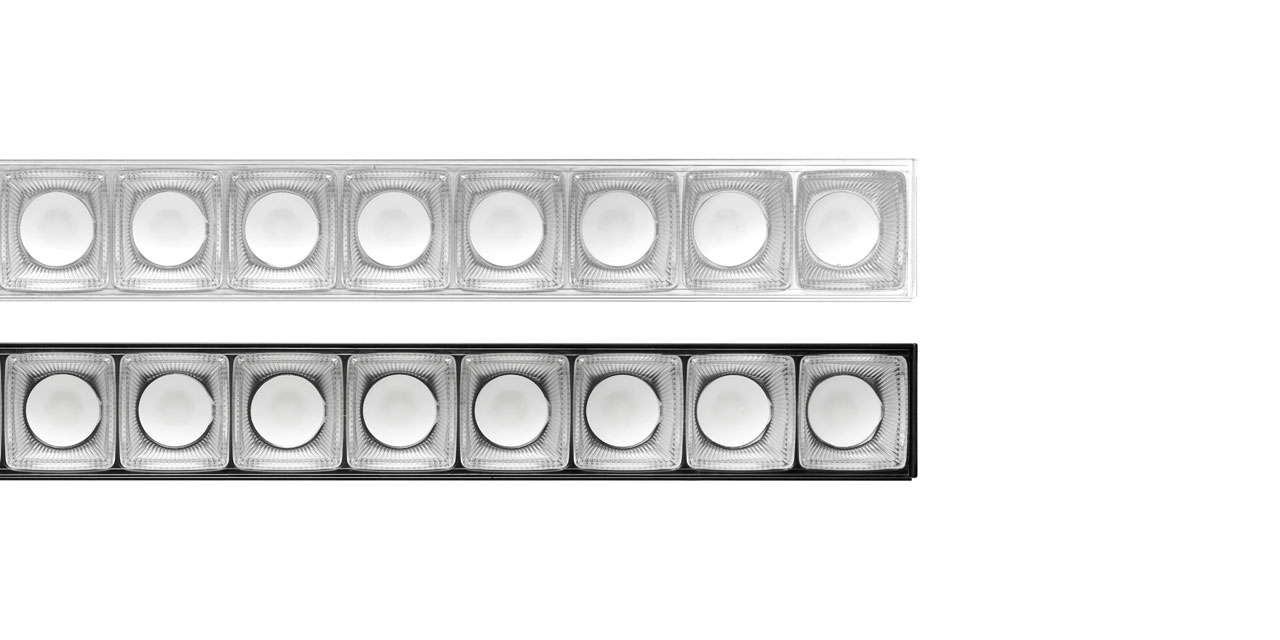

iN60 is a modular lighting system for continuous lines. It represents a new innovation for the collection with the introduction of two new optics, both with very high efficiencies and visual comfort. The iN60 Space version uses patented Opti Diamond optics, in two finishes, to produce a lighting distribution on both vertical and horizontal planes. With efficiency levels up to 150 lm/W and high fluxes. The iN60 MMO version, with the new modular optic metallic (MMO), creates an efficient and comfortable light effect, with values up to 140 lm/W e UGR <19.

Features

  • Modular lighting system for continuous rows
  • Possibility of single or combined installation
  • High level of light output
  • Downlight and up/downlight versions
  • Frame versions (support type) - minimal versions (flush with the ceiling)
  • Extruded aluminum profile and zamak heads
  • Pendant, recessed, surface mounting, and wall-mounted installation
  • Electronic wiring and DALI are available
  • Suspension versions have cables fitted with a creep adjustment system

Models

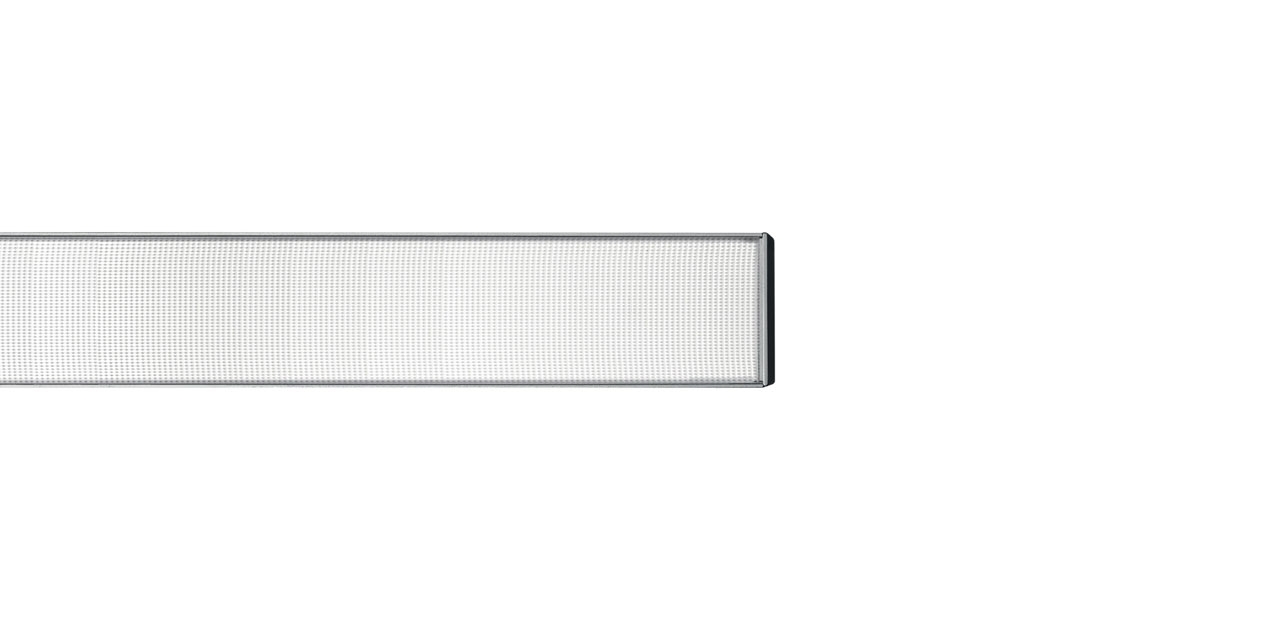

iN60 - Opal White iN60 - Space iN60 - MPO Micro Prismatic Optic

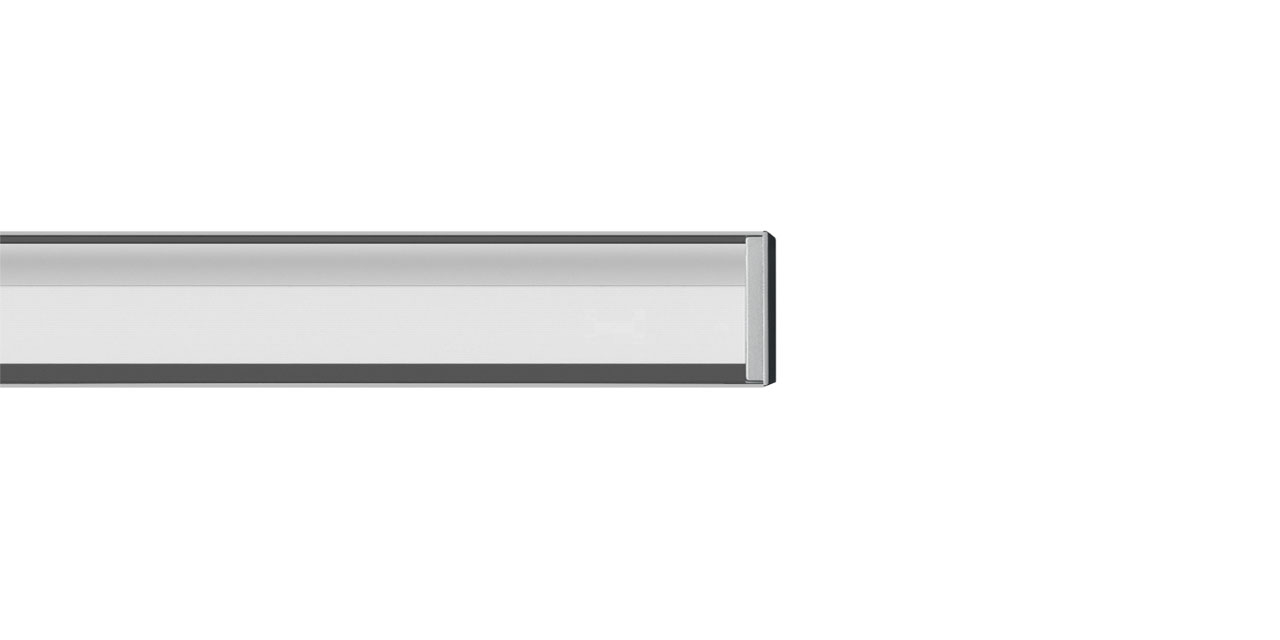

iN60 - MMO Metalized Modular Optic iN60 - Wall Washer

iN90

Modular lighting systems for continuous lines in an extruded aluminium profile, meant for general lighting. It is equipped with an opal diffuser screen for soft and comfortable lighting.

With zama end caps, it is mounted on a sheet steel wired lamp holder plate.
It has a high level of light output and an available pendant version with cables equipped with a system for millimetric regulation.
UGR<19: a comfort version with a microprismatic screen specifi cally for workplaces ensuring values of UGR < 19 and controlled luminance < 3000cd/m2.

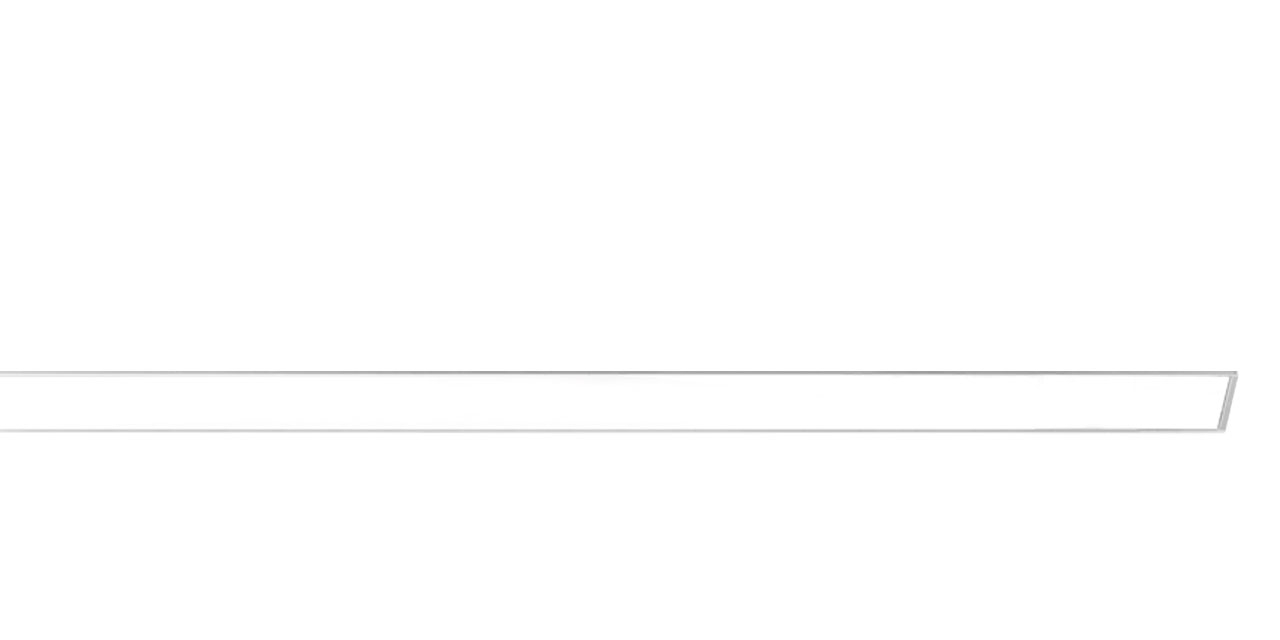

iN90recessed

Flush mount installation.

iN90ceiling-mounted

Ceiling-mounted installation.

iN90pendant

Pendant installation.

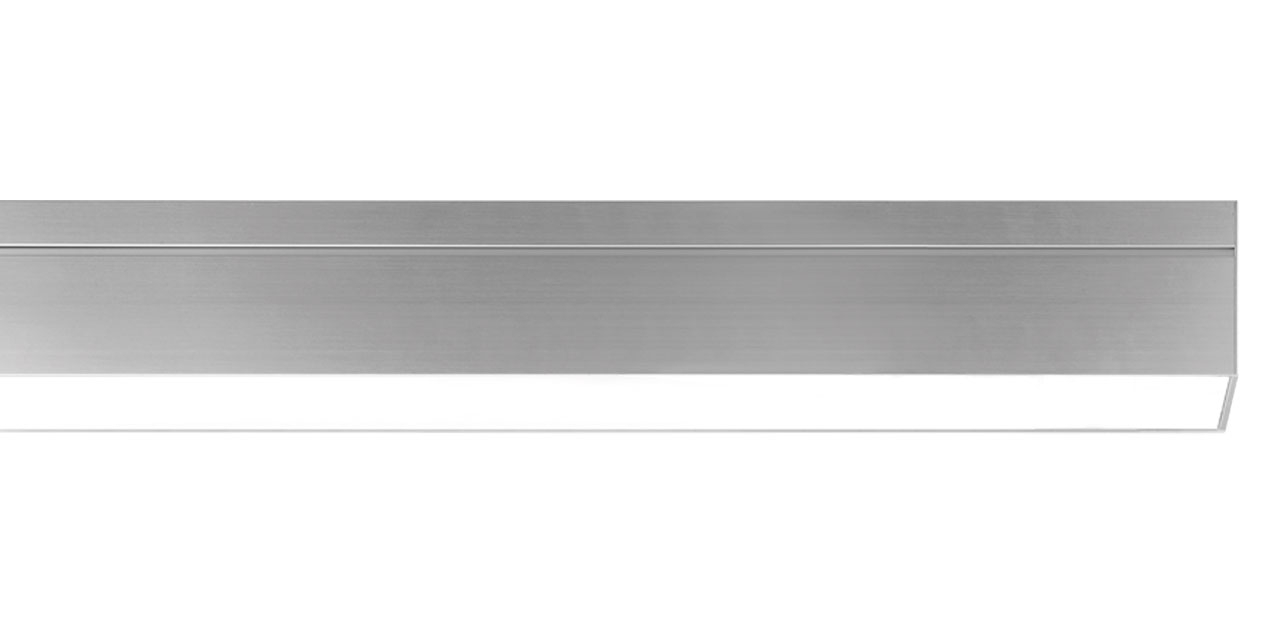

iN90wall-mounted

Wall-mounted installation.

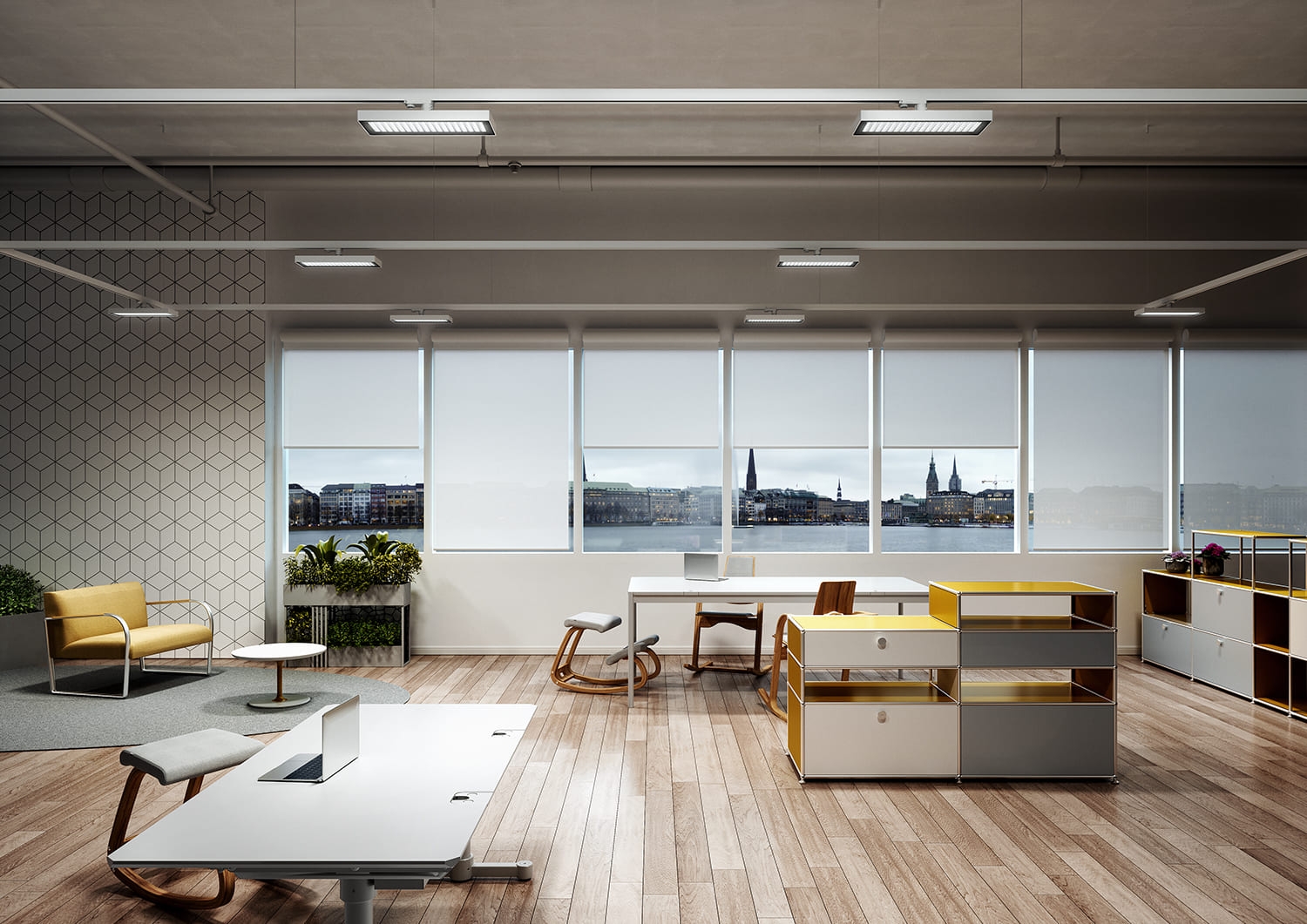

Spacepad
Spacepad is a lightweight, minimal yet highly comfortable and efficient Main Voltage track solution. It is extremely flexible because it can rotate by 360° in the vertical plane and slide along the track extremely easily to allow continuous and simple adaptation to new layouts or visual requirements. Spacepad optics are Optidiamond models providing a truly unique perceptive performance. They are ideal for office environments, with UGR<19 and controlled luminance, and any other setting where soft light is sought in order to enhance the space and the people who live in it.

undefined

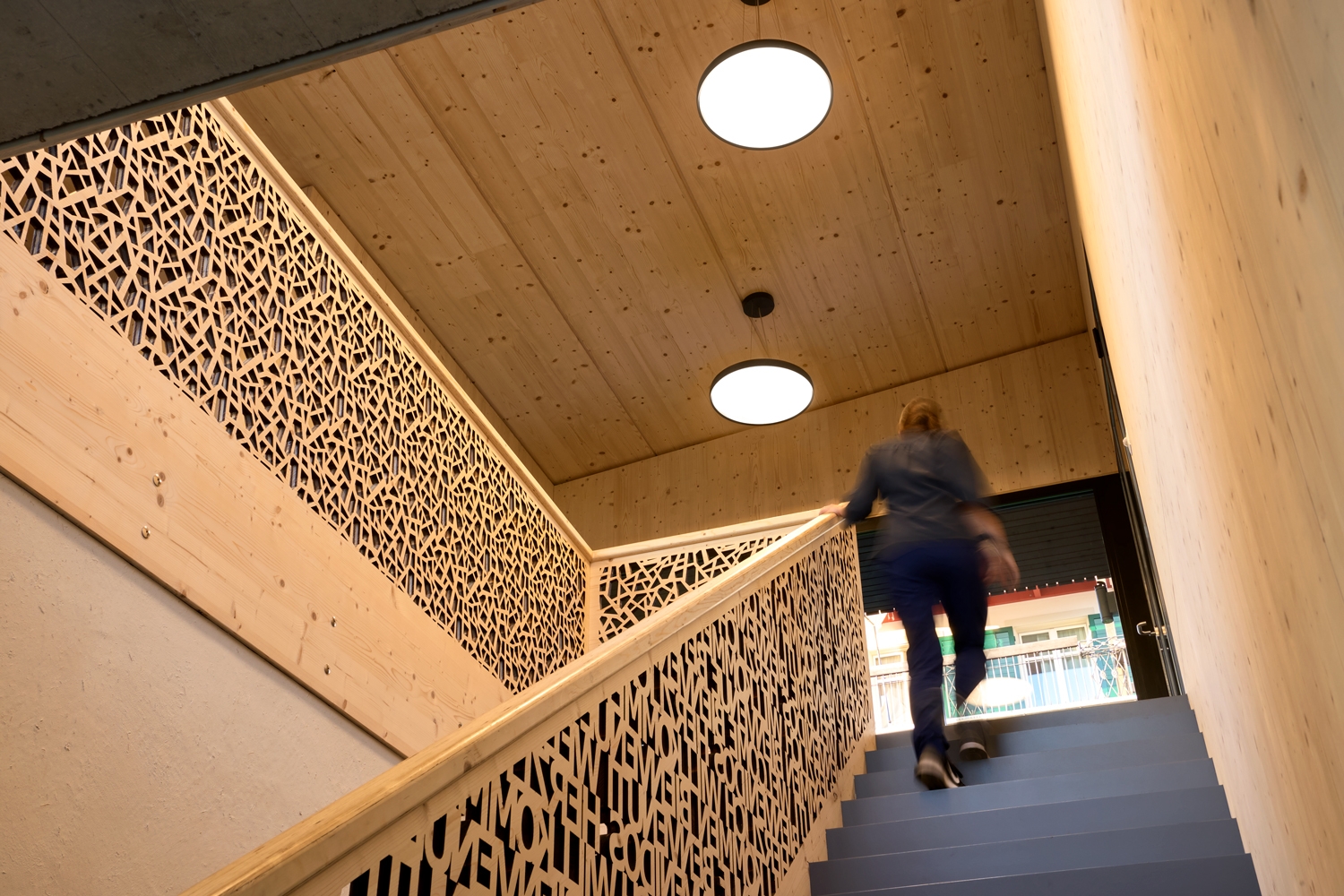

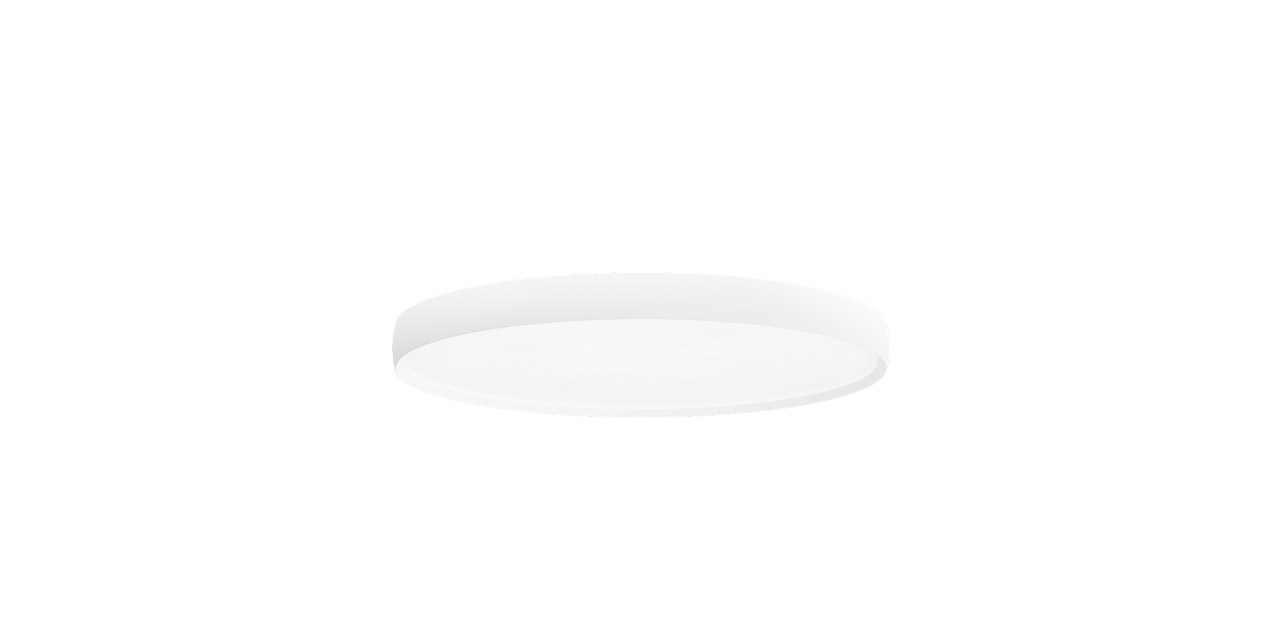

Isola Floating Comfort

The Isola luminaire translates the concept of lightweight into light. A discrete aura emission creates a floating effect in space, where three extremely compact circular shapes with diameters of 590 mm, 870 mm, and 1150 mm share a soft and all-embracing design. Two optics are available, general lighting with an opal methacrylate diffuser screen, and controlled luminance with a micro-prismatic diffuser screen that ensures high luminous efficiency and perfect luminance control at UGR<19, with single and dual emission.

It is available in pendant, recessed, mounted and wall formats.

undefined

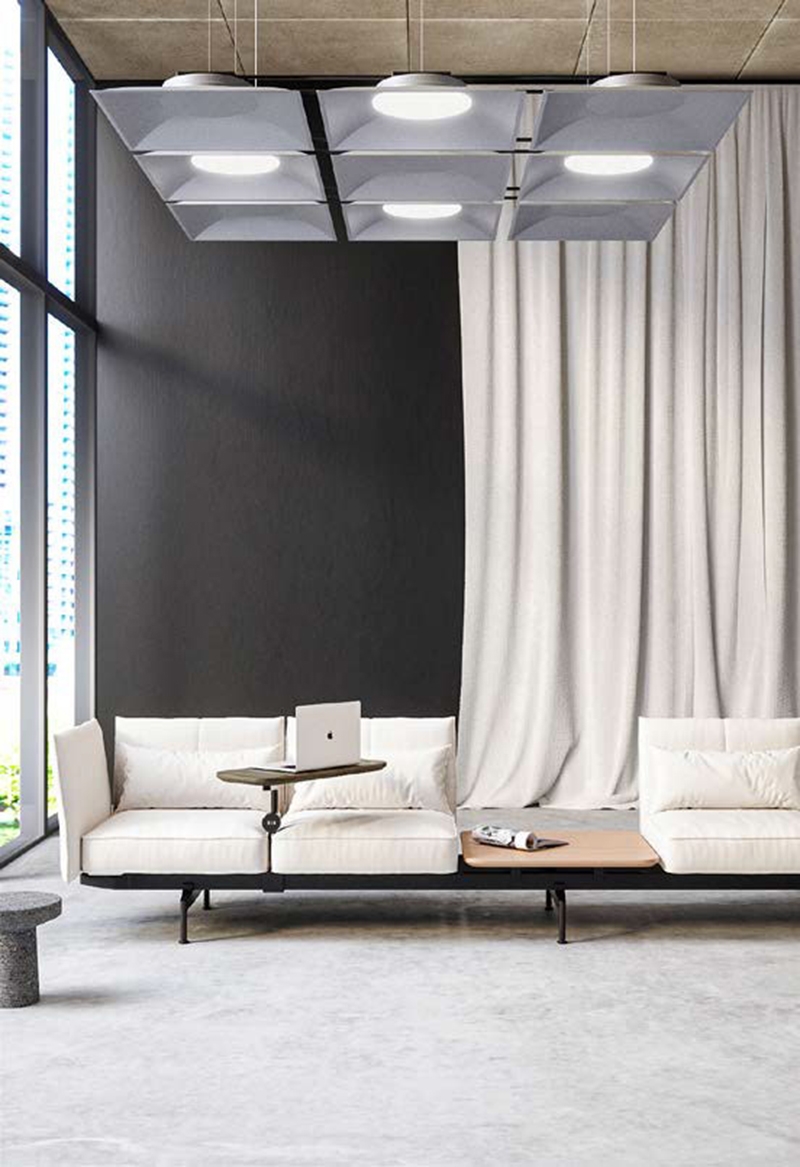

Light Shed

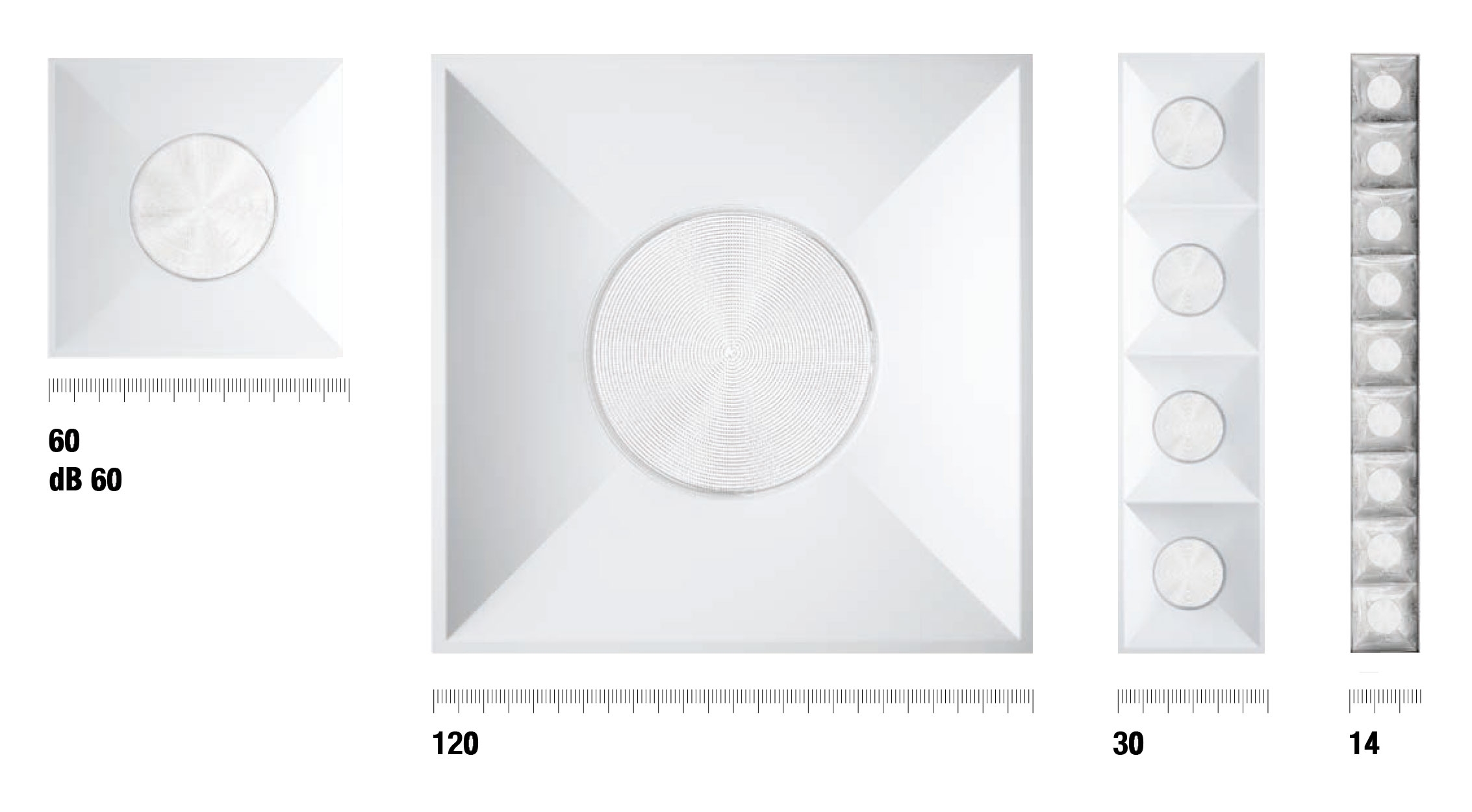

Light Shed has three modular forms: single square, modular square, and linear.

undefined

Light Shed 14
This luminaire is fitted with the patented optic Opti Diamond, in its black and white finish. In addition to its visual quality, the brilliance of this optic increases its rich light emission by balancing luminance on different planes and filling the space around it with pleasant visual and perceptual comfort that is UGR<19. With the Smart Module accessory, Light Shed 14 extends its functionality beyond light by integrating smart devices and Bluetooth control.

undefined

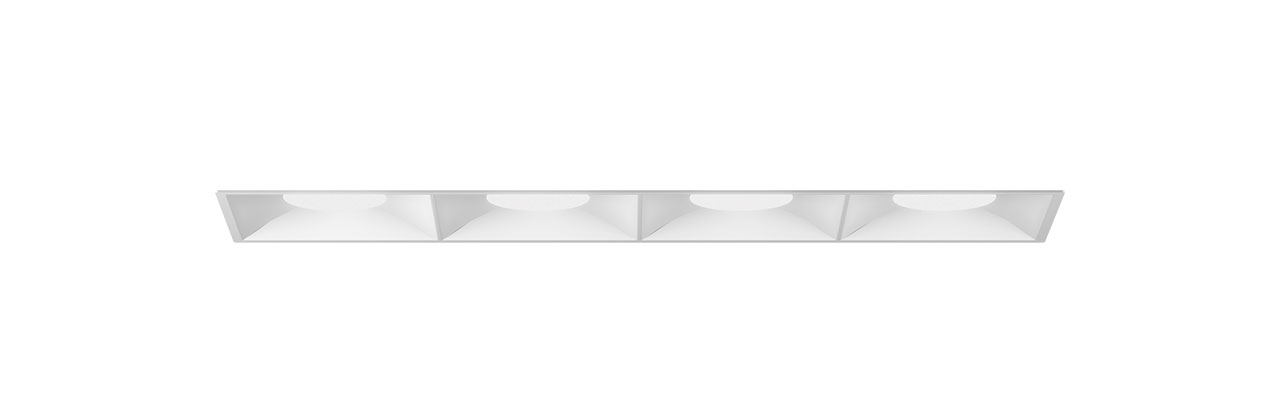

Light Shed 30

This is the linear module in Light Shed compositions. The modules are multi-purpose and modular, and offer lighting solutions, connectivity and simple decoration. Recessed installation offering powerful, efficient and extremely comfortable lighting. And a spaciousness effect that improves spatial perception and boosts visual and perceptual well-being. Recessed installation.
The modules are multi-purpose and modular, and offer lighting solutions, connectivity and simple decoration.

undefined

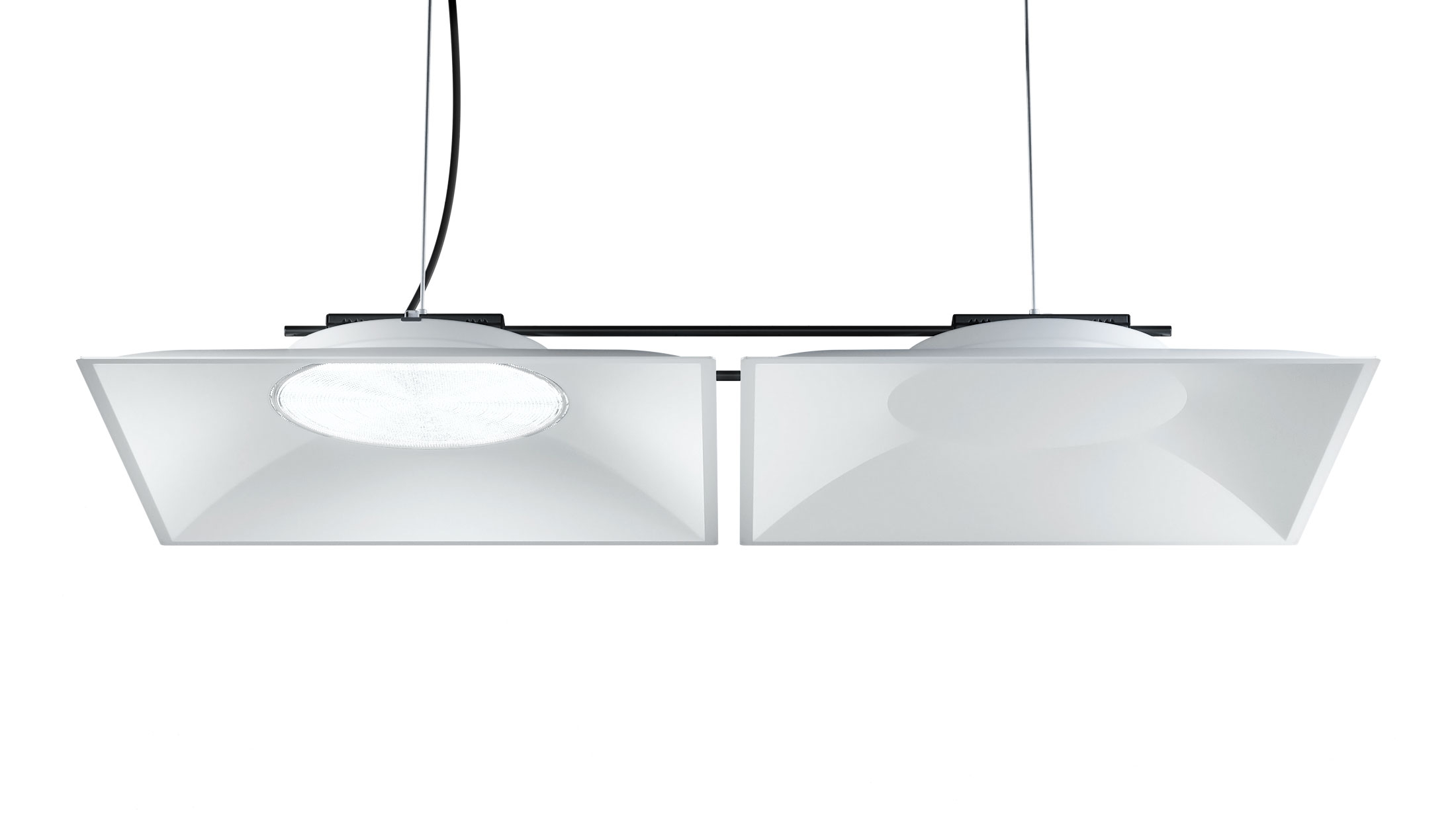

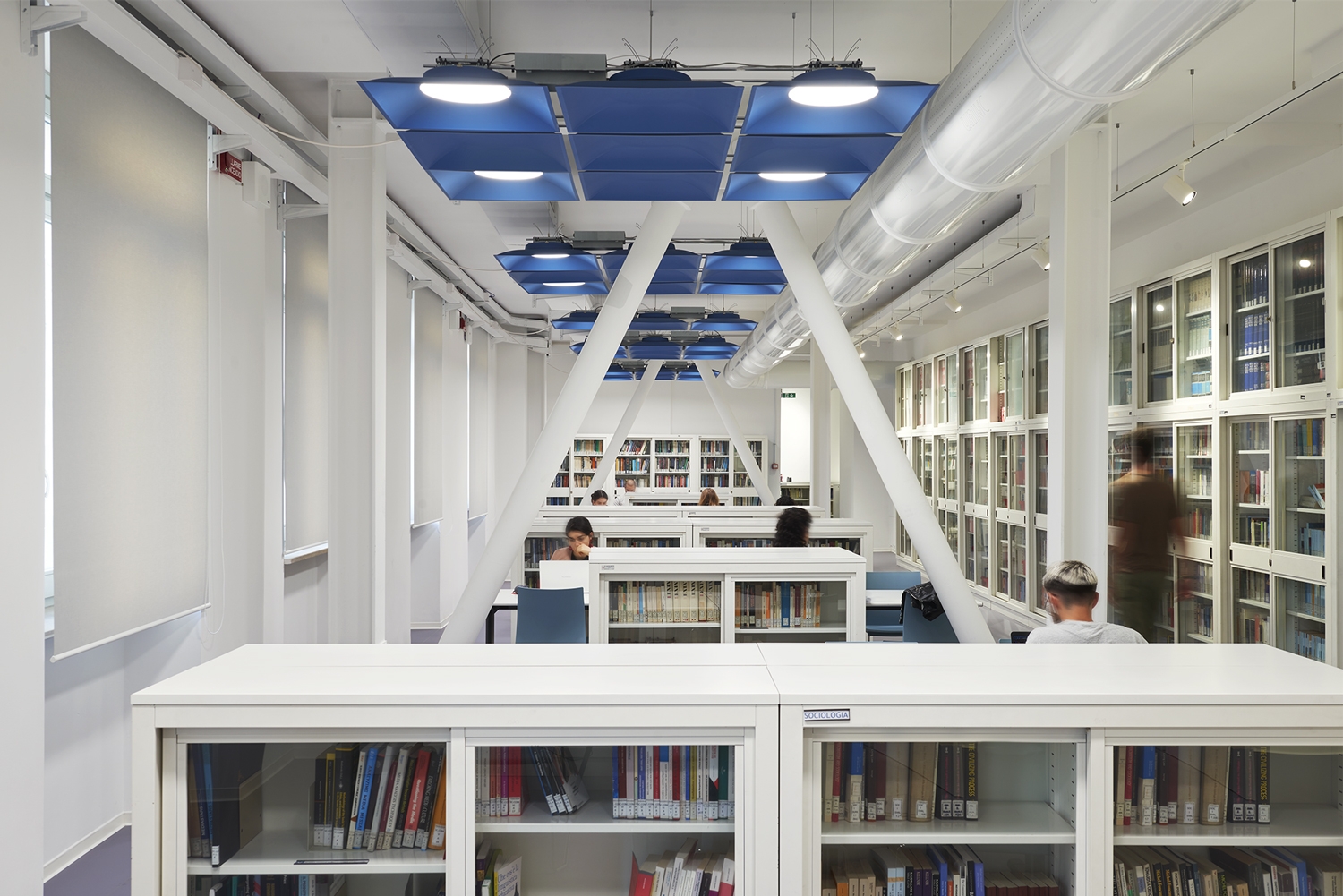

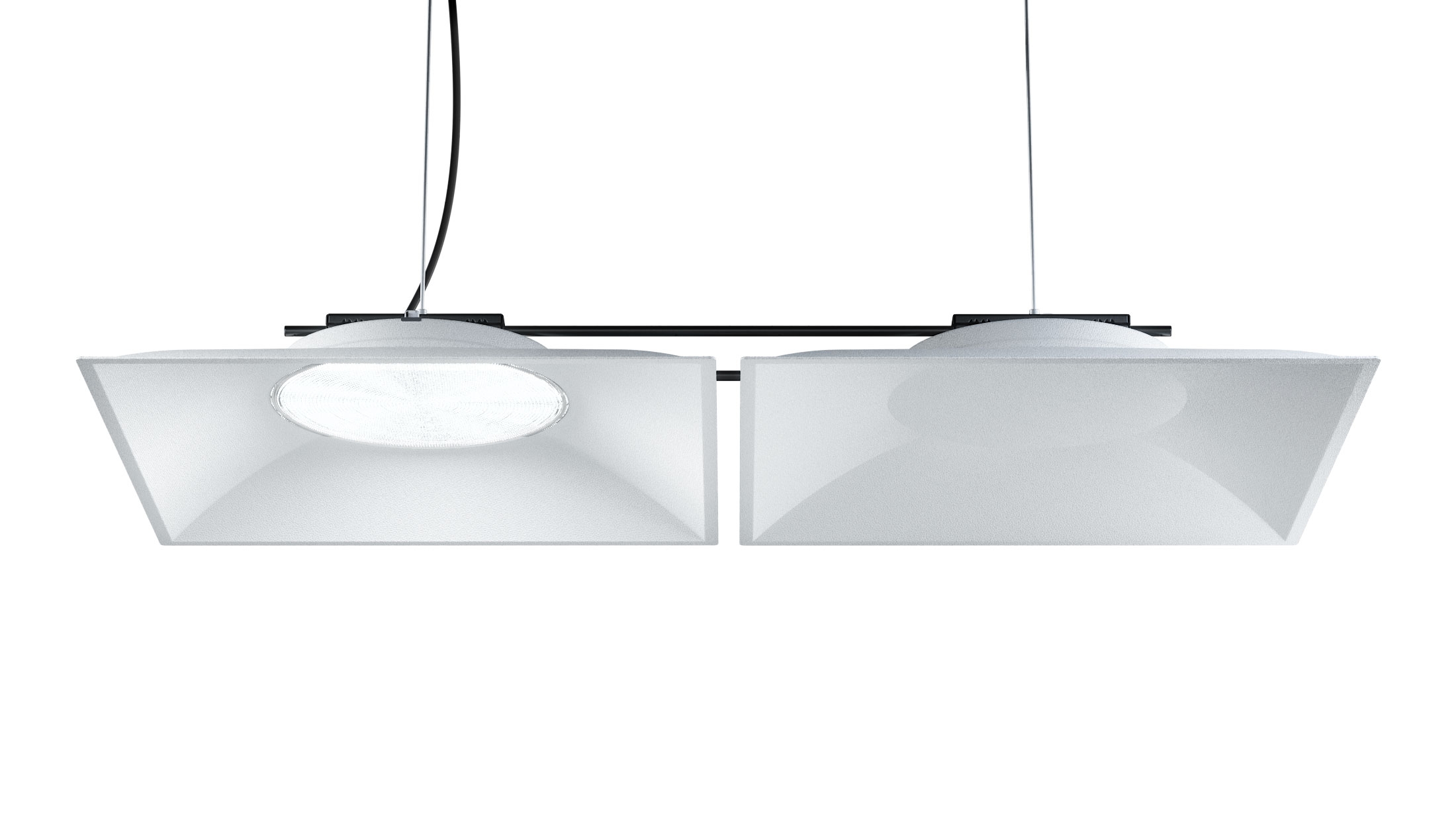

Light Shed 60 and Light Shed dB60
This version offers powerful, efficient, extremely comfortable lighting. Its spaciousness effect improves spatial perception and boosts visual and perceptual well-being. In its central core, Light Shed 60 can house smart tools that extend its functionality beyond light, thereby developing the concept of integration in architecture through the smart activation of safety, entertainment, comfort, and sustainability services.

Light Shed db60 is a version that features sound-absorbing panels that boost acoustic well-being by creating light-emitting ceilings that absorb noise and are also integrated, coordinated, and decorative. This version uses over 85% of recycled material.

undefined

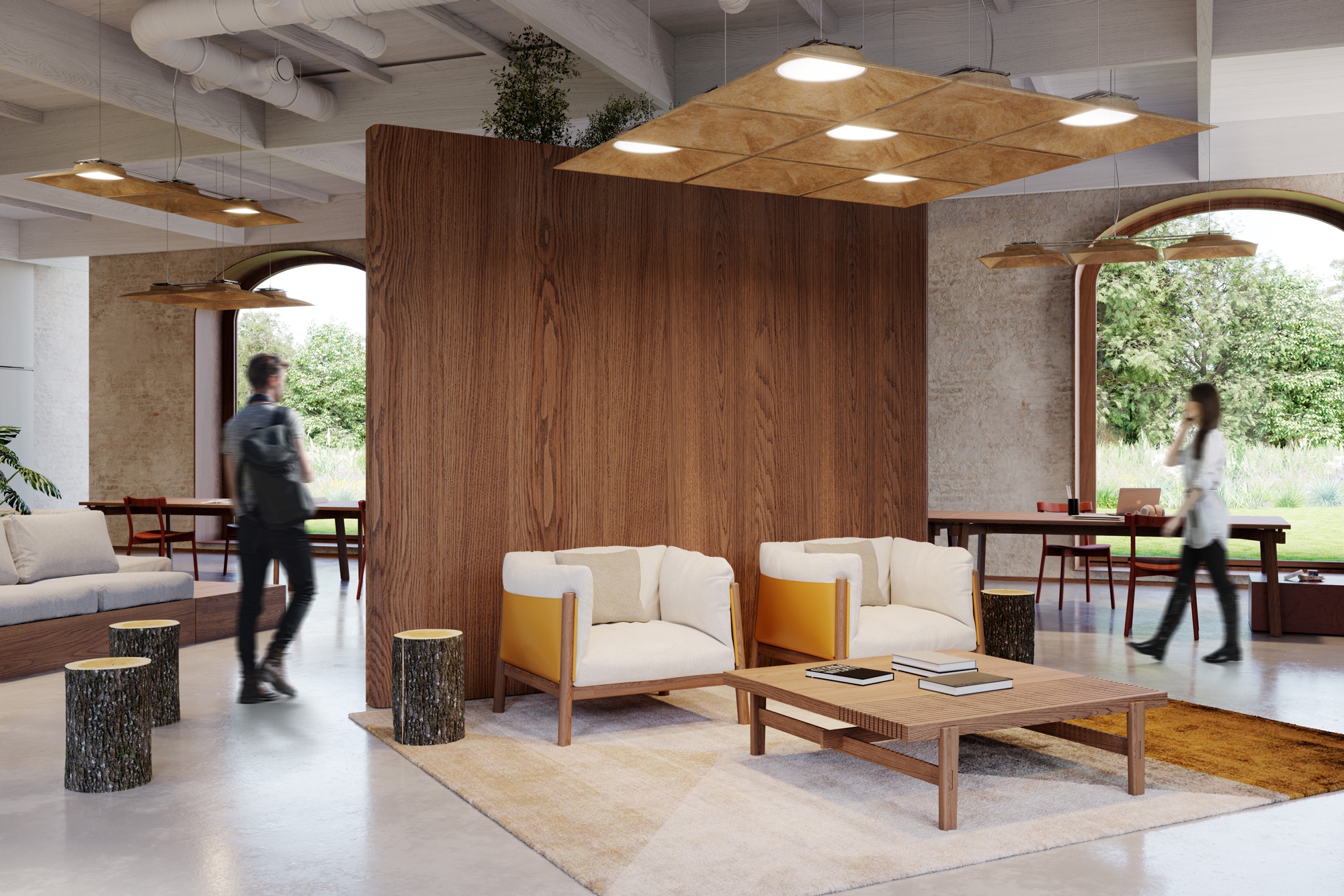

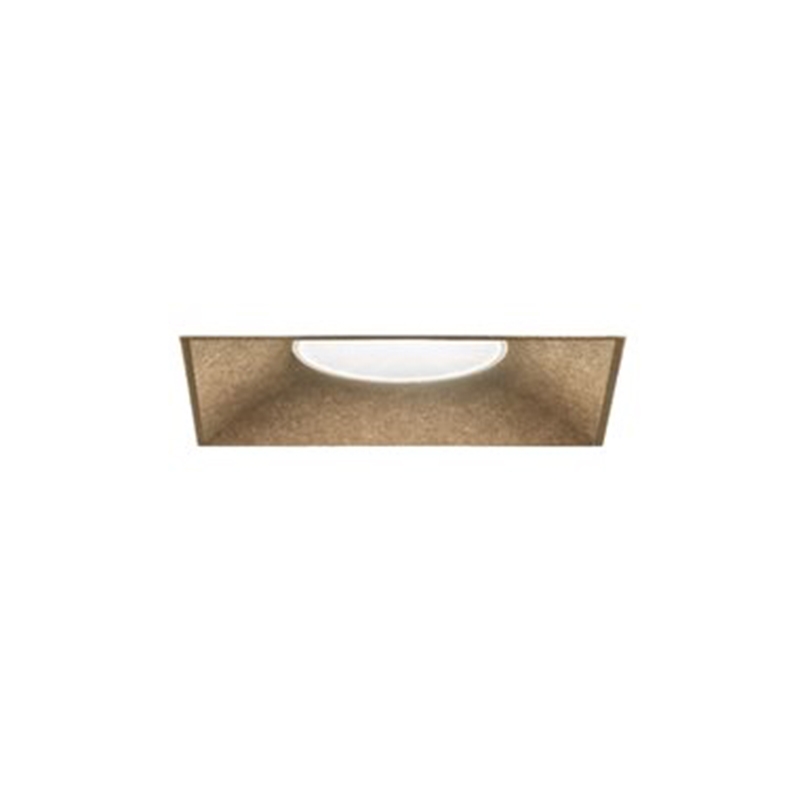

Light Shed 60 Linen
Light Shed Linen is the first professional lighting product made from linen.

undefined

Light Shed 120
Light Shed 120 creates niches of sky, microcosms, virtual spaces in physical space, and islands of intimacy where light will enfold users, with distinct atmospheres. The rich distribution of the light emitted by Light Shed 120 increases the perception of space by balancing luminance on different planes and helping achieve optimum horizontal and vertical lighting levels that are needed to create an environment that stimulates people by respecting circadian cycles and encouraging a positive mood, productivity, and general well-being.

undefined

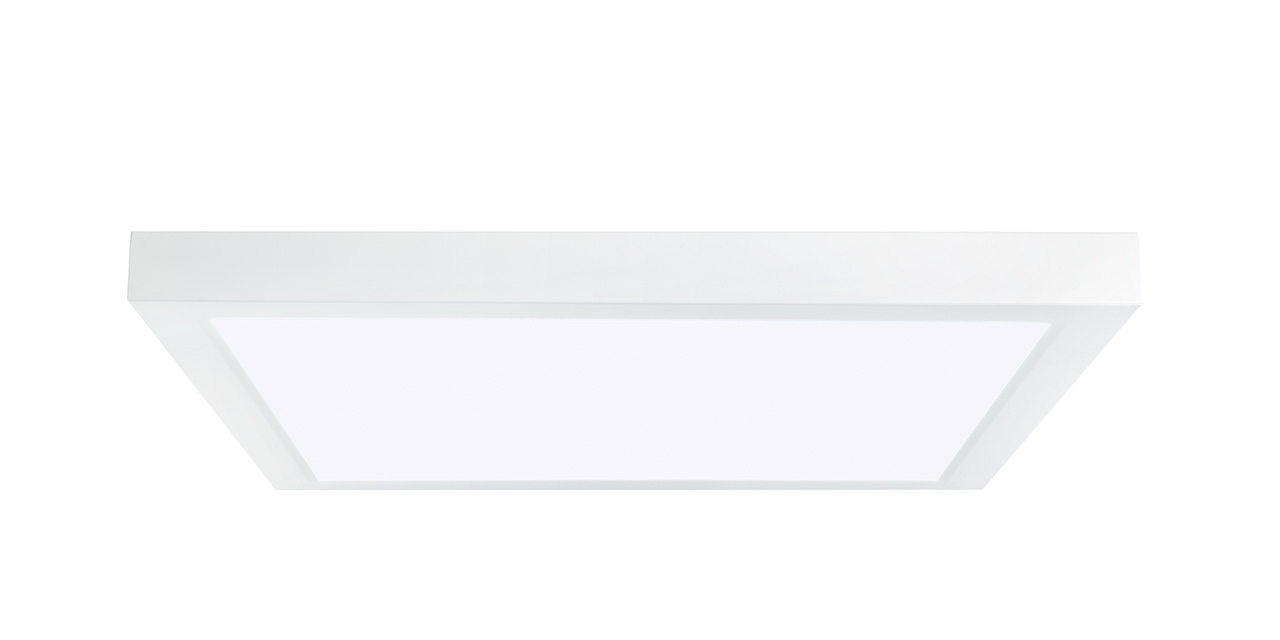

iPlan Access
Direct emission LED.
Ceiling versions with installation kit to be ordered separately as an accessory.
Painted sheet steel optical compartment, methacrylate diffuser screen for general lighting or micro-prismatic for controlled luminance UGR<19 3000 cd/m2.

undefined
