iGuzzini's range of pole-mounted streetlights offers LED-based systems with a die-cast aluminum optical compartment with a variety of optics options. The lights have a high visual comfort with no photobiological risks. Most models are available as a DALI version, which is compatible with remote management systems and Midnight versions. Poles terminals generally have a diameter of 60 or 76 mm with stainless steel external screws for durability. The streetlights come equipped with a Nema 7-PIN Dali Fitting complete with a protective cap and can be equipped on request with a Zhaga 4-Pin fitting.

Traditionally used and innovatively designed, iGuzzini's urban street lighting is multifunctional. The street lights can be used to simultaneously illuminate horizontal public spaces, vertical architectural surfaces, transport links, and residential areas. A varying selection of asymmetric optics ensures superior efficiency in any public space that requires illumination. The LED street lighting guarantees chromatic quality, glare control, and smart system management and exists to ensure and create safety for all. The luminaires also provide extreme reliability and a high level of resistance against adverse weather conditions and potential vandalism when lighting streets.

Features and Benefits

  • Absence of upward dispersion of luminous flux when using the black-colored pole head
  • DALI version compatible with cable telemanagement systems via NFC technology
  • Overvoltage protection: 10kV Common Mode (CM), 6kV Differential Mode (DM)
  • Product fitted with a Midnight control that can also be operated using NFC technology
  • Pole-mounted installation using item code X754 to be purchased separately
  • Cable cover guard to be purchased separately (item code X756)
  • Adjustable optical assembly
  • Luminaire ready for pass-through wiring

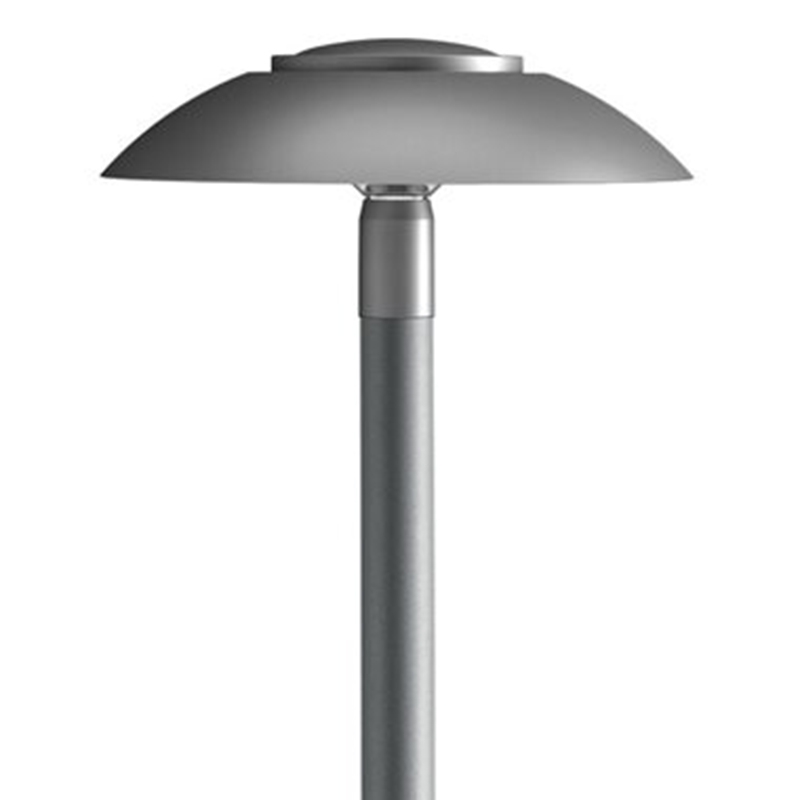

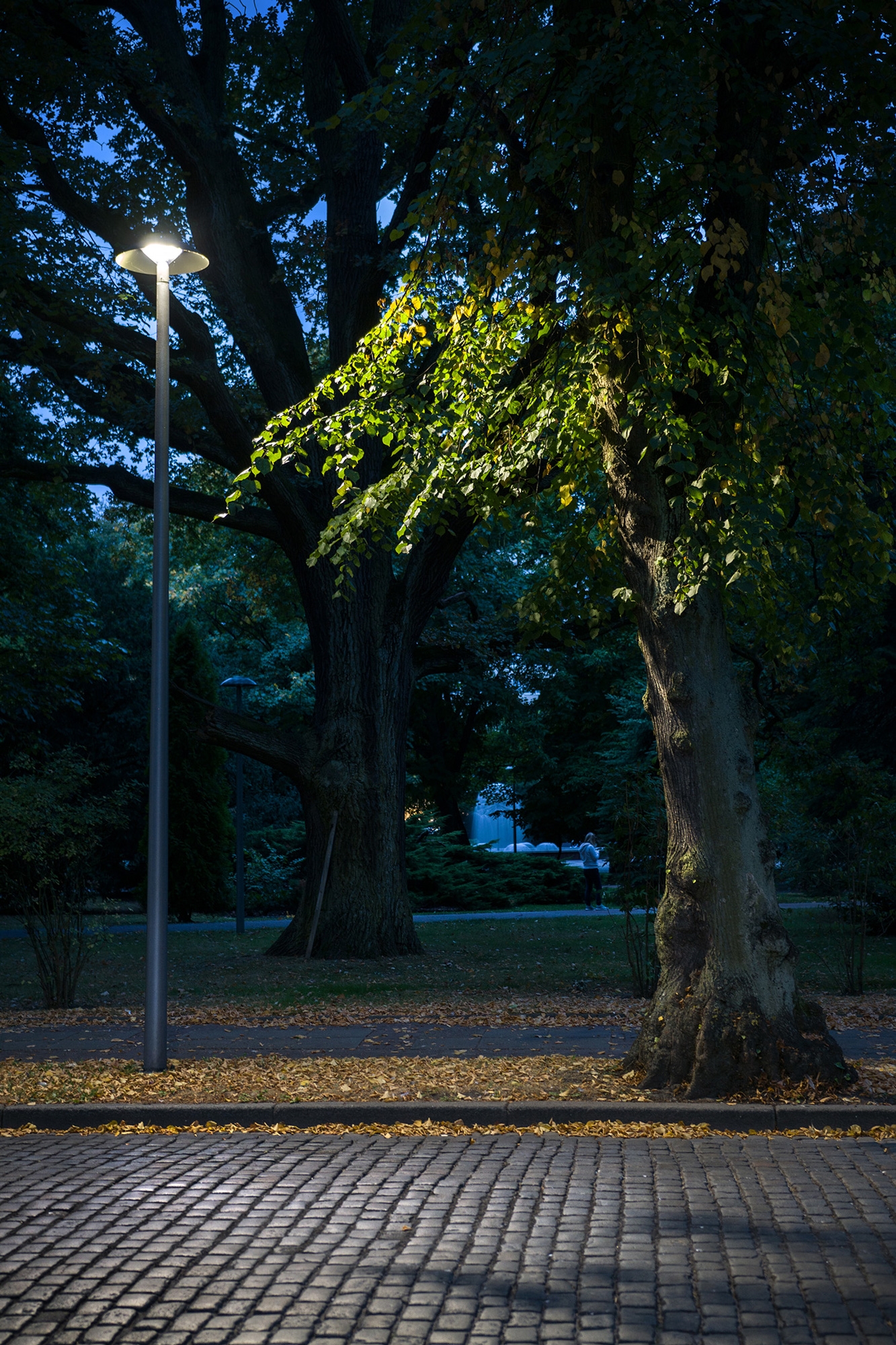

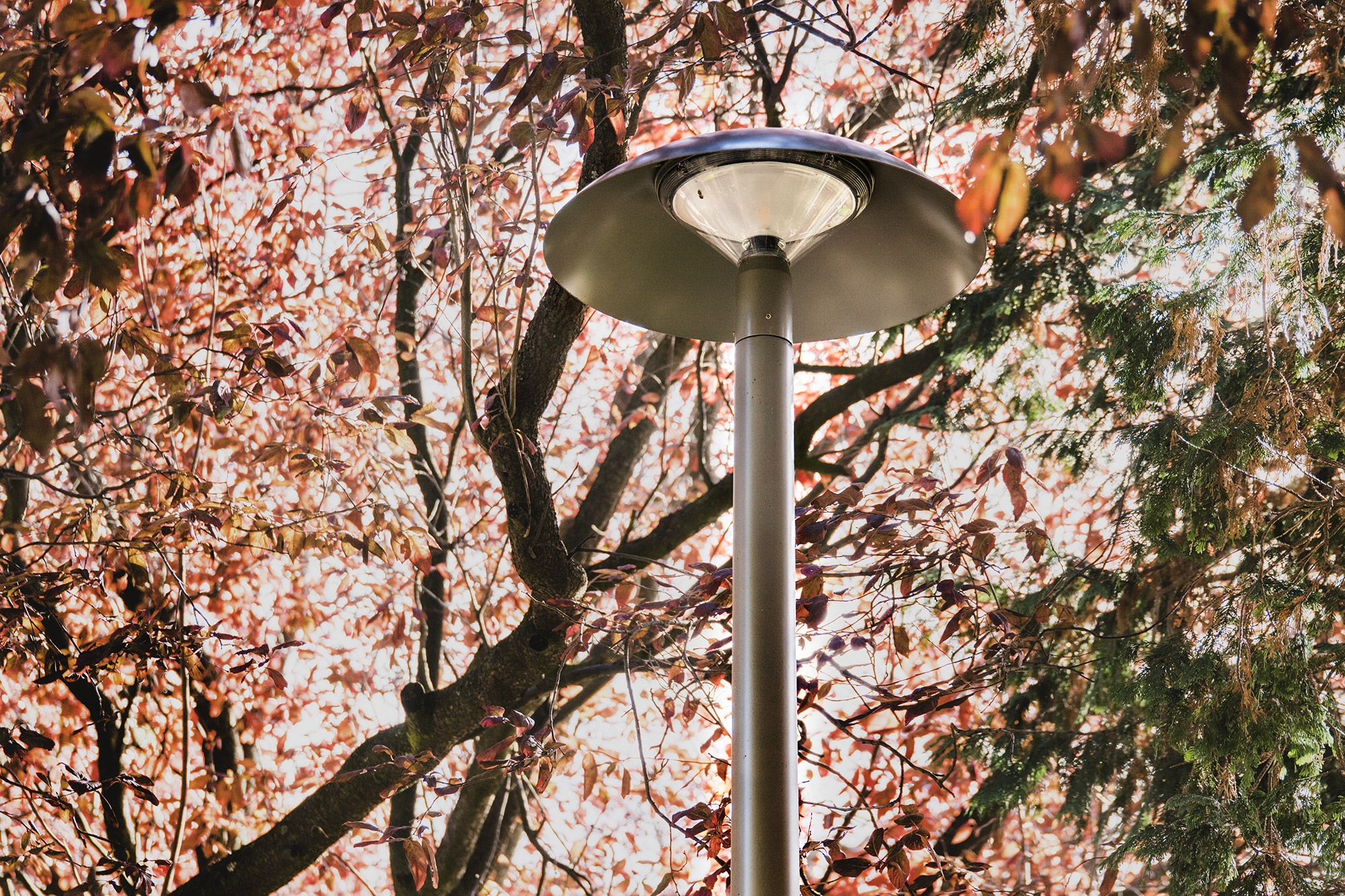

Twilight Odense

  • Pole and applique street lighting system for use with LED light sources.
  • High visual comfort.
  • No photo-biological risks.
  • This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light, and UV radiation) in accordance with EN 62471:2008.

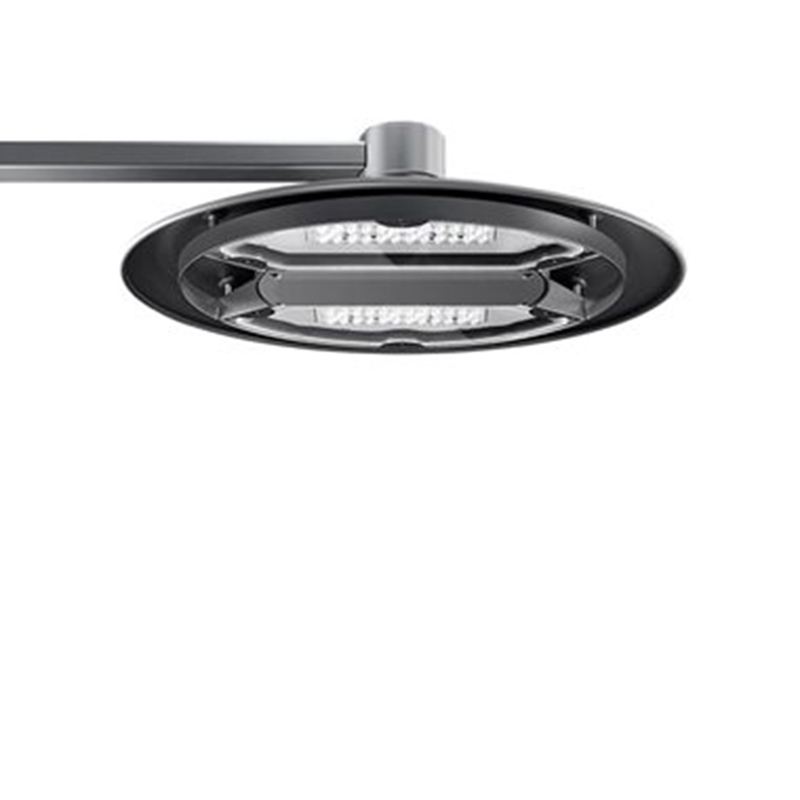

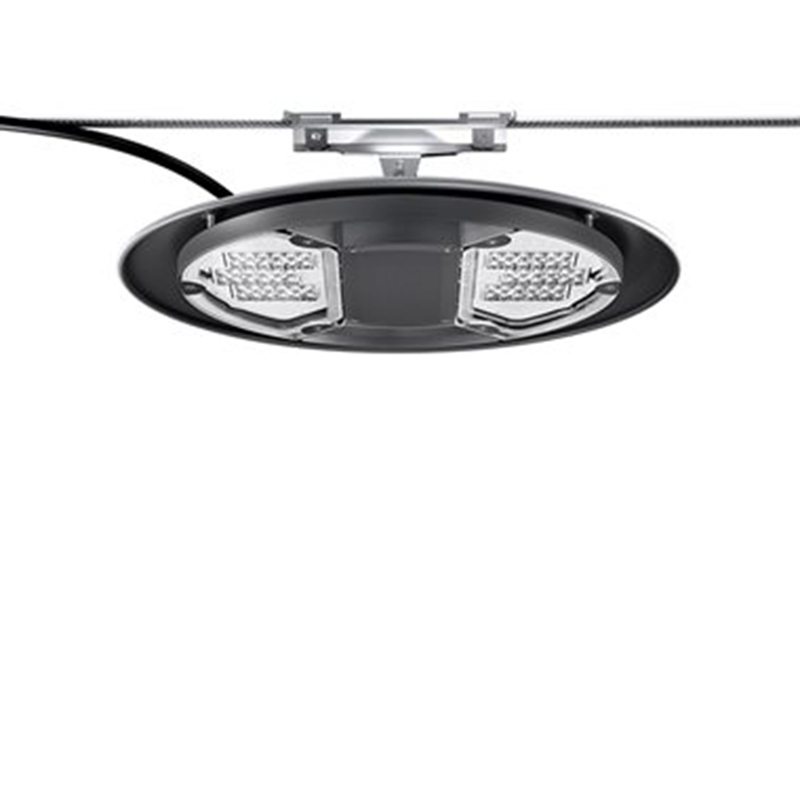

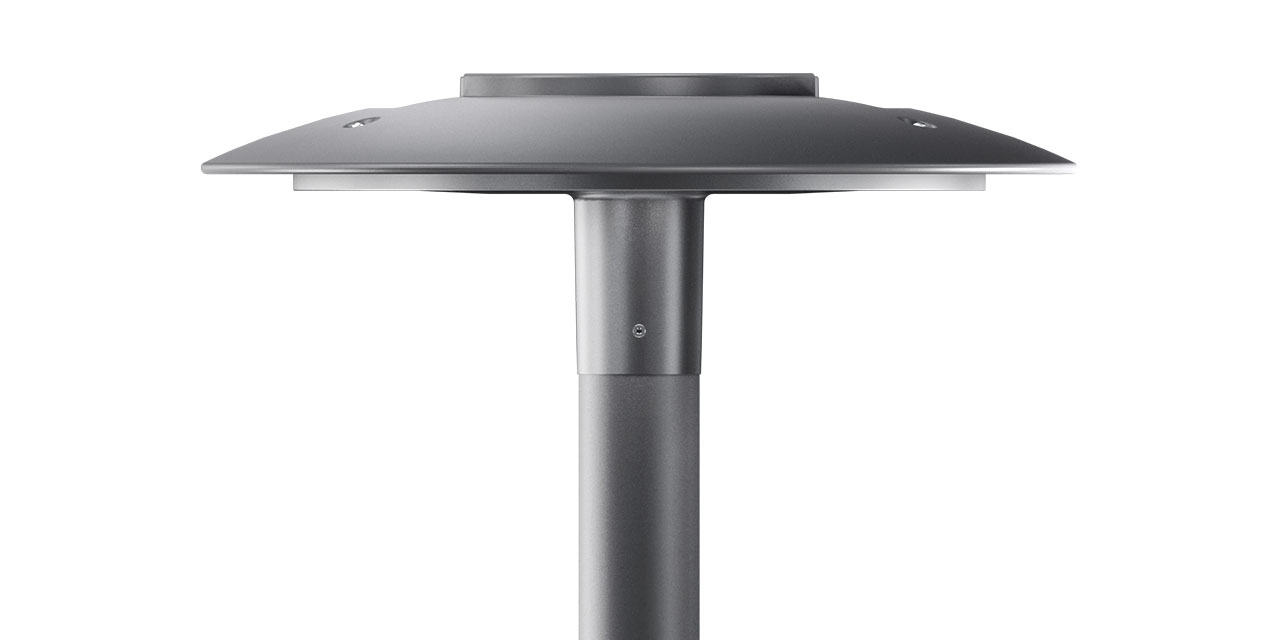

Twilight Kyoto
Kyoto can be installed on top of poles, as appliques and taut. It has integrated new road technologies to offer up to 20 light distributions for urban contexts such as parks, squares, pedestrian and residential areas, pedestrian crossings, and roads with intense, urban and suburban vehicle traffic on dry and wet asphalt.

Twilight Kyoto, pole-top Twilight Kyoto, wall-mounted Twilight Kyoto, span-wire

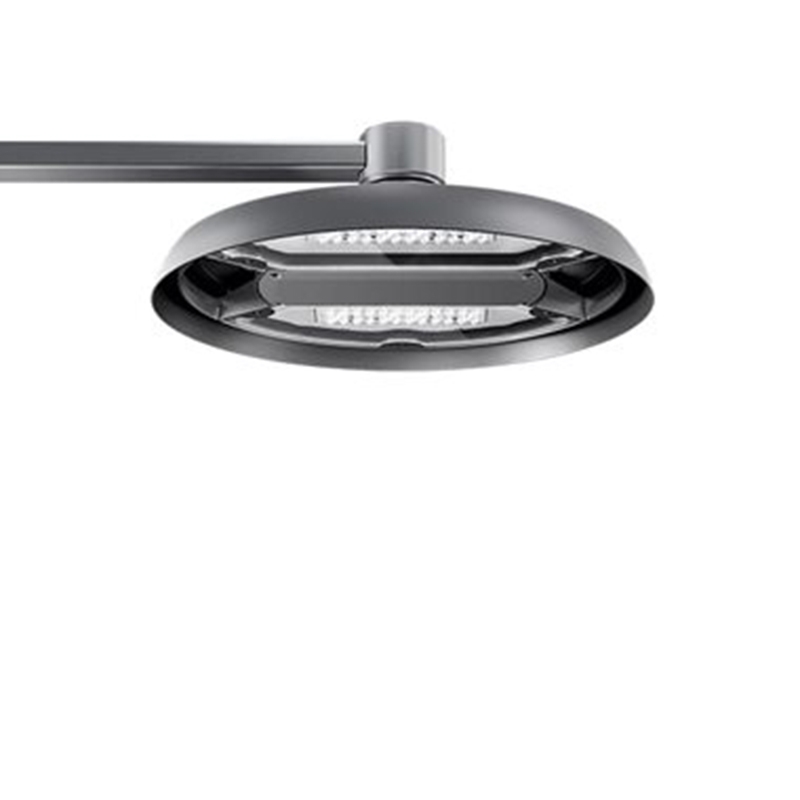

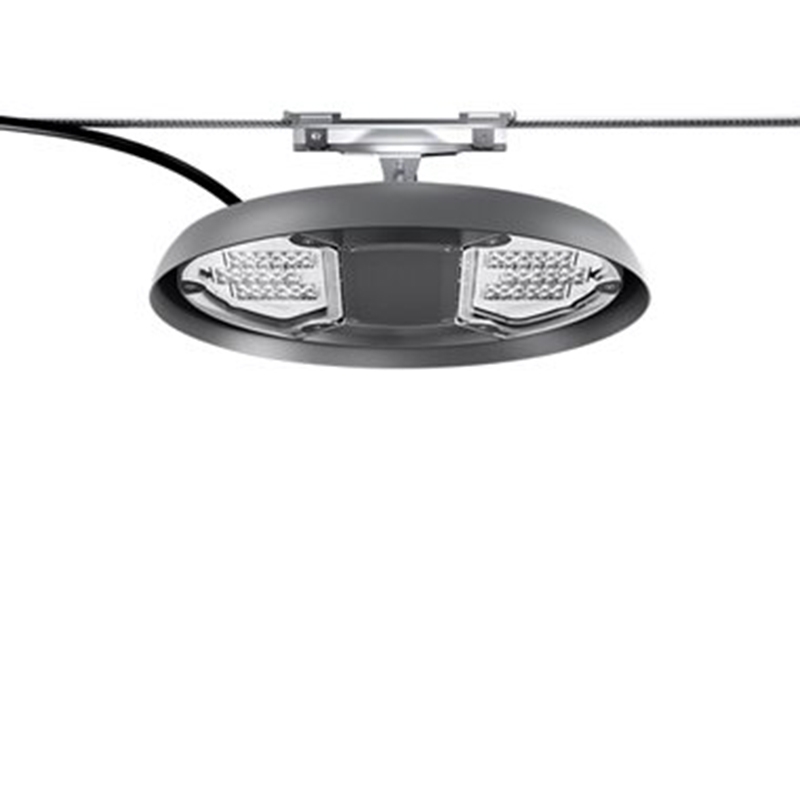

Cortina
This urban luminaire has a soft and compact shape which enhances visual comfort. The materials used are aluminum and PMMA, with 5 colors for aluminum and 4 for PMMA. Cortina can be installed on top of poles, as appliques and taut.

Twilight Cortina, pole-top Twilight Cortina, wall-mounted Twilight Cortina, span-wire

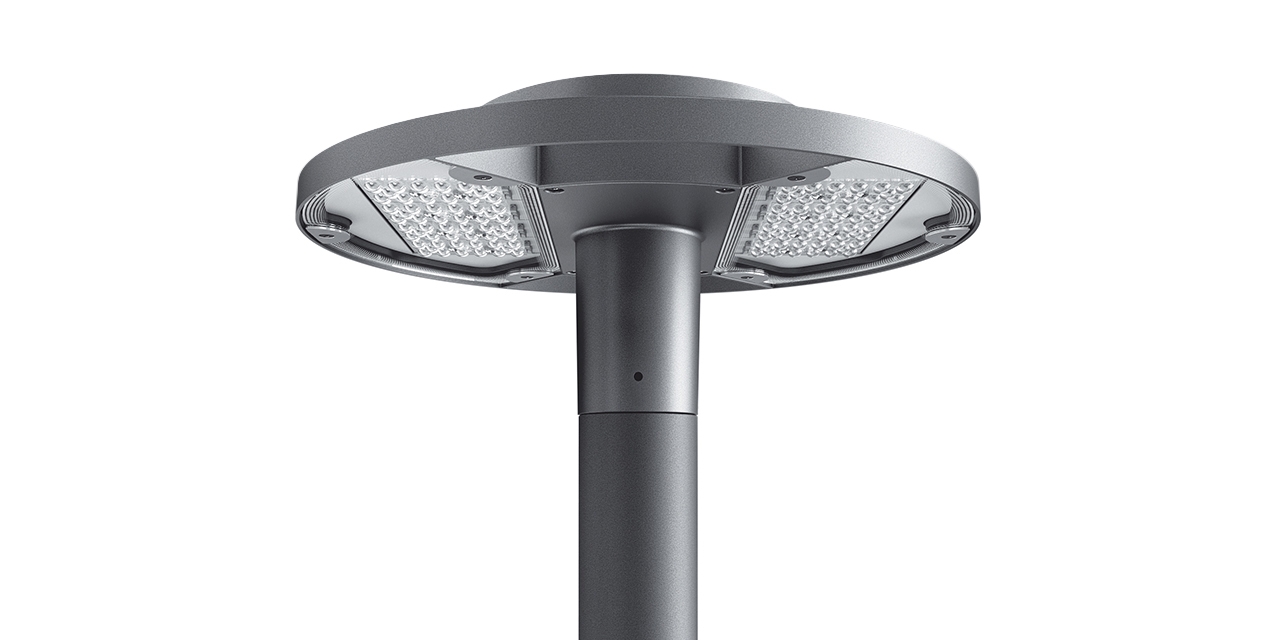

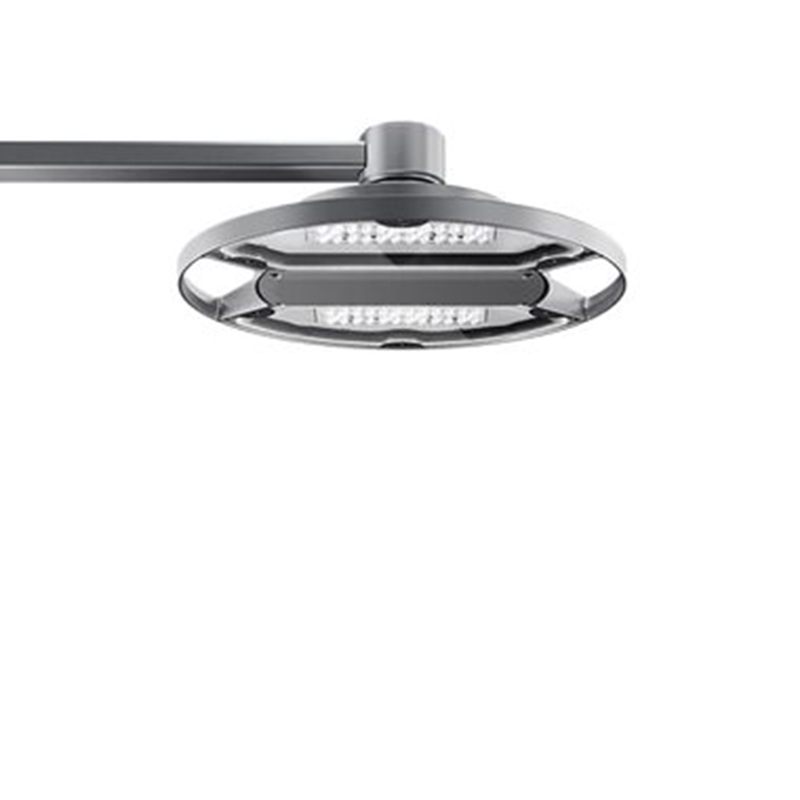

Copenhagen
Optical innovation thanks to Opti Smart Lenses technology achieves multi-functional performance, with up to six optics available for lighting urban settings such as parks, squares, pedestrian and residential areas, as well as urban and suburban roads even with heavy vehicle traffic. It is ideal for lighting parking areas without the risk of glare.

Twilight Copenhagen, pole-top Twilight Copenhagen, wall mounted

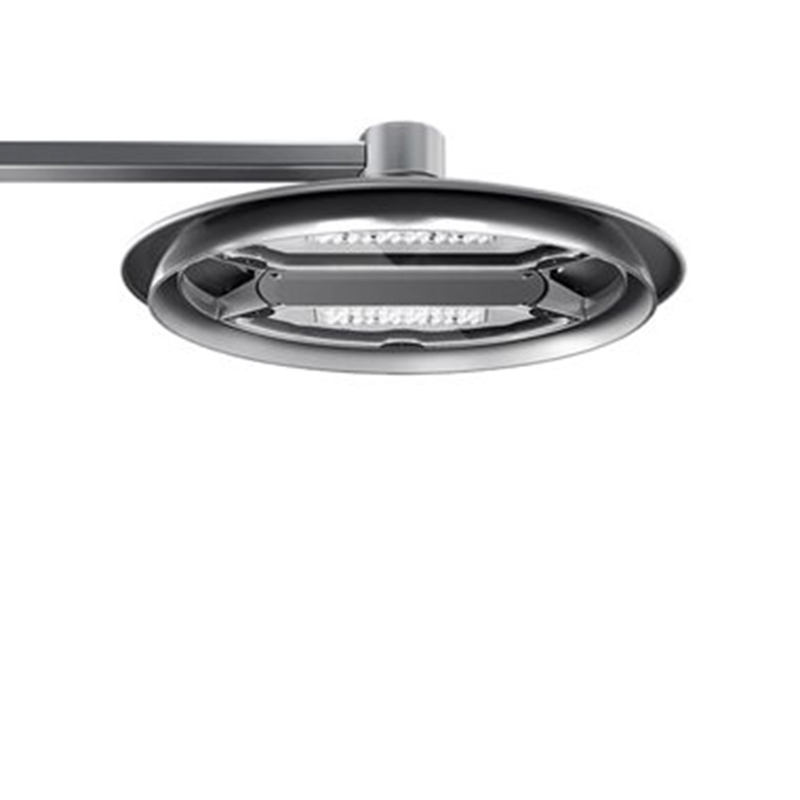

Calgary
Calgary can be installed on top of poles, as appliques and taut.

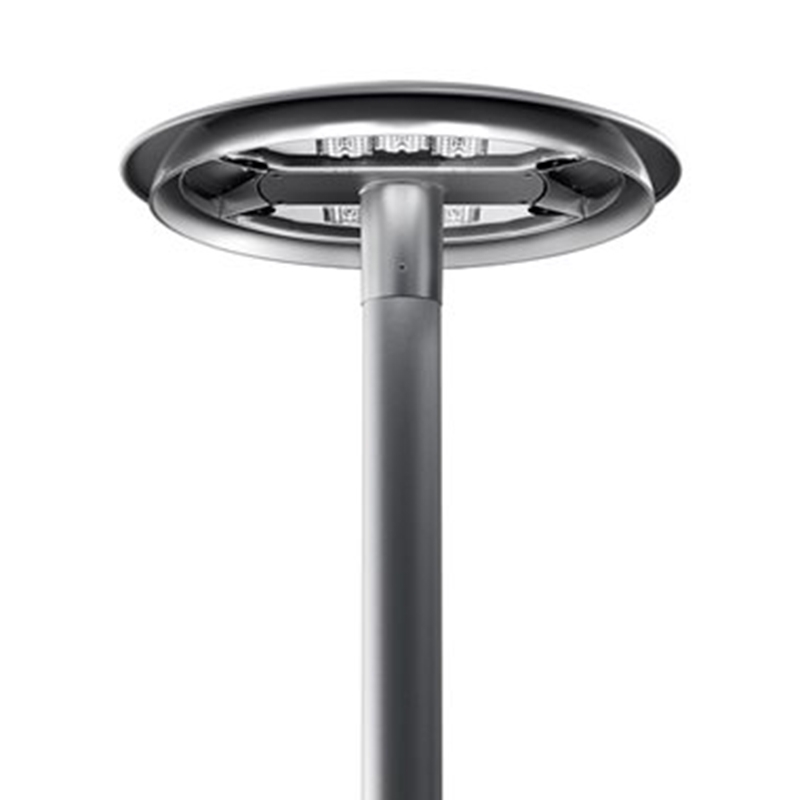

Twilight Calgary

pole-top

1810lm - 15.9W / 14760lm - 100.8W


wall mounted

Twilight Calgary

wall mounted

1900lm - 16W / 5730lm - 40.6W

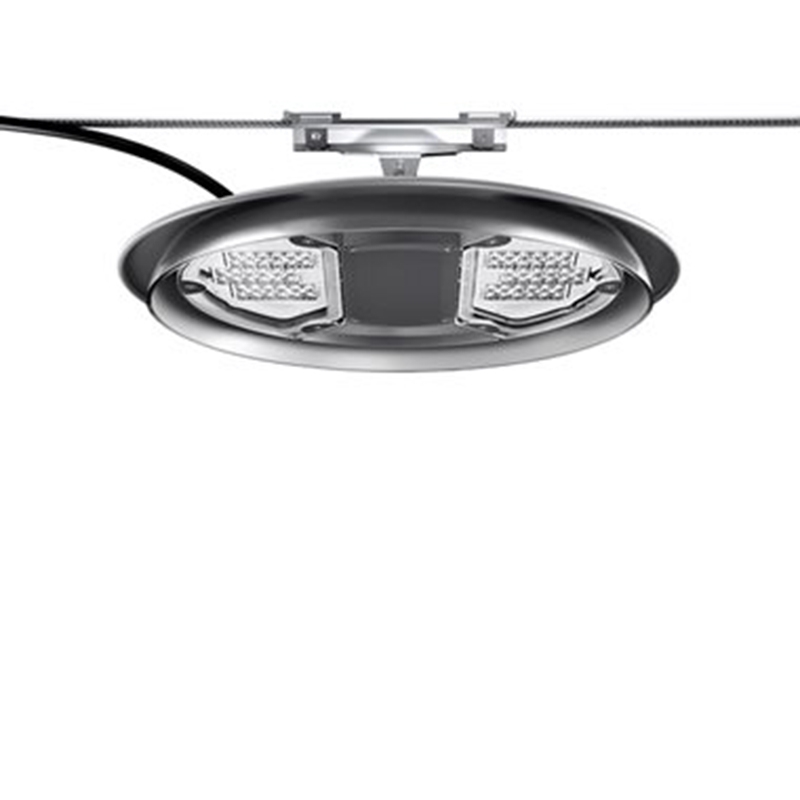

span-wire

Twilight Calgary

span-wire

2020lm - 15.1W / 11010lm - 69.1W

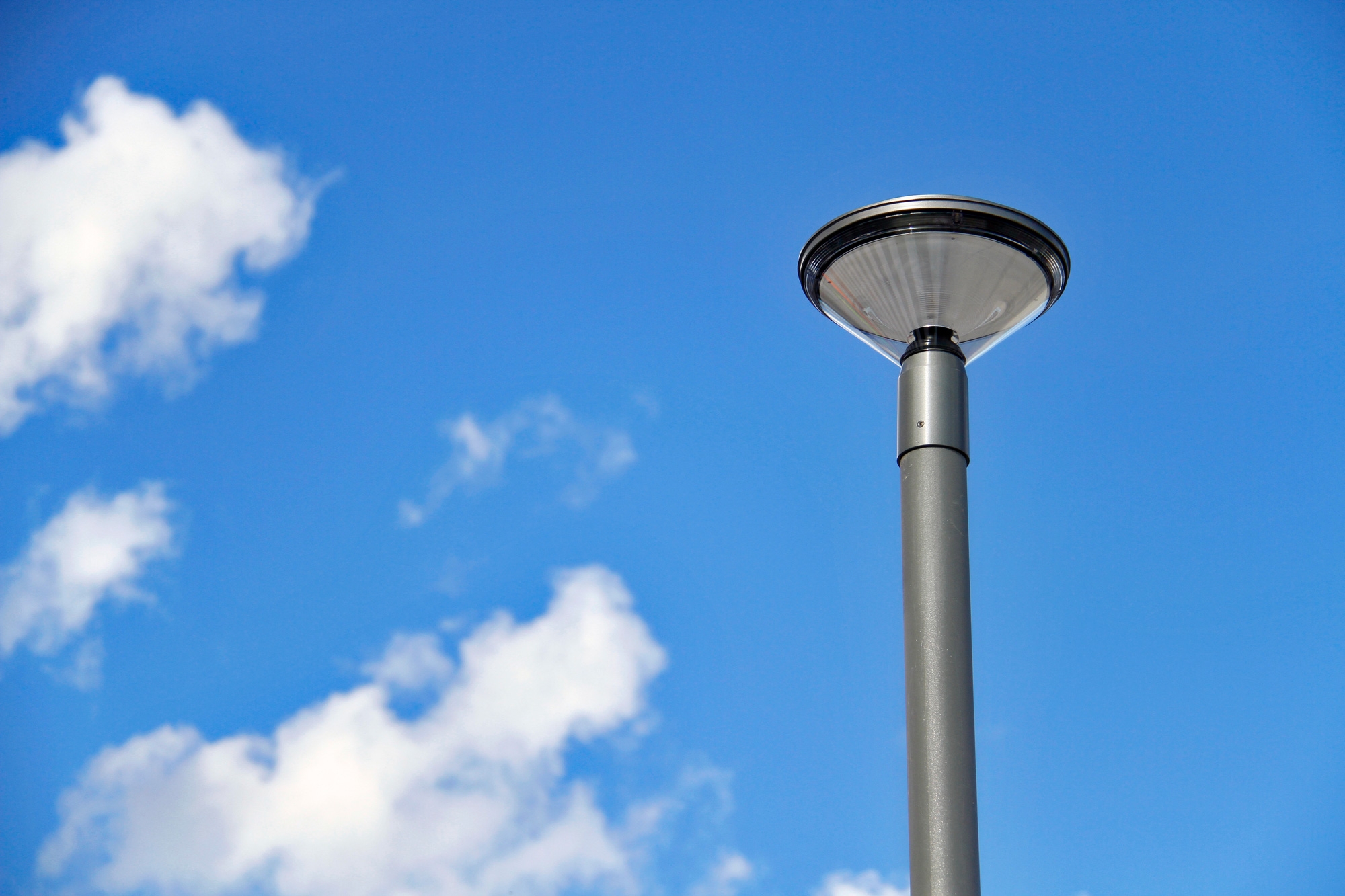

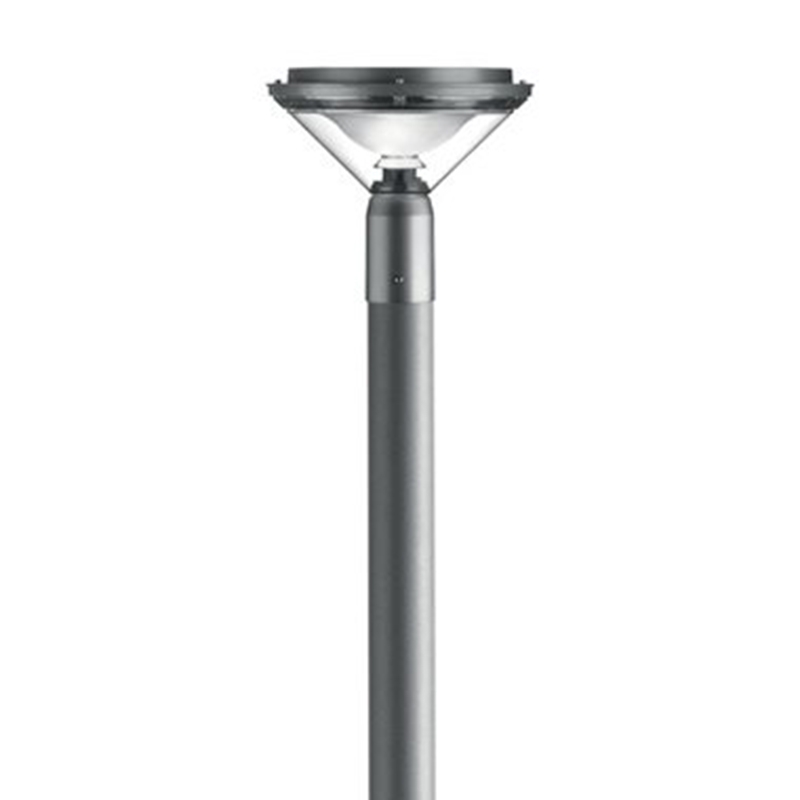

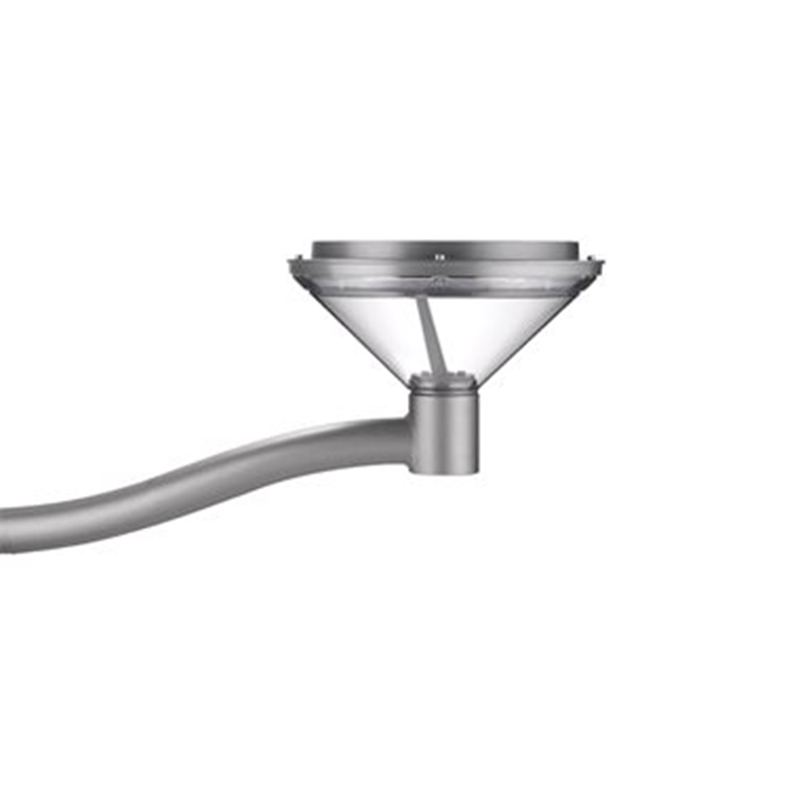

Joburg
Pole and applique street lighting system for use with LED light sources.

Versions with street optics and the Optismart Lenses system, versions with symmetrical/elliptical optics comprising upper reflector in super-pure anodised aluminium, methacrylate lens and lower reflector in metallic PMMA.

No photo-biological risks.This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.

DALI versions compatible with remote management systems and Midnight versions.

Installation on poles with ø 60 or ø 76 mm terminal.

All external screws used are in stainless steel.

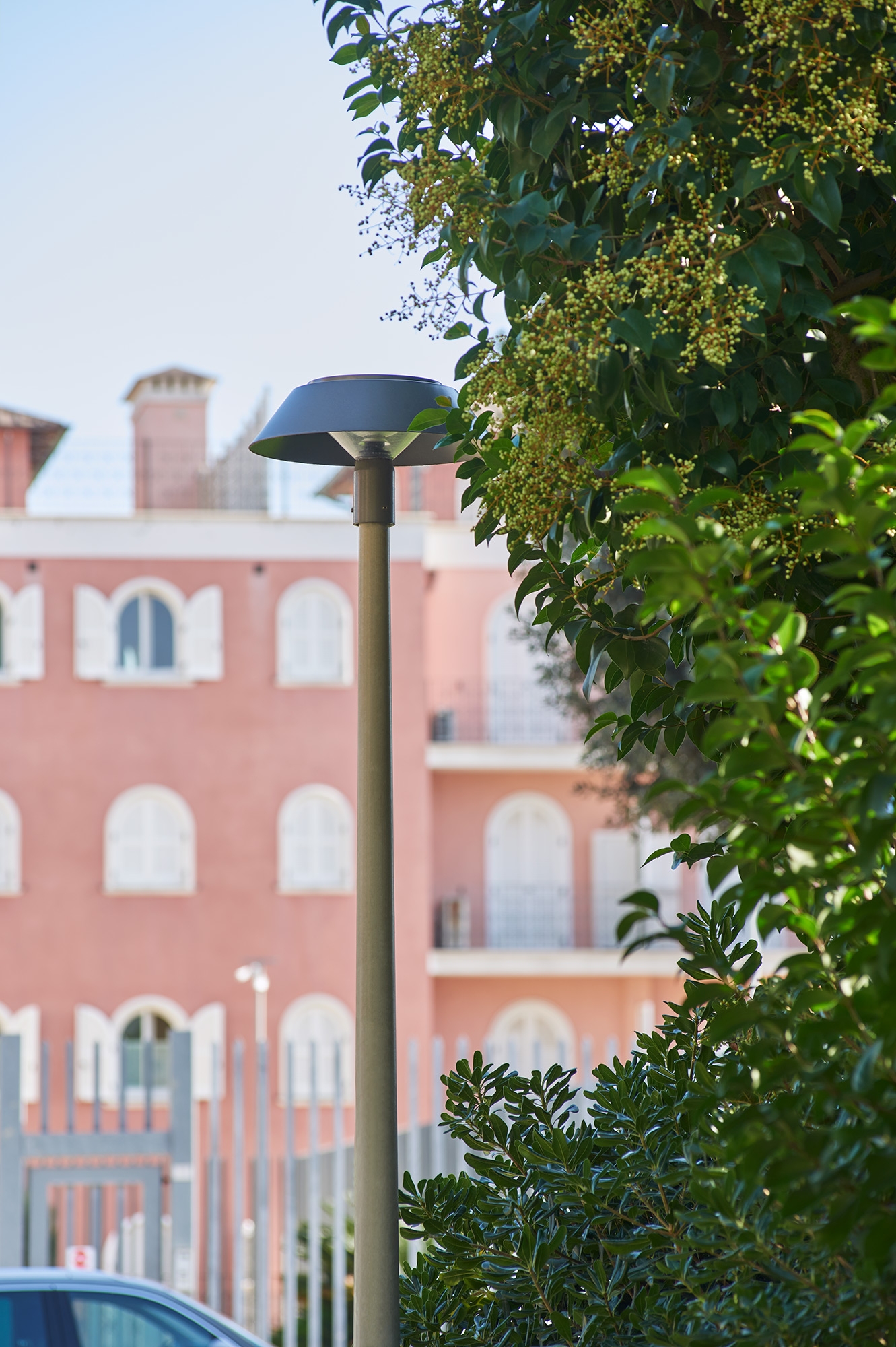

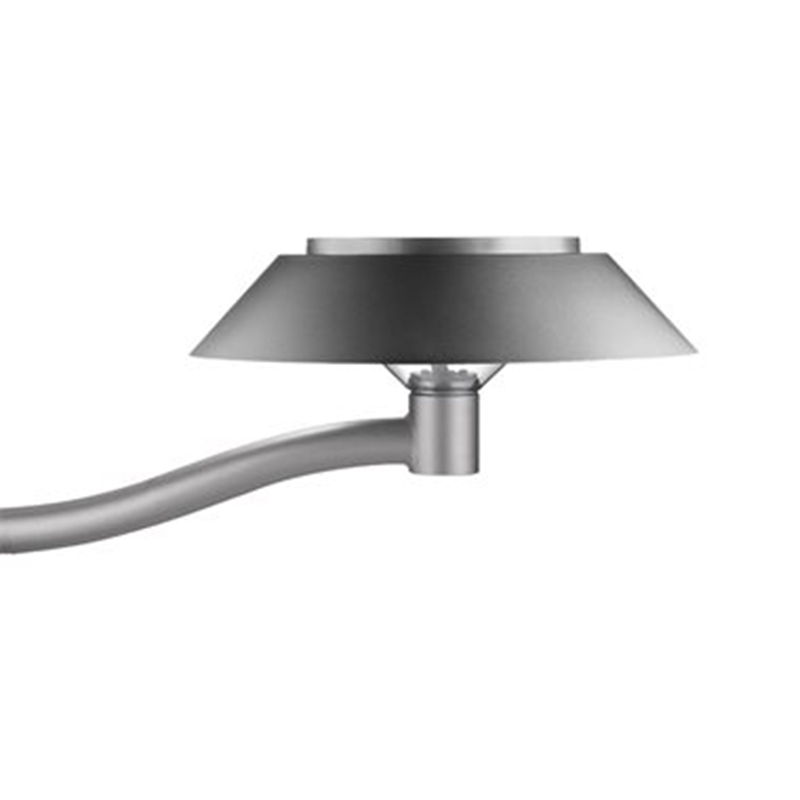

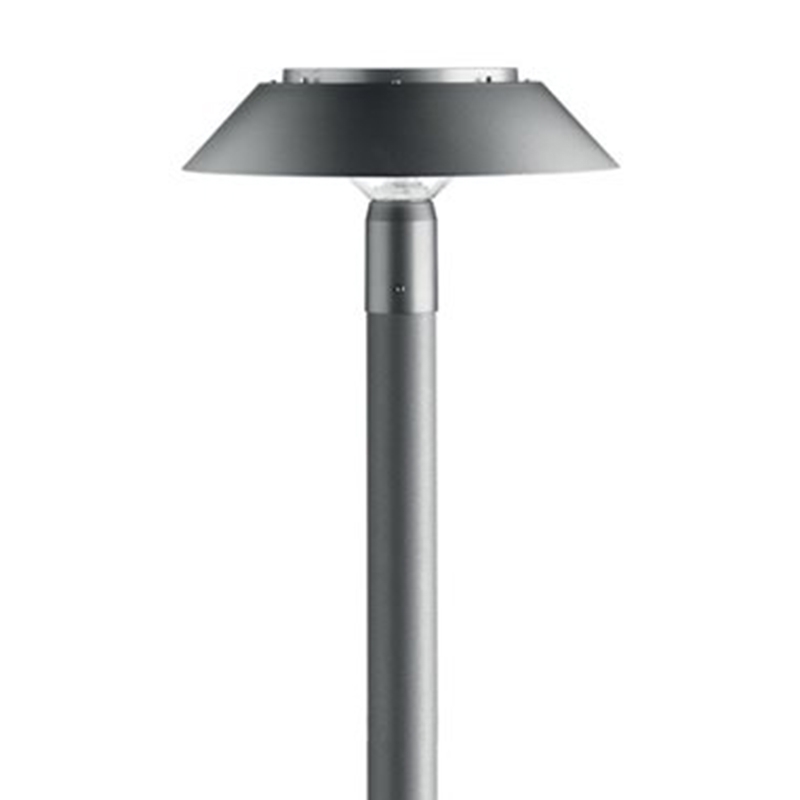

Bilbao
Pole and applique street lighting system for use with LED light sources.

Versions with street optics and the Optismart Lenses system, versions with symmetrical/elliptical optics comprising upper reflector in super-pure anodised aluminium, methacrylate lens and lower refl ector in metallic PMMA.

No upwards dispersion of the luminous flux for the Bilbao version.

High visual comfort.

No photo-biological risks.

This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.


pole-top

2020lm - 20.1W / 4590lm - 44.9W

Elliptical (E)SymmetricST0.5 - I = 3,7h / d = 0,5 - Intensity Class G3ST1.2 - I = 4h / d = 1,2


wall mounted

Twilight Bilbao

wall mounted

2380lm - 31W / 3920lm - 44.9W

ST1.2 - I = 4h / d = 1,2

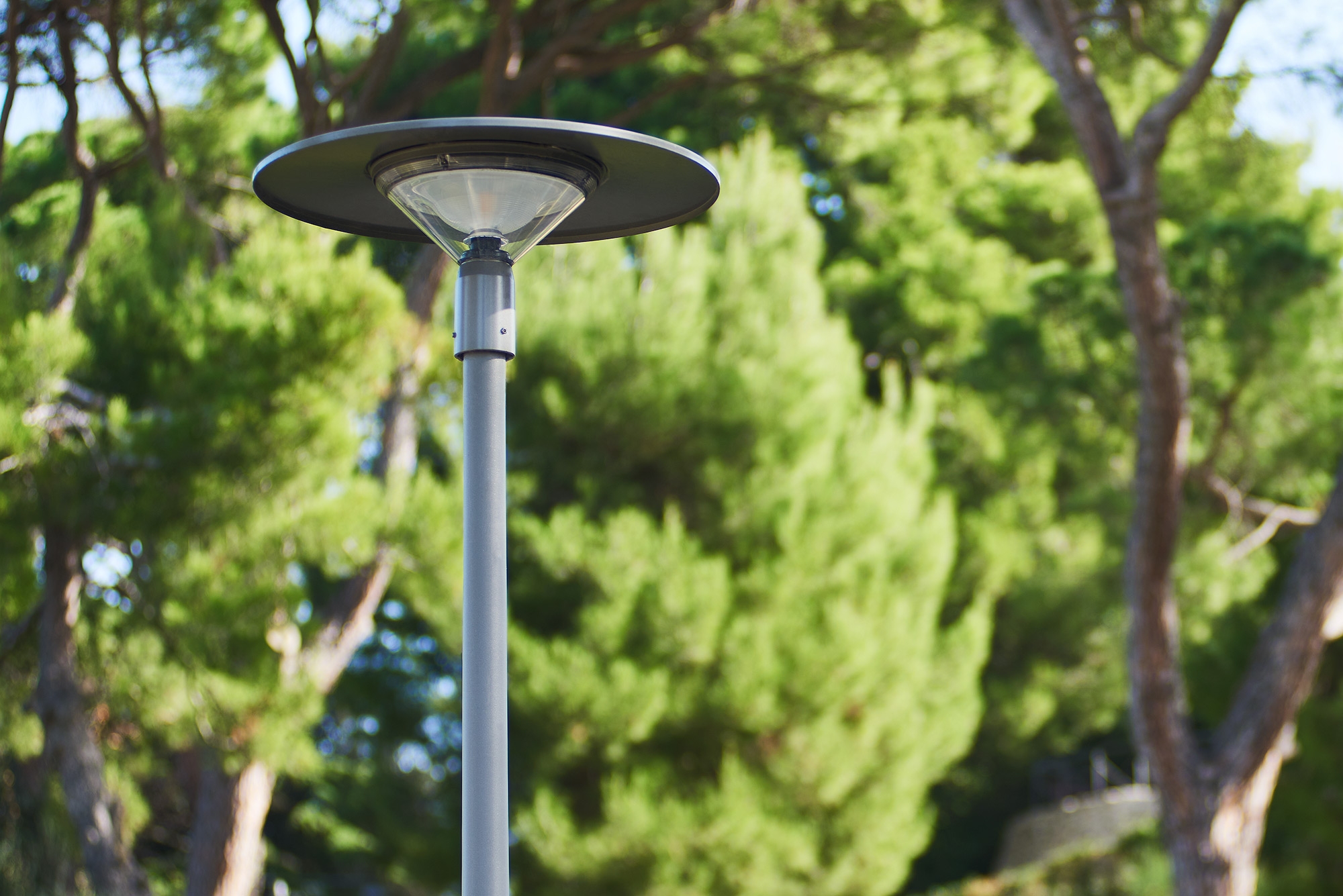

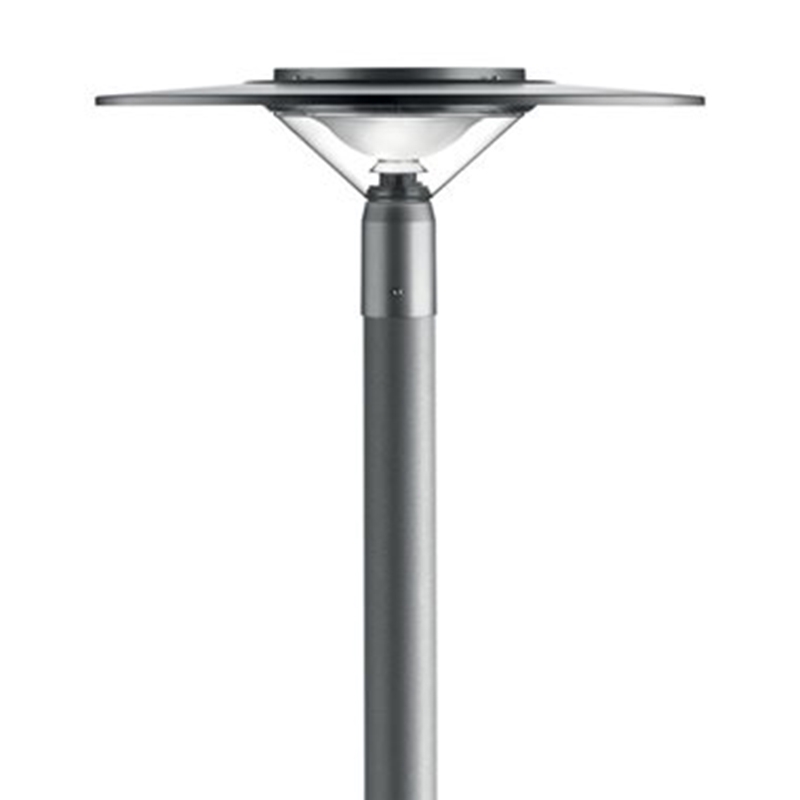

Canberra
Twilight Canberra

pole-top

2020lm - 20.1W / 4590lm - 44.9W

Elliptical (E)SymmetricST0.5 - I = 3,7h / d = 0,5 - Intensity Class G3ST1.2 - I = 4h / d = 1,2


wall mounted

Twilight Canberra

wall mounted

2380lm - 31W / 3920lm - 44.9W

ST1.2 - I = 4h / d = 1,2ST1.0C - I = 3,7h / d = 1

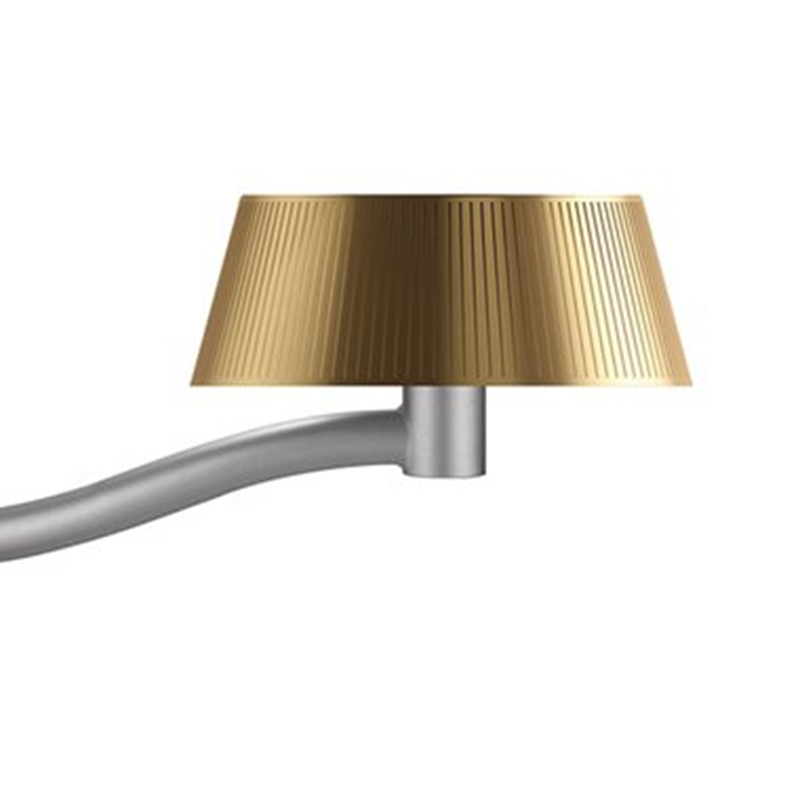

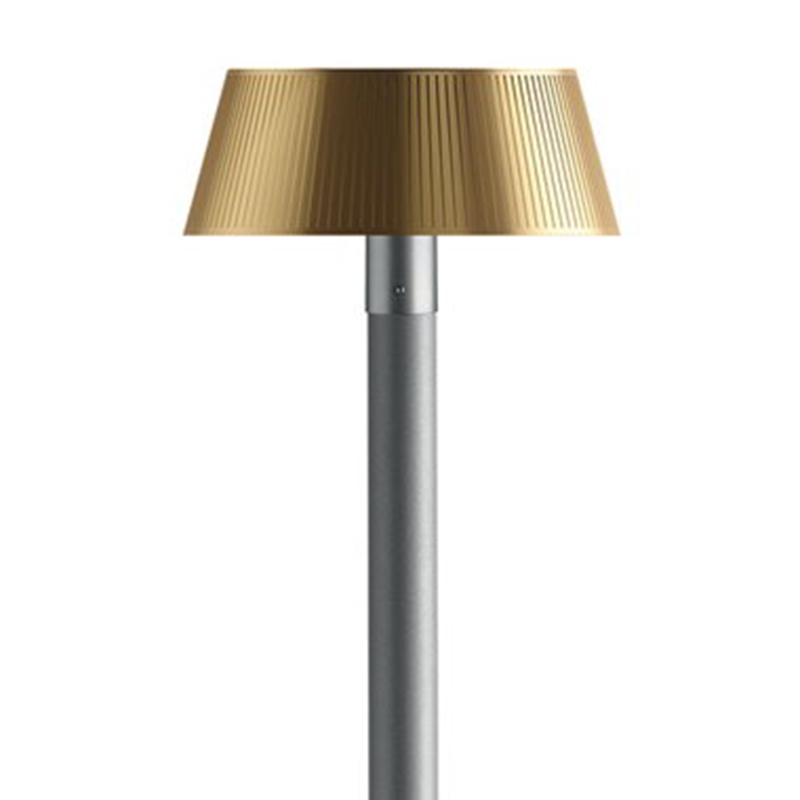

Paris
Pole and applique street lighting system for use with LED light sources.

Optical compartment in die-cast aluminium; PMMA protection diffuser, 3 mm thickness (IK10);

Versions with street optics and the Optismart Lenses system, versions with symmetrical/elliptical optics comprising upper reflector in super-pure anodised aluminium, methacrylate lens and lower refl ector in metallic PMMA.

High visual comfort.

No photo-biological risks.

This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.


Twilight Paris

pole-top

2020lm - 20.1W / 4590lm - 44.9W

Elliptical (E)SymmetricST0.5 - I = 3,7h / d = 0,5 - Intensity Class G3ST1 - I = 4h / d = 1


wall mounted

Twilight Paris

wall mounted

2380lm - 31W / 3920lm - 44.9W

ST1.2 - I = 4h / d = 1,2

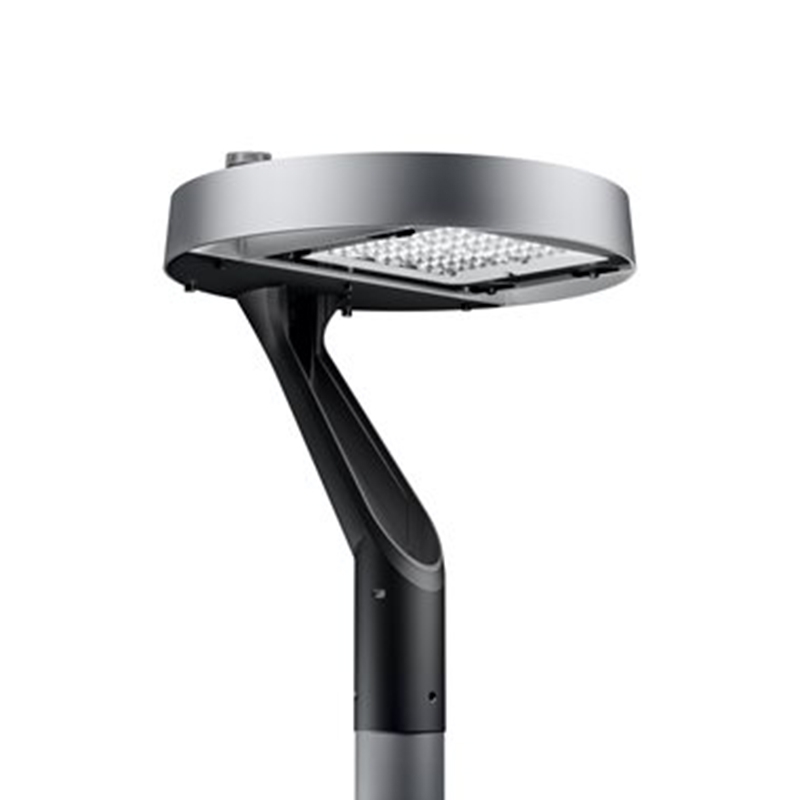

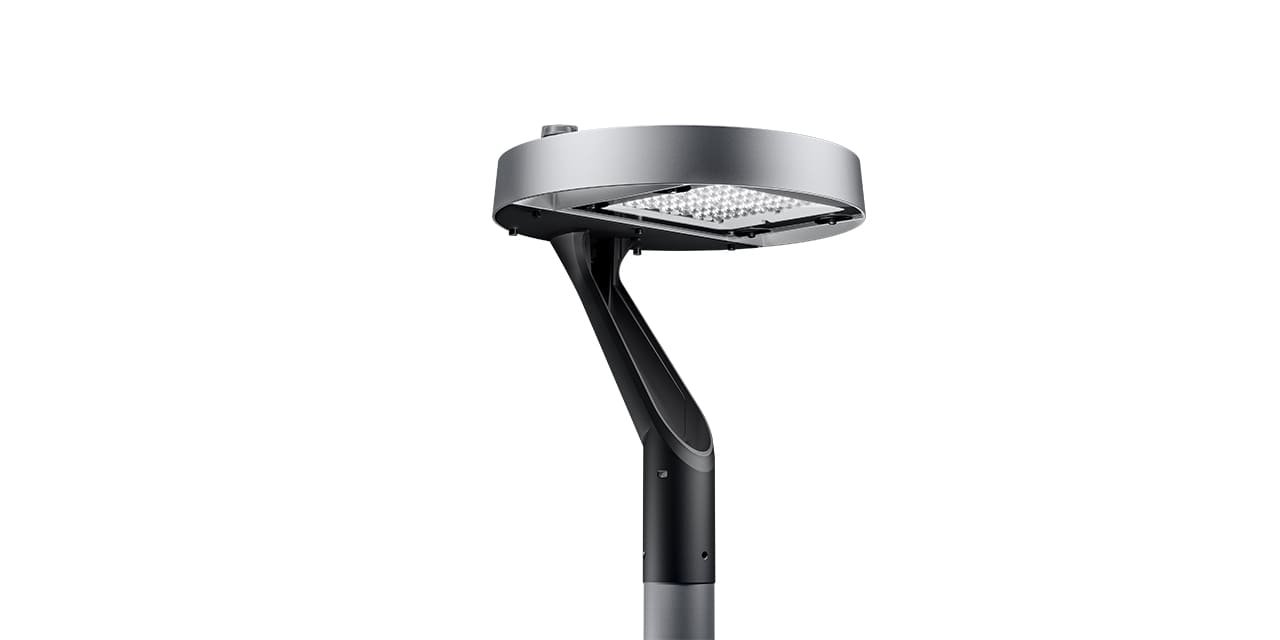

Alley
pole-top

Alley

pole-top

1907lm - 13.7W / 5573lm - 39.7W

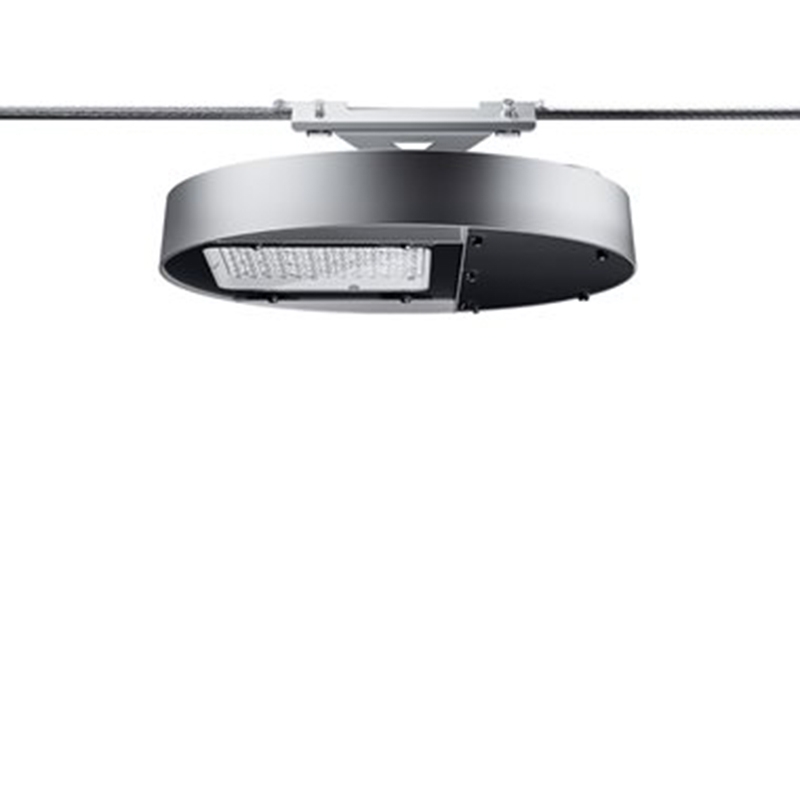

span-wire

Alley

span-wire

2111lm - 13.9W / 8103lm - 54.3W


Multiwoody

-minimal and connected pole

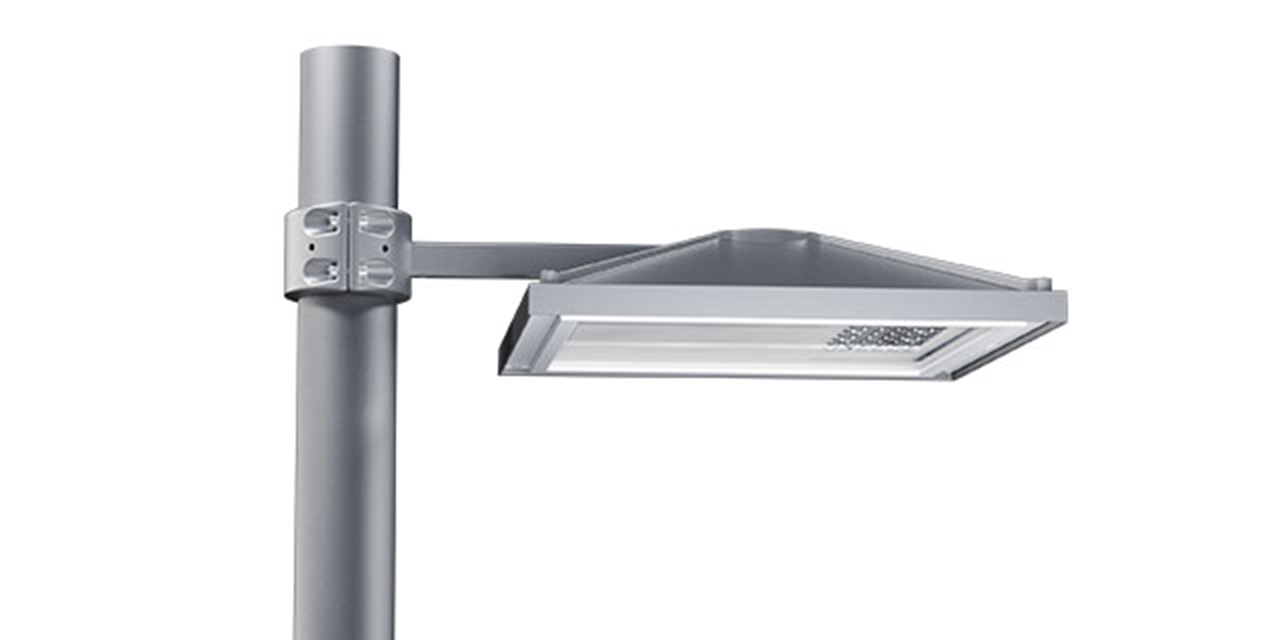

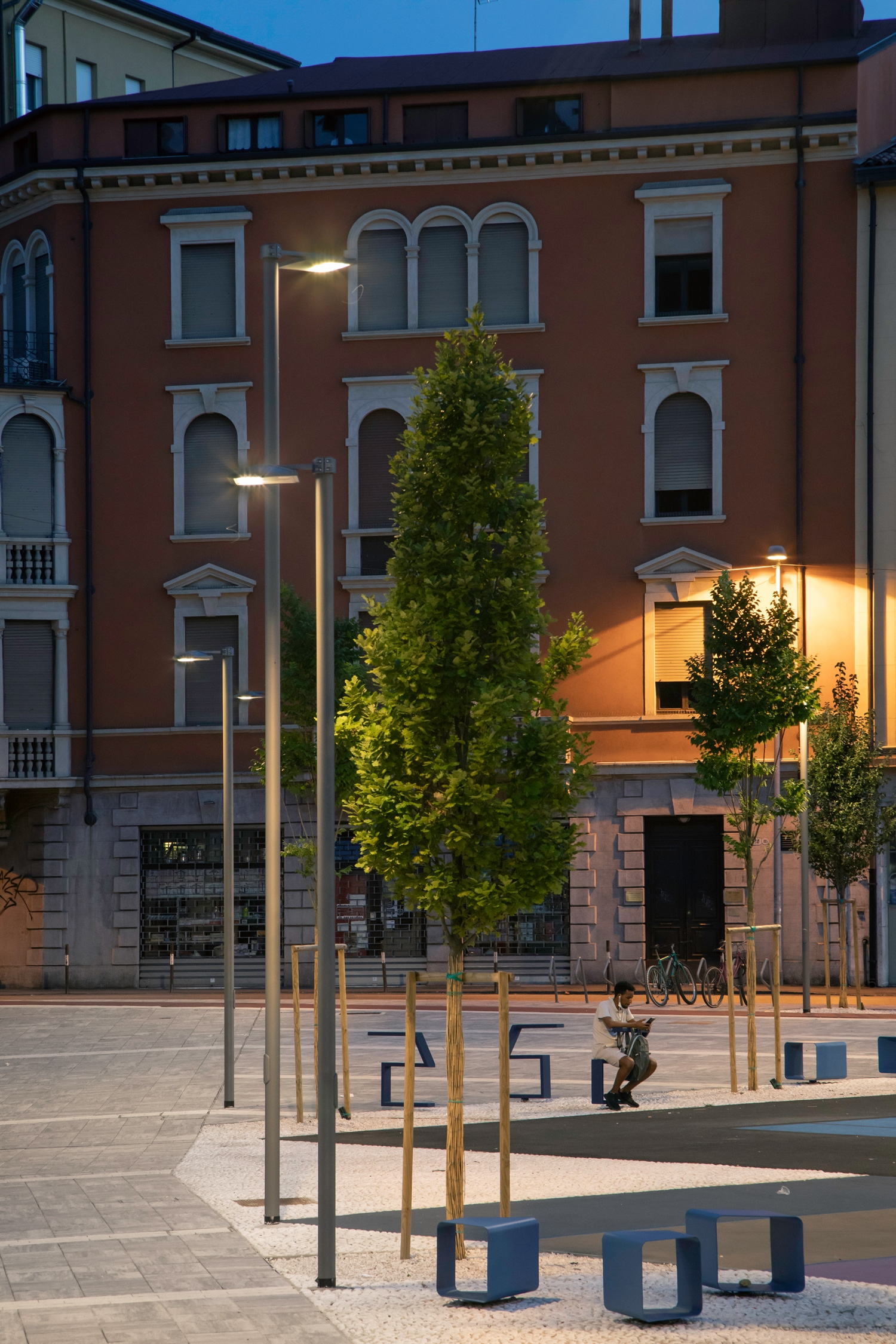

UFO
Pole or wall-mounted light system, designed to use LED lamps.

Optical assembly made of die-cast aluminium and a 5 mm thick sodium-calcium closing glass fixed with a silicone seal to the frame that closes the LED and is secured with screws.

No upward light flow dispersion.

No photobiological risk.

This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.

Product equipped with a Midnight control that can also be operated using NFC technology.


UFO

pole mounted 423x423mm

3030lm - 24.2W / 7000lm - 50W


comfort pole mounted 423x423mm

UFO

comfort pole mounted 423x423mm

2750lm - 34W / 2910lm - 34W

Comfort Symmetric optic - h = 7 / d = 1 - Glare Index G6


comfort pole mounted 634x634mm

UFO

comfort pole mounted 634x634mm

4750lm - 54W / 5030lm - 54W

Comfort Symmetric optic - h = 7 / d = 1 - Glare Index G6

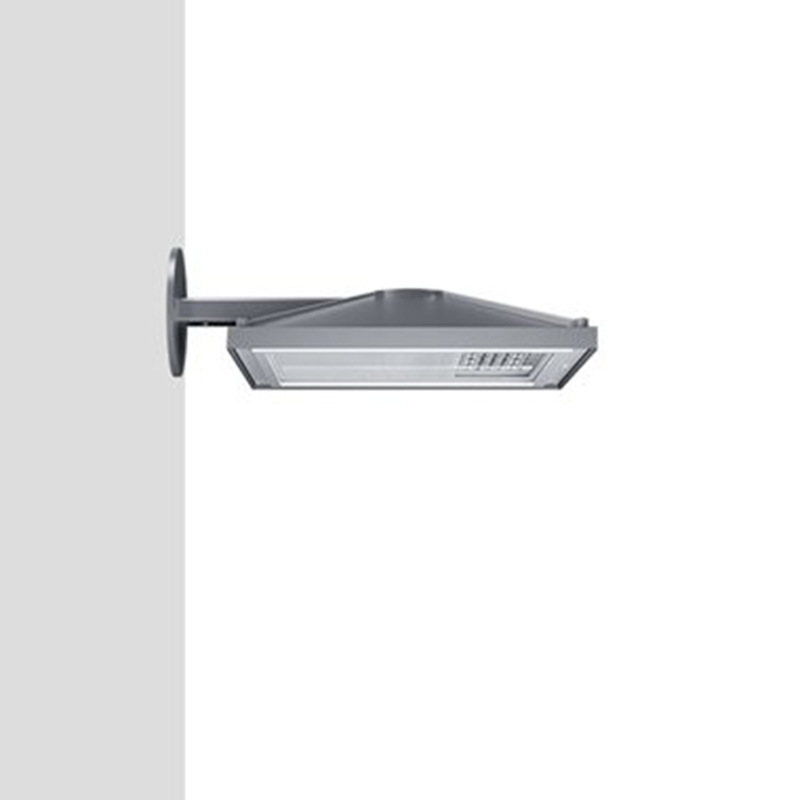

wall mounted 423x423mm

UFO

wall mounted 423x423mm

3030lm - 24.2W / 7000lm - 50W


comfort wall mounted 423x423mm

UFO

comfort wall mounted 423x423mm

2750lm - 34W / 2910lm - 34W

Comfort Symmetric optic - h = 7 / d = 1 - Glare Index G6

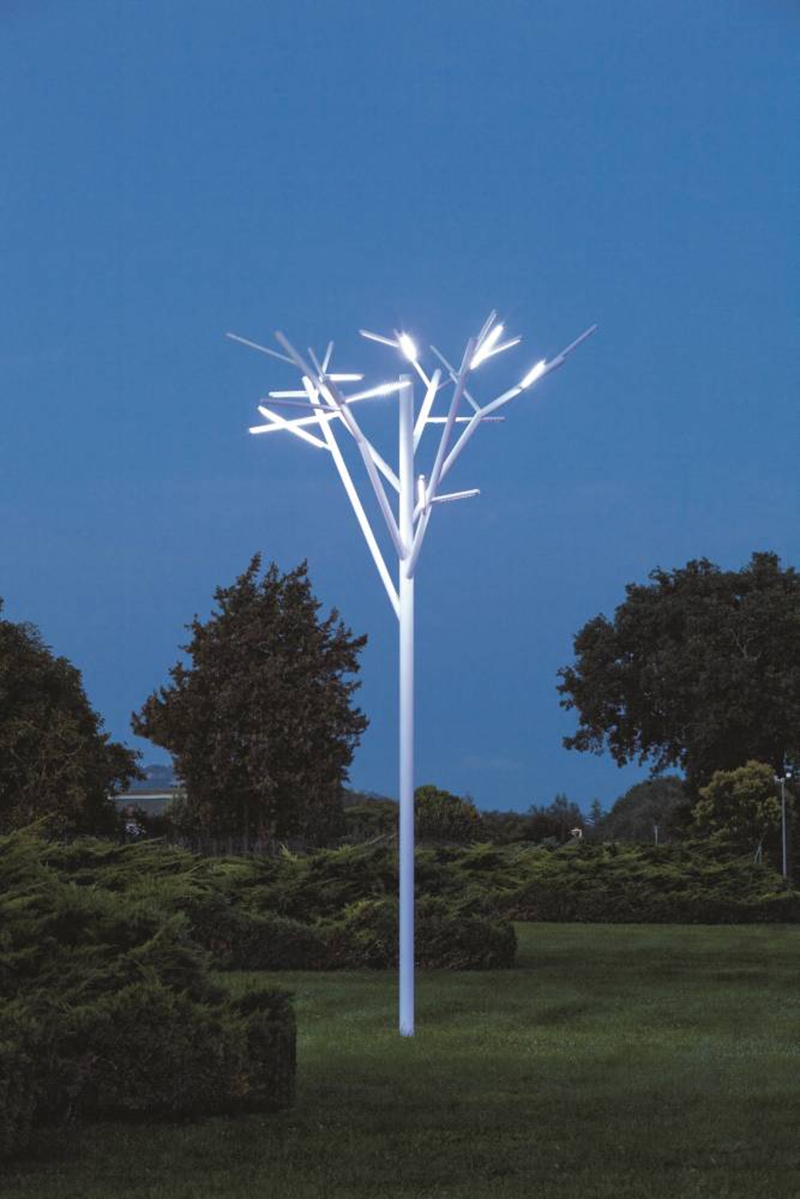

Albero
Direct LED lighting system.

Fitting has a pole and arms (branches) housing the LEDs in stainless steel tubular sections and painted white.

Two versions: buried version and plate version (260x260 mm).

Replaceable LED unit.


La Venaria
Street lighting system for use with LEDs.

Pole-top, pendant and wallmounted installation.

High visual comfort.

High performance optics and uniform light distribution.


Multi Agora

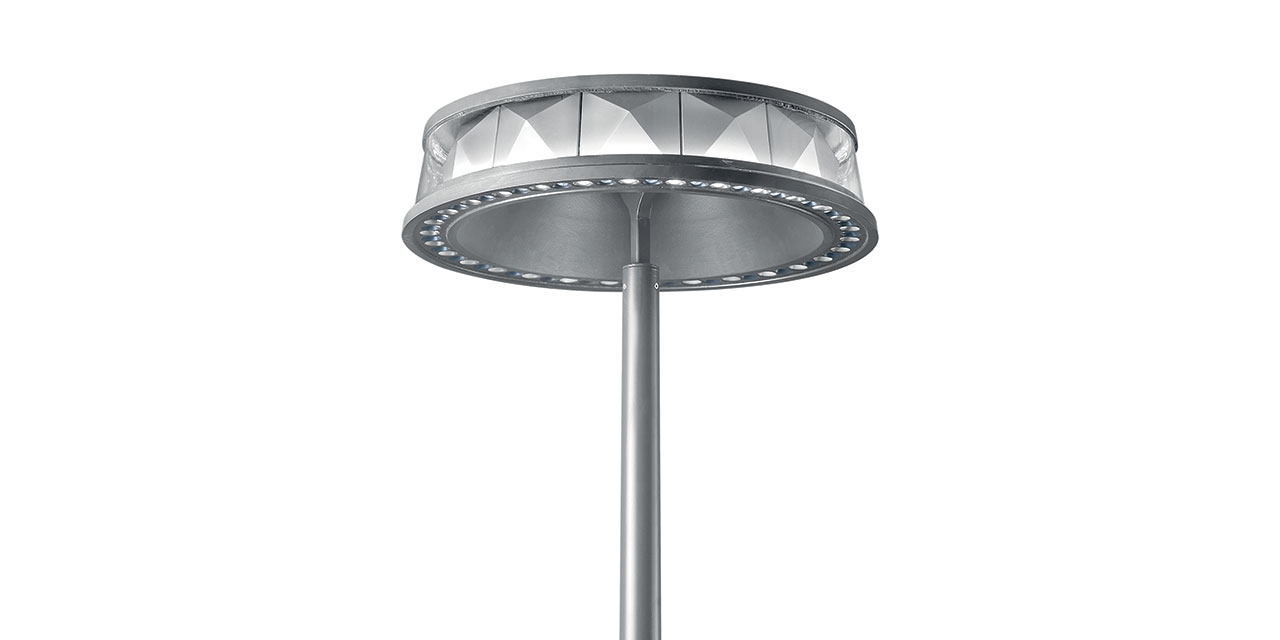

Anello
Anello is an urban lighting system designed by architect Marc Aurel as part of a project to renovate the historic centre of Poitiers.

Two versions are available: one for general downlight emission, the other with up/down emission. Up lighting involves one to five LED modules that can be adjusted to 30° to highlight elements in the surrounding environment. The number of modules can be changed on request. General lighting envisages an optical unit with warm white monochromatic LEDs, while neutral white LEDs are used to illuminate decorative elements.

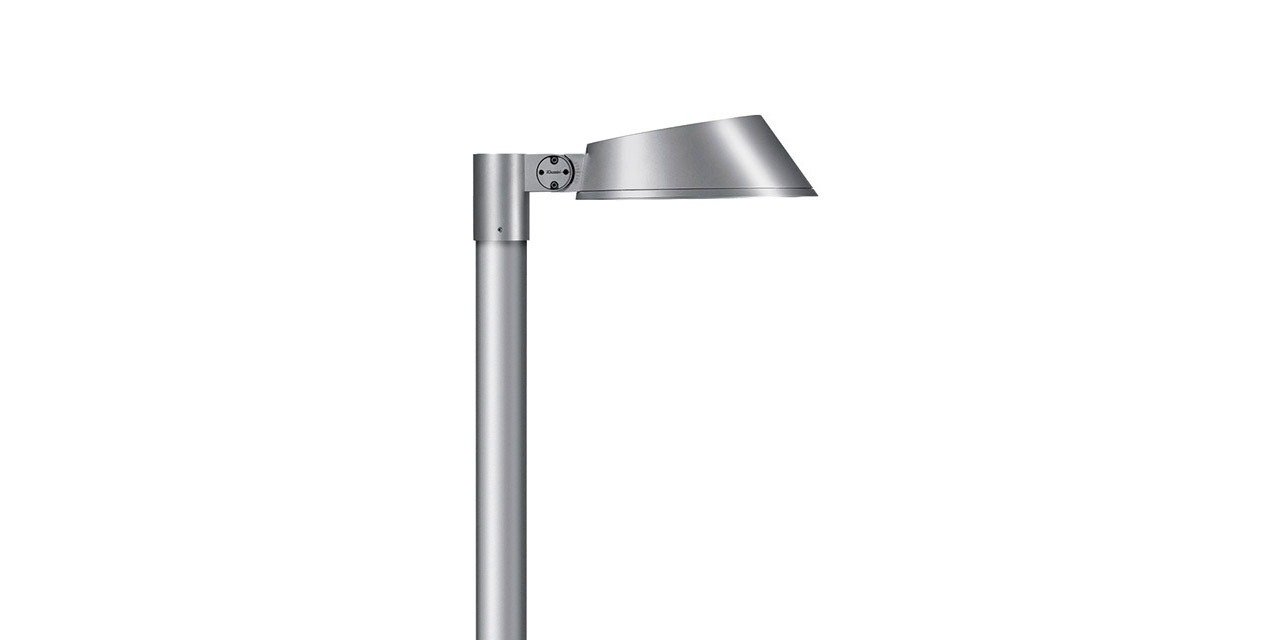

Lavinia
Urban lighting system intended for use with LED light sources.

Pole or wall installation.

Comprising an optical compartment, pole, arm (single or double) and pole-top (single, double or triple).


High visual comfort

No photo-biological risks .This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.

The luminaire is fully programmable as regards luminous flux emission through the MY92 device.


pole mounted 617x333mm

Lavinia

pole mounted 617x333mm

3550lm - 35.9W / 12610lm - 99.1W

A45C - h = 7 / d = 1,6A60 - h = 7 / d = 2ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2ST1.0C - I = 3,7h / d = 1

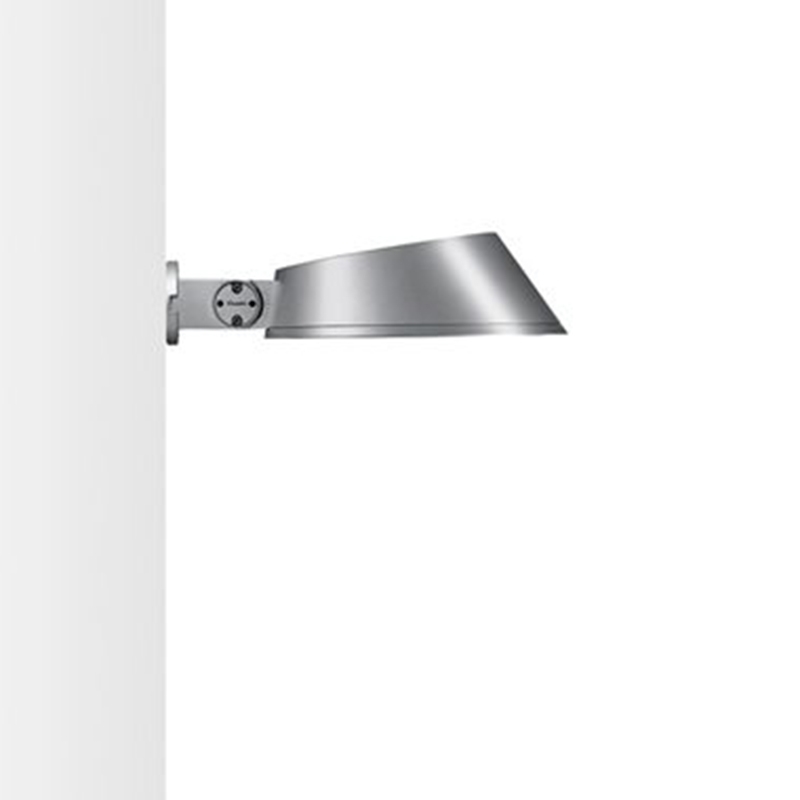

wall mounted 617x333mm

Lavinia

wall mounted 617x333mm

3550lm - 35.9W / 12610lm - 99.1W

A60 - h = 7 / d = 2ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2

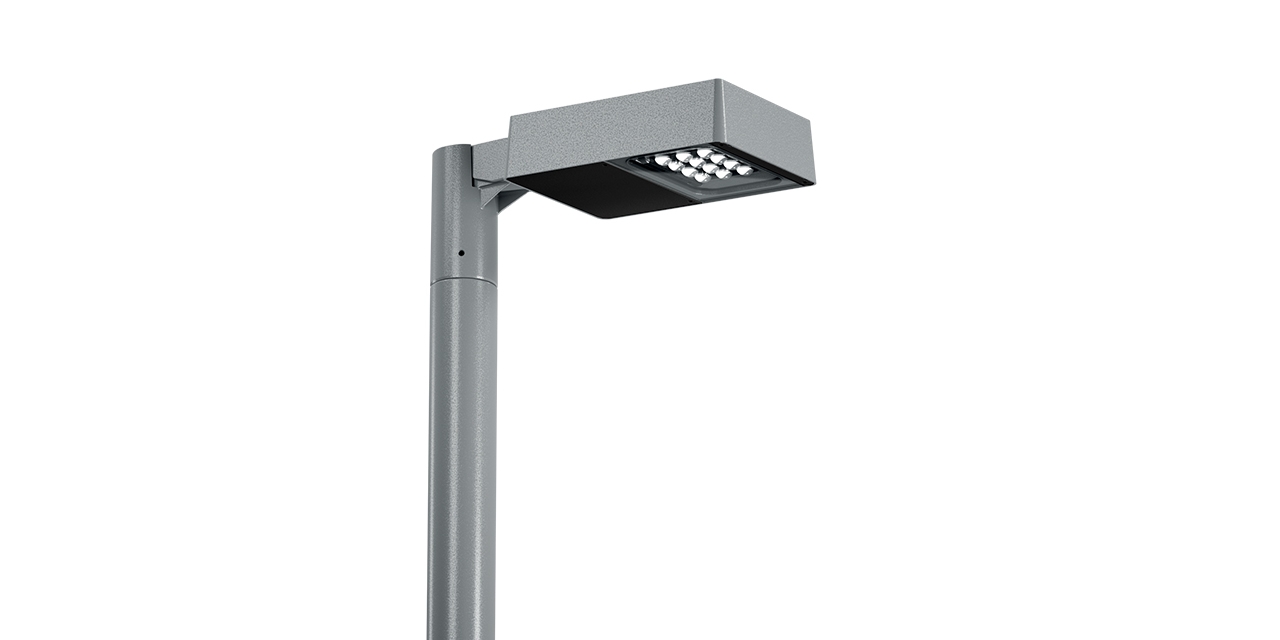

Platea Pro
Street lighting system for use with LEDs.


No upwards dispersion of the light flow.

High visual comfort.


No photo-biological risk. This luminaire is in the “Exempt Group”.


The luminaire can be fully programmed in terms of luminous flux emission, Midnight inclusion and bi-power operation mode.


pole mounted 296x214mm

Platea Pro

pole mounted 296x214mm

3410lm - 33W / 4410lm - 33W

A45 - Asymmetric 45°ST0.5 - I = 3,7h / d = 0,5 - Intensity Class G3ST0.8C - I = 5h / d = 0,5/0,8ST1 - I = 4h / d = 1


pole mounted 406x276mm

Platea Pro

pole mounted 406x276mm

6360lm - 57.9W / 12180lm - 86.5W

A45 - Asymmetric 45°ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2ST1.0C - I = 3,7h / d = 1

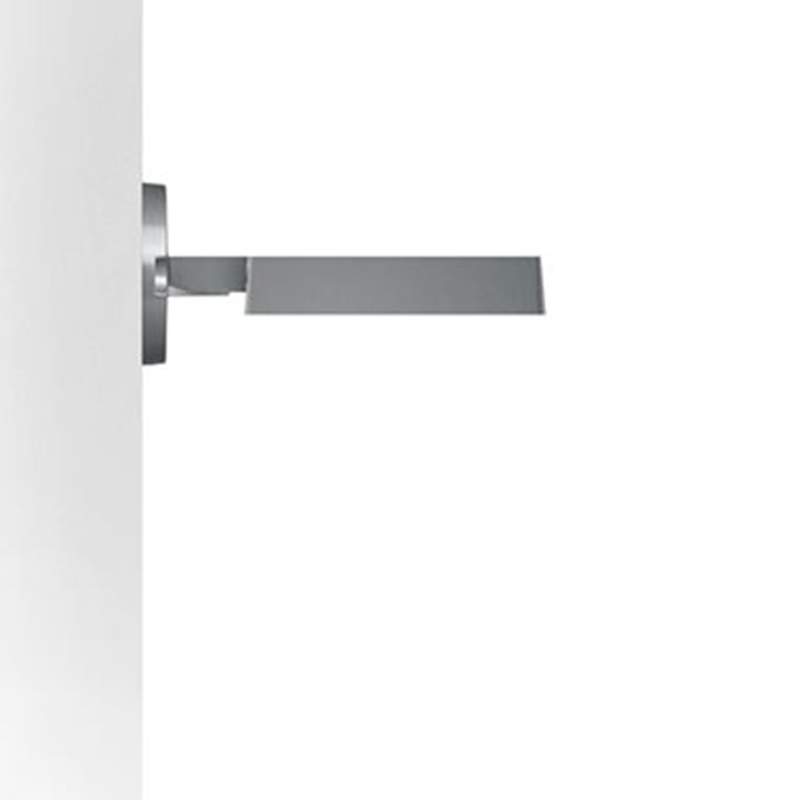

wall mounted 296x214mm

Platea Pro

wall mounted 296x214mm

3410lm - 33W / 4410lm - 33W

A45 - Asymmetric 45°ST0.5 - I = 3,7h / d = 0,5 - Intensity Class G3ST1 - I = 4h / d = 1


wall mounted 406x276mm

Platea Pro

wall mounted 406x276mm

6360lm - 57.9W / 12180lm - 86.5W

A45 - Asymmetric 45°ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2


There are 4 more products available in this line that are not in this category.

Show the complete

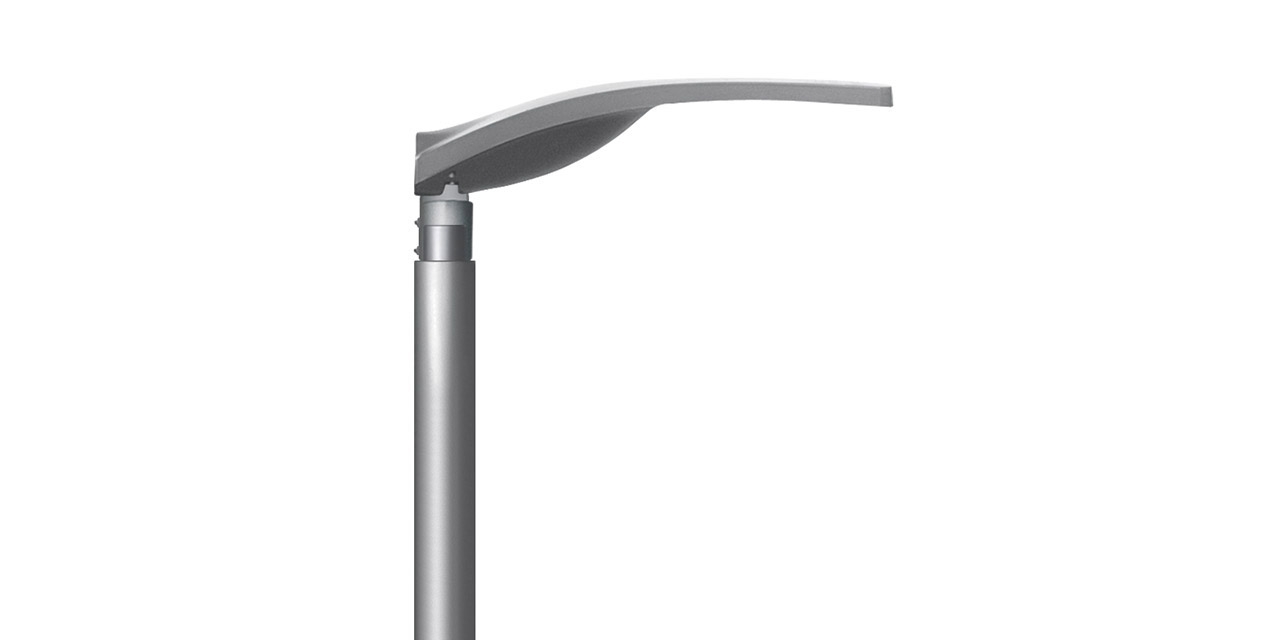

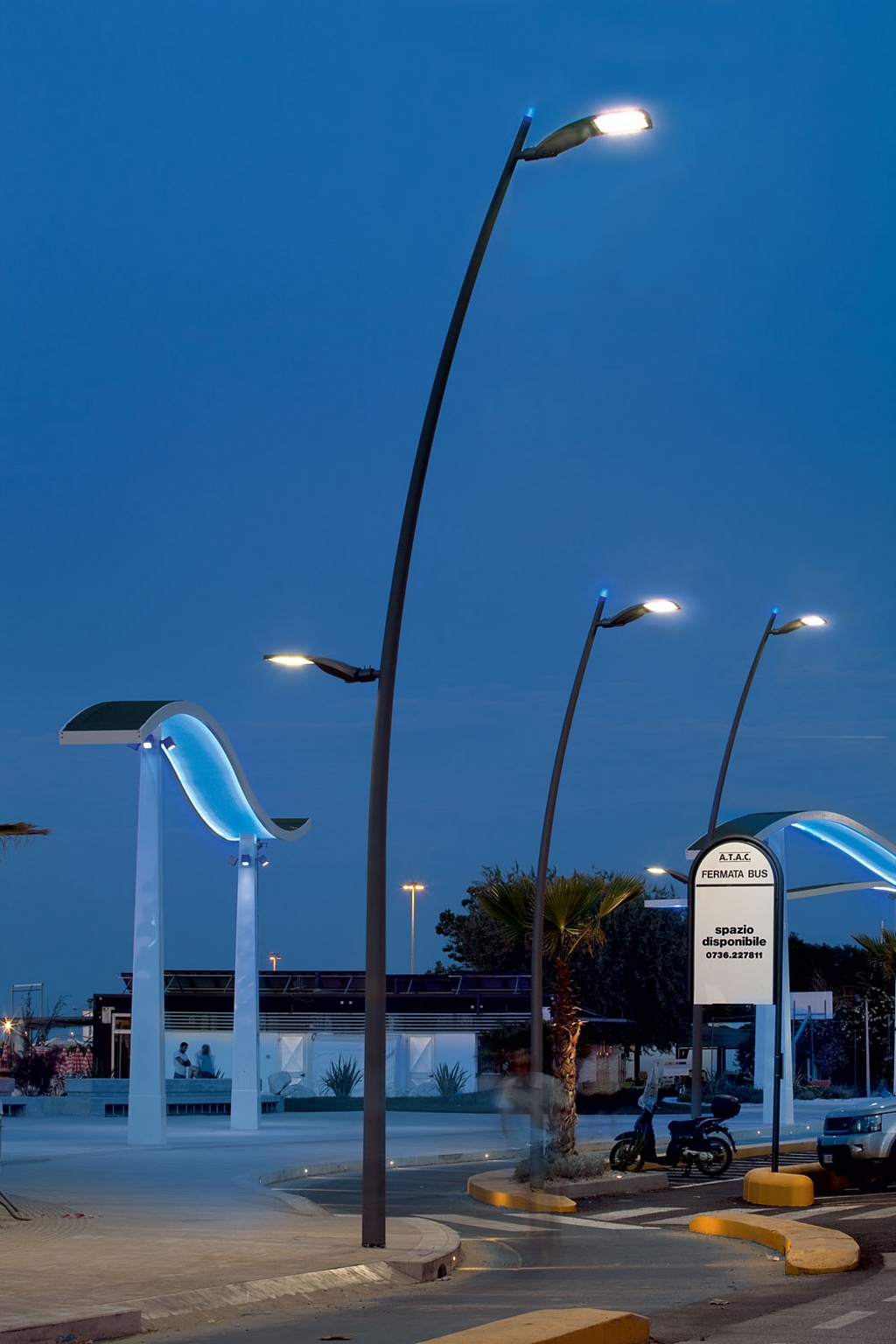

Wow
Urban lighting system intended for use with LED light sources.

No upwards dispersion of the luminous flux.

This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.

High visual comfort.

No photo-biological risks .


Wow

pole-top 620x307mm

3070lm - 22.8W / 10830lm - 83.4W

A45C - h = 7 / d = 1,6A60 - h = 7 / d = 2ST0.8C - I = 5h / d = 0,5/0,8ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2

See more


pole-top 758x415mm

Wow

pole-top 758x415mm

11890lm - 101.2W / 20980lm - 162.4W

A45C - h = 7 / d = 1,6A60 - h = 7 / d = 2ST0.8C - I = 5h / d = 0,5/0,8ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2

See more


pole-top 807x505mm

Wow

pole-top 807x505mm

23140lm - 191.6W / 26940lm - 213.8W

A45C - h = 7 / d = 1,6A60 - h = 7 / d = 2ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2ST1.0C - I = 3,7h / d = 1

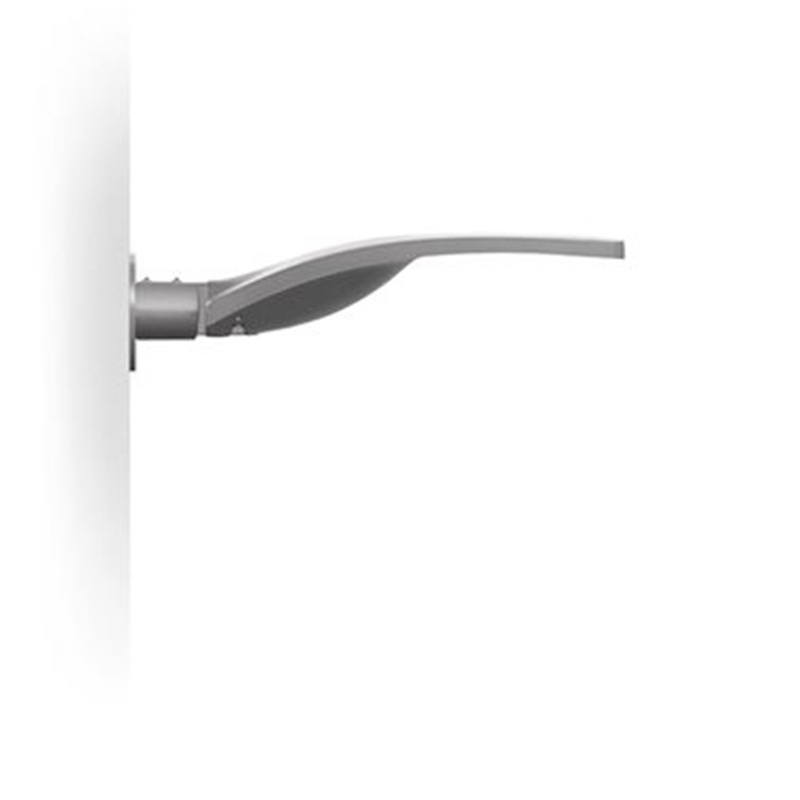

wall mounted 620x307mm

Wow

wall mounted 620x307mm

3070lm - 22.8W / 10830lm - 83.4W

A60 - h = 7 / d = 2ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2


wall mounted 758x415mm

Wow

wall mounted 758x415mm

11890lm - 101.2W / 20980lm - 162.4W

A60 - h = 7 / d = 2ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2


wall mounted 807x505mm

Wow

wall mounted 807x505mm

23140lm - 191.6W / 26940lm - 213.8W

A60 - h = 7 / d = 2ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2

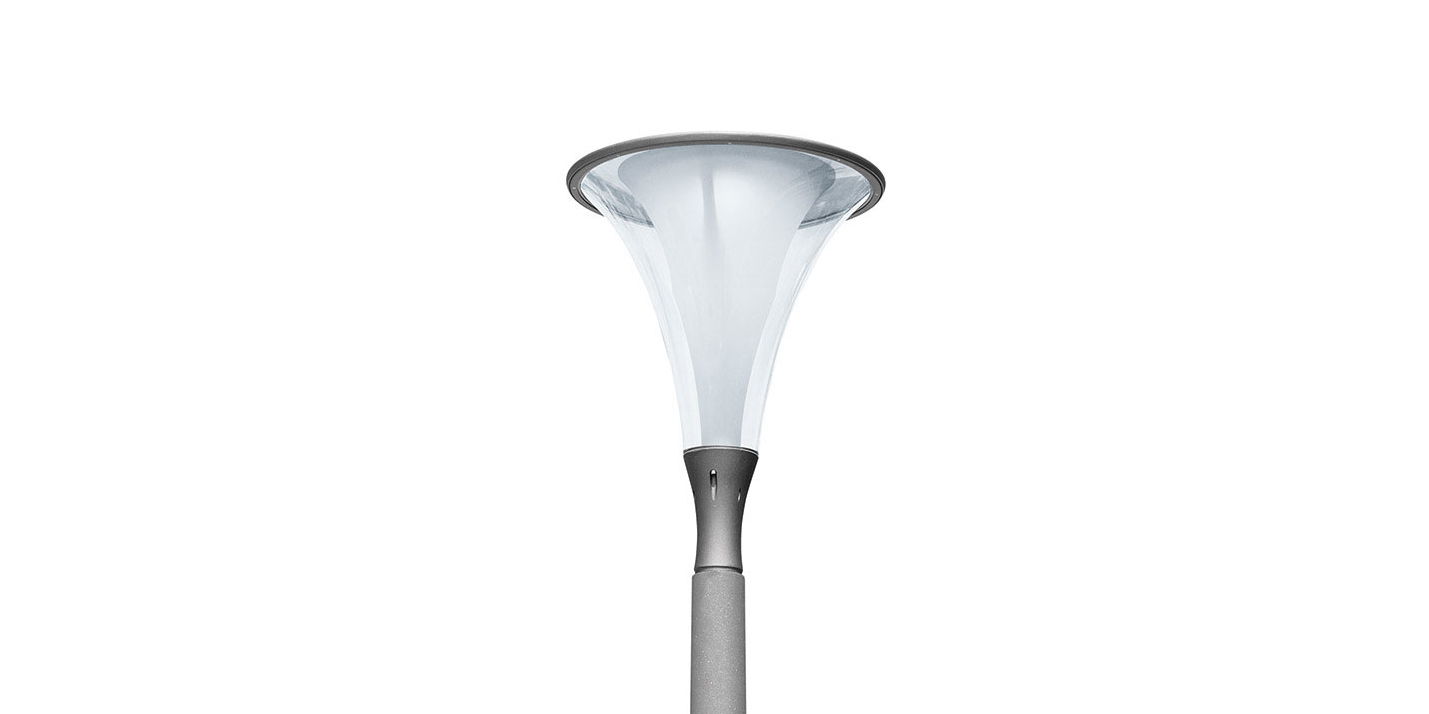

Fiamma
Street lighting system for use with LEDs.


High visual comfort.


Fiamma

pole-top

4300lm - 50.4W

Symmetric


pendant

Fiamma

pendant

4300lm - 50.4W

Symmetric


wall mounted

Fiamma

wall mounted

4300lm - 50.4W

Symmetric

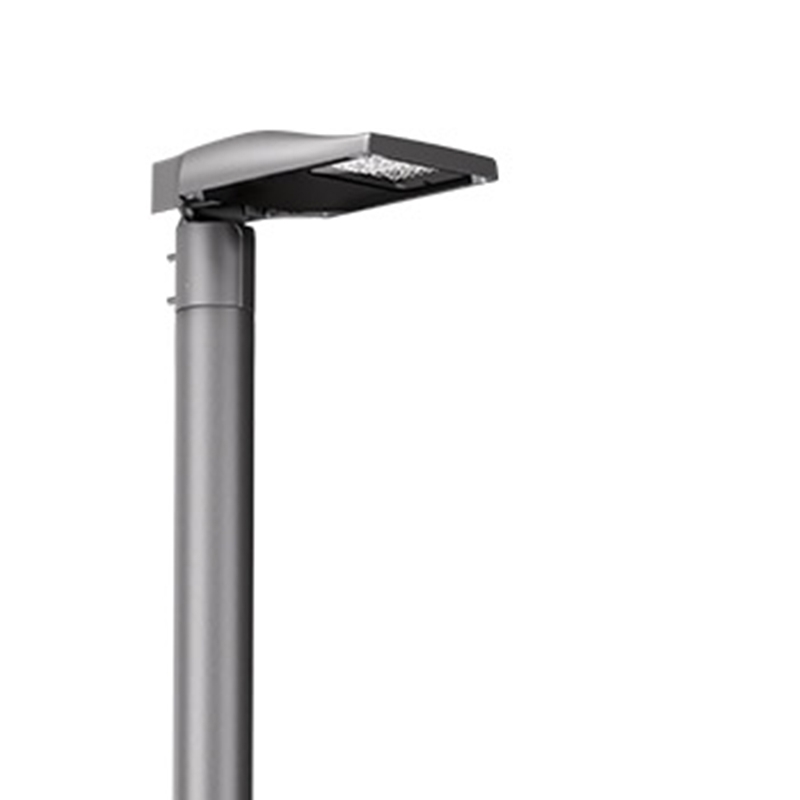

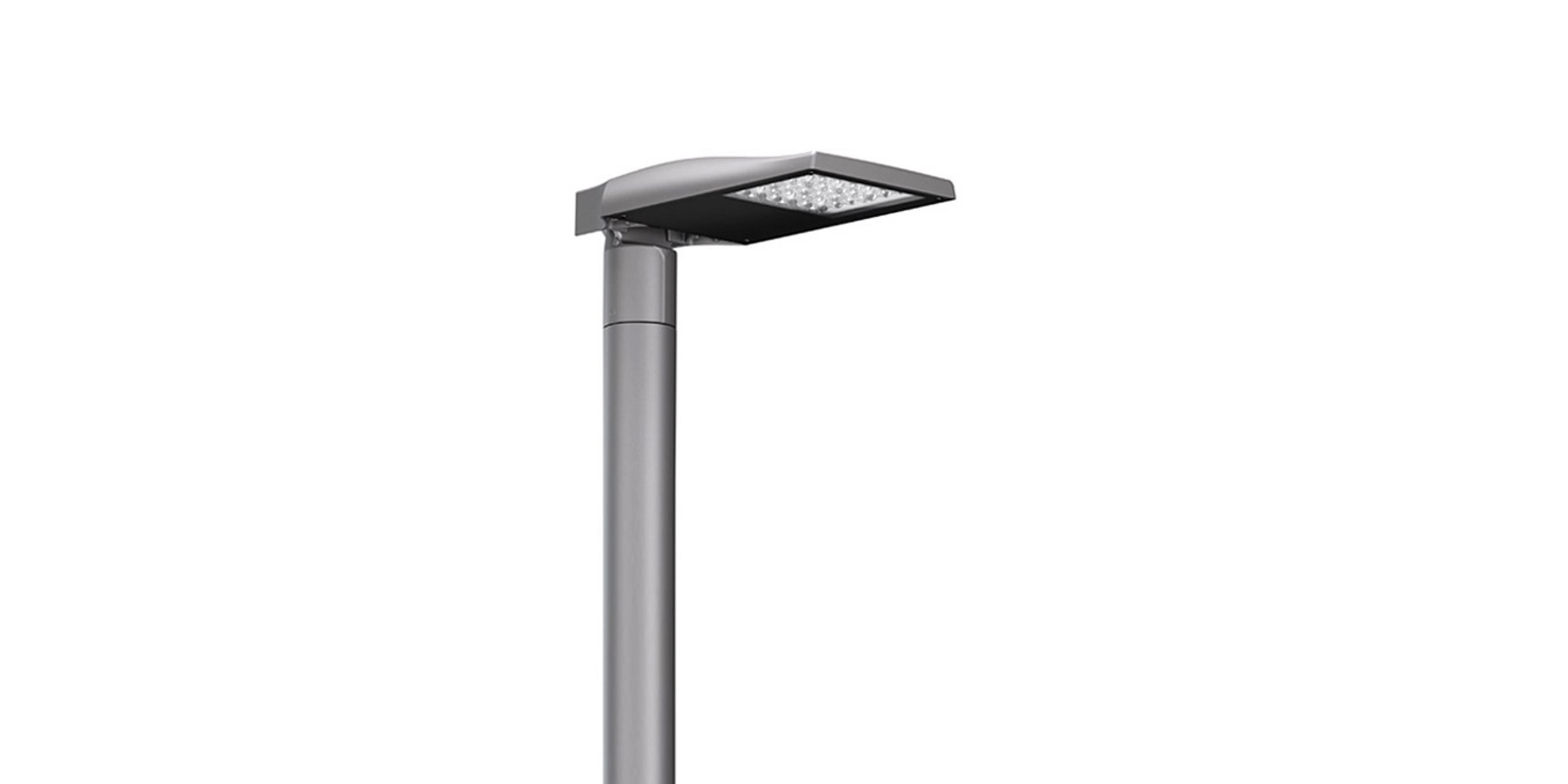

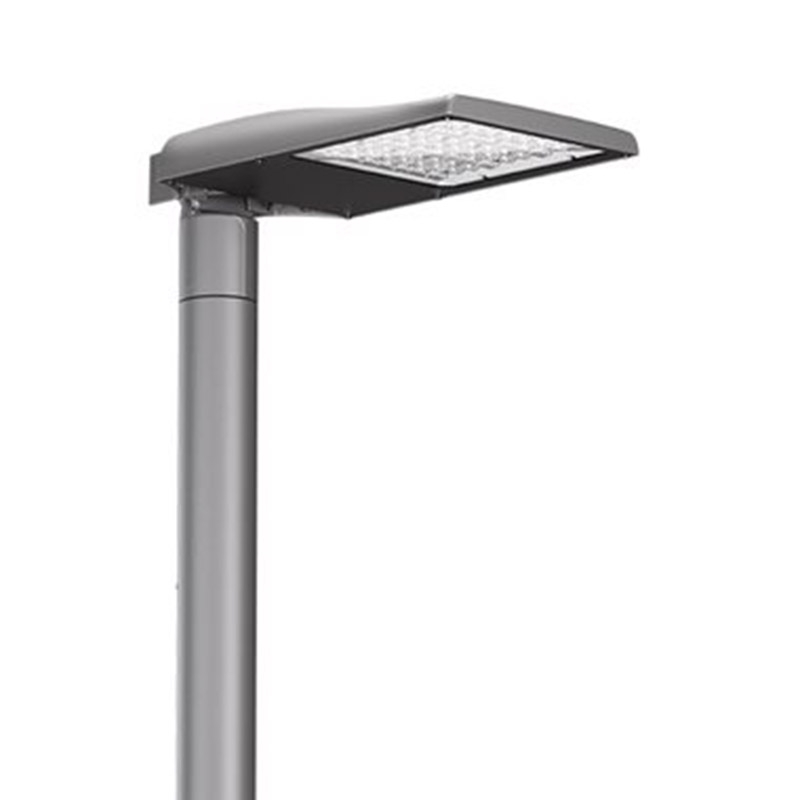

Street
Urban lighting system intended for use with LED light sources.


No upwards dispersion of the luminous flux.

High visual comfort.

No photo-biological risks . This luminaire is in the “Exempt Group” (no risk linked to infra-red, blue light and UV radiation) in accordance with the EN 62471:2008 standard.

Dark Sky Approved: the IDA’s Fixture Seal of Approval programme certifies outdoor lighting fixtures as being Dark Sky friendly.

Maximum Correlated Color Temperature of 3000K.

pole-top 416x211mm

Street

pole-top 416x211mm

1890lm - 15.3W / 5790lm - 41.7W

A60 - h = 7 / d = 2ST1 - I = 4h / d = 1ST1.5 - I = 4h - d = 1.5 - Intensity Class: G*3ST1.5U - I = 5h - d = 1,5 - h <= 6 - Intensity Class: G*3ST1U - I = 5h - d = 1 - h <= 6 - Intensity Class: G*3

See more


pole-top 529x268mm

Street

pole-top 529x268mm

2400lm - 14.8W / 13620lm - 86.7W

A60 - h = 7 / d = 2ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2ST1.5 - I = 4h - d = 1.5 - Intensity Class: G*3STCy0.5 - I = 3.7h - d = 0.5 - Intensity Class: G*3


pole-top 650x328mm

Street

pole-top 650x328mm

15530lm - 102W / 27100lm - 173W

A60 - h = 7 / d = 2ST1 - I = 4h / d = 1ST1.2 - I = 4h / d = 1,2ST1.5 - I = 4h - d = 1.5 - Intensity Class: G*3

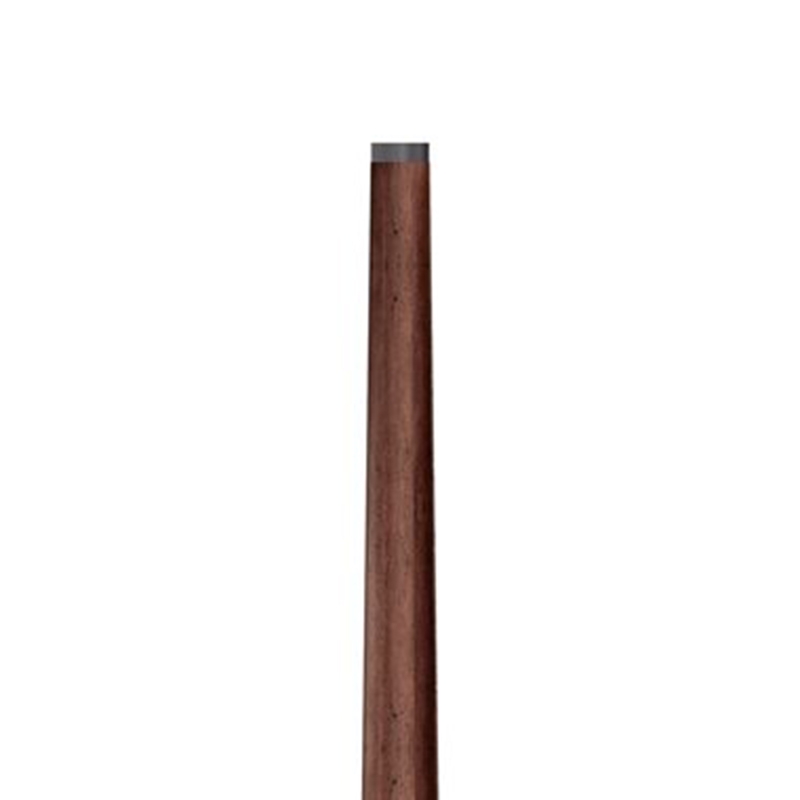

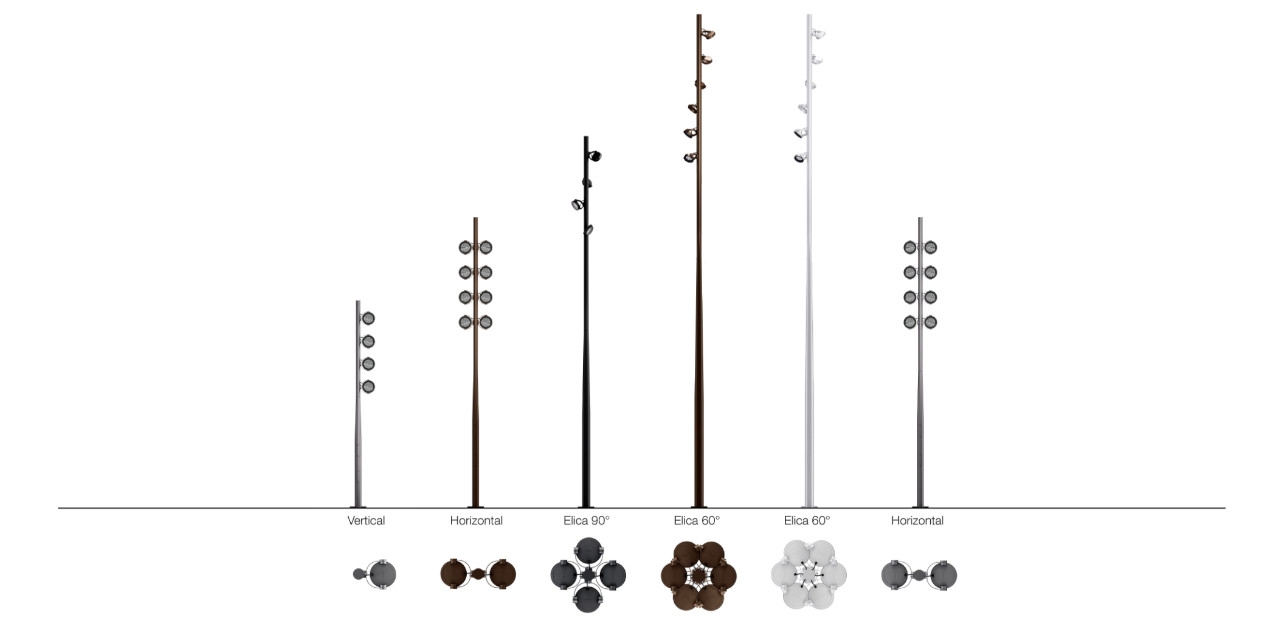

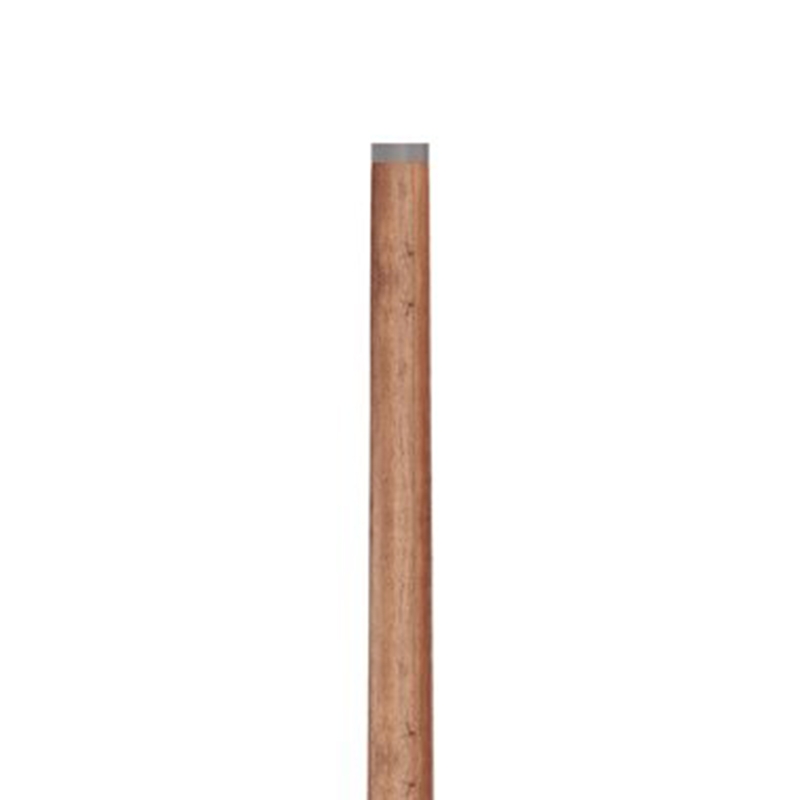

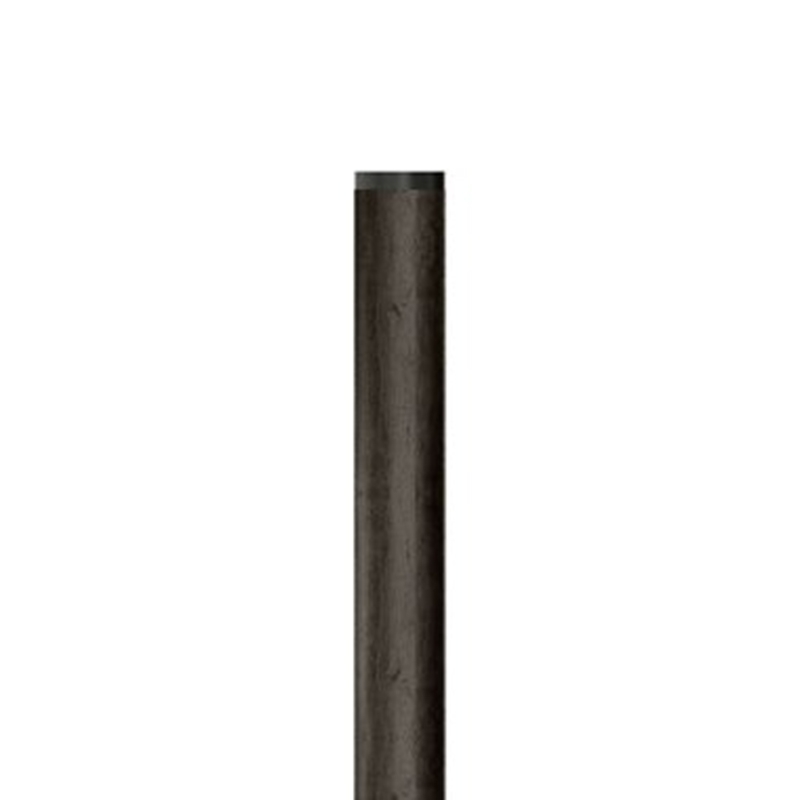

Wooden pole
Minimal and connected pole

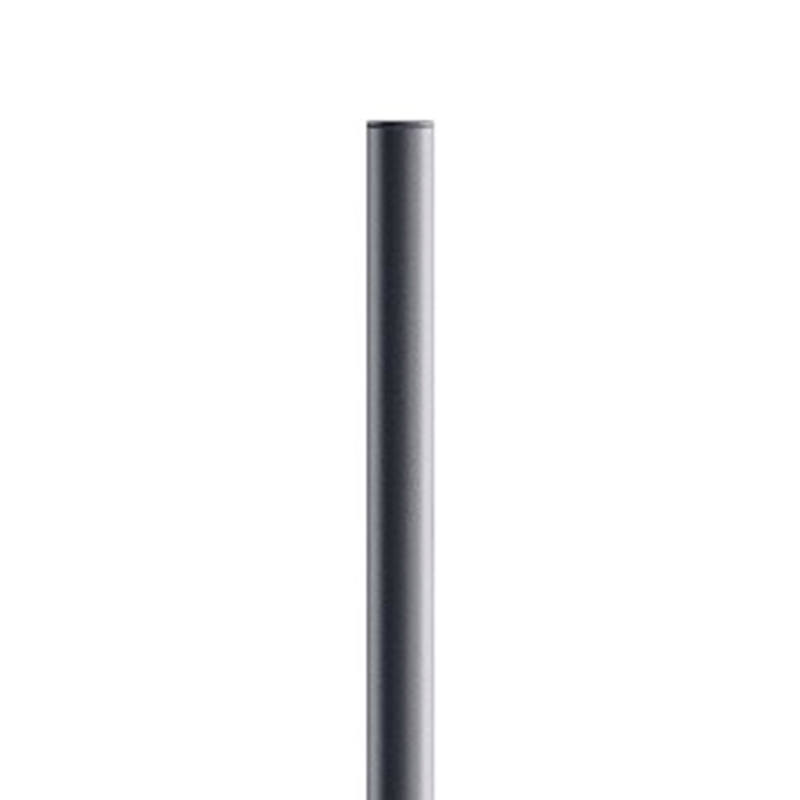

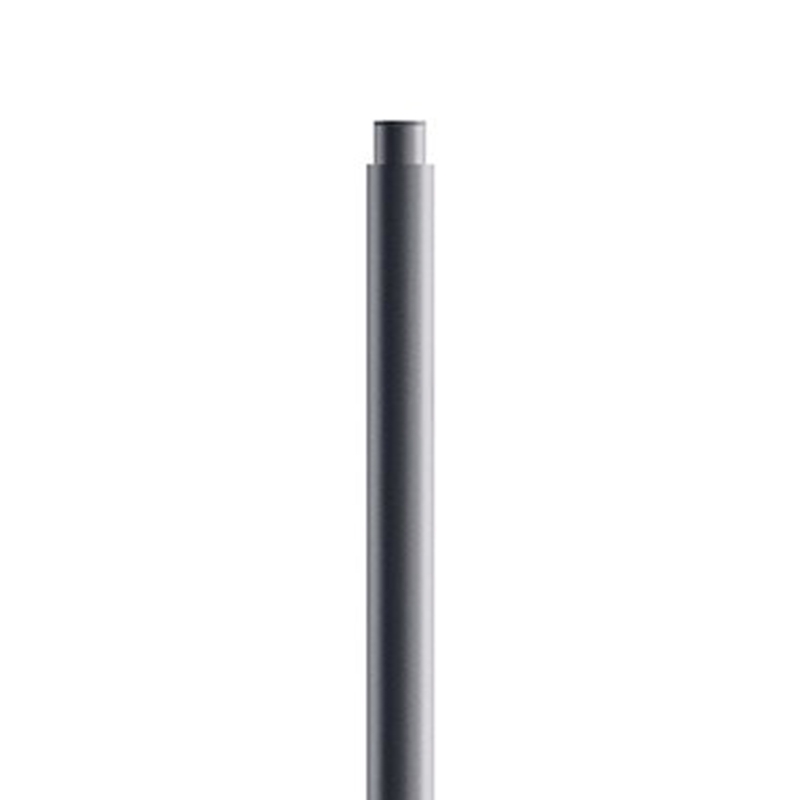

Cylindrical pole
Tapered pole

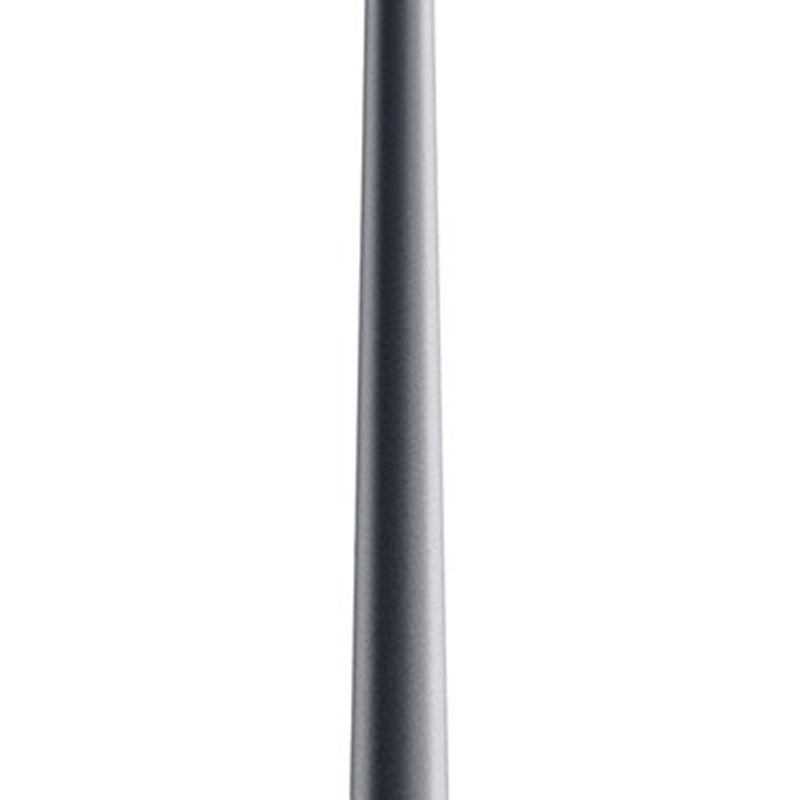

Conical pole
Conical curved pole
Pole with curved arm
