Linear LED Lightbar - Cove | Alcon Lighting®

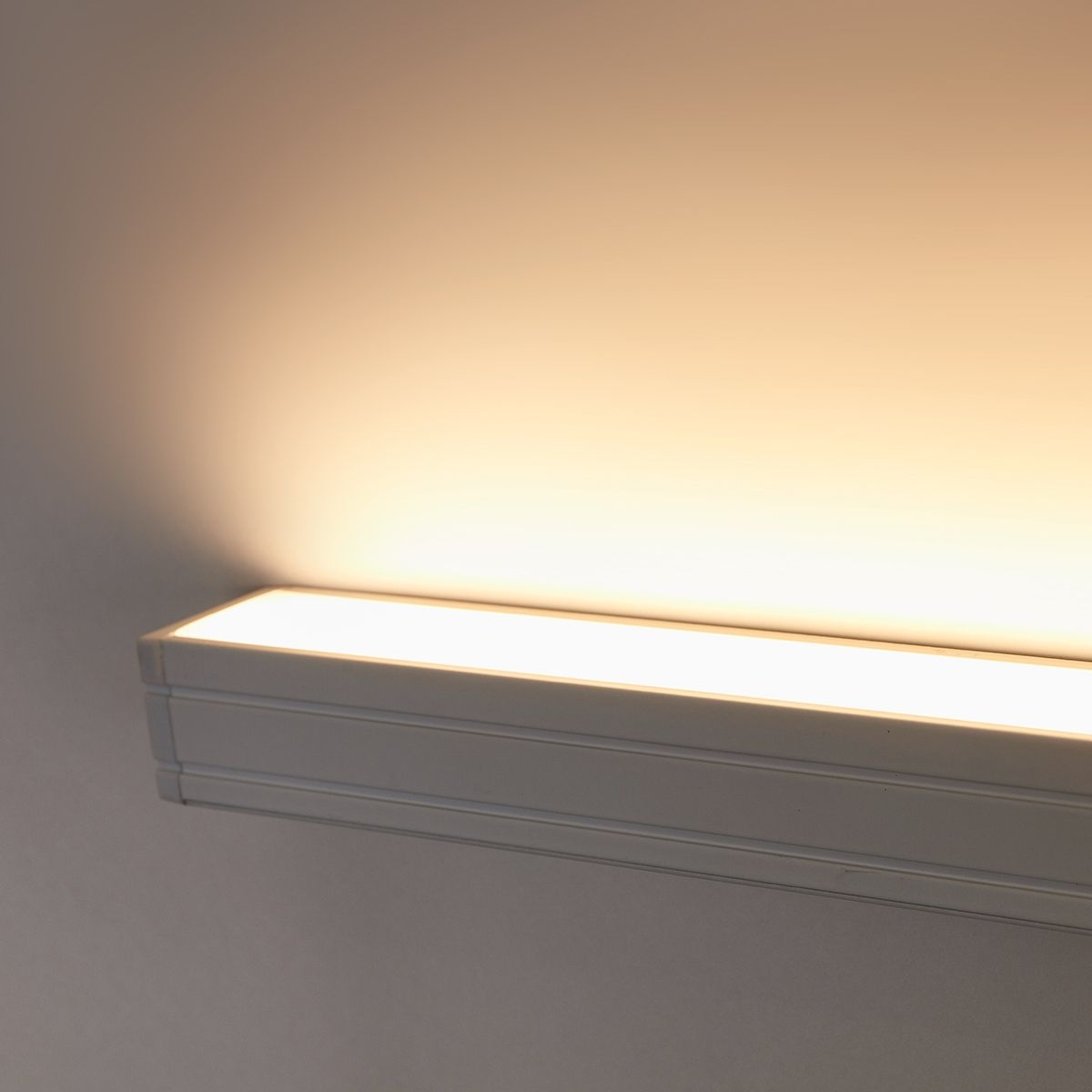

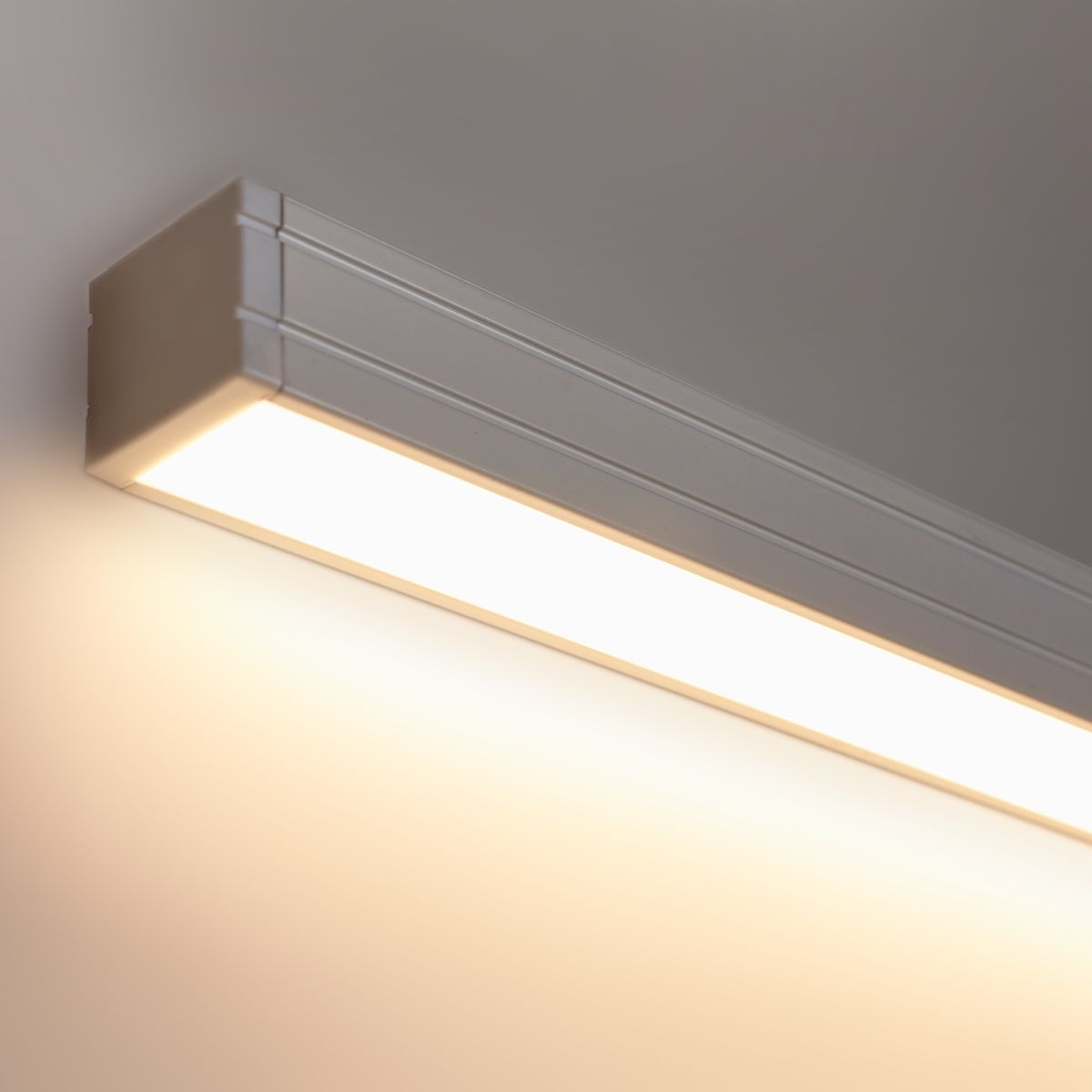

Linear LED Lightbar - Cove
Linear LED Lightbar - Cove Linear LED Lightbar - Cove Linear LED Lightbar - Cove

  • Available in

  • Use

    Interior lighting

  • Applications

    Residential, commercial

  • Characteristics

    Dry and dam listed, 90-plus CRI, 400 watt run length, integral driver, color temperature switch, high lumen output

  • Colors

    White, bronze

  • Sizes

    Width: 1.1" | Length: 1 ft, 2 ft

  • Certification

    cETLus, CA Title-24 , JA8 Compliant, Energy Star

  • Guarantee

    5 Year carefree warranty for parts & components (Labor Not Included)

4 Product Files

_Spec_Sheet_-_Cove_Lightbar_Uplight_14220_-_Alcon_Lighting

5.2 MB

pdf
Cove_Lighting_Application_-__Cove_Lightbar_Uplight_14220_-_Alcon_Lighting

79 KB

jpeg
Installation_Guide_-_Cove_Lightbar_Uplight_14220_-_Alcon_Lighting

1.3 MB

pdf
_Wiring_Guide_-_Cove_Lightbar_Uplight_14220_-_Alcon_Lighting

410 KB

pdf
By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Alcon Lighting® Logo

Contact manufacturer

Alcon Lighting®

Alcon Lighting® Logo

Contact manufacturer

Alcon Lighting®

More from Alcon Lighting®

Website Phone

More about this product

The Alcon Lighting 14220 Linear 120-Volt LED Cove Lightbar is designed for accent, display, wall wash, coves, and under cabinet lighting. The architectural-grade lightbar includes an integral driver, a color temperature switch, and high-lumen output. Other specifications include being dry and damp listed, dimmable with a run length that's linkable up to 400 watts with a 90-plus Color Rendering Index (CRI). The product is also well-suited for uplighting and is perfect for both residential and commercial use.

LED Cove Lightbar
LED Cove Lightbar

Technical Specifications

Mounting The product comes with a 90° swivel bracket, 1 mini coupling & clips included
Mounting Type Surface
Voltage 120V
Color Temperature Color Temperature Select Switch 3000K/3500K/4000K
Lumen Output 100-2,499 Lumens, 750 lms/ft
Wattage 10W/ft
Dimming ELV/Triac
Run Length Linkable up to 400W. Includes seamless connector.
Operating Temperature -10oC ~ 40oC
CRI 90+
Life 50,000 hours

Application and use in Construction

Types of Lighting

LED
