dormakaba delivers solutions whether looking for a statement entrance or a highly controllable security door with individual interlocks for high-level protection. Their wide range of entrance doors is complemented by turnstiles and personnel gates and access control products and door hardware.

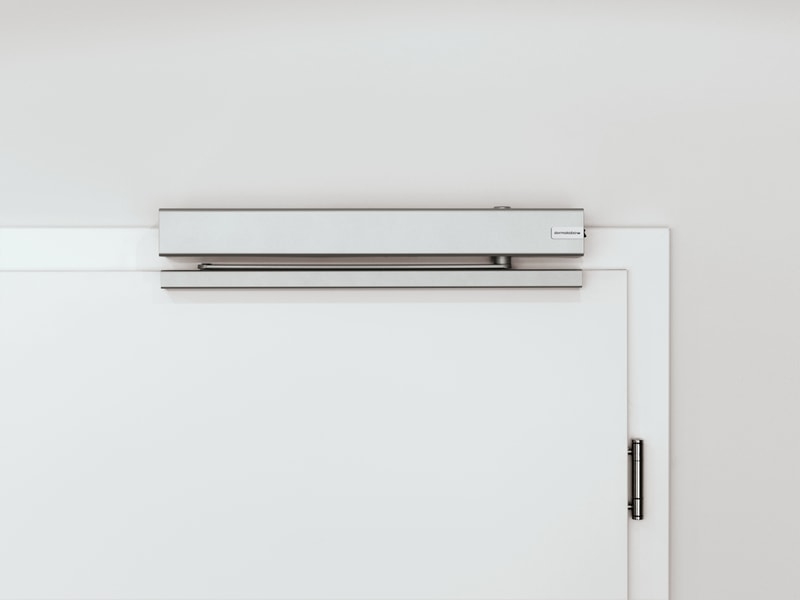

Swing Door Operators

dormakaba offers electromechanical swing door drives for a broad range of applications, door weights, and sizes. The dormakaba ED100 /250 has become the industry benchmark for performance and reliability on demanding applications with wind load control and continuous self-monitoring.

ED 100/250A with Framed Door Leaves
  • Surface mounted with “Wind Load Control”
  • Activation via radar, push pad, or access control
  • Robust framed door leaves are available as pairs of doors or single leaves
  • Laminated or toughened safety glass
ED 100/250A with Frameless Door Leaves
  • Surface mounted with “Wind Load Control”
  • Activation via radar, push pad, or access control
  • Frameless pivoted door leaves with top and bottom clamping rails are available
  • Toughened safety glass
ED 100/250LE with Framed Door Leaves
  • Surface mounted
  • Robust framed door leaves are available as pairs of doors or single leaves
  • Manual usage or assistance on demand via push pad or access control
  • Laminated or toughened safety glass
  • High torque for full-automatic swing doors with radar motion control.
ED 100/250 LE
  • Manual operation with assistance on demand
  • Suitable for use on emergency escape and fire doors
  • Swing door operator tested to 1,000,000 cycles
  • Push or Pull version for single or double-leaf doors
  • Door widths up to 1100mm (ED100) and 1600mm (ED 250)
  • Door weights up to 160kg (ED 100) and 400kg (ED 250)
ED 100/250 A
  • Automatic operation with "Wind Load Control"
  • Suitable for use on emergency escape and fire doors
  • Tested to 1,000,000 cycles
  • Push or Pull version for single or double-leaf doors
  • Door widths up to 1100mm (ED100) and 1600mm (ED 250)
  • Door weights up to 160kg (ED 100) and 400kg (ED 250)

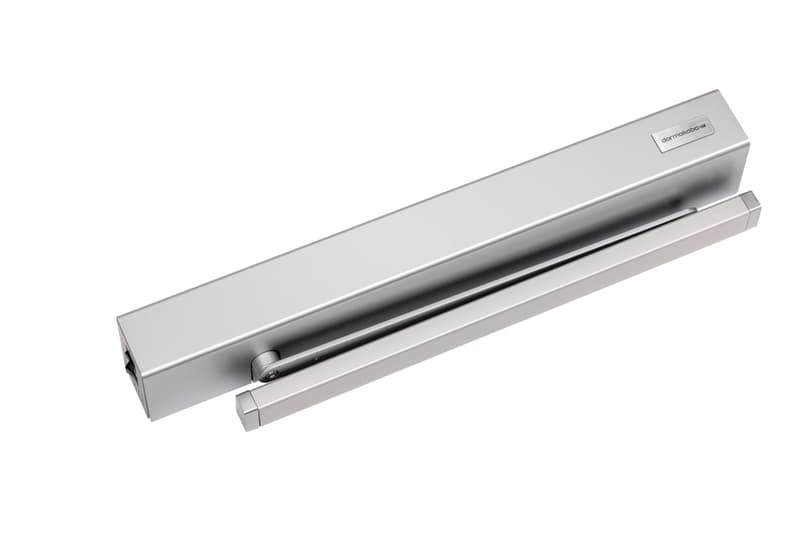

The PORTEO is a silent swing door operator with small dimensions for the use on simple doors. The PORTEO can significantly reduce the force required to open the door in Power-Assist mode so that the door can be easily opened manually. In addition, the door can also be opened automatically via a push-button or radio remote control. This makes the life more comfortable and hygienic in everyday for everyone. The PORTEO can be easily retrofitted on most doors and offers people where doors are a barrier a significant gain in comfort and quality of life.

PORTEO
  • Easy opening and closing of swing doors up to widths of 1100 mm and door-leaf weights of up to 100 kg
  • One version for all four ways of mounting: hinge and opposite hinge side, lintel mounting or door-leaf mounting. Compact dimensions 60 x 530 x 80 mm (H x W x D), particularly suitable for use in conjunction with narrow-stile and standard profile door systems
  • Extremely low installation height of just 60 mm
  • Quiet operation
  • Easy installation thanks to ready-to-connect Plug & Go function with mounting plate
  • GGT-approved
