Suspension System - Dependant | Louis Poulsen

Share
  • Use

    Artificial lighting
  • Applications

    Public, residential, hotel, cultural, educational, retail
  • Characteristics

    Can only be used for socket based pendants up to 5 kg. Not applicable for pendants with cable and wirers or for pendants with external driver.

More about this product

The suspension system Dependant by Louis Poulsen allows the clustering of multiple pendants to create larger installations. It comes in a linear and a circular version, both available in two dimensions. The linear system holds either three or five pendants while the circular system holds four or six pendants. Each pendant is suspended on the cable with which it is provided, and the system enables the user to position each individual pendant at the preferred height. The system is easy to install and comes in three finishes to match the suspended pendants.

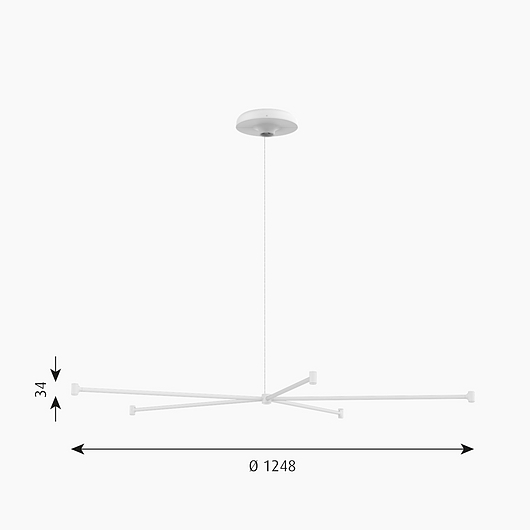

Circular 4 Circular 5
undefined undefined
Linear 3 Linear 6
undefined undefined


Technical details

Materials Canopy, tubes and fittings: Aluminum. Grommets, fitting inserts and set screws: PC, white or black. Clear PVC coated wires: Steel or black. Set screws in canopy: Steel or black. White suspension has white canopy, white fitting inserts plus steel wires. Black suspension has black canopy, black fitting inserts and black wires. Brass metallised suspensions has either white or black canopy plus the corresponding set of fitting inserts and wires.
Mounting The canopy is mounted directly on the ceiling . Can be mounted directly on the power outlet or for side entry. For side entry only fixed installation. Looping approved: Max. 5 x 2.5 mm². Wires included. Length of wires: 4 m. Maximum dimension of pendant cable Ø9 mm.
Class Canopy: Ingress protection IP20. Electric shock protection I
Finish Brass metallised, Black or White, powder coated.


For more technical details and BIM modules please chlick here.
