Suspended Lights - Outline | Eureka Lighting

Share
  • Use

    Interior lighting
  • Applications

    Commercial, corporate, institutional, hospitality
  • Characteristics

    LED, TIR lens, aluminum
  • Colors

    Black, white
  • Certification

    Architectural SSL Magazine PIA 2020 IES Progress Report 2020

1 Catalogs and Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

Contact manufacturer

Eureka Lighting

More about this product

Outline is luminaire designed by Eureka with an innovative approach to traditional projector-type lighting. The Outline series is particularly versatile and comes equipped with movable features, different lengths, and three mounting types to accommodate lighting conditions in dynamic spaces. The fixture is available in suspended and surface mounting, provides strong light for walls and hallways, and is made in a bold modern style with black and white finishes.

Lens Design

Eureka created Outline with a unique halo shaped lens which allows for balanced lighting with glare control and optical efficiency. Outline has lenticular groves with a total internal reflector (TIR) lens which increases the usable lumens to create a strong, highly uniform, and effective light beam. To make Outline more adaptable, each projector comes equipped with a pivot on the lighting components with a 358° rotation and a 70° tilt, allowing light beams to reach any target. Outline also offers an optional uplight feature to increase brightness within a space.

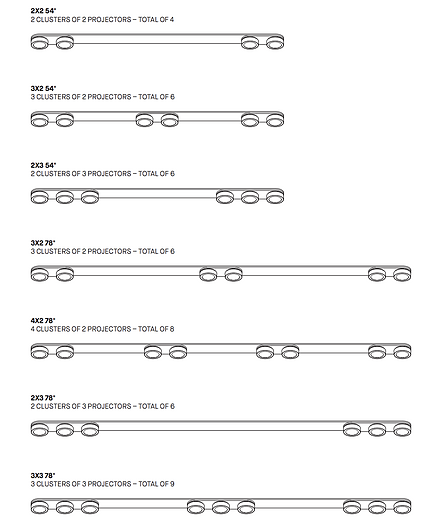

Lighting Configurations

undefined

Product Specifications

Location Interior
Luminaire length 54", 78"
Light source LED
Color temperature 2,700K-4,000K
Voltage 120V-277V
Dimming 0-10V
Beam angle Medium 30°
Cable length 60", customizable
Mounting Rectangular canopy, round centered canopy, round offset canopy
