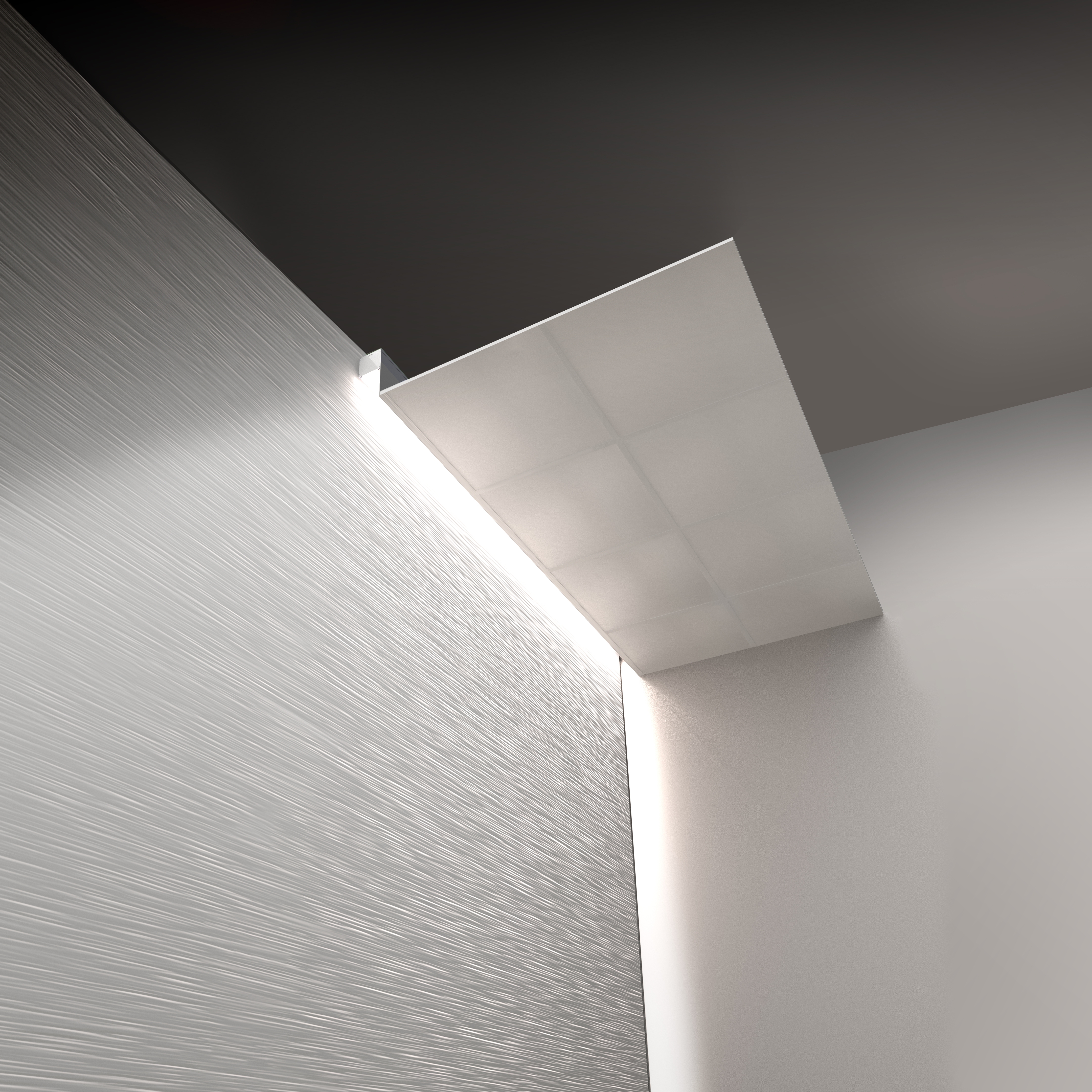

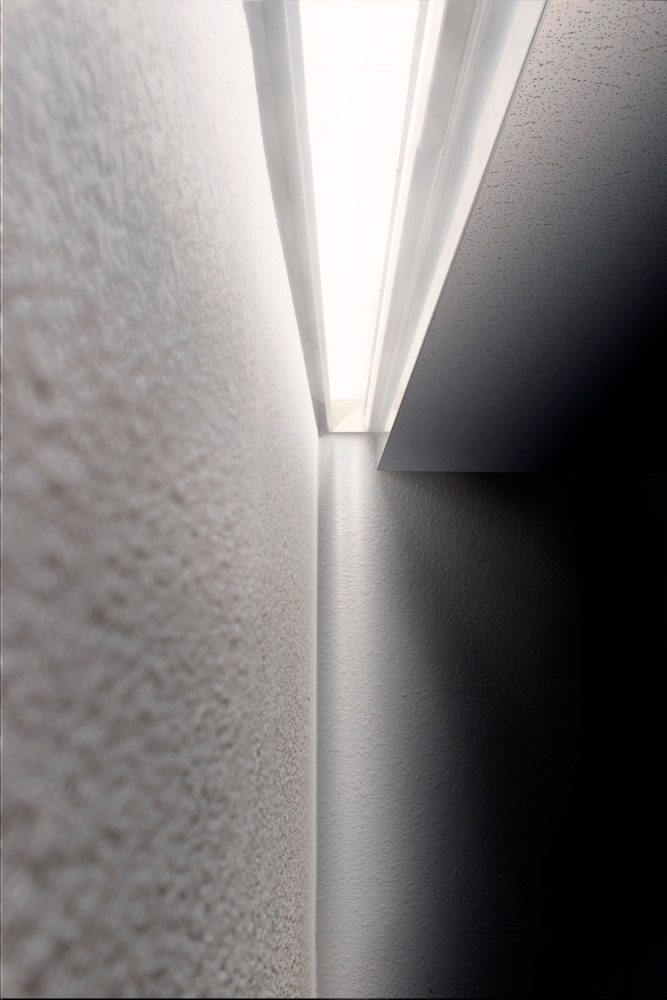

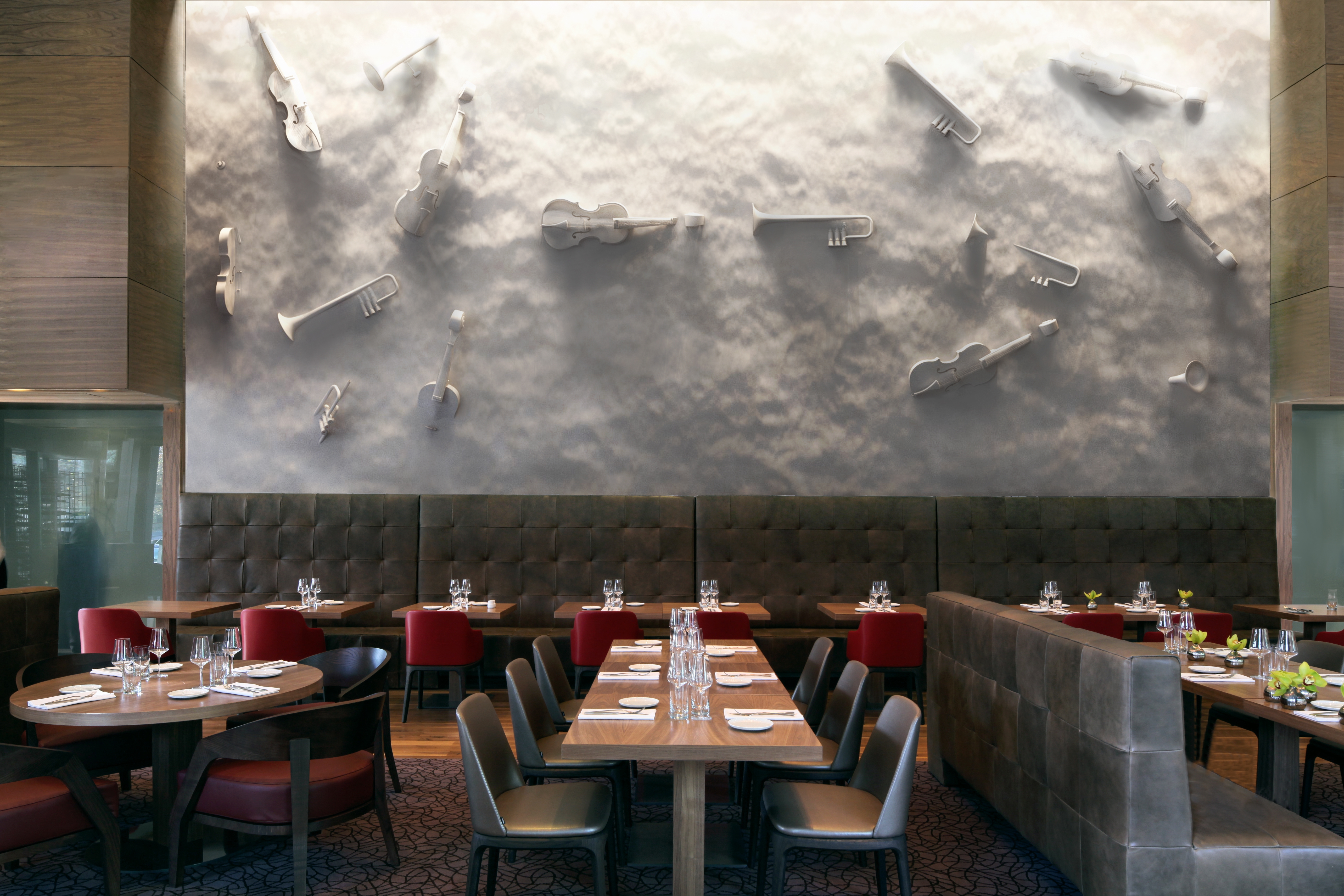

In order to properly display intricate wall designs, A-Light has developed the Wall Grazer, a linear hidden light component which has advanced reflector optic technology and a clear acrylic diffuser. The Wall Grazer is ideal for enhancing walls with textures or graphics and can help brighten any space. The fixture has precise optics to evenly distribute light and cover walls consistently, enhancing surface colors and textures from floor to ceiling. The Wall Grazer is made of 60% recycled aluminum and can be installed with a shadow mold using regressed gypsum board or with a t-bar.

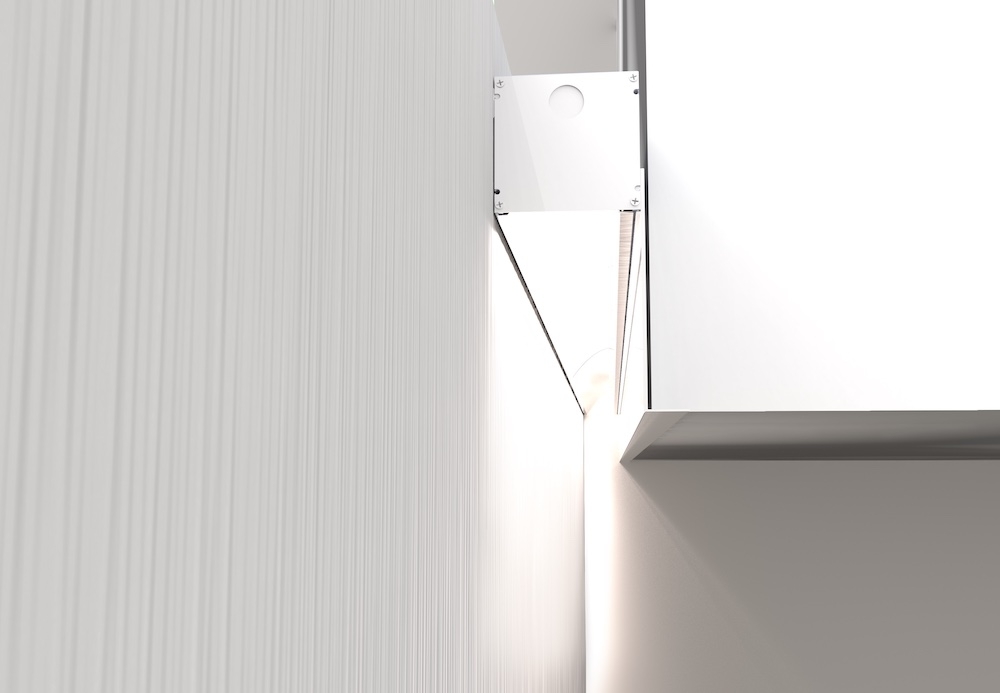

The Wall Grazer is designed with both a high efficiency reflector and a custom designed diffuser to provide maximum uniform lighting. To create a concealed profile, A-Light has included an extended flange which provides a regressed lighting condition allowing the fixture and wall/ceiling to blend seamlessly. The Wall Grazer is user friendly with an integral 0-10V dimming driver and a shadow bracket assembly which enables precise alignment with the ceiling/wall. Elements are available in 4', 8', 12', nominal lengths that can be formed in rows with corner transitions available.
Performance at 4000K
|Output ||Nominal Lumen Output ||Input Watts ||Efficacy |
|High (LH) ||1091 lm/ft ||9.7 W/ft ||112 lm/W |
|Standard (LS) ||545 lm/ft ||5 W/ft ||109 lm/W |
|Location ||Interior |
|Application ||Damp location |
|Source ||LED |
|Mounting type ||Recessed, perimeter |
|Distribution ||Direct, asymmetric, wall grazer |
|Color temperature ||3,000K/3,500K/4,000K |
