The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry the Karcher Design trademark fixing assembly.
| | |
| New York ER65 | New York ER65Q |
Lever sets for standard doors acc. to DIN EN 1906, category of use 3
Lever sets for projects acc. to DIN EN 1906, category of use 4
- Solid 3-piece fixing rose and escutcheons squared, 52 x 10 mm, with 7mm lugs and nylon floating bearing, sprung loaded inner plate with attached lever
- Heavy-duty bolt through M4 fixings
- 8mm offset drilled spindle,
- Diameter of handle: 20 mm
- Standard door thickness: 39 - 47 mm
Options
- OS – without escutcheon
- BB – supplied with lever key escutcheons
- PZ – supplied with euro profile escutcheons
- BAD – supplied with bathroom turn/release set
- EN – supplied according to DIN EN 1906, category of use 4, OS, BB, PZ
- FS – supplied as fire-resisting set
Karcher Article No.
Finish: satin stainless steel (finish code 71)

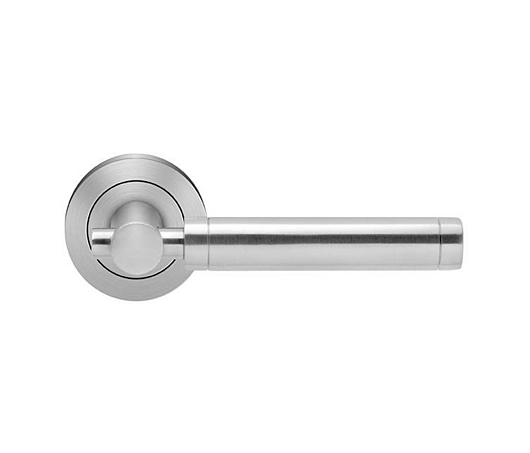

- ER65 OS 71 – without escutcheon
- ER65 BB0 71 – supplied with lever key escutcheons
- ER65 PZ0 71 – supplied with euro profile escutcheons
- ER65 BAD 71 – supplied with bathroom turn/release set
- ER/EN65 71 – supplied according to DIN EN 1906, category of use 4
- ER/FS65 PZ0 71 – supplied as fire-resisting set

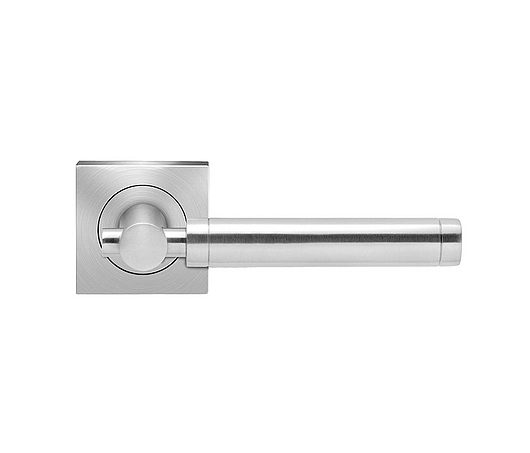

- ER65Q OS 71 – without escutcheon with lever rose
- ER65Q BB0 71 – supplied with square lever key escutcheons
- ER65Q PZ0 71 – supplied with square euro profile escutcheons
- ER65Q BAD 71 – supplied with square bathroom turn/release set
Finish: satin/pol. stainless steel (finish code 73)

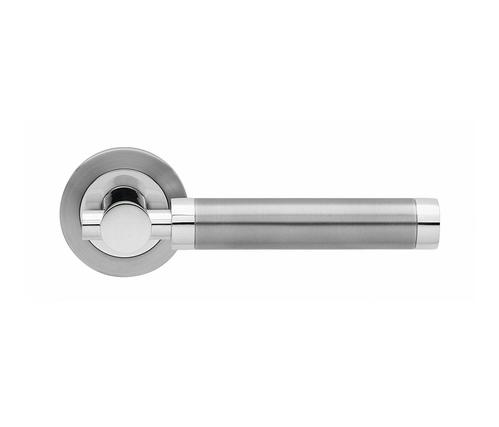

- ER65 OS 73 – without escutcheon
- ER65 BB0 73 – supplied with lever key escutcheons
- ER65 PZ0 73 – supplied with euro profile escutcheons
- ER65 BAD 73 – supplied with bathroom turn/release set
- ER/EN65 73 – supplied according to DIN EN 1906, category of use 4
- ER/FS65 PZ0 73 – supplied as fire-resisting set
