Door Handle Nevada ER88 (71) | Karcher Design

The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry the Karcher Design trademark fixing assembly.

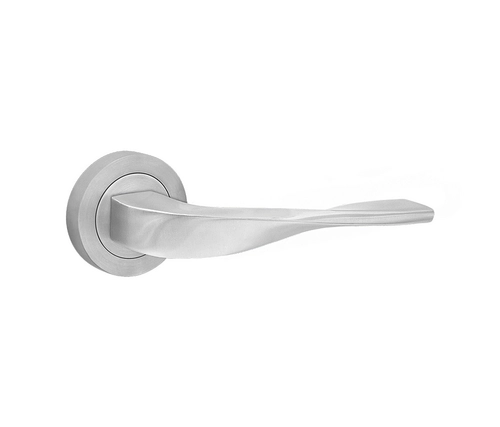

Lever version ER88 Nevada

Lever sets for standard doors acc. to DIN EN 1906, category of use 3

• Solid 3-piece fixing rose and escutcheons squared, 52 x 10 mm, with 7mm lugs and nylon floating bearing, sprung loaded inner plate with attached lever
• Heavy-duty bolt through M4 fixings
• 8mm offset drilled spindle,
• Diameter of handle: 25 x 6 mm
• Standard door thickness: 39 - 47 mm

Options

• OS – without escutcheon
• BB – supplied with lever key escutcheons
• PZ – supplied with euro profile escutcheons
• BAD – supplied with bathroom turn/release set

Karcher Article No.

Finish: satin stainless steel (finish code 71)

• ER88 OS 71 – without escutcheon
• ER88 BB0 71 – supplied with lever key escutcheons
• ER88 PZ0 71 – supplied with euro profile escutcheons
• ER88 BAD 71 – supplied with bathroom turn/release set
