Metal Panels for Roofs - Trimoterm SNV | Trimo

  • Available in

  • Use

    Logistic center & warehouse, production facility, power plant & oil and gas, food & hygiene, aviation, sport & leisure, data center, retail, showrooms, public buildings
  • Applications

    Insulated pitched roof, façade
  • Characteristics

    Complete envelope solution, tailored-made project solutions, prefabricated, self-supporting, multi-spanning, long spans, fast & easy installation, extreme thermal values, mineral wool insulation, fire resistance, noise protection, water & air tightness, moisture resistant, durability, burglary resistance, easy cleaning, sustainability, 99% recyclability, BIM libraries
  • Format

    Length: up to 14000mm; module width: 1000mm; thickness: 60mm, 80mm, 100mm, 120mm, 150mm, 172mm, 200mm; Vertical/Horizontal/Pitched
  • Certification

    CE, Zulassung, LPCB, FM
The product has been saved to the folder: My Downloaded Products
Trimo Logo

Contact manufacturer

Trimo

Trimo Logo

Contact manufacturer

Trimo

More from Trimo

Website Phone

More about this product

Trimoterm SNV from Trimo provides a complete envelope solution system.

Trimo Roofs

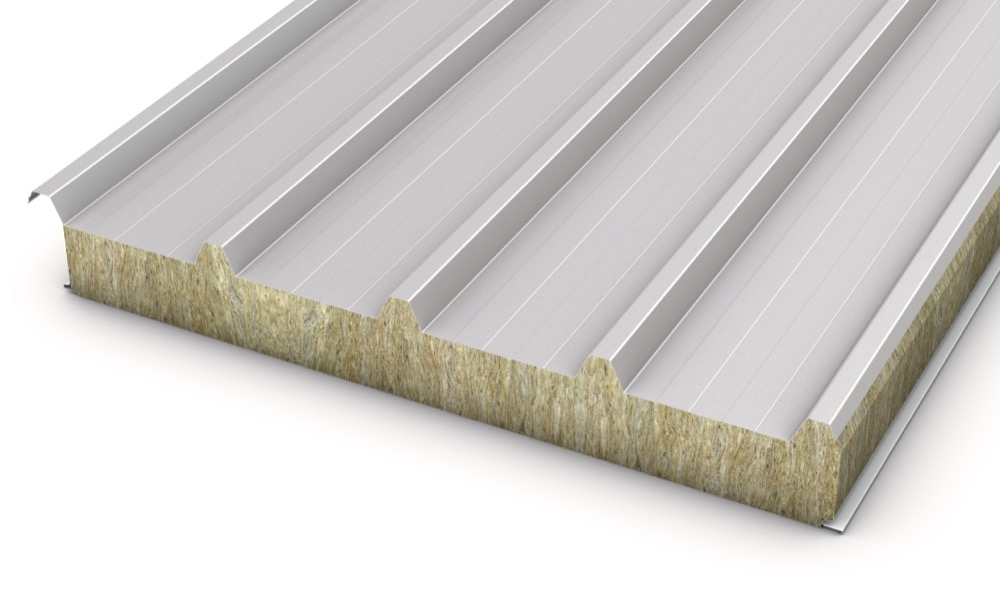

Trimoterm SNV is mainly a roofing panel, composed of two metal sheet coverings, connected by an insulating, non-combustible mineral wool layer. The upper side of the Trimo panel has a trapezoidal profile, to make the roof more resistant to snow and wind loads while reaching longer spans. Lap-joint between two panels with the sealing tape between them increases the system water-tightness and air-tightness.

Complete Envelope Solution

  • Insulated façade, insulated pitched roof
  • Tailor-made project solutions upon customers needs
  • Trapezoidal external steel sheet enables long spans
  • Wide range of color options

Applications

Typically used for logistic center & warehouse, production facility, power plant & oil and gas, food & hygiene, aviation, sport & leisure, data center, retail, showrooms, public buildings.

Maximum Safety

  • Class A1 non-combustible mineral wool insulation core
  • Exceptional fire resistance up to class REI180
  • Reaction to fire A2-s1, d0
  • Advanced thermal and sound insulation
  • High level of airtightness and watertightness
  • Burglary resistance RC3 class tested as wall
  • Certified product
Color range Bright, medium, dark
Unit dimension T (mm) 60-200
M (mm) 1000
L (mm) up to 14000
External steel sheet Thickness t (mm) 0.5-0.7
Profile Trapezoid profile
Internal steel sheet Thickness t (mm) 0.5-0.7
Profile G, S, V, M2
Features Mineral Wool core (EN 14509) Power T, Perform C, Perform R
Weight (kg/m2) up tp 34.3
Reaction to fire A2-s1, d0
Fire resistance up to REl 180
Thermal transmittance U (W/m/m2K) as low as 0.19
Airborn sound insulation Rw(C:Ctr) (dB) up to 33(-1;-4)
Water permeability (EN 14509) class B (900Pa)
Air permeability (EN 14509) n=1.0: C=0.00019
Burglary resistance class (EN 1627) RC3* tested as wall

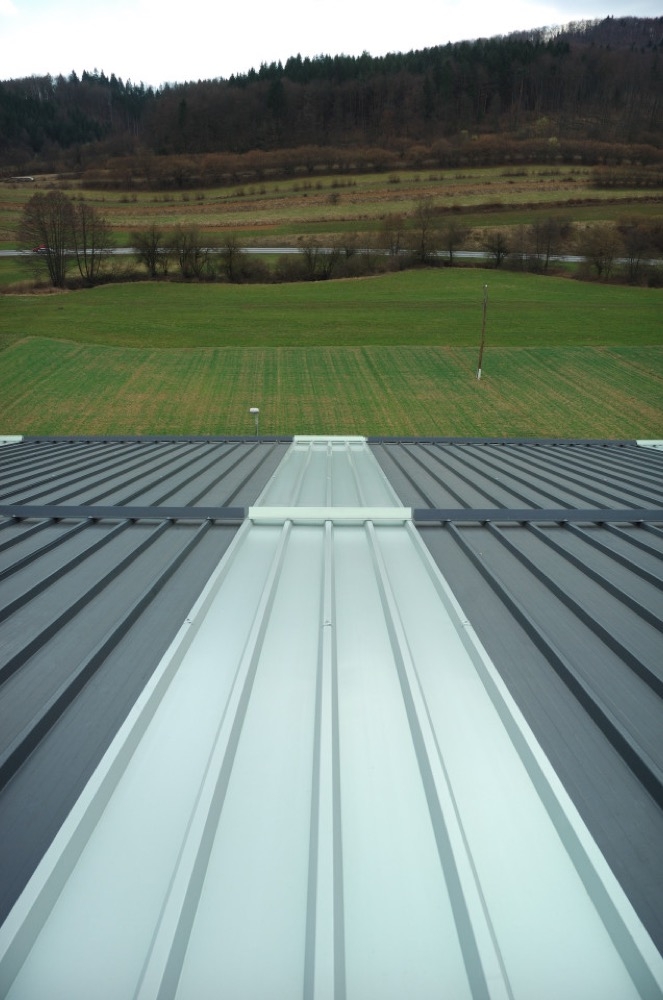

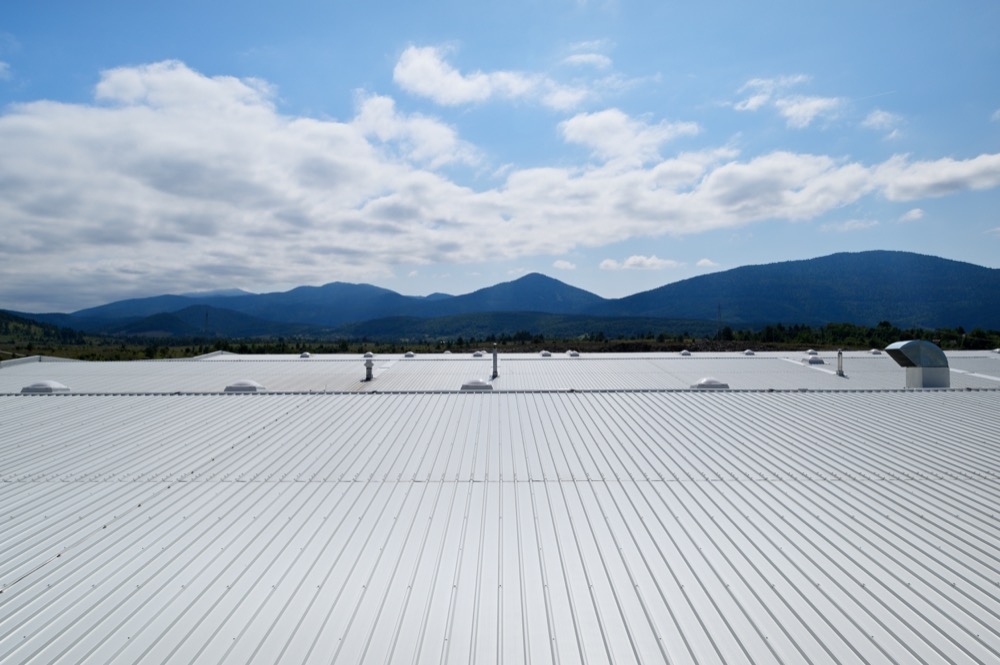

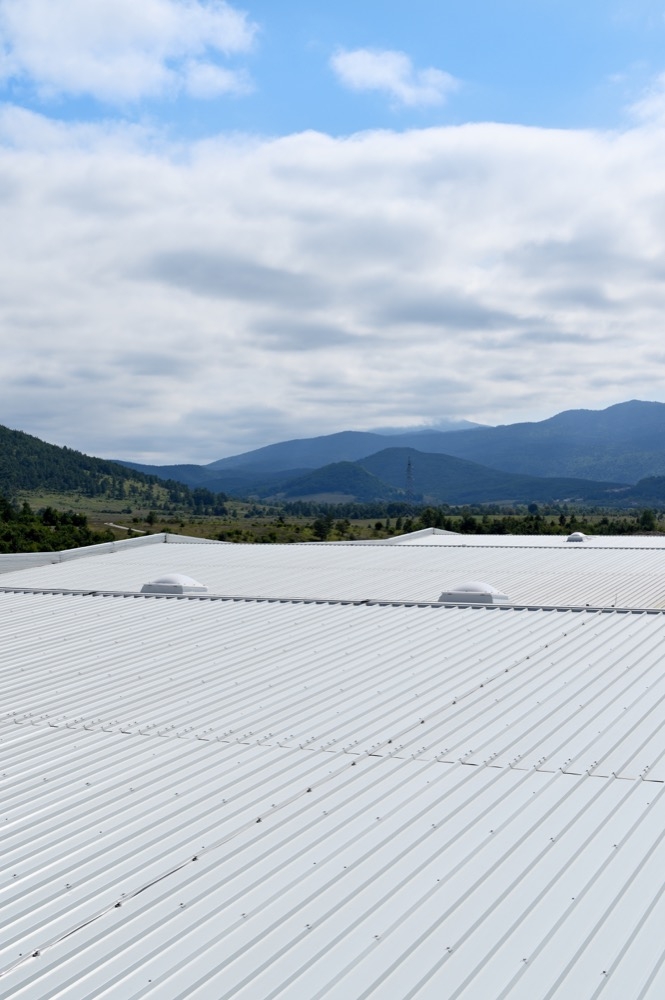

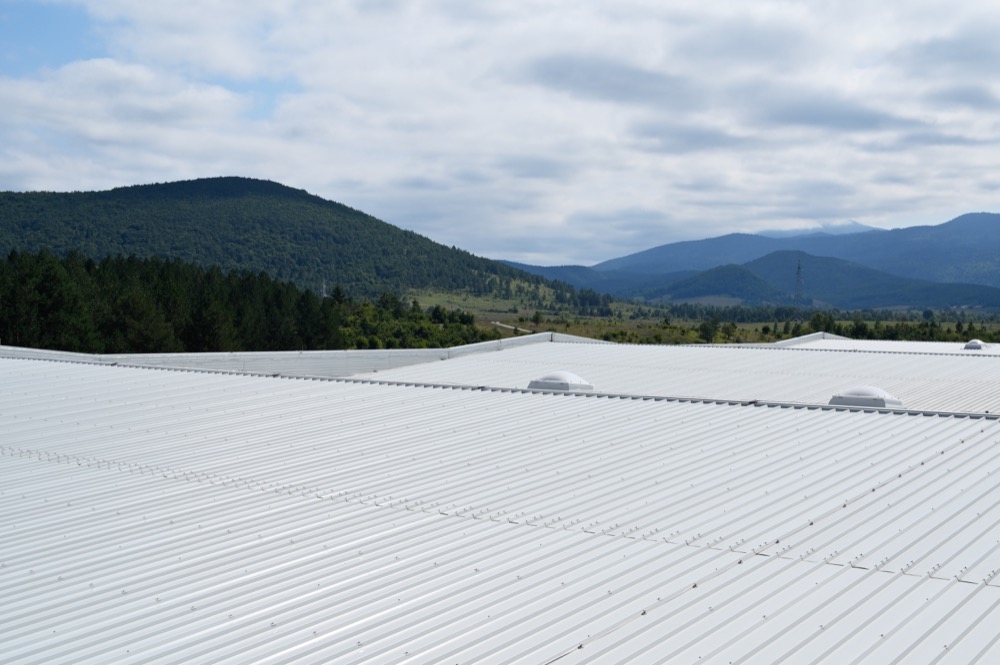

Product gallery
