The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.
Lever sets for standard duty for residential interior use and light duty for commercial interior use.

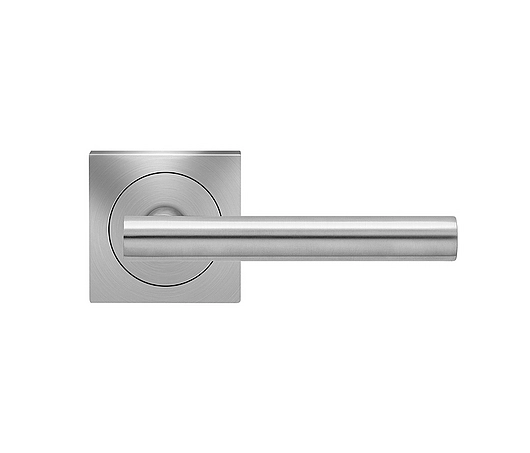

| Manhattan UER21 | Manhattan UER21Q |
| | |
Standard Features
- 3 piece rose
- Sprung
- Door range 1 1/4“ (31 mm) - 2“ (50 mm) standard
- T- and Lip-Strike with dust box
- Stainless steel faceplate
- Backsets: 2 3/8“ (60 mm) or 2 3/4“ (70 mm)
- Available with UL-Latch
- 28° latch with attached faceplate
- Rate of satin stainless steel 304
- Hub 5/16“ (8 mm)
- Door prep 2 1/8“
- Available finishes: satin stainless steel, cosmos black
Options
- PAS - passage latch, backset and T-strike plate
- PRI – privacy latch backset and T-strike
- DUM – Full Dummy
- DUML – Half Dummy Left
- DUMR- Half Dummy Right
Special Options (to be ordered separately)
- UZ2570 PAS – Passage Latch with backset 2 3/4” (70mm)
- UZ3070 PRI – Privacy Latch with backset 2 3/4” (70mm)
- UZ2500 LS – Full Lip strike
- UZUL P67 – UL-Latch
Finish
Satin stainless steel (finish code 71)
Karcher Article No.
- UER21(Q) PAS 60 71 – with passage latch, backset 2 3/8” (60mm) and T-strike plate
- UER21(Q) PAS 70 71 – with passage latch, backset 2 3/4” (70mm) and T-strike plate
- UER21(Q) PRI 60 71 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate
- UER21(Q) PRI 70 71 – with privacy latch, backset 2 3/4” (70mm) and T-strike plate
- UER21(Q) DUM 71 – full dummy
- UER21(Q) DUML 71 – half dummy left
- UER21(Q) DUMR 71 – half dummy right
