The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

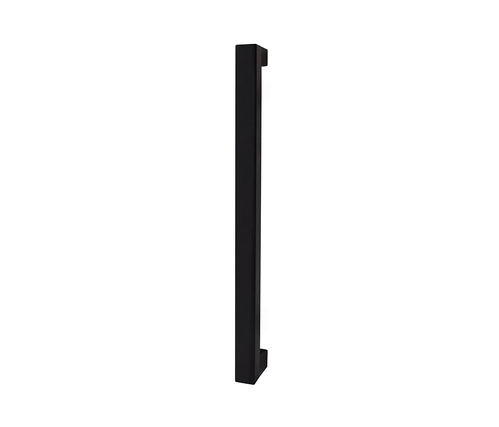

- T shape, stainless steel
- 2 fixing points
- Overall:400 / 500 / 600 / 800 / 1000 / 1200 mm
- Handle diameter: 32 mm
- Fixing with M8 single bolt through fixing or back to back fixing as pair
- For timber, metal, PVC, or glass door
Finish
Kosmos black (finish code 83)
Karcher Article No.
- ES3-400 83 straight (Overall 400 mm, fixing center 250 mm)
- ES3-500 83 straight (Overall 500 mm, fixing center 300 mm)
- ES3-600 83 straight (Overall 600 mm, fixing center 400 mm)
- ES3-800 83 straight (Overall 800 mm, fixing center 600 mm)
- ES3-1000 83 straight (Overall 1000 mm, fixing center 800 mm)
- ES3-1200 83 straight (Overall 1200 mm, fixing center 1000 mm)
Bolt Fixings
- EZ1060 back to back fixing as pair for timber, metal, or PVC door
- EZ1061 back to back fixing as pair for glass door
- EZ1062 bolt through fixing for glass door with cover caps on the opposite side
- EZ1063 secret face fixing for timber doors
- EZ1064 secret face fixing for frame/PVC doors
- EZ1065 bolt through fixing for timber or frame door with cover caps on the opposite side
- EZ1066 bolt through fixing without cover caps (single fixing)
