Door Handle Madeira UEL45 (71) | Karcher Design

Share
  • Use

    Door handles
  • Applications

    Residential, commercial
  • Characteristics

    Made of stainless steel, adhere to industry guidelines, designed by Karcher Design with recognized designers, trademark fixing assembly
  • Sizes

    9 7/8“ x 2 3/8“ x ½“ (250 x 60 x 12mm)
  • Certification

    In accordance to DIN/EN1906

Contact manufacturer

Karcher Design

More about this product

The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

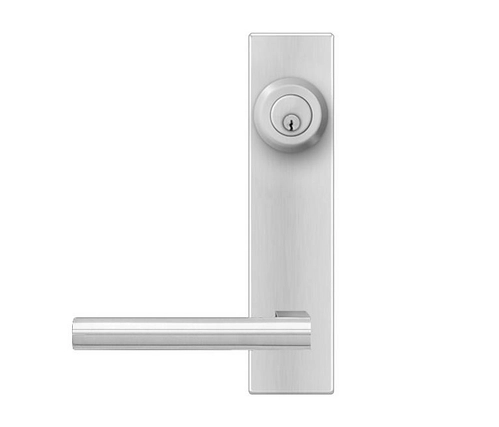

Madeira on Plate UEL45 71

  • Lever model: ER45 Madeira
  • Suits on 2 1/8” (54mm) hole and center to center 5 1/2” (140mm)
  • Standard door thickness 2 1/8“ (55mm) and 2 9/16“ (65mm)
  • Distance ring (UZ D2 71) required for 1 3/8“ (35mm) to 1 ¾“ (45mm)
  • Passage latch with standard Backset 2 3/8” (60mm)
  • Stainless steel T-strike plate with plastic dust cover
  • Stainless steel strike plate with plastic cover
  • Stainless steel latch faceplate
  • Entrance version and Patio Version
    • Patio Version: Deadbolt latch: adjustable with a backset of 2 3/8″ (60 mm) and 2 3/4″ - (70 mm)
    • Entrance version: Solid Brass Cylinder with 5 pins and C keyway

Functions

Entrance door plate with single cylinder deadbolt and passage lever (LA), passage (PA), Full Dummy (DUM), Pation (PAT)

Special Options

  • UEZ D2 71 (Distance Ring): For door thickness 1 3/8″ - 1 3/4″ (35 - 45 mm) a distance ring is required
  • UZ2500 LS 71 Full Lip strike
  • UZ2570 Passage Latch with 2 3/4” (70mm) backset

Finish

Satin stainless steel (finish code 71)

Karcher Article No.

  • UEL 45 LA 71: Entrance set with lever Madeira
  • UEL 45 PAS 71: Passage set with lever Madeira
  • UEL 45 DUM 71: Full Dummy set with lever Madeira
  • UEL 45 PAT 71: Patio set with lever Madeira
