Parallel Opening Window - Masterline SoftTone® | Reynaers Aluminium

Parallel Opening Window - Masterline SoftTone® Parallel Opening Window - Masterline SoftTone® Parallel Opening Window - Masterline SoftTone®
  • Use

    Windows
  • Applications

    Window systems for residential, commercial, corporate, hospitality
  • Characteristics

    Air tightness max. test pressure4 (600 Pa), water tightness E1200 (1200 Pa), wind load resistance Exxx (>2000 Pa), acoustic performance closed: Rw 42 (-2,-4) dB 250mm; opened: Rw 11 (0,-1) dB dB, energy thermal insulation (Uf)1.4 W/m²K

2 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Increasing urbanisation has meant an upturn in the construction of high-rise and tall buildings, with an aim to restore confidence in city centre living for the growing and working population.

Designed by leading architects and specifiers as multi-purpose buildings, new developments can create a sense of community, while also promoting the larger community around the building with pedestrian street traffic and transport hubs that benefits local businesses.

But one significant consequence for homeowners choosing this location and living style is the exposure to high levels of noise pollution through the day and night, that can have a significant impact on quality of life and well-being.

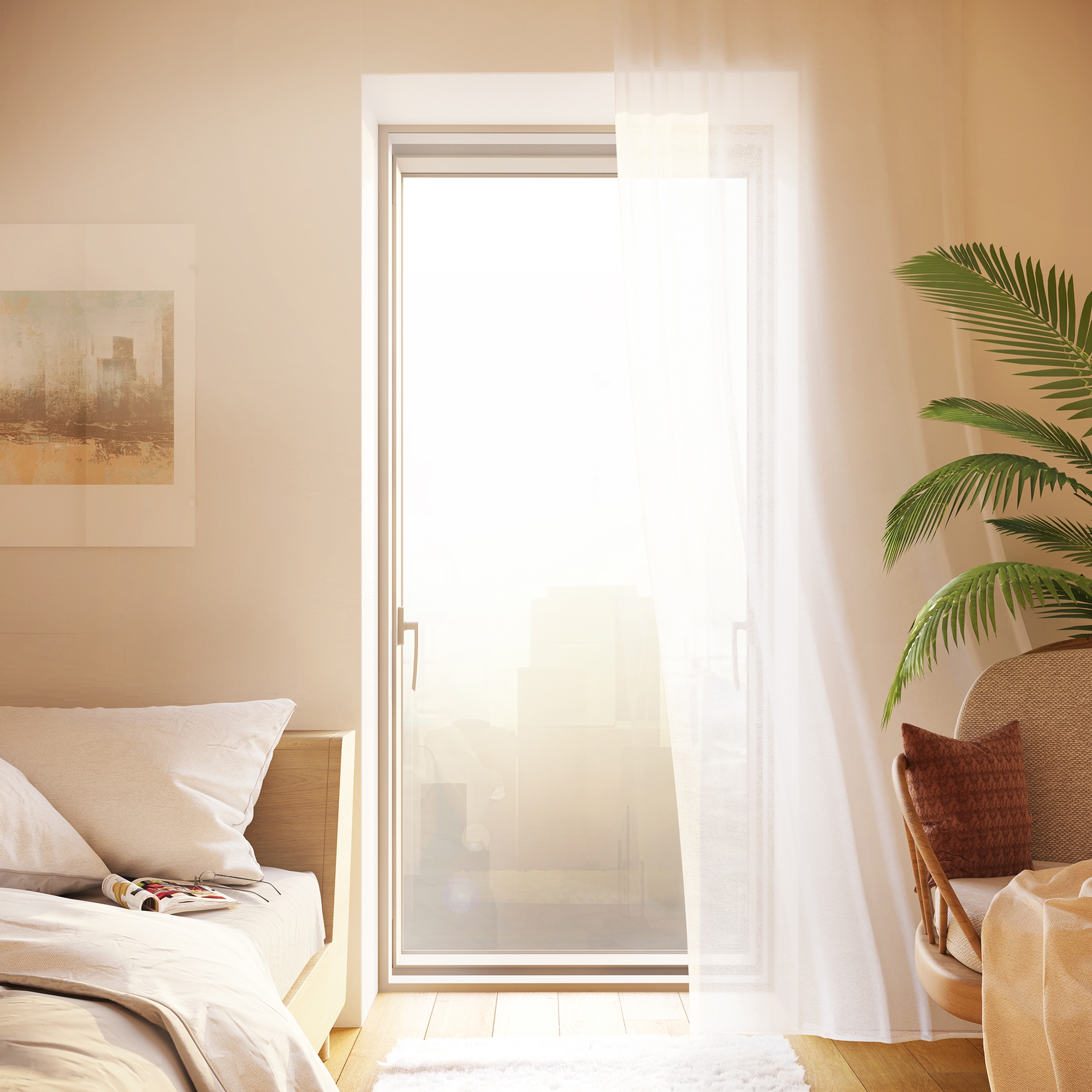

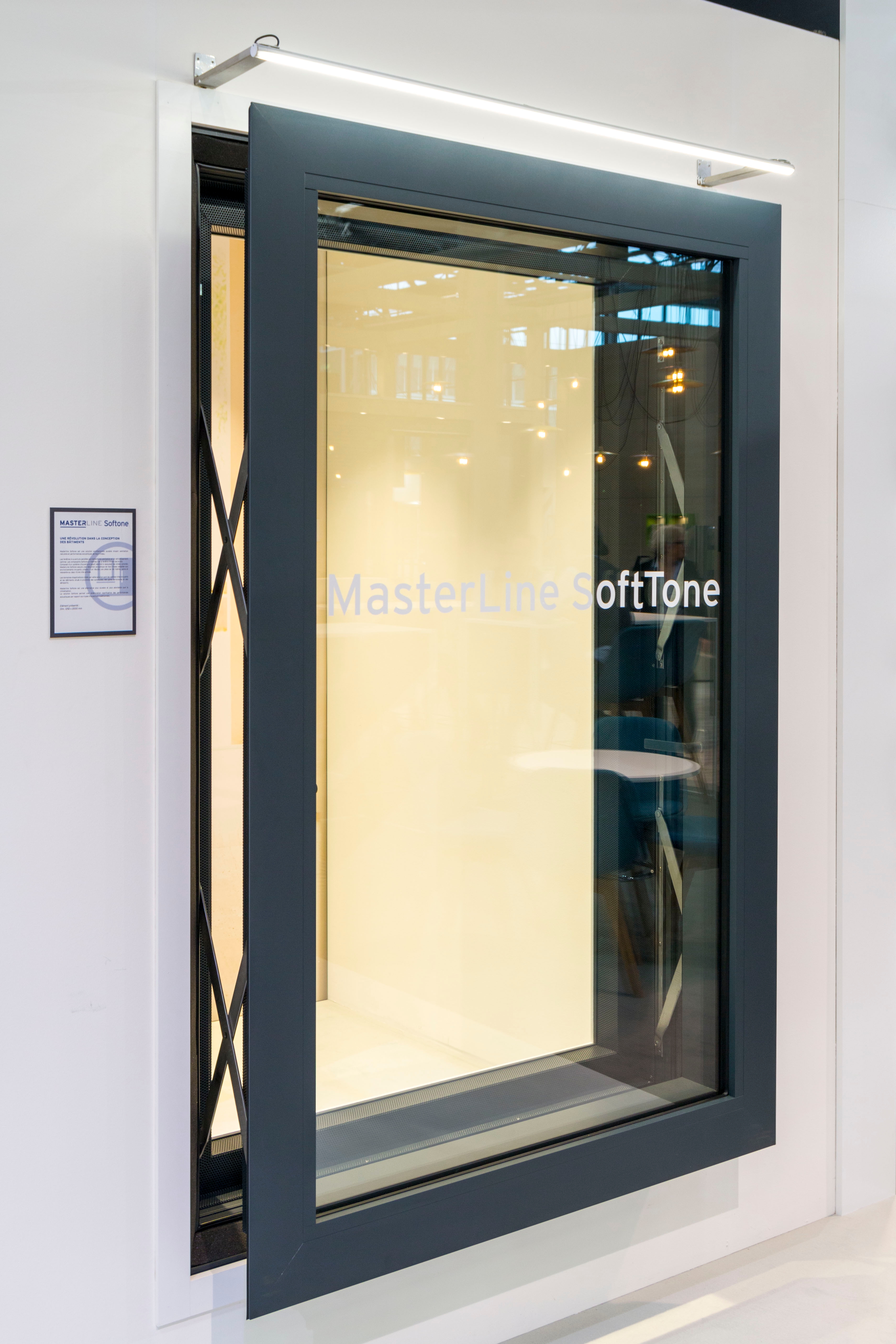

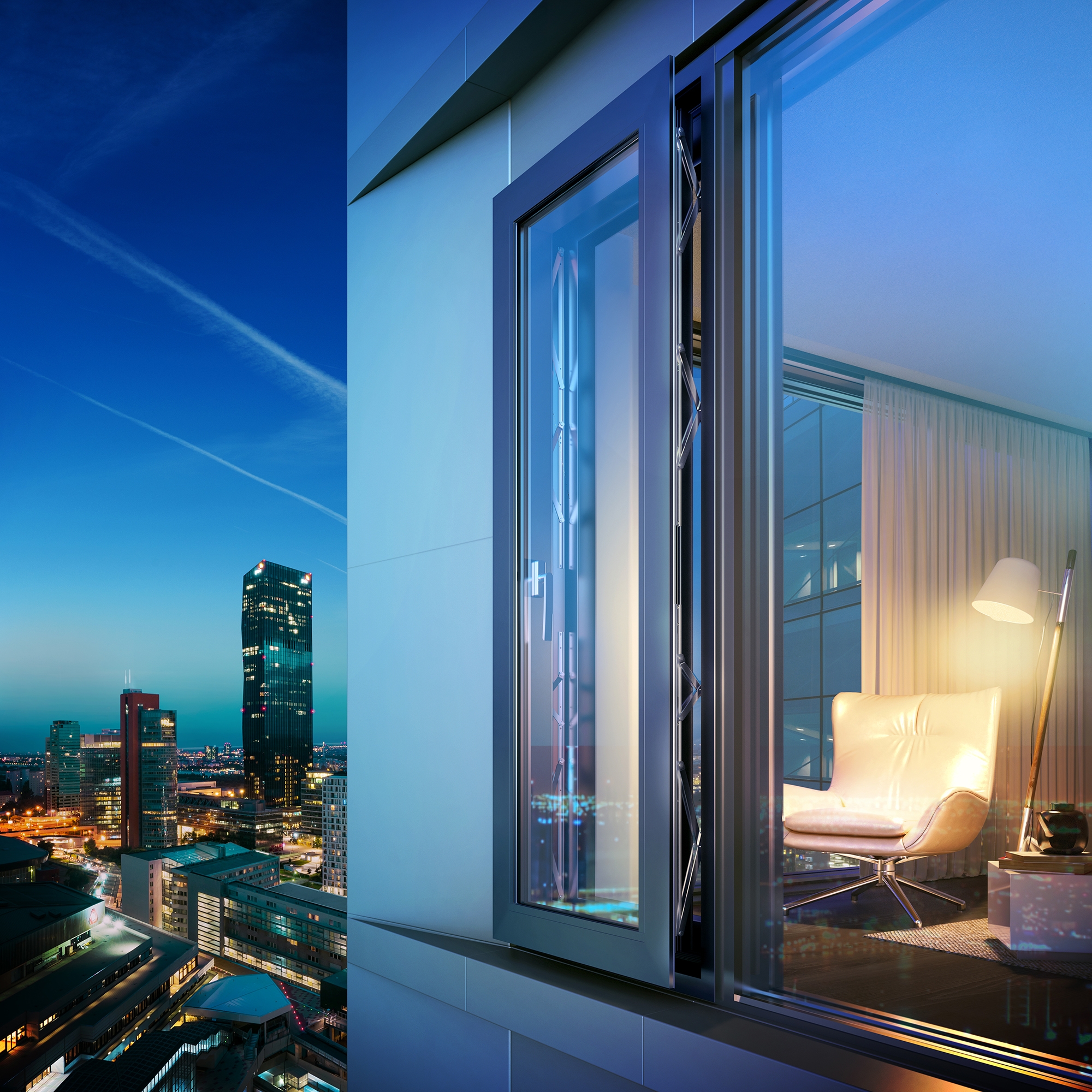

Masterline SoftTone®

Reynaers has launched a new variant of its Masterline window series, which has been developed as a noise-reducing solution, allowing architects to appease aspiring city-living homeowners to still open a window and create a fresh indoor living experience.

SoftTone® is the result of the partnership between Arup – who developed SAFE (sound attenuating façade element) technology, and Reynaers. The result is a sustainable architectural solution for natural cooling and ventilation in urban environments

The parallel opening window units allow maximal ventilation and cooling, the SoftTone® components inside the window filter out the noise. This results in a fresh, healthy and relax working and living experience, even in the middle of a vibrant city.

Properties

Min. visible width frame: outward opening 20 mm
Min. visible width frame-vent: outward opening 144 mm
Min. visible width T-profile 47 mm
Max. height vent 2600 mm
Max. width vent 1700 mm
Overall system depth frame 237 mm
Overall system depth vent 161 mm
Rebate height 27 mm
Min. glass thickness 4 mm
Max. glass thickness 54 mm
Max. sash weight 200 kg
Glazing method Dry glazing with EPDM or neutral silicone

You can find the BIM models for this product here.
